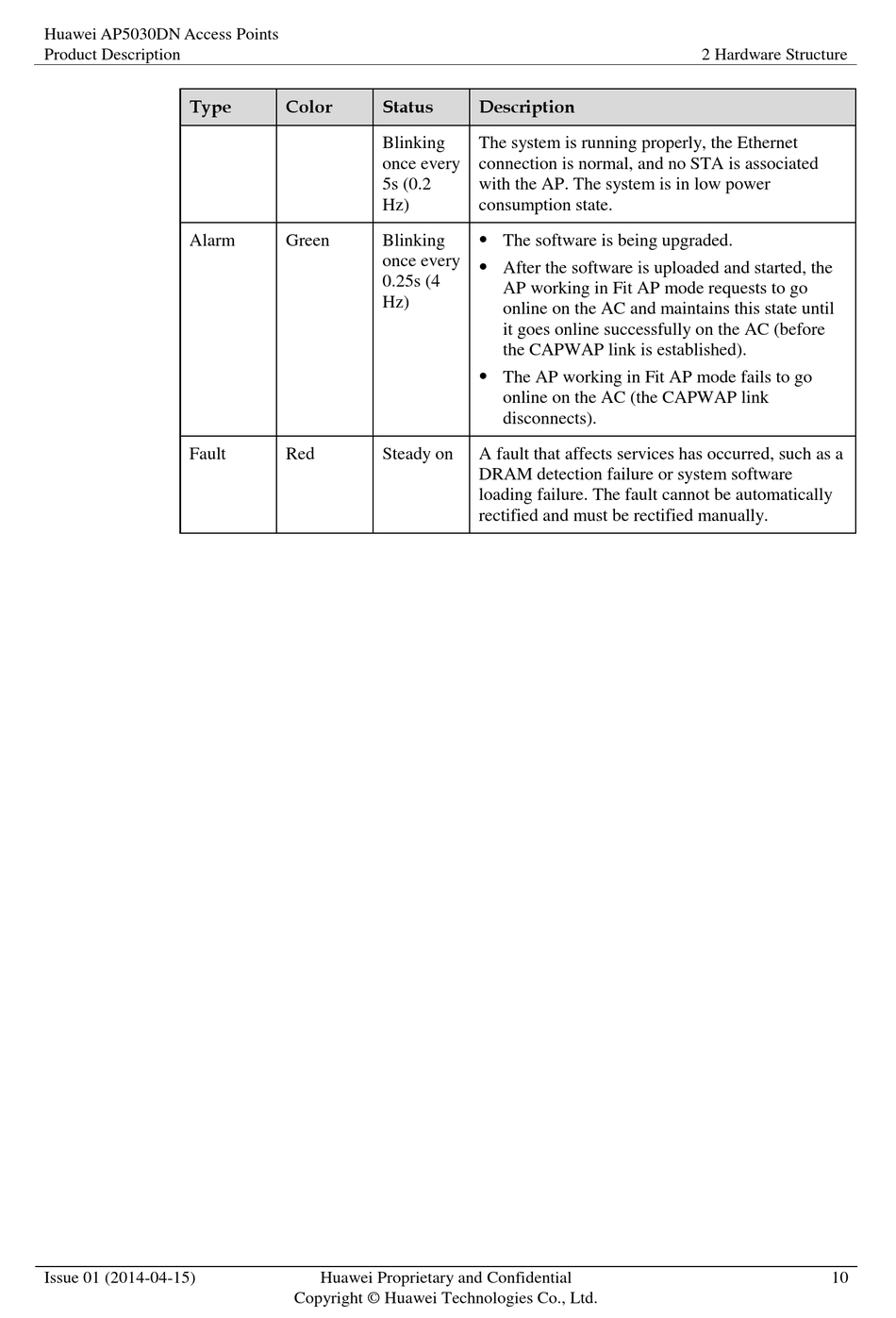

Huawei AP5030DN Product Description page 13

Huawei AP5030DN Access Points
Product Description
Type
Alarm
Fault
Issue 01 (2014-04-15)
Color Status
Blinking
once every
5s (0.2
Hz)
Green Blinking
once every
0.25s (4
Hz)
Red Steady on
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Description
The system is running properly, the Ethernet
connection is normal, and no STA is associated
with the AP. The system is in low power
consumption state.
 The software is being upgraded.
 After the software is uploaded and started, the
AP working in Fit AP mode requests to go
online on the AC and maintains this state until
it goes online successfully on the AC (before
the CAPWAP link is established).

The AP working in Fit AP mode fails to go
online on the AC (the CAPWAP link
disconnects).
A fault that affects services has occurred, such as a
DRAM detection failure or system software
loading failure. The fault cannot be automatically
rectified and must be rectified manually.
