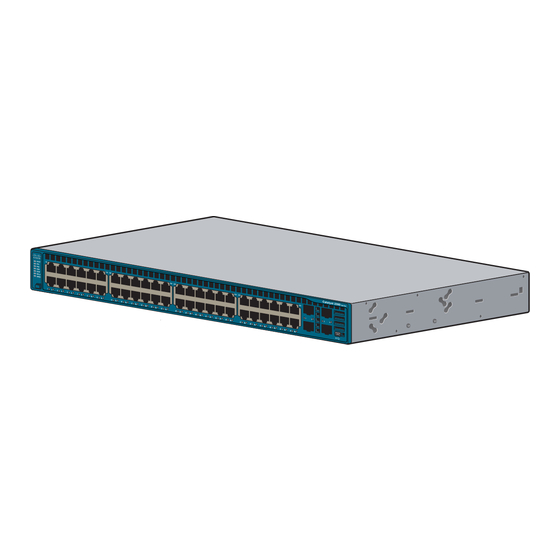

Catalyst 2360 Switch Getting Started Guide
•
•
•
•
•
•
•
•
•
About This Guide
This guide provides instructions on how to use Express Setup to initially configure your Catalyst switch.
It covers switch management options, basic rack-mounting, port and module connection procedures, and
troubleshooting help.
For additional installation and configuration information for the switch, see the Catalyst 2360 switch
documentation on Cisco.com. For system requirements, important notes, limitations, open and resolved
bugs, and last-minute documentation updates, see the release notes, also on Cisco.com. For translations
of the warnings that appear in this publication, see the Regulatory Compliance and Safety Information
for the Catalyst 2360 Switch on Cisco.com. The product warranty information is on Cisco.com.
When using the online publications, see the documents that match the Cisco IOS software version
running on the switch. The software version is on the Cisco IOS label on the switch rear panel.
Americas Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
About This Guide
Unpacking the Switch
Running Express Setup
Setting the Switch Air Flow Direction
Managing the Switch
Rack-Mounting
Connecting to the Switch Ports
Troubleshooting
Obtaining Documentation and Submitting a Service Request
Advertisement
Table of Contents
Related Manuals for Cisco Catalyst 2360
Summary of Contents for Cisco Catalyst 2360
-
Page 1: About This Guide
Catalyst 2360 Switch on Cisco.com. The product warranty information is on Cisco.com. When using the online publications, see the documents that match the Cisco IOS software version running on the switch. The software version is on the Cisco IOS label on the switch rear panel. Americas Headquarters:... -
Page 2: Unpacking The Switch
Unpack and remove the switch and the accessory kit from the shipping box. Return the packing material to the shipping container, and save it for future use. Verify that you have received these items. If any item is missing or damaged, contact your Cisco representative or reseller for instructions. -
Page 3: Running Express Setup
During Express Setup, the switch acts as a DHCP server. If your PC has a static IP address, temporarily configure your PC settings to use DHCP before proceeding to the next step. Write down the static IP address. You need this IP address in Step Note Catalyst 2360 Switch Getting Started Guide OL-22149-02... - Page 4 Before going to the next step, wait until POST is complete. This might take up to 5 minutes. Troubleshooting: If the SYSTEM LED blinks green, does not turn solid green, or turns amber, contact your Cisco representative or reseller. The switch failed the power-on self-test (POST). Step 4 Press and hold the Mode button until all of the LEDs above the Mode button turn solid green.
- Page 5 The other device is turned on. • Step 6 Enter the IP address 10.0.0.1 in a web browser, and press Enter. When prompted, enter the default password, cisco. The switch ignores text in the username Note field. The Express Setup window appears.
- Page 6 In the Confirm Switch Password field, enter your password again. You must change the password from the default password, cisco. Note Optional Fields You can enter other administrative settings in the Express Setup window.
-
Page 7: Setting The Switch Air Flow Direction
2, change it back to the previously configured static IP address. Step 11 You can now manage the switch by using the Cisco Network Assistant, the device manager, or both. See the “Managing the Switch” section on page 10 for information about configuring and managing the switch. - Page 8 50 -6 0H 1 3 5 W 2- 1A , 50 -6 0H 1 3 5 W Figure 4 shows the fan orientation for airflow into the ports and shows an updated switch chassis. Catalyst 2360 Switch Getting Started Guide OL-22149-02...
- Page 9 50 -6 0H 1 3 5 W 2- 1A , 50 -6 0H 1 3 5 W Figure 6 shows the fan orientation for airflow out of the ports and shows an updated switch chassis. Catalyst 2360 Switch Getting Started Guide OL-22149-02...
-
Page 10: Managing The Switch
Use the device manager to perform basic switch configuration and monitoring. See the device manager online help for more information. For more advanced configuration, download and run the Cisco Network Assistant, which is described in the next section. Catalyst 2360 Switch Getting Started Guide... -
Page 11: Cisco Network Assistant
Network Assistant installation. See the Network Assistant online help and the getting started guide for more information. Command-Line Interface You can enter Cisco IOS commands and parameters through the CLI. Access the CLI by using one of these options: RJ-45 Console Port •... -
Page 12: Rack Mounting
You can use SNMP management applications such as CiscoWorks LAN Management Solution (LMS) and Cisco netManager to configure and manage the switch. You also can manage it from an SNMP-compatible workstation that is running platforms such as Cisco netManager or SunNet Manager. -
Page 13: Installation Warning Statements
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Warning Statement 1030 Attaching the Brackets Use four Phillips flat-head screws to attach the long side of the brackets to Catalyst 2360 switches in one of three mounting positions. Catalyst 2360 Switch Getting Started Guide OL-22149-02... -
Page 14: Rack-Mount The Switch
Rack-Mount the Switch Use the four number-12 Phillips machine screws to attach the brackets to the rack. Use the black Phillips machine screw to attach the cable guide to the left or right bracket. Catalyst 2360 Switch Getting Started Guide OL-22149-02... -
Page 15: Connecting To The Switch Ports
Category 5 cable DP LX SP ED when you connect to other switches, hubs, or repeaters. Step 2 Insert the other cable end into an RJ-45 port on the other device. Catalyst 2360 Switch Getting Started Guide OL-22149-02... -
Page 16: Install The Sfp Or Sfp+ Modules
10/100/1000 module port on the switch, regardless of the type of device on the other end of the connection. Install the SFP or SFP+ Modules The Catalyst 2360 switch has four SFP+ module slots. These slots support both SFP and SFP+ modules. Class 1 laser product. Statement 1008 Warning... -
Page 17: Troubleshooting
Mode button to enter the Setup? Express Setup mode. POST errors are usually fatal. Contact your Cisco technical support representative if your switch fails POST. Did you press the Mode button while If yes, wait until POST completes. Power cycle the switch. -
Page 18: Resetting The Switch
First look for a solution to your problem in the troubleshooting section of the switch hardware installation guide or the switch software configuration guide on Cisco.com. You can also access the Cisco Technical Support and Documentation website for a list of known hardware problems and extensive troubleshooting documentation. -
Page 19: Obtaining Documentation And Submitting A Service Request
Cisco currently supports RSS version 2.0. Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. - Page 20 Obtaining Documentation and Submitting a Service Request Catalyst 2360 Switch Getting Started Guide OL-22149-02...
