Hanging The Fan; Remote Control - Yosemite TWIN-PEAK2 Owner's Manual

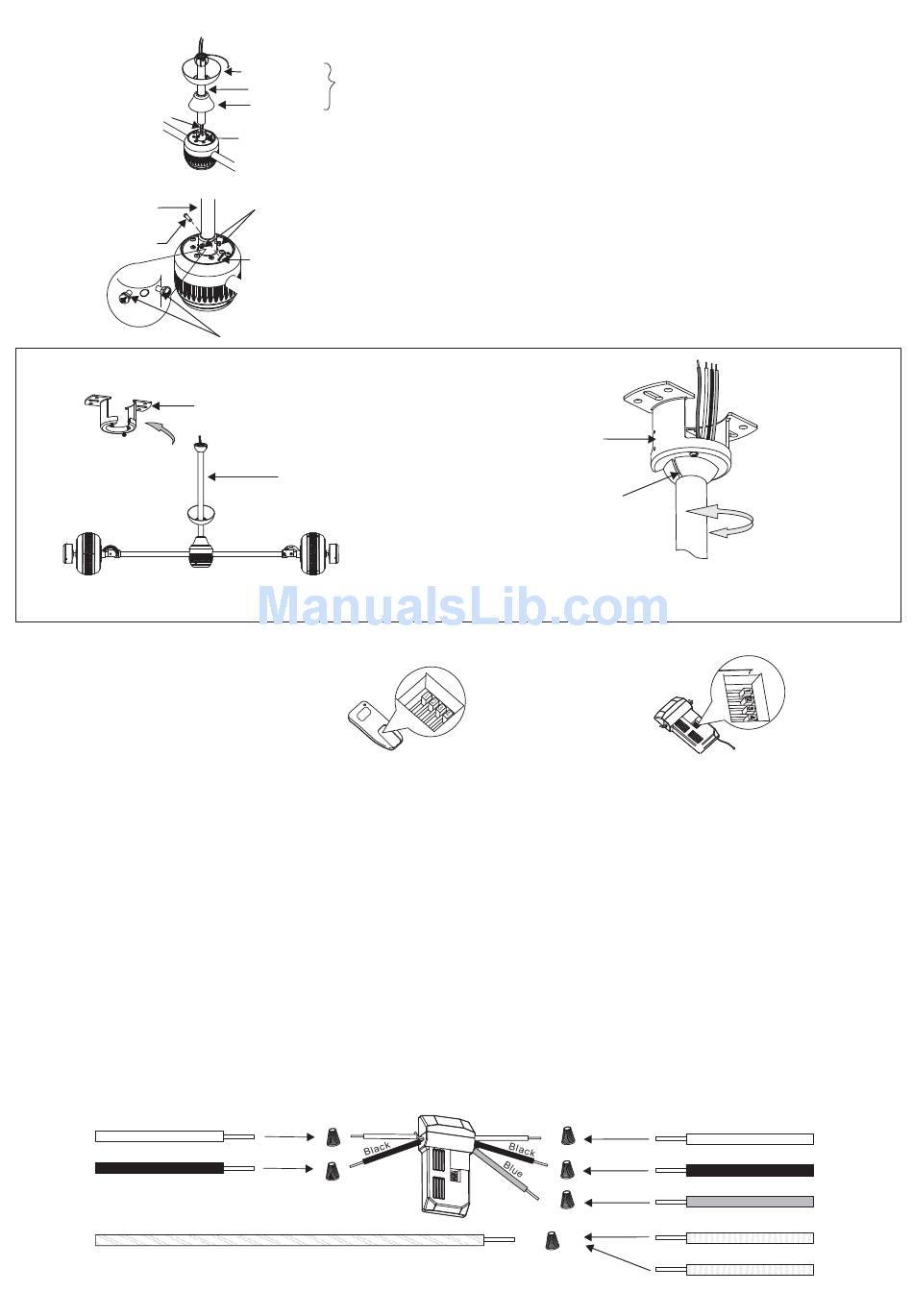

5. Yoke & downrod assembly
5a.
Lead Wires
5b.
Downrod
Cross Pin

6. Hanging the fan

Mounting
Bracket
(1)
Lift fan assembly onto mounting bracket.
II - Remote Control
1.Prepare the parts of the remote control.
2. Setting the code on the transmitter.
2-1. Remove the battery cover of the remote control.
2-2. Slide code switches to your choice for an ON and OFF position. Use a small screwdriver to slide each
of the switches.
2-3. Install a 9V DC battery (included).
2-4. Install battery covers on transmitter.
3. Setting the code on the receiver:
3-1. Slide the code switches to the receiver. Be sure that the code is similar to the code set at the
transmitter.
4. For remote control wiring connection to the fan:
4-1. Follow the diagram below and be sure that exposed wires are secured inside wire nuts or the
terminal block.
Note: Wires from the house may vary in color and may not include ground wire (green).
4-2. When the wiring is completed, gently push wires into the junction box with wire nuts pointing upward.
From House
White
(AC-N)
Black
(AC-L)
Green
( for ground wire )
Secure with twist - lock wire nuts (Included).
Canopy
Downrod
Downrod
Assembly
Yoke Cover
Yoke
Set Screws(2)
Cotter Pin
Hex Nut(2)
Fan
Assembly
Transmitter
Code Switches
From Remote
White
1.Insert the Yoke Cover and Canopy through downrod
assembly as shown (5a).
2.Feed motor lead wires through downrod assembly.
3.Insert the downrod assembly into yoke.
1.Insert the cross pin through Yoke and downrod and
secure with Cotter Pin.
2.Tighten both set screws to further secure downrod.
3.Tighten hex nuts existing on set screws toward yoke
to prevent set screws from loosening.
4.Pull down the yoke cover on top of housing.
Mounting
Bracket
Ball Notch
(2)
Carefully lift fan assembly onto mounting bracket.
Rotate fan so that the ball
ridge in the mounting bracket.
Receiver
Code Switches
White
P3
notch engages the
From Fan
White
( Motor - N )
Black
( Motor - L )
Blue
( for light kit )
Green
( from downrod )
Green
( from mounting bracket )
