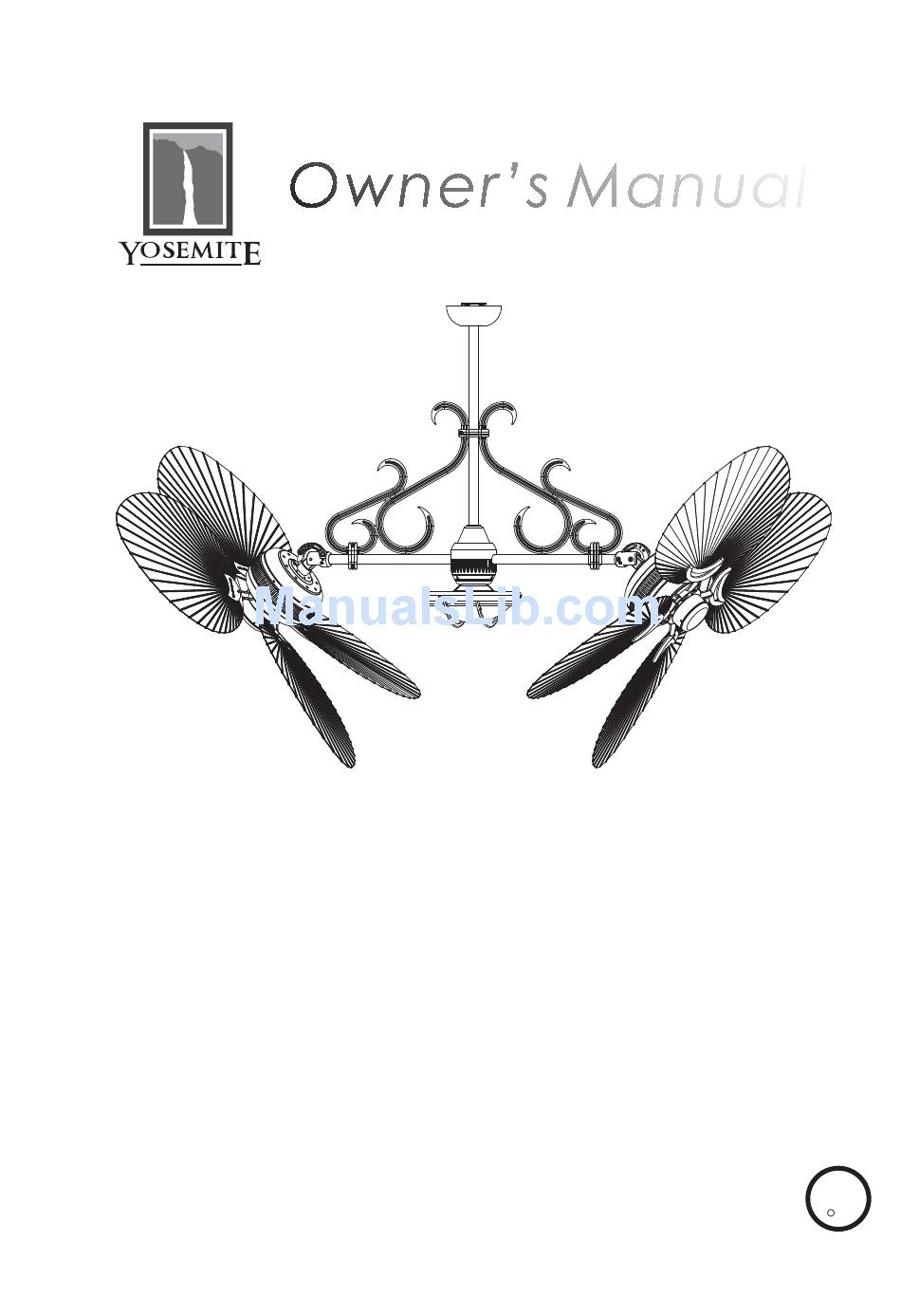

- Page 1 Owner’s Manual TWIN-PEAK2 WARNING : Read and follow these instructions carefully and be cautious of all warnings shown throughout.
- Page 2 READ AND SAVE THESE INSTRUCTIONS Warning: To avoid the risks of fire, electrical shock or injury, please observe the following: To ensure the correct and complete installation, be sure to read the instructions and review the diagrams carefully and thoroughly before beginning installation. If possible, mount the ceiling fan on a ceiling joist.
- Page 3 I - Opening of the box 1.Unpack and inspect the fan carefully to be certain that all contents are included. Identify and check the parts referred to the drawing below. Light Kit Hardware bag Remote Control Hex Nut 1 pc Transmitter Light Kit Fitter Suitable for use with solid - state speed control...
-
Page 4: Hanging The Fan
5. Yoke & downrod assembly 1.Insert the Yoke Cover and Canopy through downrod Canopy Downrod assembly as shown (5a). Downrod Assembly Yoke Cover 2.Feed motor lead wires through downrod assembly. Lead Wires 3.Insert the downrod assembly into yoke. Yoke Set Screws(2) Downrod 1.Insert the cross pin through Yoke and downrod and Cross Pin... - Page 5 5.Canopy Installation Canopy (1) Push up the canopy until the two canopy screws on mounting bracket are engaged Screw with key holes in canopy. Rotate the canopy slightly until the two Key Holes canopy screw heads are in the small end of the key holes.
- Page 6 V.Scroll Kit Attachment Scroll (1). Align scroll onto vertical downrod and horizontal bar and secure connector to scroll with screws provided. (2). Attach second scroll on other side with same step as above. Horizontal Bar Connector Downrod (3). Secure two scrolls onto downrod together with screws provided.
