Summary of Contents for SonicWALL sonicpoint ACI

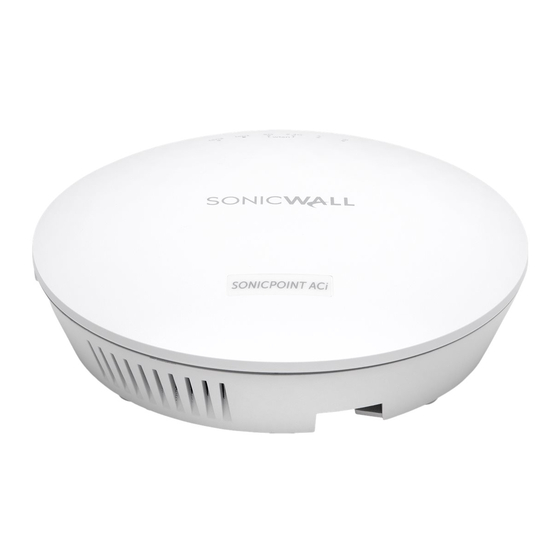

- Page 1 SonicWall™ SonicPoint ACi Getting Started Guide Regulatory Model Number: APL27‐0B1...
- Page 2 Copyright © 2017 SonicWall Inc. All rights reserved. SonicWall is a trademark or registered trademark of SonicWall Inc. and/or its affiliates in the U.S.A. and/or other countries. All other trademarks and registered trademarks are property of their respective owners The information in this document is provided in connection with SonicWall Inc. and/or its affiliates’ products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of SonicWall products. EXCEPT AS SET FORTH IN THE TERMS AND CONDITIONS AS SPECIFIED IN THE LICENSE AGREEMENT FOR THIS PRODUCT, SONICWALL AND/OR ITS AFFILIATES ASSUME NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON‐INFRINGEMENT. IN NO EVENT SHALL SONICWALL AND/OR ITS AFFILIATES BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF SONICWALL AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SonicWall and/or its affiliates make no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. SonicWall Inc. and/or its affiliates do not make any commitment to update the information contained in this document. For more information, visit https://www.sonicwall.com/legal/. Legend WARNING: A WARNING icon indicates a potential for property damage, personal injury, or death. CAUTION: A CAUTION icon indicates potential damage to hardware or loss of data if instructions are not followed. IMPORTANT, NOTE, TIP, MOBILE, or VIDEO: An information icon indicates supporting information. SonicPoint ACi Getting Started Guide Updated ‐ January 2017 232‐003410‐50 Rev A...
-
Page 3: In This Guide
Introduction In this guide This Getting Started Guide provides instructions for basic installation and configuration of the SonicWall™ SonicPoint ACi wireless access point in single‐unit or multi‐unit wireless deployments. Chapter 1 Topics Introduction on page 3 • Wireless overview on page 5 Chapter 2 Topics Initial Setup on page 9 • Check package contents on page 9 • Deployment requirements on page 10 • SonicPoint ACi available ports/status LEDs on page 11 • Connecting Ethernet cables on page 13 • Wireless access point placement considerations on page 14 • Mounting the SonicPoint ACi on page 16 SonicWall SonicPoint ACi Getting Started Guide... - Page 4 Chapter 3 Topics Configuring SonicOS for wireless access on page 21 • Configuring SonicOS for SonicPoint ACi on page 21 • Verifying SonicPoint operation on page 25 • Troubleshooting tips on page 26 Chapter 4 Topics Support and product registration on page 27 • Registration and support on page 27 • Online support and training on page 28 Chapter 5 Topics Product safety and regulatory information on page 29 • Mounting the appliance on page 30 • Verwarnung Weitere hinweise zur montage on page 31 • EU and EFTA on page 32 • Declaration of conformity on page 33 SonicWall SonicPoint ACi Getting Started Guide...
-
Page 5: Wireless Overview
Wireless overview The SonicPoint ACi is part of the next evolutionary generation in wireless access points after the SonicWall SonicPoint N and NDR. The SonicPoint ACi provides physical layer enhancements for higher throughput with a maximum data rate of 1.3 Gbps. To achieve this, the SonicPoint ACi uses: • Wider channels—80 MHz‐wide channels for the 802.11ac radio module, while continuing to support 20/40 MHz channels. This allows for dynamic per packet negotiation of channel widths so that when there is interference, the SonicPoint can temporarily fall back to 40 or 20MHz channels. • More spatial streams—3X3 multiple‐input and multiple‐output, (MIMO) for the 802.11ac radio module, where the capacity of a radio link is multiplied using multipath propagation. SonicWall SonicPoint ACi Getting Started Guide... -
Page 6: Sonicwall Wireless Firewalling
SonicWall wireless firewalling Many security products on the market share this potential vulnerability when two users connected by a common hub or wireless access point wish to exchange data. When a wireless device uses a SonicWall SonicPoint ACi wireless access point to communicate with a wireless device SonicWall addresses this security shortcoming by managing on another subnet or on a completely different network, traffic the SonicPoint access points from the network security between the devices is forced to traverse the SonicWall appliance. This allows complete control of the wireless space, network security appliance. This traversal enables security including zone enforcement of security services and complete services to be enforced by SonicOS. firewalling capabilities. Standard practice for wireless firewalling (where one wireless Secure wireless firewalling client is communicating with another) bypasses many of the critical security services. The following illustration shows the standard practice for wireless firewalling. SonicWall SonicPoint Standard wireless firewalling SonicWall appliance Content Filtering Service Client Anti-Virus Enforcement Gateway Anti-Virus Other Security Appliance Gateway Anti-Spyware Intrusion Prevention Service... -
Page 7: Frequency Bands And Channels
Frequency bands and channels There are currently five widely adopted standards for 802.11 wireless network types: a, b, g, n, and ac. 802.11n and 802.11ac are the newest and highest capacity standards, but older client devices may not be able to utilize the newer standards. Wireless standards 802.11 (x) Frequency standard Maximum data rate 802.11a 5 GHz 54 Mbps 802.11b 2.4 GHz 11 Mbps 802.11g 2.4 GHz 54 Mbps 802.11n 2.4 GHz and 5 GHz 450 Mbps 802.11ac 5 GHz + multichannel + multipath 1.3 Gbps Different frequency bands provide varying signal strength and quality over different distance ranges. Signals in the 2.4 GHz range tend to pass through physical barriers better and carry farther than those in the 5 GHz range, but they do not provide as high a data rate. Signals in the 5 GHz range provide faster data rates for better throughput, but the signal attenuates faster and is best suited for open spaces. Strengths and weaknesses of 5 GHz and 2.4 GHz signals 5 GHz 2.4 GHz Strength Higher speed, more channels Longer Range, stronger signal penetration Weakness Limited penetration of walls, client compatibility More sources of interference SonicWall SonicPoint ACi Getting Started Guide... - Page 8 Refer to Radio frequency barriers and RF interference on page 15 for detailed information about RF barriers and interference. To allow multiple separate wireless networks in a shared and confined space, the RF medium is divided into channels. For devices in the 5 GHz range (802.11a/n/ac), this means the possibility of up to 23 discrete channels. For devices using the 2.4 GHz range (802.11b/g/n), the wireless space is limited to a maximum of 14 overlapping channels. As a result of these overlapping channels, 2.4 GHz technology provides only a total of three discrete channels. 802.11 comparison chart 802.11 signal characteristics 802.11a 802.11b 802.11g 802.11n 802.11ac # of Channels in USA # of Channels in EU # of Channels in Japan Frequency Band 5 GHz 2.4 GHz 2.4 GHz 2.4/5 GHz 5 GHz Max. Data Rate 54 Mbps 11 Mbps 54 Mbps 450 Mbps (For 1.3 Gbps (For QAM‐ 3X3 MIMO) 64, MIMO 3X3, and 80 MHz channels) Radius (Range) 90ft/25m 120ft/35m 120ft/35m 300ft/90m 120ft/35m NOTE: Although 802.11b/g/n standards provide between 11 and 14 channels, only three of those channels are fully discrete (non‐overlapping) channels. SonicWall SonicPoint ACi Getting Started Guide...
-
Page 9: Initial Setup
Initial Setup This section provides a basic checklist of materials, hardware information, and describes how to connect and configure physical aspects of the SonicWall SonicPoint ACi including cabling and mounting. • Check package contents on page 9 • Deployment requirements on page 10 • SonicPoint ACi available ports/status LEDs on page 11 • Connecting Ethernet cables on page 13 • Wireless access point placement considerations on page 14 • Mounting the SonicPoint ACi on page 16 Check package contents Before continuing, ensure that your SonicPoint ACi package contains the following materials: SonicWall SonicPoint ACi Getting Started Guide... -
Page 10: Any Items Missing
• SonicOS 5.9.1.6 or a higher 5.9 release SonicPoint ACi Appliance Checklist • SonicOS 6.2.5.1 or higher SonicWall SonicPoint ACi Appliance Power over Ethernet Mounting Kit (Ceiling Brackets, Anchor and Screw Kit) • An 802.3at compliant PoE injector or PoE‐capable Getting Started Guide switch capable of providing 25 watts of power to each SonicPoint ACi is required. Any items missing? Internet connectivity • An active Internet connection is required for your If any of the items corresponding to your product are missing firewall to download the latest SonicPoint firmware. from the package, contact Technical Support at: https:// support.sonicwall.com/contact‐support Gigabit Ethernet connectivity A listing of the most current support documents are available • 802.11ac wireless hardware requires more bandwidth online at: than a single (or even dual) 10/100 Ethernet connection https://support.SonicWall.com/SonicWall‐SonicPoint‐series/ can handle. Gigabit Ethernet connectivity between the ace/release‐notes‐guides WLAN and the LAN is required to take full advantage of 802.11ac speed. See Product safety and regulatory information on page 29. Deployment requirements SonicOS firmware • SonicWall SonicPoint ACi access points are centrally managed by SonicWall network security appliances running the following versions of SonicOS: SonicWall SonicPoint ACi Getting Started Guide... -
Page 11: Sonicpoint Aci Available Ports/Status Leds
SonicPoint ACi available ports/status LEDs Available ports LAN2 port. Provides an additional Ethernet connection. Refer to the SonicOS Administration Guide for use cases. LAN1/PoE port. Console port. Provides Ethernet and Provides a management connection Power over Ethernet (PoE) using CLI > DB9 cable (for command connections. line management only). SonicWall SonicPoint ACi Getting Started Guide... - Page 12 Status LEDs LED (5G) LED (2.4G) ‐ On (solid green, 5 GHz radio link) ‐ On (solid green, 2.4 GHz radio link) ‐ Blinking green (5 GHz radio activity) ‐ Blinking (2.4 GHz radio activity) LED (lan1) LED (Tool) ‐ On (solid yellow or green, Ethernet link) ‐ On (solid yellow, error) ‐ Blinking yellow (1G Ethernet activity) ‐ Blinking (safe mode) ‐ Blinking green (10/100M Ethernet activity) LED (lan2) LED (Power) ‐ On (solid yellow or green, Ethernet link) ‐ On (solid blue, power) ‐ Blinking yellow (1G Ethernet activity) ‐ Blinking (booting/FW upgrade) ‐ Blinking green (10/100M Ethernet SonicWall SonicPoint ACi Getting Started Guide...
-
Page 13: Connecting Ethernet Cables
X2 WLAN X0 LAN To connect PoE to your SonicPoint ACi PoE Injector 1 Using an Ethernet cable, connect the Data in port on or PoE Switch Local Network (LAN) the SonicWall PoE Injector to an existing WLAN zone interface or to an unused interface to be configured later in SonicOS. Wireless Clients 2 Using a second Ethernet cable, connect the Data and Power out port on the SonicWall PoE injector to the LAN1/PoE port on your SonicPoint ACi. CAUTION: An 802.3at compliant PoE injector or PoE‐ 3 Plug the power cord of the SonicWall PoE injector into capable switch capable of providing 25 watts of power an appropriate power outlet. to each SonicPoint ACi is required. 4 Wait for the LAN1 LED on the SonicPoint ACi to illuminate green. This indicates an active connection. To maintain 25 watts of power to the SonicPoint ACi, the maximum length of CAT5e cable from the 802.3at See Product safety and regulatory information on page 29. PoE injector to the SonicPoint ACi is 30 meters. SonicWall SonicPoint ACi Getting Started Guide... -
Page 14: Wireless Access Point Placement Considerations
PoE injector to the SonicPoint ACi is 30 meters. • Hubs / Switches – Your wireless deployment has to tie Physical placement of the SonicPoint ACi wireless access point back into your network security appliance and LAN has a measurable effect on who can and cannot access your resources. Consider where your key networking devices wireless signal. are deployed and how they will connect efficiently with your wireless appliances. What speed is needed for Access points should be kept clear of Radio Frequency (RF) your Ethernet connection to accommodate the number interference sources. RF barriers can be circumvented by of access points you are installing? A Gigabit Ethernet deploying multiple access points. interface is recommended when connecting a A site survey will help find the optimum wireless access point SonicPoint ACi to your SonicWall network security placement, but you can find usable locations without it. appliance. Considerations include: • Legacy clients ‐ Older laptops and mobile devices may not support 802.11ac. Although clients with 802.11a/g/ • Number of access points versus user density – If too b hardware are supported by the SonicWall SonicPoint many users are serviced by a single access point, ACi, the presence of these legacy clients within range of maximum transfer rates are reached and that access your wireless network could affect the connection point may become a bottleneck for the whole system. speed of your 802.11ac clients. • Bandwidth – How much data is moving upstream and For example, an 802.11b device authenticated to the downstream for a given type of user? SonicPoint ACi could limit all clients connected to that ... -
Page 15: Radio Frequency Barriers
Barrier Type RF Signal Blocking Open air Very Low Interference Possible Range Bands Affected Source Glass, wood, drywall, cube partitions 2.4 GHz phones 100 feet 2.4 GHz Floors and outer walls, aquariums Medium (802.11 b/g/n) (brick/marble/granite/water) Bluetooth devices 30 feet 2.4 GHz Concrete, security glass, wire mesh, High (802.11 b/g/n) stacked books/paper Microwave oven 10‐20 feet 2.4 and 5 GHz, Metal partitions, desks, reinforced Very High depending on concrete shielding Scientific and Short distance, 2.4 and 5 GHz, medical varies depending on equipment shielding SonicWall SonicPoint ACi Getting Started Guide... -
Page 16: Mounting The Sonicpoint Aci
Mounting the SonicPoint ACi Small ceiling brackets You can mount your SonicWall SonicPoint ACi to a wall or ceiling, or you can simply set it on a flat surface. For safety tips when mounting the SonicPoint ACi, see Product safety and regulatory information on page 29. The underside of the SonicPoint ACi has two insertion points Mounting using ceiling brackets for the screws. You can use these insertion points to attach either the large bracket or the two small brackets to the The mounting kit includes a large bracket, two small brackets, SonicPoint ACi. anchor screws, and screws. Holes for screws Large ceiling bracket SonicWall SonicPoint ACi Getting Started Guide... - Page 17 To mount the SonicPoint ACi to a crossbar between 2 Supporting the SonicPoint in one hand, position the edge clips of the bracket over the edge of the ceiling ceiling panels using the large bracket crossbar and rotate the SonicPoint counterclockwise (to 1 Use the included screws to attach the large bracket to the left when looking up at it) until the bracket is the underside of the SonicPoint. securely attached to the crossbar. Fasten the large ceiling bracket To remove the SonicPoint ACi from the ceiling crossbar, rotate it clockwise (to the right when looking up at it) until the bracket detaches from the crossbar. SonicWall SonicPoint ACi Getting Started Guide...
- Page 18 To mount the SonicPoint ACi to a crossbar between ceiling panels using the small ceiling brackets: 1 Use the included screws to attach the small brackets to the underside of the SonicPoint, making sure both brackets are parallel. Mounting brackets 2 Supporting the SonicPoint in one hand, clip the edge of each bracket over the edge of the ceiling crossbar as shown in the following image. Make sure the SonicPoint is securely attached to the crossbar before releasing the device. SonicPoint unit Ceiling crossbar SonicWall SonicPoint ACi Getting Started Guide...
-
Page 19: Mounting Using Anchor Screws
Mounting using anchor screws To mount the SonicPoint ACi using the anchor screws 1 On the mounting surface, mark the location to make two screw holes. The marks should be horizontally parallel to each other. 2 Screw the anchor screws into the ceiling tile or drywall to their full depth. 3 Insert the screws into the anchors, and screw them in deep enough to leave minimal space between the screw heads and the wall surface. 4 Supporting the SonicPoint in your hands, securely fit the underside slots of the SonicPoint onto the screw heads. SonicWall SonicPoint ACi Getting Started Guide... - Page 20 SonicWall SonicPoint ACi Getting Started Guide...
-
Page 21: Configuring Sonicos For Wireless Access
Configuring SonicOS for wireless access This section provides instructions for configuring SonicOS on your SonicWall network security appliance to connect your SonicPoint ACi to the WLAN zone and manage it as a Layer 2 device. For more advanced configurations, including Layer 3 management of your SonicPoint ACi on a LAN zone, refer to the SonicOS Administration Guide. • Configuring SonicOS for SonicPoint ACi on page 21 • Verifying SonicPoint operation on page 25 • Troubleshooting tips on page 26 Configuring SonicOS for SonicPoint ACi You only need to complete three simple configuration tasks in SonicOS to prepare your SonicPoint ACi to provide secure wireless access. 1 Configure the network interface to which the SonicPoint ACi is connected. 2 Configure the WLAN zone for trust and security services. 3 Configure the SonicPoint ACi entry for the desired radio frequency, mode, and authentication type. SonicWall SonicPoint ACi Getting Started Guide... -
Page 22: Configuring The Network Interface
Configuring the network interface SonicOS 5.9 interface settings Each SonicPoint or group of SonicPoints must be connected to a physical network interface that is configured in a wireless zone. SonicOS provides a standard wireless zone (WLAN) which can be applied to any available interface. To configure the network interface in SonicOS 1 Navigate to the Network > Interfaces page and click Configure for the interface to which your SonicPoint is connected. 2 Select WLAN zone for the Zone type. SonicOS 6.2 interface settings 3 Select Static IP Mode for the Mode/IP Assignment. 4 In the IP Address field, type in any private IP address that does not interfere with the IP address range of any other interfaces on the appliance. 5 Enter a Subnet Mask. The default is 255.255.255.0. 6 Use the default settings or select appropriate settings for the other fields and then click OK. CAUTION: Allowing Management and User Login to the appliance from a wireless zone can pose a security threat, especially if you or your users have not set strong passwords. SonicWall SonicPoint ACi Getting Started Guide... -
Page 23: Configuring The Wlan Zone
Configuring the WLAN zone To configure the WLAN zone in SonicOS 1 On the Network > Zones page in the WLAN row, click the icon in the Configure column. 2 On the General tab, select the Allow Interface Trust setting to automate the creation of Access Rules to allow traffic to flow between the interfaces within the zone, regardless of the interfaces to which the zone is applied. For example, if the WLAN zone has both the X2 and X3 interfaces assigned to it, selecting Allow Interface Trust creates the necessary access rules to allow hosts on these interfaces to communicate with each other. 3 Select the checkboxes to enable security services on this zone. Minimally, you would enable Gateway Anti‐ Virus, IPS, and Anti‐Spyware. If your wireless clients are all running SonicWall Client Anti‐Virus, select 5 On the Wireless tab, select Only allow traffic Enable Client AV Enforcement Service. generated by a SonicPoint/SonicPointN to allow only 4 On the Guest Services tab, optionally configure guest traffic from SonicPoints to enter the WLAN zone Internet access. For information about Guest Services, interfaces, providing maximum security. see the SonicOS Administration Guide. 6 When finished, click OK. SonicWall SonicPoint ACi Getting Started Guide... -
Page 24: Configuring The Sonicpoint Aci Settings
5 Verify the Country Code for the area of operation. type, and other settings specific to your SonicPoint ACi. TIP: For deployments of multiple SonicPoints that need 6 Configure the remaining options as needed. For more the same provisioning settings, you can create a custom information, see the SonicOS Administration Guide. provisioning profile in the upper section of the SonicPoint > SonicPoints page. In the Network > Zones Radio 0 / Radio1 Basic tab settings page, you can edit the WLAN zone and specify this 7 Click the Radio 0 Basic tab, or the Radio 1 Basic tab. profile on the Wireless tab. Any SonicPoints connecting to an interface in the WLAN zone will then be The configuration is very similar for the Radio 0 and provisioned with the assigned profile. See the SonicOS Radio 1 Basic tabs. The main differences are the radio Administration Guide for more information. frequencies: To modify the SonicPoint ACi entry in SonicOS Radio Frequency Default Mode Radio 0 5 GHz 5 GHz 802.11ac/a Mixed 1 Navigate to the SonicPoint > SonicPoints page. Radio 1 2.4 GHz 2.4 GHz 802.11ac/g/b 2 In the SonicPointNs table, click the configure button in Mixed the row for the SonicPoint ACi entry you wish to modify. SonicWall SonicPoint ACi Getting Started Guide... -
Page 25: Verifying Sonicpoint Operation
Radio 0 / Radio1 Advanced tab settings 8 Select Enable Radio. 9 Select a Mode or use the default. 14 Click the Radio 0 Advanced tab, or the Radio 1 Advanced tab. 10 Under Wireless Security, select the Authentication Type for your wireless network. SonicWall recommends The configuration is very similar for the Radio 0 using WPA2 as the authentication type if all client Advanced and Radio 1 Advanced tabs. For most devices support it. advanced options, the default settings give optimum performance. For a full description of the fields on this TIP: PSK uses a personal passphrase for authentication, tab, see the SonicOS Administration Guide. EAP uses an Enterprise RADIUS server. 15 Optionally select the Hide SSID in Beacon checkbox. 11 Select the Cipher Type. When using WPA and WPA2, The SSID refers to the access point name that appears SonicWall recommends AES for maximum security. in clients’ lists of available wireless connections. NOTE: Older client devices might not support AES. Hiding the SSID provides additional security because it requires the user to know the access point name before 12 Fill in the fields specific to the authentication type that connecting. you selected. The remaining fields change depending on the selected authentication type. 16 When you are finished configuring all tabs, click OK. 13 Optionally, under ACL Enforcement, select Enable MAC Filter List to enforce Access Control by allowing or ... -
Page 26: Troubleshooting Tips
To verify Internet connectivity via the SonicPoint ACi • Ensure that the SonicPoint ACi is properly connected by Ethernet cable to an 802.3at compliant PoE device. A 1 Connect a client device to the SonicPoint ACi by PoE‐capable switch or PoE injector is required. selecting the appropriate access point name (SSID). • If an 802.3at compliant PoE injector is being used, verify 2 Ensure that the client device is not connected to any that the SonicPoint ACi is connected to the PoE port other network connections (wired LAN, 3G/4G WWAN). labeled Data and Power Out. 3 In a browser, enter “https://SonicWall.com” in the If the SonicPoint ACi has an entry in the table, but reboots address bar and press Enter. The SonicWall website frequently or seems non‐functional: should display. If you are unable to browse to a website, • Verify that your PoE switch/injector is compliant refer to Troubleshooting tips. 802.3at and rated to deliver 25 watts of power to each PoE port. 802.3af compliant PoE devices do not provide sufficient Troubleshooting tips power to properly run current generation 802.11 devices. An 802.3at compliant switch or PoE injector is required to power the SonicWall SonicPoint ACi. When the SonicPoint ACi is connected to a SonicWall network security appliance, the two units perform an encrypted • Click Synchronize SonicPoints on the SonicPoint > exchange, and an entry for the SonicPoint ACi is automatically SonicPoints page to force SonicOS to download a new created in the SonicPointNs table on the SonicPoint > SonicPoint firmware image from the SonicWall back‐... -
Page 27: Support And Product Registration
Support and product registration This section provides information about registering your SonicWall SonicPoint ACi, requirements for receiving technical support, and other online support and training options. • Registration and support on page 27 • Online support and training on page 28 Registration and support All SonicPoint ACi wireless access points include an initial subscription to SonicWall 24x7 Support. SonicOS will automatically register your SonicPoint ACi on MySonicWall, if connected to the Internet. It may take up to 24 hours for your SonicPoint ACi to be automatically registered. Optionally, you can manually register the SonicPoint ACi on MySonicWall by logging into your account at: http://www.MySonicWall.com. The SonicPoint ACi will also be associated in MySonicWall with the registered SonicWall network security appliance to which it is connected. See the Associated Products section at the bottom of the appliance Service Management page in MySonicWall. In order to receive technical support, your SonicPoint ACi must have an active Support subscription. SonicWall SonicPoint ACi Getting Started Guide... -
Page 28: Online Support And Training
Online support and training of security and appliance subject matters. The forums are organized by categories. SonicWall offers a variety of online support and training For more information, visit: https:// options for your convenience. forum.SonicWall.com/ • Customer support • Training SonicWall offers telephone, email and Web‐based SonicWall offers an extensive sales and technical support to customers who have a valid Warranty or training curriculum. SonicWall Training provides the E‐ who purchased a Support Contract. Review our Training, instructor‐led training, custom training, Warranty Support Policy for product coverage. technical certification, and uses authorized training SonicWall also offers a full range of consulting services partners. to meet your needs. For more information, visit: https:// For more information, visit: https:// support.sonicwall.com/sonicwall‐sonicpoint‐series/ support.SonicWall.com/ training • Knowledge base • Related documentation The Knowledge Base allows users to search for • SonicOS Administration Guide SonicWall documents by browsing the knowledge base, • SonicOS Release Notes searching for keywords, or using full‐text search. • SonicOS Configuration or Deployment Guides For more information, visit: https://... -
Page 29: Product Safety And Regulatory Information
Product safety and regulatory information This section provides product safety and regulatory information. • Mounting the appliance on page 30 • Verwarnung Weitere hinweise zur montage on page 31 • EU and EFTA on page 32 • Declaration of conformity on page 33 Products with “UL 2043” printed on their product labels are within the limit specified in the “UL 2043 Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products Installed in Air‐Handling Spaces” (Plenum). Applies only when powered through PoE. The PoE power supply is not covered the by the UL 2043 evaluation of this Access Point. NOTE: Additional regulatory notifications and information for this product can be found online at: https:// support.SonicWall.com/SonicWall‐SonicPoint‐series/ace. SonicPoint ACi complies with FCC U‐NII New Rules for Dynamic Frequency Selection (DFS). Regulatory Model/Type Product Name APL27‐0B1 SonicPoint ACi SonicWall SonicPoint ACi Getting Started Guide... -
Page 30: Mounting The Appliance
• Mount in a location away from direct sunlight and sources of heat. A maximum ambient temperature of WARNING: 104º F (40º C) is recommended. All Ethernet and RS232 (Console) cables are designed for intra‐ • Route cables away from power lines, fluorescent building connection to other equipment. Do not connect these lighting fixtures, and sources of noise such as radios, ports directly to communication wiring or other wiring that transmitters, and broadband amplifiers exits the building where the appliance is located. • Ensure that no water or excessive moisture can enter the unit. Lithium Battery • Allow unrestricted airflow around the unit and through the vents on the side of the unit. A minimum of 1 inch WARNING: (25.44mm) clearance is recommended. The Lithium Battery used in the SonicWall appliance cannot be • Consideration must be given to the connection of the replaced by the user. The appliance must be returned to a equipment to the supply circuit and that the effect of SonicWall authorized service center for replacement with the overloading the circuits has minimal impact on same or equivalent type recommended by the manufacturer. overcurrent protection and supply wiring. Appropriate If, for any reason, the battery or SonicWall appliance must be consideration of equipment nameplate ratings must be disposed of, do so following the battery manufacturer's used when addressing this concern. instructions. • This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflections at visual display workplaces, SonicWall SonicPoint ACi Getting Started Guide... -
Page 31: Verwarnung Weitere Hinweise Zur Montage
Luftfeuchtigkeit geschützt ist. “POE.” The POE source should only be UL listed marked “Class 2” or “LPS” with an output rated 48 VDC, minimum 0.6 A, Tma: • Stellen Sie sicher, dass die Luft um das Gerät herum minimum 40 degrees C. zirkulieren kann und die Lüftungsschlitze an der Seite des Gehäuses frei sind. Hier ist ein Belüftungsabstand von mindestens 26 mm einzuhalten. Verwarnung Weitere hinweise • Prüfen Sie den Anschluss des Geräts an die zur montage Stromversorgung, damit der Überstromschutz sowie die elektrische Leitung nicht von einer eventuellen Überlastung der Stromversorgung beeinflusst werden. • Wählen Sie für die Montage einen Ort, der keinem Prüfen Sie dabei sorgfältig die Angaben auf dem direkten Sonnenlicht ausgesetzt ist und sich nicht in der Aufkleber des Geräts. Überlasten Sie nicht den Nähe von Wärmequellen befindet. Die Stromkreis. Umgebungstemperatur darf nicht mehr als 40 °C betragen. • Das Gerät ist nicht für die Benutzung im unmittelbaren Gesichtsheld am Bildschirmarbeitsplatz vorgesehen. • Führen Sie die Kabel nicht entlang von Stromleitungen, Um störende Reflexionen am Bildshirmarbeitsplatz zu Leuchtstoffröhren und Störquellen wie Funksendern vermeiden, darf dieses Produkt nicht im unmittelbaren oder Breitbandverstärkern. Gesichtsfeld platziert verden. • Das im Lieferumfang enthaltene bzw. die im Lieferumfang enthaltenen Netzkabel sind nur für die Verwendung in bestimmten Ländern und Regionen SonicWall SonicPoint ACi Getting Started Guide... -
Page 32: Eu And Efta
Verwarnung Kabelverbindungen Informationen zur stromversorgung APL27‐0B1 Alle Ethernet‐ und RS232‐C‐Kabel eignen sich für die Verbindung von Geräten in Innenräumen. Schließen Sie an die Wenn die Stromversorgung von der SonicWall‐Produktpaket Anschlüsse der SonicWall keine Kabel an, die aus dem fehlt, wenden SonicWall den Technischen Support unter Gebäude herausgeführt werden, in dem sich das Gerät https://support.SonicWall.com/. befindet. Die Stromversorgung durch das Ethernet‐Kabel in die “LAN”‐ Anschluss angeschlossen vorgesehen ist, wird dies als “Power Verwarnung Hinweis zur over Ethernet” oder “PoE.” Dieses Produkt darf nur in Verbindung mit einem für den Europäischen Markt Lithiumbatterie genehmigten und mit dem Logo „LPS.“ Ausgang: 48 VDC Gleichsspannung, mind. 0,6 A, mindest TMA mindestens 40° Die in der Internet Security Appliance von SonicWall Grad C, betrieben werden. verwendete Lithiumbatterie darf nicht vom Benutzer ausgetauscht werden. Zum Austauschen der Batterie muss die SonicWall in ein von SonicWall autorisiertes Service‐Center EU and EFTA gebracht werden. Dort wird die Batterie durch denselben oder entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt. Beachten Sie bei einer Entsorgung der Batterie oder This device is approved for use in EU member states and EFTA der SonicWall Internet Security Appliance die diesbezüglichen countries as shown on the appliance label. Anweisungen des Herstellers. SonicWall SonicPoint ACi Getting Started Guide... -
Page 33: Declaration Of Conformity
SonicPoint ACi (RM: APL27‐0B1) RF Transmitter Bands and Power Frequency Maximum Radio‐Frequency Power Transmitted Band dBm EIRP 2412 ‐ 2472 18.75 5180 ‐ 5240 22.36 5260 ‐ 5320 22.5 5500 ‐ 5700 29.33 Declaration of conformity A “Declaration of Conformity” in accordance with the directives and standards has been made and is on file at: SonicWall International Limited, City Gate Park, Mahon, Cork, Ireland. CE declarations can be found online at https:// support.SonicWall.com/. NOTE: Additional regulatory notifications and information for this product can be found online at: https://support.SonicWall.com/ SonicWall SonicPoint ACi Getting Started Guide... - Page 34 ( 台灣 RoHS)/ 限用物質含有情況標示資訊 限用物質及其化學符號 六價鉻 鉛 汞 鎘 多溴聯苯 多溴二苯醚 單元 (Pb) (Hg) (Cd) (PBB) (PBDE) 機箱 / 檔板 (Chassis/Bracket) 機械部件 ( 風扇、 散熱器等 ) (Mechanical parts (fan, heatsink etc.) 電路板組件 (PCBA) 電線 / 連接器 (Cable/connector) 電源設備 (power supply) 配件 (Accessories) 備考 1. “O” 係指該項限用物質之百分比含量未超出百分比含量基準値。 備考 2. “‐‐” 係指該項限用物質為排除項目。 SonicWall SonicPoint ACi Getting Started Guide...
- Page 35 SonicWall Support Technical support is available to customers who have purchased SonicWall products with a valid maintenance contract and to customers who have trial versions. The Support Portal provides self‐help tools you can use to solve problems quickly and independently, 24 hours a day, 365 days a year. To access the Support Portal, go to https://support.sonicwall.com/. The Support Portal enables you to: • View knowledge base articles and technical documentation • Download software • View video tutorials • Collaborate with peers and experts in user forums • Get licensing assistance • Access MySonicWall • Learn about SonicWall professional services • Register for training and certification To contact SonicWall Support, refer to https://support.sonicwall.com/contact‐support. SonicWall SonicPoint ACi Getting Started Guide...
- Page 36 SonicWall SonicPoint ACi Getting Started Guide...
- Page 37 SonicPoint ACi Getting Started Guide Updated - January 2017 232-003410-50 Rev A...
