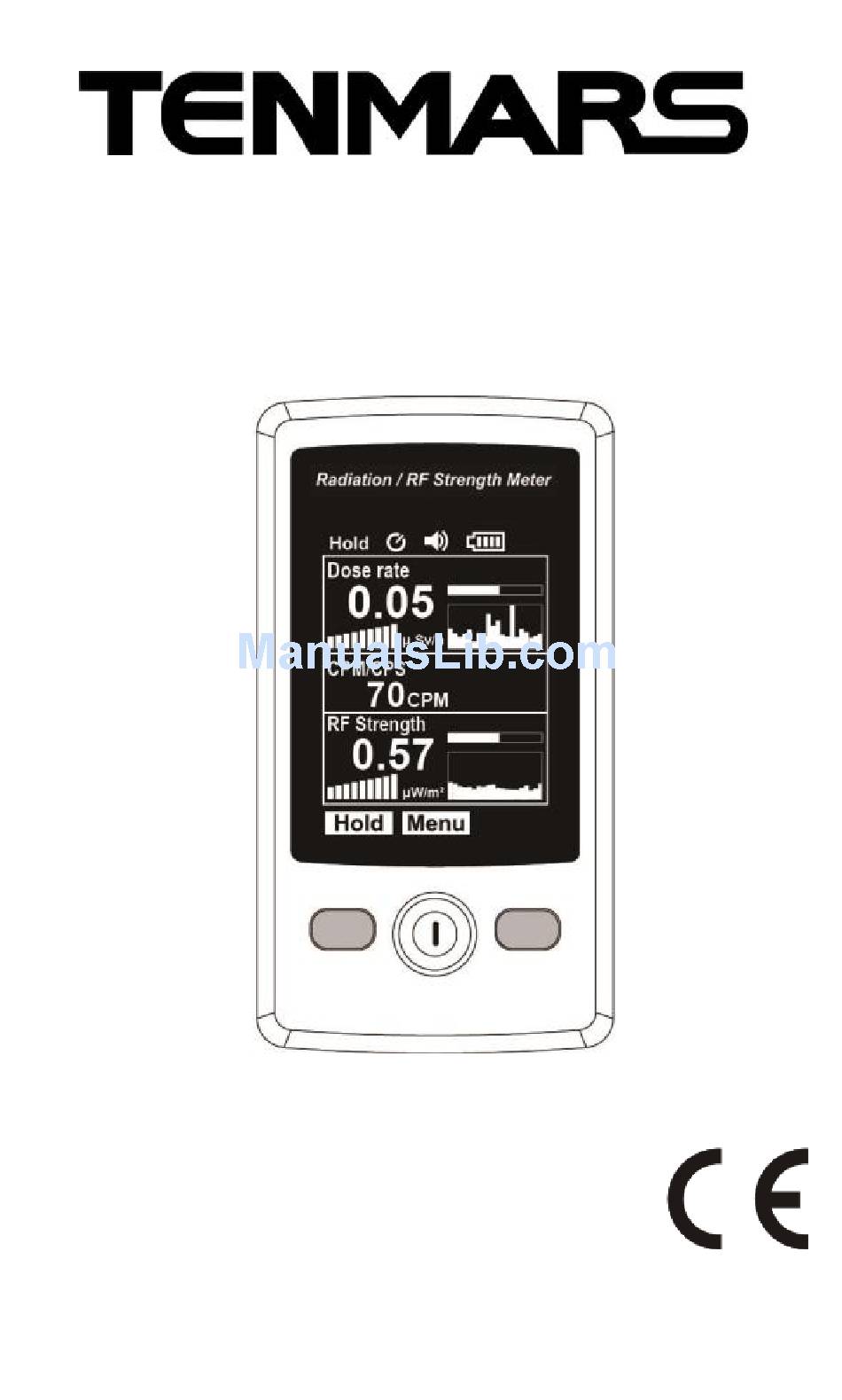

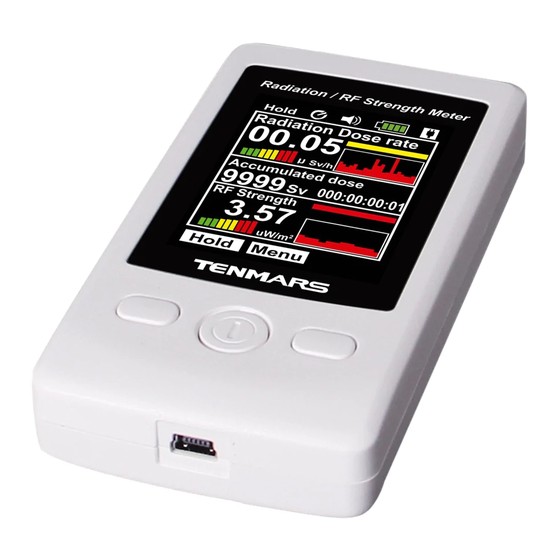

- Page 1 TM-93 Radiation/RF Strength Meter User’s Manual HB2TM930000...
-
Page 2: Table Of Contents
Contents Introduction ............1 Accessories ............. 1 Safety Precaution ..........1 Instrument Description ........2 Operation ............3 Menu setting: ..........3 Bright: ............3 Langrage Select： ........4 Unit Select: ..........4 Alarm Setting: ..........5 5.5.1 Dose Rate Alarm Setting: ...... 6 5.5.2 RF Strength Alarm Setting: .... -
Page 3: Introduction
TM-93 1 Introduction Radiation dose rate measurement.。 CPS/CPM : Geiger Counter count per second (CPS) or count per minute(CPM). RF strength measurement。 Languages : English; Traditional Chinese; Simplified Chinese; Japanese; Español. Radiation dose rate alarm setting。... -
Page 4: Instrument Description
TM-93 Class B – Equipment for use in all establishments other than domestic. Group 1 – RF energy generated is needed for internal functioning. Group 1 –RF energy generated is needed for internal functioning. 4 Instrument Description Fig. -
Page 5: Operation
TM-93 5 Operation 1. Press and hold the button for over 1 second to turn on the power; the power on screen will be displayed. 2. The power on screen will be displayed for approximately 3 seconds, and then enter the measurement screen. -
Page 6: Langrage Select
TM-93 5.3 Langrage Select： Continuing the operations from 5.1, press the button and move to the function to change, and then press the button to save the settings and return to the measurement screen. Default: ”English” 5.4 Unit Select: Continuing the operations from 5.1, press the... -
Page 7: Alarm Setting
TM-93 Start The Radiation dose: Press the button to start the dose function; when measurement is complete, press the button to stop the dose. Play Stop ***Execution of the record function requires the unit to be turned on for an extended period of time, so the USB power must be used to execute this function;... -
Page 8: Dose Rate Alarm Setting
TM-93 5.5.1 Dose Rate Alarm Setting: 1. Continuing the operations from 5.5, press the button to enter the next stratum enable alarm setting; select the high value or low value and then press the button to enter the next stratum setting. -
Page 9: Rf Strength Alarm Setting
TM-93 5.5.2 RF Strength Alarm Setting: 1. Continuing the operations from 5.5, press the button to enter the next stratum enable alarm setting. 2. Press the “ ” button: Number cursor will move towards the right. Press the “ ” button: Numbers 0~9; the number will increase. -
Page 10: Calibration
TM-93 5.6 Calibration: Continuing the operations from 5.1, press the button and move to the function to change, and then press the button to enter the next stratum settings. Calibration factor adjustable range: 0.01~5.00. Press the “ ” button:Cursor below the number will move towards the right. -
Page 11: Sound
TM-93 5.8 Sound: Continuing the operations from 5.1, press the button and move to the function to change, and then press the button to save the settings and return to the measurement screen. When is displayed on the measurement screen it means that sound is enabled, means disabled. - Page 12 TM-93 A.Time Settings Press the button and when moves to the time format to set, press the button to enter time settings. Press the button; every time it is pressed, the ▃ cursor will move from left to right. When it reaches the position to set,...
- Page 13 TM-93 C. Read Accumulated Record Data Read recorded data 1~8; press the button to return to measurement mode. D.Memory Clear Press and then press Press the button to clear the records and return to measurement mode. Note!! Cleared records cannot be restored!!
-
Page 14: Information
TM-93 5.10 Information: Continuing the operations from 5.1, item nine of the menu is software version: 1.2.3 Press and the button at the middle to return to the measurement screen. Note!! Cleared records cannot be restored!! 5.11 Reset to factory settings: Continuing the operations from 5.1, press the... -
Page 15: General Specifications
TM-93 6 General Specifications 2.4” 240*320 resolution color TFT,4 digital maximum display 3999. Data hold function。 。 Low battery indication：full empty Over load indication :OL。 USB external power supply indicator: ; automatic shutdown is cancelled and the symbol disappears when external power is inserted. - Page 16 TM-93 Environmental status display: Safe zone green average zone yellow danger zone red The preset color zones are for reference only: Users can adjust the yellow high and low zones. Dose rate Range RF strength The Green zone ≦0.19μ sv/h 0~0.03mW/m²;0~0.1V/m...
-
Page 17: Electrical Specifications
TM-93 7 Electrical Specifications Accuracy is indicated at 23°C ± 5°C with RH < 80%. 7.1 Radiation Dose Rate and Dose Sample rate 1 time/10 seconds or 1 time/40 seconds Radiation sensor geiger-mueller tube Measurement Range 0.05µSv/h~39.99µSv/h 5.00µRem/h~3999µRem Resolution 0.01µSv/h 0.01µRem/h... -
Page 18: Maintenance Or Repair
TM-93 8 Maintenance or Repair When the When symbol is displayed on the LCD, it means that there is insufficient power; please change the battery immediately in order to ensure its accuracy. Do not place the meter in locations that have high temperature, humidity or that are exposed to direct sunlight. -
Page 19: Battery Replacement
TM-93 9 Battery Replacement 1. Turn off the power. 2. Open the battery cover at the back of the meter, remove the battery. 3. Please insert a new 9V battery according to the polarities. 4. Put the battery cover back in place. - Page 20 ,Solar power meter ,Radiation meter, Clamp meter ,Multimeter ,Phase Rotation test, Digital Insulation teste Our products of high quality are selling well all over the world TENMARS ELECTRONICS CO., LTD. 6F, NO.586 Ruiguang Rd, Neihu Dist. Taipei City, Taiwan E-mail: service@tenmars.com http://www.tenmars.com...
