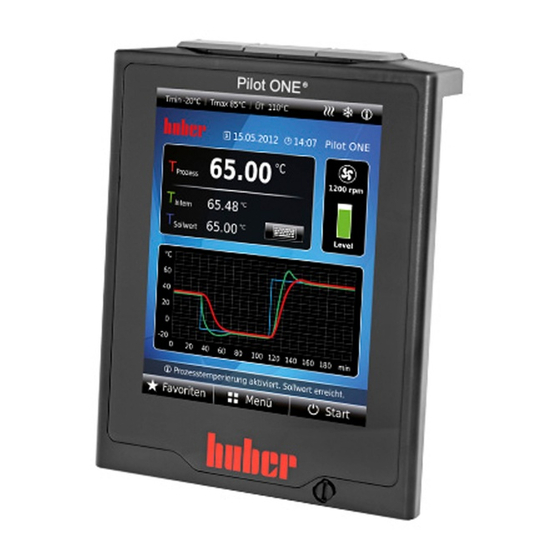

- Page 1 - Remote control using Pilot ONE® - Remote control using PC + Pilot ONE® For indoor and outdoor use V1.1.0 Technical Bulletin...
- Page 3 TECHNICAL BULLETIN - Remote control using Pilot ONE® - Remote control using PC + Pilot ONE® For indoor and outdoor use V1.1.0en/22.07.15 Liability for errors and misprints excluded. Pilot ONE as remote control...
- Page 4 Fiber optic cables can be used for the remote control via Pilot ONE. You will need the special fiber optic cable set (available on request). This set includes two connection extensions and two con- verters.
-
Page 5: Obligations Of The Responsible Body
ONE – using a connect- ing line Indoor use more than 3 m: Remote control via Pilot ONE - using a fiber optic cable connection Obligations of the responsible body Shielding connected on both connection sides. Testing signal immunity when using cable lengths > 3 m V1.1.0en/22.07.15... - Page 6 IP65 housing with Pilot ONE The optional Pilot ONE housing has a protection class IP65 according to DIN EN 60529. Thus, the housing protects the pilot ONE against dust and splash water. Refer to the Operation Manual of your temperature control unit for ambient conditions. No frequency converter may be located in the im- mediate vicinity of the IP65 enclosure at the place of installation.
- Page 7 Remote control using Pilot ONE® TECHNICAL BULLETIN 1.2.1 Attach the Pilot ONE in the IP65 housing to the wall bracket Grounding concept type “S” Grounding concept type “M” Ensure there are no unwanted electrical currents (e.g. via metallic temperature control hoses; braid of signal lines) between the IP65 housing, the temperature control unit and the periphery during in- stallation.
- Page 8 The [rubber seal] below the [rear side of the housing] and the [self-adhesive seal] between Pilot ONE and the IP65 housing must be replaced if the Pilot ONE needs to be replaced. Note the different tightening torques ([A], [B] + [C]) of the screws used. Make sure not to mix the disassembled screws.
- Page 9 Remote control via Pilot ONE – using a cable connection Indoor use more than 3 m: Remote control via Pilot ONE - using a fiber optic cable connection V1.1.0en/22.07.15 Liability for errors and misprints excluded. Pilot ONE as remote control...
- Page 10 Some temperature control tasks make it necessary to control the temperature control unit via the control panel Pilot ONE on a PC. For this purpose there is an Ethernet interface located at the Pilot ONE as a standard. Temperature control units designed for outdoor use have the control panel Pilot ONE mounted within the electrical cabinet.
- Page 11 PC - by using an Ethernet point-to- point connection Outdoor use: Remote control of the temperature control unit via a PC - by using an Ethernet network connec- tion V1.1.0en/22.07.15 Liability for errors and misprints excluded. Pilot ONE as remote control...
