OMNIDIRECTIONAL MARINE TV/FM ANTENNA
NOTE: Please read all instructions before beginning installation!
To prevent FIRE or SHOCK HAZARD, avoid exposure of control
panel to moisture.

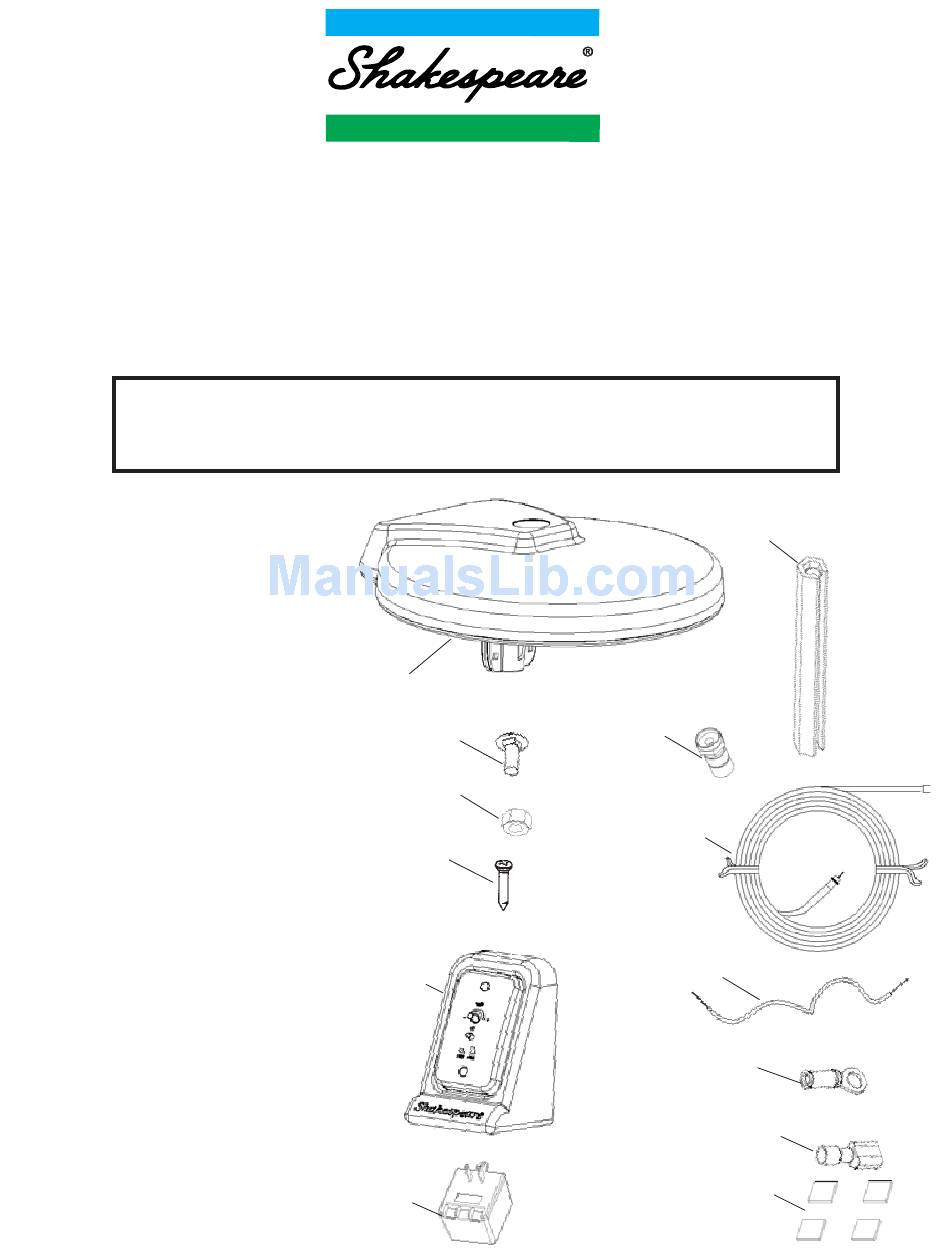

PARTS LIST
1. (1) Antenna
2. (1) 30' RG-59 Low Loss Coax Cable
3. (1) Cable Tool
4. (4) Twist-on Type F-Connectors
5. (1) 2025-CP Control Box
6. (1) Plug-in Transformer
Input: 120 VAC, 60 Hz
Output: 16 VDC, 140 ma
7. (1) 5' 18 GA insulated wire
8. (4) #6 5/8" screws
9. (4) 1/4-20 Nylock Hex Nuts
10. (4) 1/4-20 Carriage Bolts
11. (2) Insulated Ring Terminals
12. (4) Insulated Quick-Disconnect
Terminals
13. (4) 1" Velcro Strips
TOOLS NEEDED
#2 Phillips screwdriver
7/16" wrench
Crimping tool
Medium slot screwdriver
Cable tool (provided)
Wire stripper
STYLE 2025
WARNING!
#1. ANTENNA
#10. CARRIAGE BOLT
#9. NYLOCK HEX NUT
#8. 5/8" SCREWS
#5. 2025-CP
CONTROL BOX
#6. PLUG-IN
TRANSFORMER
#4. TWIST-ON
F-CONNECTOR
#2. COAX CABLE
#7. 18 GA INSULATED WIRE
#11. INSULATED RING
TERMINALS
#12. INSULATED
QUICK-DISCONNECT
TERMINALS
#13. VELCRO STRIPS
#3. CABLE TOOL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2025 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shakespeare Electronic 2025

  • Page 1 #3. CABLE TOOL 2. (1) 30' RG-59 Low Loss Coax Cable 3. (1) Cable Tool 4. (4) Twist-on Type F-Connectors 5. (1) 2025-CP Control Box 6. (1) Plug-in Transformer Input: 120 VAC, 60 Hz #1. ANTENNA Output: 16 VDC, 140 ma 7.
  • Page 2 BEFORE YOU MOUNT ANTENNA: 2. Pull the cable down until the end of the connector is Determine where you will put your control flush with the hex-shaped end of the cable tool. See box before mounting your antenna. Figure 3. There are two options for installation of the control box shown on page 3.
  • Page 3 2. There are three coax cable connections on the back of MOUNTING THE CONTROL BOX: the control box — Antenna, TV Set and Auxiliary (for You have two options: cable, VCR, satellite, etc.). Attach cable from antenna OPTION A: Set Top-Mounted to the antenna connector on the control panel.
  • Page 4 HOW TO INSTALL F-CONNECTORS ON CABLE RECOMMENDATIONS FOR INSTALLING CABLE Minimum Bending Radius: 3" for RG-59. Tighter bends To install the F-connectors, will cause shorts and change impedance. strip the ends of the RG-59 Pulling Tension: 75 pounds maximum. Leave no cable as shown in Figure A.
