Shakespeare Electronic PHASE III 6400-R Instruction Manual

IMPORTANT! Please read all instructions before installing.
Thank you for purchasing a Shakespeare antenna product. Shakespeare
works hard to build reliability and durability into all of its products for
maximum customer satisfaction.

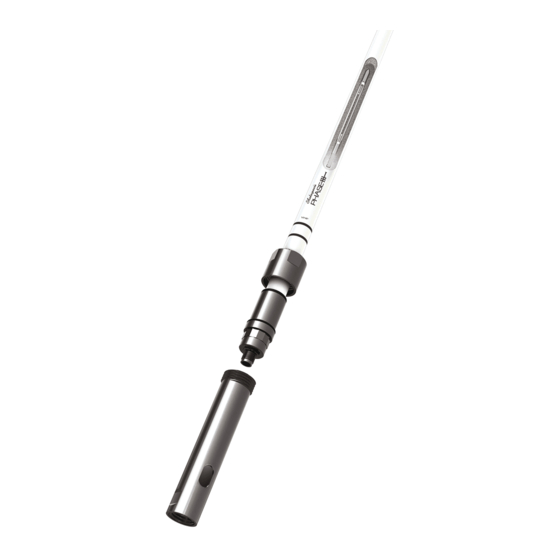

The 6400-R is a Phase III series 156 MHz VHF Marine antenna
with stainless steel ferrules and a female "N" connector. The
antenna is 4.5' overall length, including the 1"-14 thread
adapter. The design of the Phase III antenna series facilitates
mounting to a mast or attachment to a standard marine mount.

TOOLS REQUIRED:

• Screwdriver
• Drill
• Drill bits sized according to cable
• Wrench
Other tools or supplies that are appropriate to your specific
application may also be needed.

SUPPLIED PARTS:

1 Antenna assembly
1 1"-14 thread adapter
1 Rubber O-ring
1 Coupling nut

ADDITIONAL REQUIRED MATERIALS:

1 Length of coaxial cable
1 PL-259 connector appropriate to the
size coax you are using
1 Connector for connection to your
VHF radio
U-bolts, stainless steel strapping and appropriate
hardware, if mounting the antenna to a mast

CLEANING INSTRUCTIONS

To clean the antenna, use mild dish washing liquid (one that is not
harsh to the hands and without ammonia) in lukewarm water.
WARNING: Do not let paint solvents, cleaning solvents or adhesive
caulking come in contact with the antenna. Chemi cals in these
materials might destroy the finish.
U.S. Operations: 6111 Shakespeare Rd. · Columbia, SC 29223 · 803-227-1590 · 800-845-7750
U.K. Operations: Enterprise Way, Fleetwood, Lancashire, FY7 8RY, England · +44 (0) 1253 858787 · Fax: +44 (0) 1253-859595
©2021 and TM Shakespeare Company, LLC. All rights reserved.
SHAKESPEARE MARINE
®
www.shakespeare-marine.com
4' VHF Antenna
TM
TECH TIP:
This antenna will
read "open circuit" when tested
with an ohm meter or continuity
tester. For installations where
the cable exits through the
bottom center of the antenna's
ferrule, replace the grommet at
the exit hole in the ferrule with
the supplied Grommet Plug.
Remove grommet plug if cable
is to exit through the side.

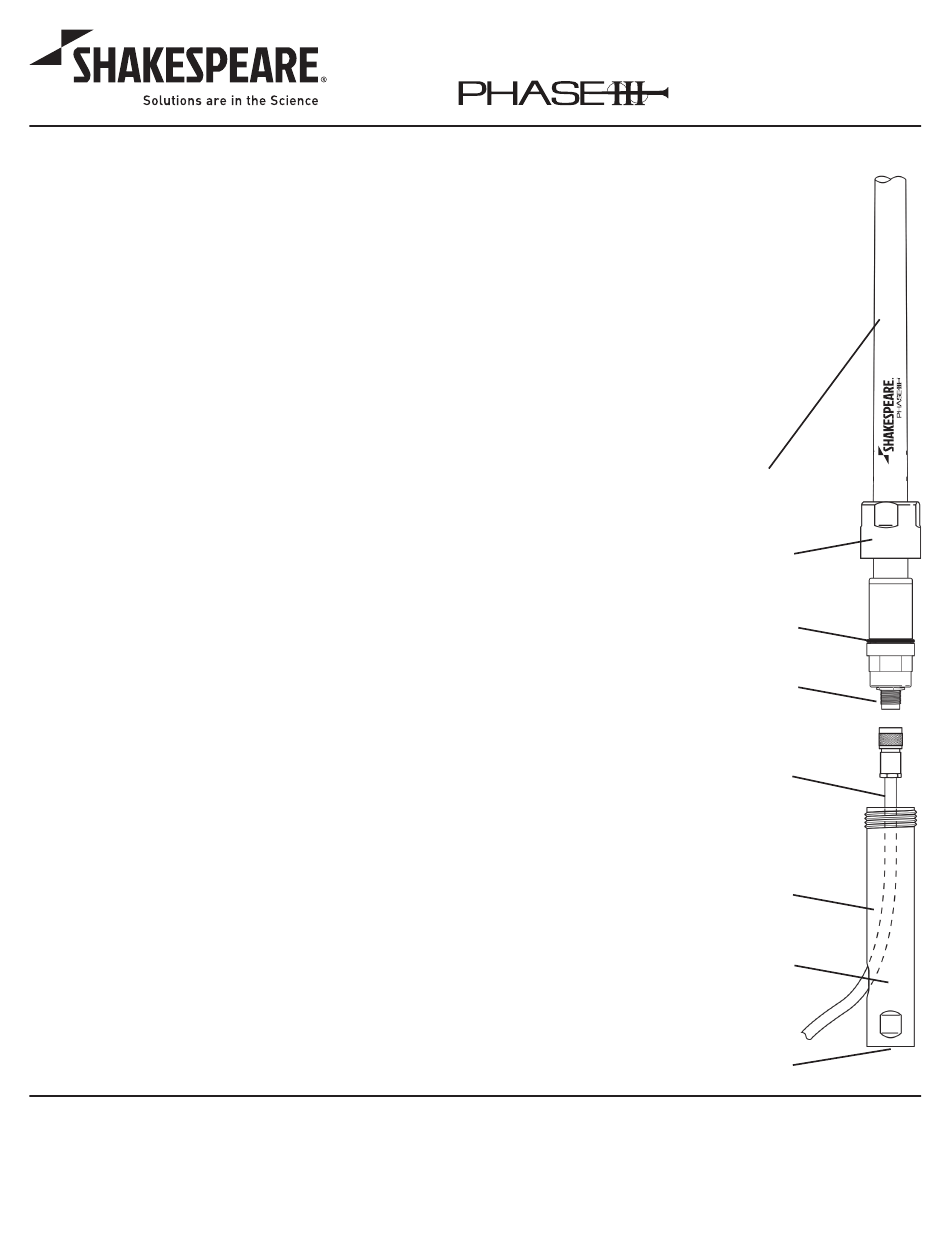

ANTENNA
ASSEMBLY
COUPLING RING
SO-239 CONNECTOR
COAX CABLE WITH
PL-259 CONNECTOR
(EACH SOLD SEPARATELY)
THREAD ADAPTER
REMOVE GROMMET
PLUG IF CABLE IS TO
EXIT THROUGH THE SIDE
1"-14 THREAD (FEMALE)
6400-R
6400-R
VHF
O-RING
35-90-1350-00 rev: 8/4/21
