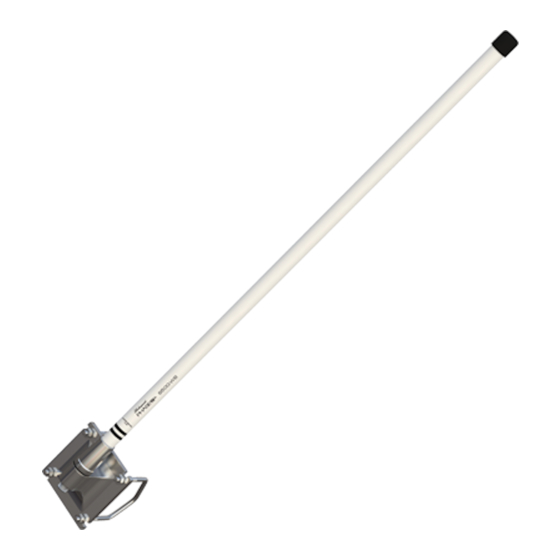

Shakespeare Electronic Phase III 6500-WB Quick Start Manual

Tech Tips

This antenna will read "short circuit" when tested with an ogm meter
continuity tester.
To achieve the IP67 weather resistant rating, the weather boot must be
installed using RG8 or RG213 coaxial cable.

Cleaning Instructions

To clean the antenna, use mild dishwashing liquid (one that is not harsh to
the hands and without ammonia) in lukewarm water. WARNING: Do not let
paint solvents, cleaning solvents, or adhesive caulking come in contact with
the antenna. Chemicals in these materials might destroy the finish.
SHAKESPEARE
www.shakespeare-marine.com
U.S Operations: 6111 Shakespeare Rd. • Columbia, SC 29223 • 803-227-1590 • 800-845-7750
U.K. Operations: Enterprise Way, Fleetwood, Lancashire, FY7 8RY, England • +44 (0) 1253 858787 • Fax: +44 (0) 1253-859595
©2022 and TM Shakespeare Company, LLC. All rights reserved
MARINE
®
35-90-1601-00
IMPORTANT: Please read all instructions before installing.
Before you start, check parts supplied against those listed.

Supplied Parts

Tools required:
Screwdriver, drill, drill bits sized
according to the cable you are using,
wrench
to s a
Required materials:
2 Male
Vertical Mast
rev:1/27/22
Style 6500-WB
4' BROAD BAND VHF
6500-WB
VHF-AIS
Horzontal Rail
