Page 1: User Manual
AXIS M30-P Network Camera Series AXIS M3047-P Network Camera AXIS M3048-P Network Camera User Manual... -
Page 2: Table Of Contents
AXIS M30-P Network Camera Series Table of Contents System overview .......... -
Page 3: System Overview
AXIS M30-P Network Camera Series System overview System overview... -
Page 4: Product Overview

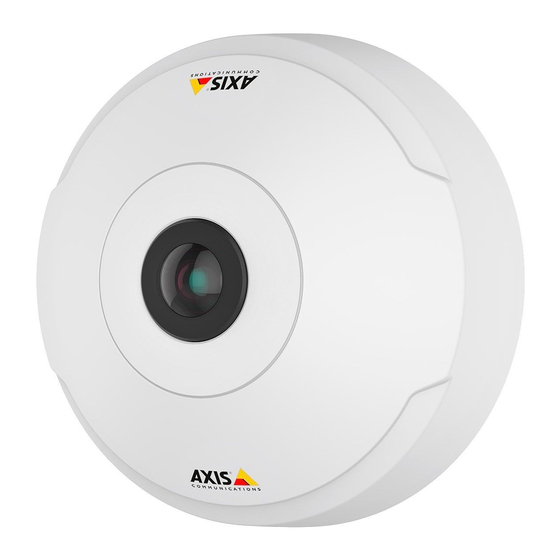

AXIS M30-P Network Camera Series Product overview Product overview Network connector (PoE) Control button Status LED indicator HDMI connector SD card slot Part number (P/N) & Serial number (S/N) For technical specifications, see Specifications on page 20... -
Page 5: Quick Start Guide
AXIS M30-P Network Camera Series Quick start guide Quick start guide After starting up the camera for the first time, create a login and start the Get started guide. Select the power line frequency and capture mode. Please be aware of that the supported resolutions for dewarped views differ depending on the selected capture mode. - Page 6 AXIS M30-P Network Camera Series Quick start guide In the next step, set the IP settings and date/time. Continue and select the perspective/orientation depending on how the camera is installed. In this step, you will select the preferred dewarped view as well (not for Fisheye mode).
- Page 7 Selecting the Fisheye, you will have access to only full overview image where the highest resolution is 2048x2048 for AXIS M3047-P and 2880x2880 for AXIS M3048-P. In the next table you can also see the highest/lowest available resolution for different views in each capture mode for AXIS M3047-P and AXIS M3048-P.
- Page 8 AXIS M30-P Network Camera Series Quick start guide After the setup is completed, it is still possible to change the configurations in the camera’s web pages. To change the dewarped view or perspective mode, go to System > Orientation. To change capture mode, go to Settings > Image > Capture mode. Click Change capture mode.
- Page 9 You might create several preset positions and do the above steps for each position. Set up multiple video streams The tables shows different possible video streams which can be pulled simultaneously from AXIS M3047-P and AXIS M3048-P. Fisheye AXIS M3047-P...
- Page 10 <=720x720 <=720x720 h264 and mjpeg 12.5/15 dewarp w<=720 h<=720 w<=720 h<=720 h264 and mjpeg, 12.5/15 32:9 resolutions not available (AXIS M3047-P only) - Dewarp 16:9@30fps AXIS M3047-P Stream View Resolution Codec 1200x1200 fisheye h264 or mjpeg 25/30 dewarp max dewarp...
- Page 11 AXIS M30-P Network Camera Series Quick start guide fisheye <=720x720 h264 and mjpeg 25/30 dewarp w<=720 h<=720 h264 and mjpeg 25/30 HDMI Supported output formats • 720x480p @ 59.94/60Hz • 1280x720p @ 59.94/60Hz • 720x576p @ 50Hz • 1280x720p @ 50Hz...
-
Page 12: Setup
If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at axis.com/support... -
Page 13: About The Product's Built-In Help
A capture mode is one of the possible views for this product and can be accessed from the drop-down list in the product’s live stream view. In the table you can see the highest/lowest available resolution for different views in each capture mode for AXIS M3047-P and AXIS M3048-P. Dewarp 4:3 Dewarp 16:9... -
Page 14: How To Choose Video Compression Format
What capture mode to choose depends on the requirements of frame rate and resolution for the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet. To find the latest version of the datasheet, go to axis.com How to choose video compression format Deciding which compression method to choose depends on your viewing requirements, and on the properties of your network. -
Page 15: How To Reduce Noise In Low-Light Conditions
AXIS M30-P Network Camera Series Setup How to reduce noise in low-light conditions To reduce noise in low-light conditions, you can adjust one or more of the following settings: • Make sure that the exposure mode is automatic. Note Increasing the max shutter value can result in motion blur. -
Page 16: About Overlays
About applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com... -
Page 17: Troubleshooting
To find the latest firmware and the release notes, go to axis.com/support/firmware 1. Download the latest firmware file to your computer, available free of charge at axis.com/support/firmware 2. Log in to the product as an administrator. -
Page 18: Technical Issues, Clues And Solutions
Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the... -
Page 19: Performance Considerations
Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. -
Page 20: Specifications
AXIS M30-P Network Camera Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page on axis.com and locate Support & Documentation. LED indicators Note • The Status LED can be configured to flash while an event is active. - Page 21 User Manual Ver. M3.2 AXIS M30-P Network Camera Series Date: September 2017 © Axis Communications AB, 2017 Part No. 1750945...
