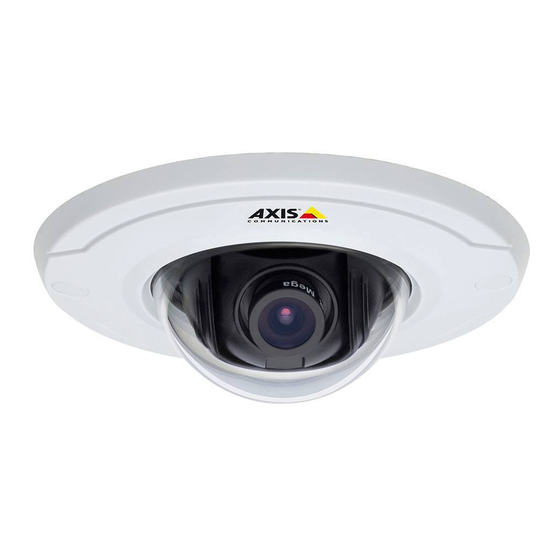

AXIS M3014 Network Camera

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3014 and is the answer not in the manual?

Questions and answers

Related Manuals for Axis M3014

Summary of Contents for Axis M3014

  • Page 1: User Manual

    AXIS M3014 Network Camera User Manual...
  • Page 2 This equipment has been designed and tested to fulfill applicable may also be beneficial, for developing shell scripts and applications. standards for: Later versions of this document will be posted to the Axis website, • Radio frequency emission when installed according to the as required.
  • Page 3 (STP) or other appropriate method. Battery The Axis product uses a 3.0 V BR/CR2032 lithium battery as the power supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years.

  • Page 4: Table Of Contents

    AXIS Media Control (AMC) ........

  • Page 5: Hardware Overview

    AXIS M3014 Network Camera Hardware Overview Hardware Overview Camera module holder arrow Camera arrow Ceiling Springs Metal camera module holder LED indicators Network connector Control button Magnetic dome cover...

  • Page 6: Connectors And Buttons

    Resetting the product to factory default settings. See page 45. • Connecting to an AXIS Video Hosting System service. See page 39. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...

  • Page 7: Access The Product

    Macintosh computer (Mac OS X), click on the Bonjour tab and select the product from the drop-down list. If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the Installation and Management Software CD or the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup...

  • Page 8: Set Power Line Frequency

    4. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 45) or by resetting the product to factory default.
  • Page 9 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 11 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Page 10 AXIS M3014 Network Camera Access the Product Click the View Full Screen button and the video image will fill the entire screen. Press ESC (Escape) on the computer keyboard to cancel full screen view. The Record button is used to record the current video stream. The location where the recording is saved can be specified in the AMC Control Panel.

  • Page 11: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 12: Alternative Methods Of Accessing The Video Stream

    AXIS M3014 Network Camera Media Streams The AMC Control Panel can be used to configure various video settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...
  • Page 13 • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 14: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 15: Video

    Use the mouse to move and resize the rectangle, or enter the number of pixels in the Width and Height fields and click Apply. • The Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle. Image The default image settings can be configured under Video>...

  • Page 16: Stream Profiles

    The GOV length is the number of frames between two consecutive I-frames. Increasing the GOV length may save considerably on bandwidth requirements in some cases, but may also have an adverse affect on image quality. The Axis product supports the following H.264 profile(s): •...

  • Page 17: Camera Settings

    White Balance White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.

  • Page 18: Overlay

    For more information about privacy masks, see Privacy Mask on page 19. To use an overlay image, the image must first be uploaded to the Axis product. The uploaded image should be a Windows 24-bit BMP image with maximum 250 colors. The image width and height, in pixels, must be exactly divisible by 4 and cannot be larger than the maximum image resolution.

  • Page 19: Privacy Mask

    Privacy masks cannot be bypassed using the VAPIX® application programming interface (API). The Privacy Mask List (Video > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled.

  • Page 20: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 21 Select Enable recording button to enable recording from the Live View page. This button is available when using the AMC viewer. The recordings are saved to the location specified in the AMC Control Panel. See AXIS Media Control (AMC) on page 11 .

  • Page 22: Ptz (Pan Tilt Zoom)

    AXIS M3014 Network Camera PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) The PTZ menu is available if digital PTZ (pan, tilt and zoom) is enabled in the selected view area. For more information on view areas, see View Area on page 17.

  • Page 23: Advanced

    To modify or remove guard tours, go to PTZ > Guard Tour, select the guard tour in the Guard Tour List and click Modify/Remove. For more information see the online help Note This Axis product supports limited guard tours. The pause between successive guard tours must be set to at least 10 minutes. Advanced Controls Advanced PTZ settings can be configured under PTZ >...

  • Page 24: Detectors

    Motion Detection Parameters on page 25. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Set Up Action Rules on page 29.

  • Page 25: Motion Detection Windows/Parameters

    AXIS M3014 Network Camera Detectors Note • Using the motion detection feature may decrease the product’s overall performance. • The position of the Motion Detection Window is relative to the orientation of the Camera. Changing the orientation of the camera will also change the position of the Motion Detection Window.
  • Page 26 AXIS M3014 Network Camera Detectors Note • To trigger on small objects or movements, use several small motion detection windows rather than one large window and select a low object size. • To avoid triggering on small objects, select a high object size.

  • Page 27: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Page 28 AXIS M3014 Network Camera Applications If the Axis product is reset to factory default, installed applications and their settings are removed. For information about factory default, see Reset to Factory Default Settings.

  • Page 29: Events

    Convert Event Types to Action Rules If the Axis product is upgraded to firmware version 5.40 or later, it is recommended to convert Event Types to Action Rules. The legacy user Event Types in the camera will continue to work but will not be visible in the user interface of the camera. The Event Types need to be converted to Action rules to become visible in the user interface.
  • Page 30 AXIS M3014 Network Camera Events For more information, see the online help Triggers Available action rule triggers and conditions include: • Applications – Use installed applications to trigger the rule. See Applications on page 27. • Detectors Motion Detection – Trigger the rule when motion is detected. See Motion Detection on page 24.

  • Page 31: Recipients

    AXIS M3014 Network Camera Events • Record Video – Record video to a selected storage. • Send Images – Send images to a recipient. • Send Notifications – Send a notification message to a recipient. • Status LED – Flash the LED indicator. This can for example be used to validate triggers such as motion detection during product installation and configuration.

  • Page 32: Set Up Recurrences

    AXIS M3014 Network Camera Events Set Up Recurrences Recurrences are used to trigger action rules repeatedly, for example every 5 minutes or every hour. To set up a recurrence: 1. Go to Events > Recurrences and click Add. 2. Enter a descriptive name and recurrence pattern.

  • Page 33: Recordings

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 43. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 34: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 35: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 36 Axis product: Server/Client certificates - To authenticate the Axis product. CA certificates - To authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Page 37: Date & Time

    To include date and time in the overlay text, go to Video and select Include date and Include time. Network Basic TCP/IP Settings The Axis product supports IP version 4 and IP version 6. Both versions can be enabled simultaneously, and at least one version must always be enabled.
  • Page 38 System Options IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.

  • Page 39: Advanced Tcp/Ip Settings

    To make manual settings, select Use the following DNS server address and specify the following: Domain name - Enter the domain(s) to search for the host name used by the Axis product. Multiple domains can be separated by semicolons. The host name is always the first part of a fully qualified domain name, for example, myserver is the host name in the fully qualified domain name myserver.mycompany.com where mycompany.com is the domain name.
  • Page 40 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 41 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).
  • Page 42 To use SNMP v3, HTTPS must be enabled, see HTTPS on page 35. To enable SNMP v3, check the box and provide the initial user password. Note The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see Reset to Factory Default Settings on page 45. UPnP The Axis product includes support for UPnP .

  • Page 43: Storage

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 44: Support

    System Overview To get an overview of the Axis product’s status and settings, go to System Options > Support > System Overview. Information that can be found here includes firmware version, IP address, network and security settings, event settings, image settings and recent log items.

  • Page 45: Reset To Factory Default Settings

    For more information, see www.axis.com/developer File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 46: Troubleshooting

    To upgrade the product’s firmware: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2. Go to Setup > System Options > Maintenance in the product’s webpages.

  • Page 47: Symptoms, Possible Causes And Remedial Actions

    Troubleshooting 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 48 Check with your network administrator to see if there is a firewall preventing viewing. Installation of additional Configure the Axis product to use a Java applet for updating video images in your browser. Go to ActiveX component Setup > Live View Config and select Java applet under Default viewer.

  • Page 49: Technical Specifications

    AXIS M3014 Network Camera Technical Specifications Technical Specifications Item Specifications Function/group Camera Model AXIS M3014 Image sensor Progressive scan RGB CMOS 1/4” Lens 2.9 mm: F2.0, fixed iris Horizontal angle of view: 80° Vertical angle of view: 48° Diagonal angle of view: 100°...
  • Page 50 Technical Specifications Item Specifications Function/group System Application Open API for software integration, including VAPIX® and AXIS Camera Application Integration Programming Platform from Axis Communications; specifications available at www.axis.com Interface Includes the ONVIF specification available at www.onvif.org Support for AXIS Video Hosting System (AVHS) with One-Click Camera Connection...

  • Page 51: Performance Considerations

    AXIS M3014 Network Camera Technical Specifications Item Specifications Function/group Video AXIS Camera Station — Video management software for viewing and recording up to 50 management cameras software (not See www.axis.com/products/video/software/ for more software applications via partners included) Optional Power over Ethernet Midspans...
  • Page 52 User Manual Ver. M2.6 AXIS M3014 Network Camera Date: November 2014 © Axis Communications AB, 2011 Part No. 61144...
