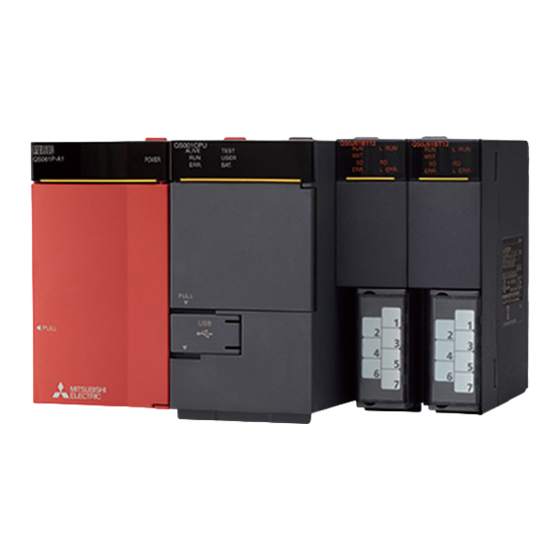

Mitsubishi MELSEC User Manual

Safety programmable controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi MELSEC

Summary of Contents for Mitsubishi MELSEC

  • Page 3 SAFETY PRECAUTIONS (Always read these instructions before using this equipment.) Before using this product, please read this manual, the relevant manuals introduced in this manual, standard PLC manuals, and the safety standard carefully and pay full attention to safety to handle the product correctly.
  • Page 4 [Design Precautions] DANGER When a safety PLC detects an error in an external power supply or a failure in PLC main module, it turns off all the outputs. Create an external circuit to securely stop the power of hazard by turning off the outputs.Incorrect configuration may result in an accident.

  • Page 5: Specification •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••6

    [Installation Precautions] CAUTION Use a safety PLC in the environment that meets the general specifications described in this manual. Using this PLC in an environment outside the range of the general specifications could result in electric shock, fire, erroneous operation, and damage to or deterioration of the product. While pressing the installation lever located at the bottom of module, insert the module fixing tab into the fixing hole in the base unit until it stops.

  • Page 6: Cables •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••9

    [Wiring Precautions] CAUTION Be sure to ground the FG terminals and LG terminals to the protective ground conductor. Not doing so could result in electric shock or erroneous operation. Use a solderless terminal with insulation sleeve for wiring of a terminal block. Use up to two solderless terminals for a single terminal.
  • Page 7 [Startup and Maintenance precautions] DANGER Do not touch the terminals while power is on. Doing so could cause shock or erroneous operation. Correctly connect the battery.Also, do not charge, disassemble, heat, place in fire, short circuit, or solder the battery. Mishandling of battery can cause overheating or cracks which could result in injury and fires.
  • Page 8 [Startup and Maintenance precautions] CAUTION The online operations performed from a PC to a running safety PLC (Program change when a safety CPU is RUN, device test, and operating status change such as RUN-STOP switching) have to be executed after the manual has been carefully read and the safety has been ensured. Following the operating procedure predetermined at designing, the operation has to be performed by an instructed person.
  • Page 9 [Disposal Precautions] CAUTION When disposing of this product, treat it as industrial waste. When disposing of batteries, separate them from other wastes according to the local regulations. (For details of the battery directive in EU member states, refer to Appendix 4.) [Transportation Precautions] CAUTION When transporting lithium batteries, make sure to treat them based on the transport regulations.
  • Page 10 This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.

  • Page 11: Table Of Contents

    INTRODUCTION Thank you for choosing the Mitsubishi MELSEC-QS Series of Safety Programmable Controllers. Before using the equipment, please read this manual carefully to develop full familiarity with the functions and performance of the QS series PLC you have purchased, so as to ensure correct use.
  • Page 12 Power Supply Module ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••9 - 6 9.1.5 Others •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••9 - 7 Requirement to Conform to the Low Voltage Directive ••••••••••••••••••••••••••••••••••••••••••••••••••••••9 - 9 9.2.1 Standard applied for MELSEC-QS series PLC••••••••••••••••••••••••••••••••••••••••••••••••••••••••••9 - 9 9.2.2 MELSEC-QS series PLC selection ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••9 - 9 9.2.3 Power supply••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 9 - 10 9.2.4...
  • Page 13 11.4 When PLC Has been Stored without a Battery ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 11 - 9 11.5 When Battery Has Gone Flat during Storage of a PLC•••••••••••••••••••••••••••••••••••••••••••••••••••11 - 10 CHAPTER12 TROUBLESHOOTING 12 - 1 to 12 - 86 12.1 Troubleshooting Basics •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 12 - 1 12.2 Troubleshooting Flowchart ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••...

  • Page 14: Safety Precautions

    (Related manual)....QSCPU User's Manual (Function Explanation, Program Fundamentals) CONTENTS SAFETY PRECAUTIONS REVISIONS INTRODUCTION CONTENTS ABOUT MANUALS HOW TO SEE THIS MANUAL IS ORGANIZED HOW TO USE THIS MANUAL GENERIC TERMS AND ABBREVIATIONS CHAPTER1 OVERVIEW Features Program Storage and Operation Devices and Instructions Convenient for Programming How to Check the Serial No.
  • Page 15 4.2.1 I/O numbers of base unit 4.2.2 I/O numbers of remote station I/O Assignment by GX Developer 4.3.1 Purpose of I/O assignment by GX Developer 4.3.2 Concept of I/O assignment using GX Developer 4.3.3 Examples of I/O Number Assignment Checking the I/O Numbers CHAPTER5 MEMORIES AND FILES HANDLED BY CPU MODULE Memories by CPU Module 5.1.1...
  • Page 16 6.12.3 Relationship of remote operation and CPU's RUN/STOP status 6.13 Monitor Function 6.14 Writing in Program during CPU Module RUN 6.14.1 Online change in ladder mode 6.15 Watchdog Timer(WDT) 6.16 Remote password 6.17 CPU Module System Display by GX Developer 6.18 LED Display 6.18.1 Method to turn off the LED CHAPTER7 COMMUNICATION WITH INTELLIGENT FUNCTION MODULE...
  • Page 17 CHAPTER10 CPU MODULE PROCESSING TIME 10.1 Scan Time 10.1.1 Scan time structure 10.1.2 Time required for each processing included in scan time 10.1.3 Factors that increase the scan time 10.2 Other Processing Times CHAPTER11 PROCEDURE FOR WRITING PROGRAM TO CPU MODULE 11.1 Items to be examined for program creation 11.2...

  • Page 18: About Manuals

    ABOUT MANUALS Introduction Manual Before constructing or designing the safety-related system, be sure to read the following manual. Manual No. Manual Name (Model Code) Safety Application Guide SH-080613ENG Explains the overview, construction method, laying and wiring examples, and application programs of the safety-related system.
  • Page 19 Manual No. Manual Name (Model Code) Q Corresponding MELSEC Communication Protocol Reference Manual Explains the communication methods and control procedures using the MC protocol, which is used SH-080008 by external devices to read and write data of the programmable controller CPU via the serial (13JF89) communication module or Ethernet module.

  • Page 20: How This Manual Is Organized

    HOW THIS MANUAL IS ORGANIZED Reference destination Chapter heading A reference destination or The index on the right side of the page reference manual is marked shows the chapter of the open page at a glance. Section title The section of the open page is shown at a glance.
  • Page 21 In addition, this manual provides the following explanations. POINT Explains the matters to be especially noted, the functions and others related to the description on that page. Remark Provides the reference destination related to the description on that page and the convenient information.

  • Page 22: How To Use This Manual

    HOW TO USE THIS MANUAL This manual is prepared for users to understand the hardware specifications of those modules such as the CPU modules, power supply modules, and base units, maintenance and inspections of the system, and troubleshooting required when you use QS series PLCs.

  • Page 23: Generic Terms And Abbreviations

    Generic term for safety CPU module, safety power supply module, safety main base Safety PLC unit, CC-Link safety master module and CC-Link safety remote I/O module. Generic term of each module for MELSEC-Q series, MELSEC-QnA series, MELSEC-A Standard PLC series and MELSEC-FX series. (Used for distinction from safety PLC.)

  • Page 24: Precautions For Use

    PRECAUTIONS FOR USE Precautions for the first use of Q series a CPU module When using a CPU module for the first time, the PLC memory needs to be initialized using GX Developer. For details of PLC memory initialization, refer to the following manual. GX Developer Operating Manual (Safety PLC) Precautions on battery (1) When running the CPU module that has been stored without battery...

  • Page 25: Chapter1 Overview

    OVERVIEW CHAPTER1 OVERVIEW This Manual describes the hardware specifications and handling methods of the QS Series CPU Module QS001CPU. The Manual also includes descriptions related to the specifications of the power supply module, base unit and battery. For the functions, programs, and devices of the QS Series CPU Module, refer to the manual below.
  • Page 26 OVERVIEW (1) List of QS Series CPU Module manuals The QS series CPU module manuals are as shown below. For details such as manual numbers, refer to "About Manuals" in this manual. Table1.1 List of manuals of QS Series CPU module Hard Program ware...

  • Page 27: Features

    OVERVIEW 1.1 Features The QS series CPU module has the following new features: (1) Safety PLC system can be constructed The QS series programmable controllers have obtained the highest safety level (IEC61508 SIL3, EN954-1/ISO13849-1 Category 4, IEC62061) applicable to programmable controllers. Power supply/CPU/CC-Link Safety master module CC-Link Safety remote I/O station CC-Link Safety...
  • Page 28 OVERVIEW (2) The safety CPU operation mode is equipped for safe system operation The CPU module is equipped with two safety CPU operation modes. "SAFETY MODE" for safe system operation and "TEST MODE" for system construction and maintenance. These two modes prevent the user's erroneous operations for safe system operation. (a) SAFETY MODE SAFETY MODE is a mode for safe system operation.
  • Page 29 OVERVIEW (4) Enhanced RAS (a) Enhanced memory diagnostics The memory diagnostics equipped with the CPU module are enhanced. (b) Redundant CPU The CPU module has two CPUs (CPU A and CPU B). The operation results of CPU A/CPU B are compared, and output only when the results are matched so that incorrect outputs can be prevented.
  • Page 30 OVERVIEW (5) USB interface is equipped The CPU module is equipped with the USB interface to communicate with a programming tool. Personal computer Figure 1.3 Connection to a personal computer using USB (6) Connectable with personal computers and standard programmable controllers The CPU module can read data from the MELSOFT products installed in the personal computer and also can communicate data between safety programmable controller and standard programmable controller using dedicated instructions via CC-Link IE...

  • Page 31: Chapter2 System Configuration

    SYSTEM CONFIGURATION CHAPTER2 SYSTEM CONFIGURATION This section describes the system configuration of the QS series CPU module cautions on use of the system, and configured equipment. 2.1 System Configuration The following figure shows the system configuration of the safety PLC system when the QS series CPU module is used.
  • Page 32 SYSTEM CONFIGURATION (2) System configuration overview Base unit (QS034B) Slot number I/O number Power supply module CPU module Figure 2.2 System configuration Table2.1 Base unit and power supply module applicable to system configuration Base unit model name QS034B Maximum number of monted 4 modules modules Power supply module model...

  • Page 33: Precautions For System Configuration

    SYSTEM CONFIGURATION 2.1.1 Precautions for system configuration (1) Modules mountable on the main base unit Table2.2 lists the modules that can be mounted on the main base unit. The number of mounted modules and functions are restricted depending on the module type.

  • Page 34: Configuration Of Peripheral Devices

    SYSTEM CONFIGURATION 2.2 Configuration of Peripheral Devices This section describes the configuration of the peripheral devices usable in the safety PLC system. QS001CPU Personal computer (GX Developer Version 8.40S or later) USB cable*1 * 1: For details of the USB cable, refer to "About the USB cable (QCPU (Q mode) compatible)" of the following manual.

  • Page 35: Confirming Serial No. And Function Version

    SYSTEM CONFIGURATION 2.3 Confirming Serial No. and Function Version The serial No. and function version of the CPU module can be confirmed on the rated plate and GX Developer's system monitor. (1) Confirming the serial No. on the rated plate The rated plate is situated on the side face of the CPU module.
  • Page 36 SYSTEM CONFIGURATION Remark The serial number is displayed on the front of the module from March 2008 production. Products manufactured during switching period may not have the serial number on the front of the module. (3) Confirming the serial No. on the system monitor (Product Information List) To display the System monitor screen, select [Diagnostics] [System monitor] and click the Product Information List button in GX Developer.

  • Page 37: Chapter3 General Specifications

    GENERAL SPECIFICATIONS CHAPTER3 GENERAL SPECIFICATIONS The performance specifications of PLC are shown in Table3.1. Table3.1 General specifications Item Specifications Operating ambient 0 to 55 temperature Storage ambient -40 to 75 temperature Operating ambient 5 to 95%RH , non-condensing humidity Storage ambient 5 to 95%RH , non-condensing humidity Frequency...

  • Page 38: Chapter4 Cpu Module

    CPU MODULE CHAPTER4 CPU MODULE 4.1 Performance Specifications Table4.1 shows the performance specifications of the CPU module. Table4.1 Performance Specifications Item QS001CPU Remarks Control method Repetitive operation of stored program ---- I/O control mode Refresh mode ---- Program Sequence control Relay symbol language, function block.
  • Page 39 CPU MODULE Table4.1 Performance Specifications (Continue) Item QS001CPU Remarks Internal relay [M] 6144 points by default (M0-6143) (changeable) Link relay [B] 2048 points by default (B0 to 7FF) (changeable) 512 points by default (T0 to 511) (changeable) (Sharing of low- and high-speed timers) The low- and high-speed timers are specified by the instructions.

  • Page 40: Part Names

    CPU MODULE 4.2 Part Names QS001CPU ALIVE TEST ALIVE TEST USER USER ERR. BAT. ERR. BAT. BAT. PULL STOP PULL RESET RUN When opening the cover, put your finger here. Figure 4.1 Front face Figure 4.2 With front cover open Figure 4.3 Side Face 4.2 Part Names...

  • Page 41: Initial Processing

    CPU MODULE Table4.2 Part Names Name Application Module fixing hook Hook used to fix the module to the base unit. : Normal "ALIVE" LED : When the hardware watchdog timer error is detected (Green) ("ERR." LED is On.) Indicates the operating mode of the CPU module. : TEST MODE Flash : When TEST MODE is switched to SAFETY MODE "TEST"...

  • Page 42: Switch Operation After Writing A Program

    CPU MODULE 4.3 Switch Operation after Writing a Program Programs can be written to the CPU module in either the STOP or RUN status. (1) When writing a program with the CPU module set to "STOP" (a) Set the RUN/STOP/RESET switch to STOP. The "RUN"...

  • Page 43: Reset Operation

    CPU MODULE 4.4 Reset Operation For the CPU module, the RUN/STOP/RESET switch of the CPU module is used to switch between the "RUN status" and "STOP status" and to perform "RESET operation". When using the RUN/STOP/RESET switch to reset the CPU module, moving the RUN/ STOP/RESET switch to the reset position will not reset it immediately.
  • Page 44 CPU MODULE POINT Operate the RUN/STOP/RESET switch with your fingertips. Do not use any tool such as a screwdriver because the switch part might be damaged. 4.4 Reset Operation...

  • Page 45: Chapter5 Power Supply Module

    POWER SUPPLY MODULE CHAPTER5 POWER SUPPLY MODULE This section describes the specifications of the power supply modules applicable for the PLC system and how to select the most suitable module. 5.1 Specifications Table5.1 shows the specifications of the power supply modules. Table5.1 Power supply module specifications Performance Specifications Item...
  • Page 46 POWER SUPPLY MODULE Table5.1 Power supply module specifications (Continue) Performance Specifications Item QS061P-A1 QS061P-A2 Application Section 5.3) ERR. contact Rated switching 24VDC, 0.5A voltage, current Minimum switching 5VDC, 1mA load Response time OFF to ON: 10ms max. ON to OFF: 12ms max. Mechanical : More than 20 million times Life Electrical : More than 100 thousand times at rated switching voltage, current...

  • Page 47: Precaution When Connecting The Uninterruptive Power Supply

    As for UPS, use the online power system or online interactive system with a voltage distortion rate of 5% or less. For the UPS of the commercial online power system, use Mitsubishi Electric's F Series UPS (serial number P or later) (Ex.: FW-F10-0.3K/0.5K).

  • Page 48: Names Of Parts And Settings

    POWER SUPPLY MODULE 5.3 Names of Parts and Settings The names of the parts of each power supply module are described below. QS061P-A1 100 to 120VAC input, 5VDC 6A output QS061P-A2 200 to 240VAC input, 5VDC 6A output <For QS061P-A1> QS061P-A1 QS061P-A1 POWER...
  • Page 49 POWER SUPPLY MODULE Table5.2 Part names Name Application On (green) : Normal (5VDC output, instantaneous power failure within 20ms) : • AC power supply is ON, however, the power supply module is out of order. "POWER" LED (5VDC error, overload, internal circuit failure, fuse blown) •...
  • Page 50 BASE UNIT CHAPTER6 BASE UNIT This section describes the specifications of the base units used in the PLC system. 6.1 Specification The base unit is a unit to which the CPU module, power supply module and/or intelligent function module are installed. Table6.1 Base unit specifications Type Item...
  • Page 51 BASE UNIT 6.2 Part Names The names of the parts of the base unit are described below. I/O0 I/O1 I/O2 I/O3 POWER MODEL SERIAL PASSED MADE IN JAPAN BD992C202H01 Figure 6.1 Base unit (QS034B) Table6.2 Part Names Name Application Base cover Cover for protecting the printed-circuit board of the base unit Connector for installing the QS series power supply module, CPU module and intelligent function module.

  • Page 52: Chapter7 Battery

    BATTERY CHAPTER7 BATTERY This section describes the specifications of the batteries available for the QS Series CPU Module and how to handle them. 7.1 Battery (Q6BAT) Batteries (Q6BAT) are installed in the CPU module to retain data of the program memory, and Error•operation history in case of power failure.

  • Page 53: Installation Of Battery

    BATTERY 7.1.2 Installation of Battery The battery for the CPU module is shipped with its connector disconnected. Connect the connector as follows. Refer to Section 11.3 for the service life of the battery and how to replace the battery. CPU module Open the CPU module front cover.

  • Page 54: Chapter8 Cpu Module Start-Up Procedures

    CPU MODULE START-UP PROCEDURES CHAPTER8 CPU MODULE START-UP PROCEDURES This chapter describes the procedure for starting up the CPU module. It is assumed that programs and parameters have been created separately. 8.1 Procedure before Operating in SAFETY MODE This section describes the procedure before operating the CPU module in SAFETY MODE.
  • Page 55 CPU MODULE START-UP PROCEDURES (Continued from the previous page) • • • CHAPTER 7 Installing a battery Install a battery to the CPU module. • • • CHAPTER 4, Powering ON the power supply module CHAPTER 5, Confirm the following items of the safety PLC system, and then turn on the power supply. CHAPTER 10 Wiring of the power supply Power supply voltage...
  • Page 56 CPU MODULE START-UP PROCEDURES (Continued from the previous page) • • • CHAPTER 4 Stopping the CPU module Set the RUN/STOP/RESET switch of the CPU module to the STOP position. • • • GX Developer Version 8 Switching to SAFETY MODE Operating Manual Switch the mode from TEST MODE to SAFETY MODE by selecting the menu option, (Safety PLC)

  • Page 57: Chapter9 Emc And Low Voltage Directives

    The applicable products are requested to meet these requirements. The Section 9.1.1 through Section 9.1.5 summarize the precautions on conformance to the EMC Directive of the machinery constructed using the MELSEC-QS series PLCs. The details of these precautions has been prepared based on the control requirements and the applicable standards control.
  • Page 58 EMC AND LOW VOLTAGE DIRECTIVES Table9.1 Standards relevant to the EMC Directive (Continue) Specification Test Item Test Details Standard Value EN61000-4-2 Immunity test in which 8kV Air discharge Electrostatic discharge electrostatic is applied to the 4kV Contact discharge cabinet of the equipment. immunity EN61000-4-3 Immunity test in which electric...

  • Page 59: Installation Instructions For Emc Directive

    EMC AND LOW VOLTAGE DIRECTIVES 9.1.2 Installation instructions for EMC Directive The PLC is open equipment and must be installed within a control panel for use.* This not only ensures safety but also ensures effective shielding of PLC-generated electromagnetic noise. * : CC-Link Safety remote station should be used having the control panel installed.

  • Page 60: Cables

    EMC AND LOW VOLTAGE DIRECTIVES 9.1.3 Cables The cables pulled out from the control panel contain a high frequency noise component. On the outside of the control panel, therefore, they serve as antennas to emit noise. To prevent noise emission, use shielded cables when pulling out the cables which are connected to CC-Link Safety master module, MELSECNET/H module, Ethernet module, and CC-Link Safety remote I/O module and using them outside of the control panel.
  • Page 61 EMC AND LOW VOLTAGE DIRECTIVES (2) MELSECNET/H module Be sure to use double-shielded coaxial cables (MITSUBISHI CABLE INDUSTRIES, LTD.: 5C-2V-CCY) for the coaxial cables of MELSECNET/H module. Radiated noise in the range of 30HMz or higher can be suppressed by using double-shielded coaxial cables.

  • Page 62: Power Supply Module

    EMC AND LOW VOLTAGE DIRECTIVES Be sure to use double-shielded coaxial cables for the coaxial cables*2 connected to the 10BASE2 connectors. Ground the double-shielded coaxial cable by connecting its outer shield to the ground Shield Ground here Figure 9.7 SDouble-shielded coaxial cable grounding Refer to (1) for the shield grounding processing.

  • Page 63: Others

    EMC AND LOW VOLTAGE DIRECTIVES 9.1.5 Others (1) Ferrite core A ferrite core has the effect of reducing conduction noise in around 10MHz band and radiated noise in the 30MHz to 100MHz band. It is recommended to fit ferrite cores if shielded cables pulled out of the panel do not provide sufficient shielding effects or if the emission of conduction noise from the power supply line has to be suppressed.
  • Page 64 EMC AND LOW VOLTAGE DIRECTIVES (2) Noise filter (power supply line filter) A noise filter is a component which has an effect on conducted noise. It is not required to fit the noise filter to the power supply line, but fitting it can further suppress noise.

  • Page 65: Requirement To Conform To The Low Voltage Directive

    The Low Voltage Directive requires each device that operates with the power supply ranging from 50 to 1000VAC and 75 to 1500VDC to satisfy the safety requirements. In Section 9.2.1 to Section 9.2.6, cautions on installation and wiring of the MELSEC-QS series PLC to conform to the Low Voltage Directive are described.

  • Page 66: Power Supply

    EMC AND LOW VOLTAGE DIRECTIVES 9.2.3 Power supply The insulation specification of the power supply module was designed assuming installation category II. Be sure to use the installation category II power supply to the PLC. The installation category indicates the durability level against surge voltage generated by a thunderbolt.
  • Page 67 EMC AND LOW VOLTAGE DIRECTIVES (2) Dustproof and waterproof features The control panel also has the dustproof and waterproof functions. Insufficient dustproof and waterproof features lower the insulation withstand voltage, resulting in insulation destruction. The insulation in our PLC is designed to cope with the pollution level 2, so use in an environment with pollustion level 2 or below.

  • Page 68: Grounding

    EMC AND LOW VOLTAGE DIRECTIVES 9.2.5 Grounding There are the following two different grounding terminals. Use either grounding terminal in an earthed status. Protective grounding : Maintains the electrical safety of the PLC and improves the noise resistance. Functional grounding : Improves the noise resistance.

  • Page 69: Chapter10 Loading And Installation

    LOADING AND INSTALLATION CHAPTER10 LOADING AND INSTALLATION In order to increase the reliability of the system and exploit the maximum performance of its functions, this section describes the methods and precautions for the mounting and installation of the system. When a safety PLC detects an error in an external power supply or a fail- ure in PLC main module, it turns off all the outputs.
  • Page 70 LOADING AND INSTALLATION Do not bunch the wires of external devices or communication cables together with the main circuit or power lines, or install them close to each CAUTION other.They should be installed 100 mm (3.94 inch) or more from each other.Not doing so could result in noise that would cause erroneous operation.

  • Page 71: Calculating Heat Generation Of Plc

    LOADING AND INSTALLATION 10.1 Calculating Heat Generation of PLC The ambient temperature inside the panel storing the PLC must be suppressed to an ambient temperature of 55 or less, which is specified for the PLC. For the design of a heat releasing panel, it is necessary to know the average power consumption (heating value) of the devices and instruments stored inside.
  • Page 72 LOADING AND INSTALLATION POINT If the temperature inside the panel has exceeded the specified range, it is recommended to install a heat exchanger to the panel to lower the temperature. If a normal ventilating fan is used, dust will be sucked into the PLC together with the external air, and it may affect the performance of the PLC.

  • Page 73: Module Installation

    LOADING AND INSTALLATION 10.2 Module Installation 10.2.1 Precaution on installation Use a safety PLC in the environment that meets the general specifica- tions described in this manual. CAUTION Using this PLC in an environment outside the range of the general speci- fications could result in electric shock, fire, erroneous operation, and damage to or deterioration of the product While pressing the installation lever located at the bottom of module,...
  • Page 74 LOADING AND INSTALLATION This section gives instructions for handling the CPU, and power supply modules, base unit and so on. • Do not drop the module case and main module or subject them to strong impact. • Do not remove modules' printed circuit boards from the enclosure in order to avoid changes in operation.
  • Page 75 LOADING AND INSTALLATION 4) Fit the mounting screws into the holes at the bottom of the base unit, and then retighten the 4 mounting screws. Note1 : Install the base unit to a panel, with no module loaded in the right-end slot.
  • Page 76 LOADING AND INSTALLATION (c) Applicable DIN rail types (IEC 60715) TH35-7.5Fe TH35-7.5AI TH35-15Fe (d) DIN rail mounting screw intervals When using either the TH35-7.5Fe or TH35-7.5Al DIN rail, rail mounting screws should be inserted in 200 mm (7.88 inch) interrals or less in order to ensure that the rail has sufficient strength.
  • Page 77 LOADING AND INSTALLATION POINT (1) Use only one washer for each mounting screw. Use only the square washers supplied with the adaptors. If two or more washers are used together for one mounting screw, the screw may interfere with the base unit. (2) Make sure to align the square washer sides with the DIN rail.
  • Page 78 LOADING AND INSTALLATION (e) Stopper mounting When using the DIN rail in a large vibration and/or shock prone environment, install the base unit using the stoppers supplied with the DIN rail mounting adaptors indicated in (a). Hook Stopper Loosen the screw at the top of the stopper.
  • Page 79 LOADING AND INSTALLATION POINT When stoppers are used, the dimension of stoppers need to be considered in the unit installation dimensions. Refer to a CPU user’s manual for the base unit dimensions (W). Base unit Stopper Stopper DIN rail Base unit width : W DIN rail center W+18(0.71) Unit: mm (inch)

  • Page 80: Instructions For Mounting The Base Unit

    LOADING AND INSTALLATION 10.2.2 Instructions for mounting the base unit When mounting the PLC to an enclosure or similar, fully consider its operability, maintainability and environmental resistance. (1) Module mounting position Keep the clearances shown in Figure 10.13 or Figure 10.19 between the top/bottom faces of the module and other structures or parts to ensure good ventilation and facilitate module replacement.
  • Page 81 LOADING AND INSTALLATION (2) Module mounting orientation • Install the PLC in the orientation in Figure 10.14 to ensure good ventilation for heat release. Figure 10.14 Orientation in which modules can be mounted • Do not mount it in either of the orientations shown in Figure 10.15. Vertical mounting Horizontal installation Horizontal mounting...
  • Page 82 LOADING AND INSTALLATION (3) Installation surface Mount the base unit on a flat surface. If the mounting surface is not even, this may strain the printed circuit boards and cause malfunctions. (4) Installation of unit in an area where the other devices are installed Avoid mounting base unit in proximity to vibration sources such as large magnetic contractors and no-fuse circuit breakers;...

  • Page 83: Installation And Removal Of Module

    LOADING AND INSTALLATION 10.2.3 Installation and removal of module This section explains how to install and remove a power supply, CPU, I/O, intelligent function or another module to and from the base unit. (1) Installation and removal of the module from the QS034B the QS034B (a) Installation of module on Base unit...
  • Page 84 LOADING AND INSTALLATION POINT 1. When mounting the module, always insert the module fixing latch into the module fixing hole of the base unit. At that time, securely insert the module fixing latch so that it does not come off from the module fixing hole.
  • Page 85 LOADING AND INSTALLATION (b) Removal from the QS034B Remove the module fixing screw. Then support the module with both hands and securely press the module fixing hook*1 with your finger. Push Lifting Pull the module based on the supporting point of module bottom Module fixing while pressing the module fixing hook *1...

  • Page 86: Wiring

    LOADING AND INSTALLATION 10.3 Wiring 10.3.1 The precautions on the wiring Be sure to shut off all phases of the external supply power used by the system before wiring. DANGER Not completely turning off all power could result in electric shock or dam- age to the product.
  • Page 87 LOADING AND INSTALLATION Be sure to ground the FG terminals and LG terminals to the protective ground conductor.Not doing so could result in electric shock or erroneous CAUTION operation. Use a solderless terminal with insulation sleeve for wiring of a terminal block.
  • Page 88 LOADING AND INSTALLATION (1) Power supply wiring • Separate the PLC's power supply line from the lines for I/O devices and power devices as shown below. When there is much noise, connect an insulation transformer. • Taking rated current or inrush current into consideration when wiring the power supply, be sure to connect a breaker or an external fuse that have proper blown and detection.
  • Page 89 LOADING AND INSTALLATION POINT 1. Separate the ground of the surge absorber for lightening (E1) from that of the PLC (E2). 2. Select a surge absorber for lightening whose power supply voltage does no exceed the maximum allowable circuit voltage even at the time of maximum power supply voltage elevation.

  • Page 90: Connecting To The Power Supply Module

    LOADING AND INSTALLATION 10.3.2 Connecting to the power supply module The following figure shows the wiring example of power lines, grounding lines, etc. to the unit. Main base unit 100/110VAC (QS034B) CPU module QS061P-A1 Fuse ERR 1 24VDC INPUT 100-120VAC Connect to 24VDC terminals of module that requires 24VDC...

  • Page 91: Chapter11 Maintenance And Inspection

    MAINTENANCE AND INSPECTION CHAPTER11 MAINTENANCE AND INSPECTION Do not touch the terminals while power is on. Doing so could cause shock or erroneous operation. DANGER Correctly connect the battery. Also, do not charge, disassemble, heat, place in fire, short circuit, or solder the battery.
  • Page 92 MAINTENANCE AND INSPECTION The online operations performed from a PC to a running safety PLC (Program change when a safety CPU is RUN, device test, CAUTION and operating status change such as RUN-STOP switching) have to be executed after the manual has been carefully read and the safety has been ensured.

  • Page 93: Daily Inspection

    MAINTENANCE AND INSPECTION 11.1 Daily Inspection The items that must be inspected daily are listed in Table11.1. Table11.1 Daily inspection Item Inspection Item Inspection Judgment Criteria Remedy Check that fixing screws are The screws and cover must Installation of base unit not loose and the cover is Retighten the screws.

  • Page 94: Periodic Inspection

    MAINTENANCE AND INSPECTION 11.2 Periodic Inspection The items that must be inspected one or two times every 6 months to 1 year are listed below. When the equipment is moved or modified, or layout of the wiring is changed, also perform this inspection.

  • Page 95: Battery Life And Replacement Procedure

    MAINTENANCE AND INSPECTION 11.3 Battery Life and Replacement Procedure The battery installed in the CPU module is used for data retention during the power failure of the program memory and error/operation history. Special relays SM51 and SM52 turn on due to the decrease of battery voltage. Even if the special relays turn on, the program and error/operation history data are not erased immediately.

  • Page 96: Battery Lives Of Cpu Modules

    MAINTENANCE AND INSPECTION 11.3.1 Battery lives of CPU modules Table11.3 Battery lives Battery lives Power-on Time Actual service After SM52 ON CPU Module Guaranteed value (Reference (Backup time after Type Ratio value (70 value) alarm 26,000hr 43,800hr 710hr 2.96 years 5.00 years 30 days 37,142hr...
  • Page 97 MAINTENANCE AND INSPECTION POINT 1. Do not use the battery exceeding its guaranteed life. If it is expected that the battery may exceed its guaranteed life, take the following measures: • Back up programs and the error/operation history in advance after SM52 turns on (within the power failure compensation time after alarm occurrence).

  • Page 98: Replacement Procedure Of The Cpu Module Battery

    MAINTENANCE AND INSPECTION 11.3.2 Replacement Procedure of the CPU Module Battery Replace the battery by the following procedure when the Q6BAT battery of the CPU module comes to the end of its life. The battery replacement can be performed regardless of the SAFETY MODE or TEST MODE.

  • Page 99: When Plc Has Been Stored Without A Battery

    MAINTENANCE AND INSPECTION 11.4 When PLC Has been Stored without a Battery When the PLC operation is to be resumed after being stored with the battery removed, the memories in the CPU module may be corrupted. Hence, before resuming operation, always format the memories using GX Developer. After formatting the memories, write the memory contents backed up prior to storage to each memory.

  • Page 100: When Battery Has Gone Flat During Storage Of A Plc

    MAINTENANCE AND INSPECTION 11.5 When Battery Has Gone Flat during Storage of a PLC When the PLC is to be used after being stored for some period of time and the battery has gone flat during storage, the memories in the CPU module may be corrupted. Hence, before resuming operation, always format the memories using GX Developer.

  • Page 101: Chapter12 Troubleshooting

    TROUBLESHOOTING CHAPTER12 TROUBLESHOOTING This section describes the various types of trouble that occur when the system is operated, and causes and remedies of these troubles. 12.1 Troubleshooting Basics In order to increase the reliability of the system, not only highly reliable devices are used but also the speedy startup of the system after the occurrence of trouble becomes an important factor.

  • Page 102: Troubleshooting Flowchart

    TROUBLESHOOTING 12.2 Troubleshooting Flowchart The trouble investigating methods and remedies of the troubles are described below. 12.2.1 Troubleshooting category flow This section classifies the error by definition and describes them. Error-occurrence description Section 12.2.2 Flowchart for when the ERR terminal ERR terminal turned off (opened).

  • Page 103: Flowchart For When The Err Terminal (Negative Logic) Is Off (Opened)

    TROUBLESHOOTING 12.2.2 Flowchart for when the ERR terminal (negative logic) is off (opened) The following shows the flowchart for when the "ERR terminal" is off (opened) at power-on or during operation of the PLC. The ERR terminal has turned off (opened). Flashing (CPU module is in stop How is the "ERR."...
  • Page 104 For the module that does not operate, please contact your local nearest Mitsubishi or representative, explaining a detailed description of the problem. Figure 12.2 Flowchart for when the ERR terminal turns off Errors that can be detected by the ERR. terminal The following shows the errors that can be detected by the ERR.

  • Page 105: Flowchart For When The "Power" Led Turns Off

    TROUBLESHOOTING 12.2.3 Flowchart for when the "POWER" LED turns off The following shows the flowchart for when the "POWER" LED of the power supply module turns off at of the programmable controller power-on or during operation. The "POWER" LED has turned off. Has the "ALIVE"...
  • Page 106 For the module that does not in due order. operate, please contact your local If the module will not work , Mitsubishi service center or please consalt your local representative, explaining a detailed nearest Mitsubishi or description of the problem.

  • Page 107: When The "Alive" Led Does Not Turn On Or Turns Off

    4) Network module (if mounted) Execute operation check sequentially from the minimum system. For the module that does not operate, please consult your local Mitsubishi service center or representative, explaining a detailed description of the problem. 12.2 Troubleshooting Flowchart 12.2.4 When the "ALIVE" LED does not turn on or turns off...
  • Page 108 CPU module with RUN/STOP/RESET switch. If the problem is not improved after performing the operation above, please consult your local Mitsubishi service center or representative, explaining a detailed description of the problem. 12.2 Troubleshooting Flowchart...

  • Page 109: Flowchart For When The "Run" Led Turns Off

    Check the program and modify Take measures against noise. the program error location. Please consult your local Mitsubishi service center of representative, explaining a detailed description of the problem. Does the "RUN" LED turn on? Completed Replace the CPU module.

  • Page 110: When The "Run" Led Flashes

    TROUBLESHOOTING 12.2.6 When the "RUN" LED flashes If the "RUN" LED flashes, follow the steps below. When the programs or parameters are written into the CPU module during STOP status and then the RUN/STOP/RESET switch is set from STOP to RUN, the "RUN" LED of the CPU module flashes.

  • Page 111: Flowchart For When The "Err." Led Turns On Or Flashes

    TROUBLESHOOTING 12.2.7 Flowchart for when the "ERR." LED turns on or flashes The following shows the flowchart for when the "ERR." LED of the CPU module turns on or flashes at of the programmable controller power-on, at operation start or during operation. The "ERR."...
  • Page 112 Normal operation Replace the base unit. Error detection Hardware error Completed Please consult your local Mitsubishi service center of representative, explaining a detailed description of the problem. - 12 12.2 Troubleshooting Flowchart 12.2.7 Flowchart for when the "ERR." LED turns on or flashes...
  • Page 113 Normal operation Replace the base unit. Error detection Hardware error Completed Please consult your local Mitsubishi service center of representative, explaining a detailed description of the problem. Figure 12.5 Flowchart for when the "ERR." LED is on/flashing 12.2 Troubleshooting Flowchart - 13 12.2.7 Flowchart for when the "ERR."...

  • Page 114: When The "User" Led Turns On

    TROUBLESHOOTING Remark The following causes are possible when the "ERR." LED of the CPU module flashes at PLC power-on. Error Message Cause Corrective Action The multiple CPU system is Remove all CPUs except the configured. safety CPU from the base unit. Modules except the following are mounted on the base unit.

  • Page 115: When The "Bat." Led Turns On

    TROUBLESHOOTING 12.2.9 When the "BAT." LED turns on If the "BAT." LED turns on, follow the steps described below. The "BAT." LED turns on when low battery capacity is detected in the Q6BAT installed to the CPU module. Replace the battery with a new one according to Section 11.3.2. 12.2 Troubleshooting Flowchart - 15 12.2.9 When the "BAT."...

  • Page 116: Flowchart For When A Program Cannot Be Read

    Try resetting the CPU module. Can a program be read? Completed Hardware error Please consult your local Mitsubishi service center of representative, explaining a detailed description of the problem. Figure 12.6 Flowchart for when a program cannot be read - 16 12.2 Troubleshooting Flowchart...

  • Page 117: Flowchart For When A Program Cannot Be Written

    PLC memory. Register the CPU access password. Can the program be written? Hardware error Please consult your local Mitsubishi service center of representative, Completed explaining a detailed description of the problem. * 1: If the password registration cannot be canceled due to the loss of password, initialize the PLC memory with GX developer.

  • Page 118: Flowchart For When The Cpu Cannot Communicate With The Gx Developer

    Can the CPU communicate with the GX Developer? Please consult your local nearest Mitsubishi or representative, explaining a detailed description of the problem. Completed - 18 12.2 Troubleshooting Flowchart 12.2.12 Flowchart for when the CPU cannot communicate with the GX Developer...
  • Page 119 4) Network module (if mounted) Execute operation check sequentially from the minimum system. For the module that does not operate, please consult your local Mitsubishi service center or representative, explaining a detailed description of the problem. 12.2 Troubleshooting Flowchart - 19...

  • Page 120: Error Code List

    TROUBLESHOOTING 12.3 Error Code List The QS series CPU module uses the self diagnostics function to display error information (LED indication) and stores the information into the special relay SM and special register SD, when an error occurs in the following situations: •...

  • Page 121: Error Codes

    TROUBLESHOOTING 12.3.1 Error codes Errors are detected by the self diagnostic function of the CPU module or detected during communication with the CPU module. The relation between the error detection pattern, error detection location and error code is shown in the following table. Error detection Error detection pattern Error code...

  • Page 122: Error Code List (1000 To 1999)

    TROUBLESHOOTING 12.3.3 Error code list (1000 to 1999) The following shows the error messages from the error code 1000 to 1999, the contents and causes of the errors, and the corrective actions for the errors. Table12.2 Error code Error Common Individual LED Status Error...
  • Page 123 1009 supply module, CPU module, or base supply module, CPU module, or base unit. unit is failure. (Contact your local Mitsubishi representative.) Entire program was executed without the execution of an END instruction. • Take noise reduction measures. • When the END instruction is •...
  • Page 124 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status 1131 1132 At power-ON/ 1133 At reset 1136 Error 1137 RAM ERROR – Flash Stop information 1141 1142 Always 1143...
  • Page 125 1401 initial processing. expecting a hardware fault. (Please • The size of the buffer memory of the consult your local Mitsubishi Service or intelligent function module is invalid. representative.) • The hardware test of the module installed in the slot indicated by •...
  • Page 126 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status CONTROL- At power ON/ 1411 Module No. – Flash Stop BUS ERROR At reset CONTROL- 1413 – –...
  • Page 127 1411 (On error occurring, the head I/O CPU module or base unit is faulty. number of the corresponding intelligent (Contact your local Mitsubishi function module is stored in the representative.) common information.) The intelligent function module, CPU...

  • Page 128: Error Code List (2000 To 2999)

    TROUBLESHOOTING 12.3.4 Error code list (2000 to 2999) The following shows the error messages from the error code 2000 to 2999, the contents and causes of the errors, and the corrective actions for the errors. Table12.3 Error code Error Common Individual LED Status Error...
  • Page 129 TROUBLESHOOTING Error Corresponding Code Error Contents and Cause Corrective Action (SD0) Read the common information of the error using the GX Developer, and • Intelligent function module check and/or change the module that information at power ON are corresponds to the numerical values changed.
  • Page 130 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status INTELLIGENT At an FUNCTION Program error 2112 Module No. Flash Stop execution of MODULE location instruction ERR. MODULE At power ON/ 2124...
  • Page 131 • The intelligent function module is 2125 • There was no response from the experiencing a hardware fault. intelligent function module. (Contact your local Mitsubishi representative.) There is no parameter file at the Set the parameter file to the program 2200 program memory.
  • Page 132 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status 2500 CAN'T At power ON/ File name/ 2501 EXECUTE – Flash Stop At reset/ Drive No. PROGRAM STOP RUN 2502 2503...
  • Page 133 TROUBLESHOOTING Error Corresponding Code Error Contents and Cause Corrective Action (SD0) Read the common information of the error using the GX Developer, check to • There is a program file that uses a be sure that the parameter device 2500 device that is out of the range set in allocation setting and the program file the PLC parameter device setting.

  • Page 134: Error Code List (3000 To 3999)

    TROUBLESHOOTING 12.3.5 Error code list (3000 to 3999) The following shows the error messages from the error code 3000 to 3999, the contents and causes of the errors, and the corrective actions for the errors. Table12.4 Error code Error Common Individual LED Status Error...
  • Page 135 TROUBLESHOOTING Error Corresponding Code Error Contents and Cause Corrective Action (SD0) The PLC parameter settings for timer Read the detailed information of the time limit setting, the RUN-PAUSE error using the GX Developer, check the 3000 contact, and number of vacant slots is parameter items corresponding to those outside the range that can be used by numerical values (parameter numbers),...
  • Page 136 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status NETWORK File name/ Parameter At power ON/ 3100 PARAMETER Flash Stop Drive No. number At reset ERROR NETWORK File name/ Parameter...
  • Page 137 • Some data in the parameters are not If an error occurs even after correction, supported. a hardware failure is considered. • The station type for a MELSECNET/H (Please consult your local Mitsubishi has been changedwhile the power is representative.) Set the mode switches of (RESET...
  • Page 138 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status NETWORK File name/ Parameter At power ON/ 3102 PARAMETER Flash Stop Drive No. number At reset ERROR NETWORK File name/ Parameter...
  • Page 139 3102 • The MELSECNET/H inherent hardware failure is considered. (Please parameter setting is incorrect. consult your local Mitsubishi representative.) • Check the setting in Network parameter and actual mounting status, and if they differ, correct either •...
  • Page 140 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status CC-LINK File name/ Parameter At power ON/ 3106 PARAMETER Flash Stop Drive No. number At reset ERROR CC-LINK File name/ Parameter...
  • Page 141 TROUBLESHOOTING Error Corresponding Code Error Contents and Cause Corrective Action (SD0) • The network refresh parameter for • Check the parameter setting. CC-Link is out of range. • Check the [Model name] and [Module • Although the safety remote station set technical version] of the safety in the network parameter does not remote station settings, or delete the...

  • Page 142: Error Code List (4000 To 4999)

    TROUBLESHOOTING 12.3.6 Error code list (4000 to 4999) The following shows the error messages from the error code 4000 to 4999, the contents and causes of the errors, and the corrective actions for the errors. Table12.5 Error code Error Common Individual LED Status Error...
  • Page 143 TROUBLESHOOTING Error Corresponding Code Error Contents and Cause Corrective Action (SD0) • The program contains an instruction code that cannot be decoded. 4000 • An unusable instruction is included in the program. • The name of dedicated instruction specified in the program is incorrect. •...
  • Page 144 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status At an OPERATION Program error 4102 – Flash Stop execution of ERROR location instruction When PROGRAM Aborted Program error executing the 4700...
  • Page 145 TROUBLESHOOTING Error Corresponding Code Error Contents and Cause Corrective Action (SD0) • The network number and/or station number specified by the dedicated Read the common information of the instruction are incorrect. error using the GX Developer, check • The module number, network 4102 error step corresponding to its number, and/or number of character...

  • Page 146: Error Code List (5000 To 5999)

    TROUBLESHOOTING 12.3.7 Error code list (5000 to 5999) The following shows the error messages from the error code 5000 to 5999, the contents and causes of the errors, and the corrective actions for the errors. Table12.6 Error code Error Common Individual LED Status Error...
  • Page 147 TROUBLESHOOTING Error Corresponding Code Error Contents and Cause Corrective Action (SD0) The program scan time exceeded the Read the individual information of the WDT value specified in the PLC RAS 5001 error with the GX Developer, check its setting of the PLC parameter dialog value (time), and shorten the scan time.

  • Page 148: Error Code List (8000 To 9000)

    TROUBLESHOOTING 12.3.8 Error code list (8000 to 9000) The following shows the error messages from the error code 8000 to 9000, the contents and causes of the errors, and the corrective actions for the errors. Table12.7 Error code Error Common Individual LED Status Error...
  • Page 149 (SD0) This suggests a CPU module hardware Error is detected by the inside register 8000 fault. (Contact your local Mitsubishi diagnostics built in the CPU module. representative.) This suggests a CPU module hardware Error is detected inside the bus of the 8010 fault.
  • Page 150 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status At power ON/ At reset/When INCORRECT Error 8060 – Flash Stop an END FIRMWARE information instruction executed. 8070 At power ON/ 8071...
  • Page 151 • Reset it and run it again. If the same error is displayed again, this 8060 Error of system programs is detected. suggests a CPU module hardware fault. (Contact your local Mitsubishi representative.) The initial communication between CPU 8070 A and CPU B was unsuccessful.
  • Page 152 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status CC-LINK Stop/ Flash/ PRODUCT CC-Link Safety CC-Link Safety 8310 Always Continues Off/On INFO. information information MISMATCH While 8320 initializing remote station...
  • Page 153 TROUBLESHOOTING Error Corresponding Code Error Contents and Cause Corrective Action (SD0) Check that [Model name], [Module technical version] or [Production information] of the CC-Link Safety remote station set in the network The installed product is different from 8310 parameter matches the product the specified one by network parameter.
  • Page 154 TROUBLESHOOTING Error Common Individual LED Status Error Diagnostic Code Information Information Operation Message ERROR Timing (SD0) (SD5 to 15) (SD16 to 26) Status 8330 8331 8332 CC-LINK Stop/ Flash/ CC-Link Safety CC-Link Safety RECEIVED Always Off/On Continues information information DATA ERROR 8333 8334 When...
  • Page 155 Lapse in separated receiving data has 8331 occurred. Link Safety remote module (Contact your local Mitsubishi representative.) • Check if the link ID setting of the relevant remote station and the link ID that has been set in the network The link ID in receiving data is different parameter are identical.

  • Page 156: Canceling Errors

    TROUBLESHOOTING 12.4 Canceling Errors CPU module can perform the cancel operation for errors only when the errors allow the CPU module to continue its operation. The occurring continuation error can be checked by the bit which is turned "1" of SD81 (error factor).
  • Page 157 TROUBLESHOOTING When multiple enunciators(F) detected are canceled, the first one with No. F only is canceled. If the canceling of errors is performed when multiple continuation errors are occurring, the LED indication and error information of the CPU module operate as follows. LED Indication *1 Error Information Error Canceling Status...

  • Page 158: Error Codes Returned To Request Source During Communication With Cpu Module

    TROUBLESHOOTING 12.5 Error codes returned to request source during communication with CPU module The CPU module returns an error code to GX Developer if an error occurs at a request of communication from GX Developer. POINT This error code is not an error that is detected by the CPU module self-diagnosis function, so it is not stored in the special relay (SD0).
  • Page 159 TROUBLESHOOTING Table12.9 Error code (Continue) Error code Error item Error details Corrective action (Hexadecimal) • Check the specified drive memory status. The specified drive memory does not exist or 4021 • After backing up the data in the CPU module, execute there is an error.
  • Page 160 TROUBLESHOOTING Table12.9 Error code (Continue) Error code Error item Error details Corrective action (Hexadecimal) • Execute the function again after the operation of the other peripheral device has ended. The online debug function is being executed • When the operation was suspended by the other 4060 by the other peripheral device.
  • Page 161 TROUBLESHOOTING Table12.9 Error code (Continue) Error code Error item Error details Corrective action (Hexadecimal) • Check the capacity of the specified program file. The file capacity was exceeded by the write 408A • Write the program after setting the CPU module to the during Run.
  • Page 162 TROUBLESHOOTING Table12.9 Error code (Continue) Error code Error item Error details Corrective action (Hexadecimal) The date/time data of the peripheral device Execute again after checking the clock setting of the 4135 (personal computer) is beyond the range. peripheral device (personal computer). 4136 The specified file already exists.
  • Page 163 TROUBLESHOOTING Table12.9 Error code (Continue) Error code Error item Error details Corrective action (Hexadecimal) 41CB The file name is specified in a wrong method. Execute again after checking the file name. 41CC The specified file does not exist. Execute again after checking the file. 41CD Access to the file is inhibited by the system.
  • Page 164 TROUBLESHOOTING Table12.9 Error code (Continue) Error code Error item Error details Corrective action (Hexadecimal) CPU access • Check whether the CPU access password is correct or 42A0 password The CPU access password is mismatched. not. mismatch • Register the CPU access password again. CPU access password is The CPU access password is not registered...
  • Page 165 CPU access If the same error occurs again, it is a CPU hardware password 42B1 Writing the CPU access password failed. failure. Please consult your local Mitsubishi service cannot be center or representative, explaining a detailed written description of the problem.
  • Page 166 TROUBLESHOOTING Table12.9 Error code (Continue) Error code Error item Error details Corrective action (Hexadecimal) The communication data whose format is not General data Check whether the application compatible with the 42B9 supported by the transfer target CPU has frame error QS001CPU is used or not.

  • Page 167: Special Relay List

    TROUBLESHOOTING 12.6 Special Relay List Special relays, SM, are internal relays whose applications are fixed in the PLC. For this reason, they cannot be used by sequence programs in the same way as the normal internal relays. However, they can be turned ON or OFF as needed in order to control the CPU module and remote I/O modules.
  • Page 168 TROUBLESHOOTING (1) Diagnostic Information Table12.11 Descriptions of the special relay headings Set by Corresponding Number Name Meaning Explanation (When Set) • Turns ON when an error is detected by diagnostics Diagnostic OFF : No error (Includes when an annunciator is ON) S (Error) errors ON : Error...
  • Page 169 TROUBLESHOOTING (2) System information Table12.12 Special relay Set by Corresponding Number Name Meaning Explanation (When Set) SM203 STOP contact STOP status • Turns ON when the CPU is in STOP status. S (Status change) • Writes clock data stored in SD210 to SD213 Clock data set OFF: Ignored to the CPU module after the END instruction...
  • Page 170 TROUBLESHOOTING (4) Safety CPU Table12.14 Special relay Set by Corresponding Number Name Meaning Explanation (When Set) • Turns ON when operating on the TEST OFF : Other than TEST MODE. TEST MODE SM560 MODE • Turns OFF when operating on the other S (Status change) flag mode (SAFETY MODE, SAFETY MODE...

  • Page 171: Special Register List

    TROUBLESHOOTING 12.7 Special Register List The special registers, SD, are internal registers with fixed applications in the PLC. For this reason, it is not possible to use these registers in sequence programs in the same way that normal registers are used. However, data can be written as needed in order to control the CPU modules and remote I/ O modules.
  • Page 172 TROUBLESHOOTING (1) Diagnostic Information Table12.19 Special register Set by Corresponding Number Name Meaning Explanation (When set) • Error codes for errors detected by diagnostics are stored as Diagnostic Diagnosis error BIN data. S (Error) errors code • Contents identical to latest fault history information. •...
  • Page 173 TROUBLESHOOTING Table12.19 Special register Set by Corresponding Number Name Meaning Explanation (When set) • Common information corresponding to the error codes (SD0) is stored here. • The following six types of information are stored here: Module No./Base No. Number Meaning Slot No./Base No.
  • Page 174 TROUBLESHOOTING Table12.19 Special register Set by Corresponding Number Name Meaning Explanation (When set) Time (value set) Number Meaning Time : 1 s units (0 to 999 s) Time : 1ms units (0 to 65535ms) SD10 (Empty) SD11 SD12 SD13 SD14 SD15 Program error location Meaning...
  • Page 175 TROUBLESHOOTING Table12.19 Special register Set by Corresponding Number Name Meaning Explanation (When set) • Individual information corresponding to error codes (SD0) is stored here. • There are the following nine different types of information are SD16 stored. File name/Drive name Meaning (Example) File name = Number...
  • Page 176 TROUBLESHOOTING Table12.19 Special register Set by Corresponding Number Name Meaning Explanation (When set) 10) CC-Link Safety information SD16 Number Meaning SD16 Number of items for individual information SD17 individual information 1 SD18 individual information 2 SD17 SD19 individual information 3 SD20 individual information 4 SD21...
  • Page 177 TROUBLESHOOTING Table12.19 Special register Set by Corresponding Number Name Meaning Explanation (When set) I/O module I/O module • The lowest I/O number of the module where the I/O module SD61 verify error verify error S (Error) verification number took place. number module number Annunciator...
  • Page 178 TROUBLESHOOTING Table12.19 Special register Set by Corresponding Number Name Meaning Explanation (When set) • When I/O modules, of which data are different from those entered at power-on, have been detected, the I/O module SD150 numbers (in units of 16 points) are entered in bit pattern. Bit pattern, in (Preset I/O module numbers set in parmeters when parameter units of 16...
  • Page 179 TROUBLESHOOTING Table12.21 Special register Set by Corresponding Number Name Meaning Explanation (When set) • The year (last two digits) and month are stored as BCD code at SD210 as shown below: Clock data Example: SD210 Clock data September, 2006 (year, month) 0609 Year Month...
  • Page 180 TROUBLESHOOTING Table12.21 Special register Set by Corresponding Number Name Meaning Explanation (When set) Base type Installed Q differentiation base Empty SD242 0: Base not S (Initial) presence/ Main base unit installed absence 1: QS**B is installed b4 b3 to b0 SD243 No.
  • Page 181 TROUBLESHOOTING Set by Corresponding Number Name Meaning Explanation (When set) Number of SD340 • Indicates the number of mounted Ethernet modules. modules mounted SD341 I/O number • Indicates the I/O number of mounted Ethernet module. Ethernet S (Initial) information SD342 Network number •...
  • Page 182 TROUBLESHOOTING (4) Scan information Table12.23 Special register Set by Corresponding Number Name Meaning Explanation (When set) • The current scan time is stored into SD520 and SD521. Current scan (Measurement is made in 100 s units.) SD520 time (in 1 ms SD520: Stores the value of ms.
  • Page 183 TROUBLESHOOTING (5) Safety CPU Table12.24 Special register Set by Corresponding Number Name Meaning Explanation (When set) • Stores the safety CPU operation mode. b2 b1b0 Safety CPU Safety CPU Empty S (Status SD560 operation operation mode change) 00 : SAFETY MODE mode 01 : TEST MODE 10 : SAFETY MODE...
  • Page 184 TROUBLESHOOTING (7) CC-Link Safety Table12.26 Special register Set by Corresponding Number Name Meaning Explanation (When set) • The specified status of safety remote station is stored. • "0" is stored for the standard remote station. Safety remote 0: No safety station remote station SD1000...
  • Page 185 TROUBLESHOOTING Table12.26 Special register Set by Corresponding Number Name Meaning Explanation (When set) Cancel the I/O interlock of safety station by changing the bit of register from 0 to 1. 0: Not cancel the Safety station I/O interlock interlock SD1076 of safety SD1076 cancel request...
  • Page 186 TROUBLESHOOTING Table12.26 Special register Set by Corresponding Number Name Meaning Explanation (When set) Bit corresponding to the station number turns 1 when the master station goes to the interlock status after the error was detected at the master station. Safety station interlock 0: Interlock is SD1272...

  • Page 187: Appendices

    APPENDICES APPENDICES Appendix 1 External Dimensions Appendix 1.1 CPU module (1) QS001JCPU QS001CPU ALIVE TEST USER ERR. BAT. PULL 50.8 (2.00) 113.8 (4.48) 55.2 (2.17) Unit : mm (inch) Figure App.1 QS001CPU Appendix 1 External Dimensions Appendix 1.1 CPU module...

  • Page 188: Appendix 1.2 Power Supply Module

    APPENDICES Appendix 1.2 Power supply module (1) QS061P-A1,QS061P-A2 QS061P-A1 POWER PULL 115 (4.53) 55.2 (2.17) Unit : mm (inch) Figure App.2 QS061P-A1,QS061P-A2 Appendix 1 External Dimensions Appendix 1.2 Power supply module...

  • Page 189: Appendix 1.3 Main Base Unit

    APPENDICES Appendix 1.3 Main base unit (1) QS034B 4-mounting screws (M4×14) POWER I/O0 I/O1 I/O2 I/O3 MODEL SERIAL PASSED MADE IN JAPAN BD992C202H01 (0.61) 15.5 7.5 (0.30) 224.5 0.3 (8.84 0.01) 44.1 245 (9.65) (1.74) Unit : mm (inch) Figure App.3 QS034B Appendix 1 External Dimensions Appendix 1.3 Main base unit...

  • Page 190: Appendix 2 Safety Cpu Module Upgrade

    Q Corresponding Ethernet Interface Module User's Manual (Basic)), ( Q Corresponding Ethernet Interface Module User's Manual (Application)) MC protocol( Q Corresponding MELSEC Communication Protocol Reference Manual) Clock data change function using special relay and special registers ( QSCPU User's Manual...

  • Page 191: Appendix 3 Precautions For Battery Transportation

    (2) Transport guidelines Comply with IATA Dangerous Goods Regulations, IMDG code and the local transport regulations when transporting products after unpacking or repacking, while Mitsubishi ships products with packages to comply with the transport regulations. Also, contact the transporters.

  • Page 192: Appendix 4 Handling Of Batteries And Devices With Built-In Batteries In Eu Member States

    The symbol shown in Figure App.4 is printed on the batteries and packaging of batteries and devices with built-in batteries used for Mitsubishi programmable controllers. Figure App.4 Symbol Note: This symbol is for EU member states only.

  • Page 193: Appendix 4.2 Exportation Precautions

    September 26, 2008 or later, provide the latest manuals that include the explanation of the symbol. If no Mitsubishi manuals or any old manuals without the explanation of the symbol are provided, separately attach an explanatory note regarding the symbol to each manual of the devices.
  • Page 194 INDEX [0] to [9] DIN rail mounting screw intervals ..10-8 Drive ........4-1 5VDC internal current consumption .
  • Page 195 Troubleshooting flowchart Flowchart for when a program cannot be read Part names ........12-16 Base unit .
  • Page 196 1. Limited Warranty and Product Support. a. Mitsubishi Electric Company ("MELCO") warrants that for a period of eighteen (18) months after date of delivery from the point of manufacture or one year from date of Customer's purchase, whichever is less, Mitsubishi MELSEC Safety programmable logic controllers (the "Products") will be free from defects in material and workmanship.
  • Page 197 g. The Product information and statements contained on MELCO's website and in catalogs, manuals, technical bulletins or other materials provided by MELCO are provided as a guide for Customer's use. They do not constitute warranties and are not incorporated in the contract of sale for the Products. h.
  • Page 198 Microsoft, Windows, Windows NT, and Windows Vista are registered trademarks of Microsoft Corporation in the United States and other countries. Pentium is a trademark of Intel Corporation in the United States and other countries. Ethernet is a trademark of Xerox Corporation. All other company names and product names used in this manual are trademarks or registered trademarks of their respective companies.

This manual is also suitable for:

QscpuQs series

Table of Contents
