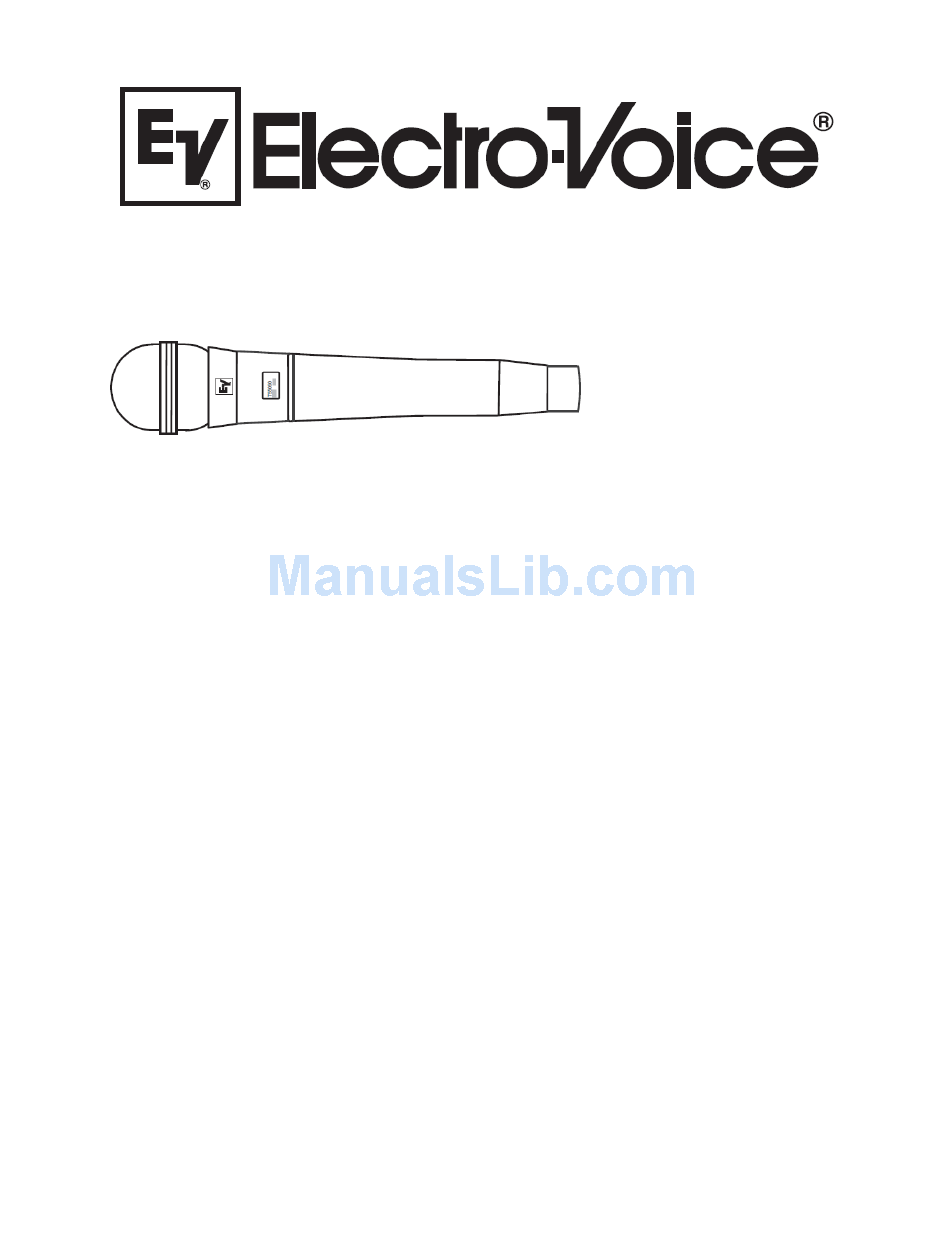

Users Manual
Electro-Voice Model REV-H Handheld Wireless Microphone Transmitter
The Electro-Voice (Ev) REV-H is a Professional Grade Wireless Handheld
Transmitter operating in the UHF frequency range. The REV-H combines frequency
agility and ease of use like no other. The transmitter operates within a 24 MHz wide
segment in 25 KHz steps.
The high quality audio circuitry and advanced Radio Frequency (RF) signal
processing offer broadcast quality signal-to-noise and audio clarity. The typical line-of-
sight distances for the system may be up to 300 feet.
System features include:
 Durable Painted Metal Handle.
 Permanent Flash Memory for frequency/setting storage.
 On-Loc prevents accidental power off (when set).
 LCD Display with Backlight for ease of viewing.
 Internal top loaded monopole Antenna.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REV-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Electro-Voice REV-H

Summary of Contents for Electro-Voice REV-H

  • Page 1 Electro-Voice Model REV-H Handheld Wireless Microphone Transmitter The Electro-Voice (Ev) REV-H is a Professional Grade Wireless Handheld Transmitter operating in the UHF frequency range. The REV-H combines frequency agility and ease of use like no other. The transmitter operates within a 24 MHz wide segment in 25 KHz steps.
  • Page 2 REV-H Controls and Connections: 1. Main Display – LCD. Display backlight – flashes when battery is low 2. Power On/Off Switch 3. Control Buttons – SET, UP and DOWN 4. Two AA Batteries 5. Battery Cover – Screw Type 6. Microphone Element...
  • Page 3 Quick set-up: 1. With the Power Switch on the transmitter OFF, install fresh batteries into the transmitter. 2. To prevent feedback or unintentional noise, mute the audio mixer/amplifier or other device during set-up adjustments. Place the transmitter Power Switch to the ON position. 3.
  • Page 4 10. The next screen displays the operating frequency of the group/channel. If there is no frequency currently stored in the selected users group/channel, a dashed line will be shown. Press SET. The dashed line or frequency will start flashing. Press the up arrow one step at a time to find the desired frequency or hold down the up arrow to scroll through the frequencies quickly.
  • Page 5 Approval Information: (English) The Electro-Voice REV-H Transmitter is Type Accepted under United States Federal Communications Commission CFR 47, Part 74 and Certified to Industry Canada RSS- 123. The device also complies with CRF 47, Part 15 of the FCC Rules and Industry Canada ICES-003 rules.
  • Page 6 (French) Le Electro-Voice REV-H émetteur est Type accepté aux termes des États-Unis de la Federal Communications Commission CFR 47, partie 74 et certifié à Industrie Canada RSS-123. Le dispositif est également conforme CRF 47, partie 15 des règles de la FCC et Industrie Canada NMB-003 des règles.
  • Page 7 Conformité aux normes FCC Cet équipement a été testé et trouvé conforme aux limites pour un dispositif numérique de classe B, conformément à Partie 15 des règlements la FCC et NMB-003 canadien. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans une installation résidentielle.
