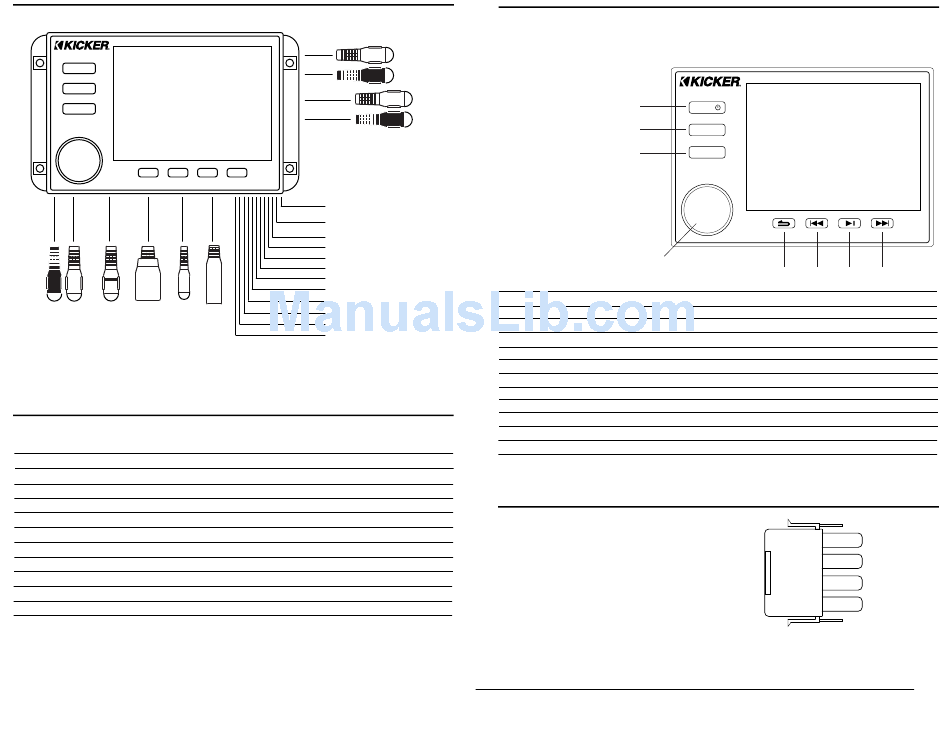

INSTALLATION OVERVIEW
SOURCE
FAVORITES
MENU
INPUTS
1
2
3
4
OVERVIEW:
1 - Auxiliary Input
2 - KRC15 Remote Port (5-PIN)
3 - USB Input (Audio Only)
4 - PXIRCX Remote Port
5 - Antenna Input
WIRING COLOR CODES
Black
= Ground
Red
= Accessory 12V (Switched)
Orange
= Illumination (100mA Max)
Blue/White
= Amplifier Turn-On
White
= Left Front (+)
White/Black
= Left Front (-)
Gray
= Right Front (+)
Gray/Black
= Right Front (-)
Green
= Left Rear (+)
Green/Black
= Left Rear (-)
Purple
= Right Rear (+)
Purple/Black
= Right Rear (-)
POWER AND AUDIO
OUTPUTS
5
2
HOW TO NAVIGATE THE KMC10
The button layout below will give you a quick overview of the button functionality and
how to use them. The Warning display will last approximately 25 seconds.
FRONT
OUTPUTS
BUTTONS:
1 - Source
2 - Favorites
REAR
3 - Menu
OUTPUTS
4 - Back
5 - Seek/Tune Down
6 - Play/Pause
7 - Seek/Tune Up
8 - Volume Knob
Function:
Power On
Power Off
Volume Up
Volume Down
Seek Up
Seek Down
Tune Up
Tune Down
Enter/Select
Pause/Play
Mute
Back
Note: The MUTE option is only available on the following sources:
AM - FM - WX - AUX
12-PIN CONNECTOR
The White 12-Pin connector on the KMC10
harness is a universal connector.
If the connector is not suited for your installation
type, we recommend using the supplied wiring
harness pigtail.
1
SOURCE
2
FAVORITES
3
MENU
8
4
How To:
Press the Source (1) button once.
Hold the Source (1) button for 2 seconds.
Turn the knob (8) clockwise.
Turn the knob (8) counter-clockwise.
Press Seek Up (7) once.
Press Seek Down (5) once.
Hold down Seek Up (7).
Hold down Seek Down (5)
Press the Knob (8) inward once.
Press Play/Pause (6) once.
Press Play/Pause (6) once.
Press Back (4) once.
Part Number: 1-4807008-0
