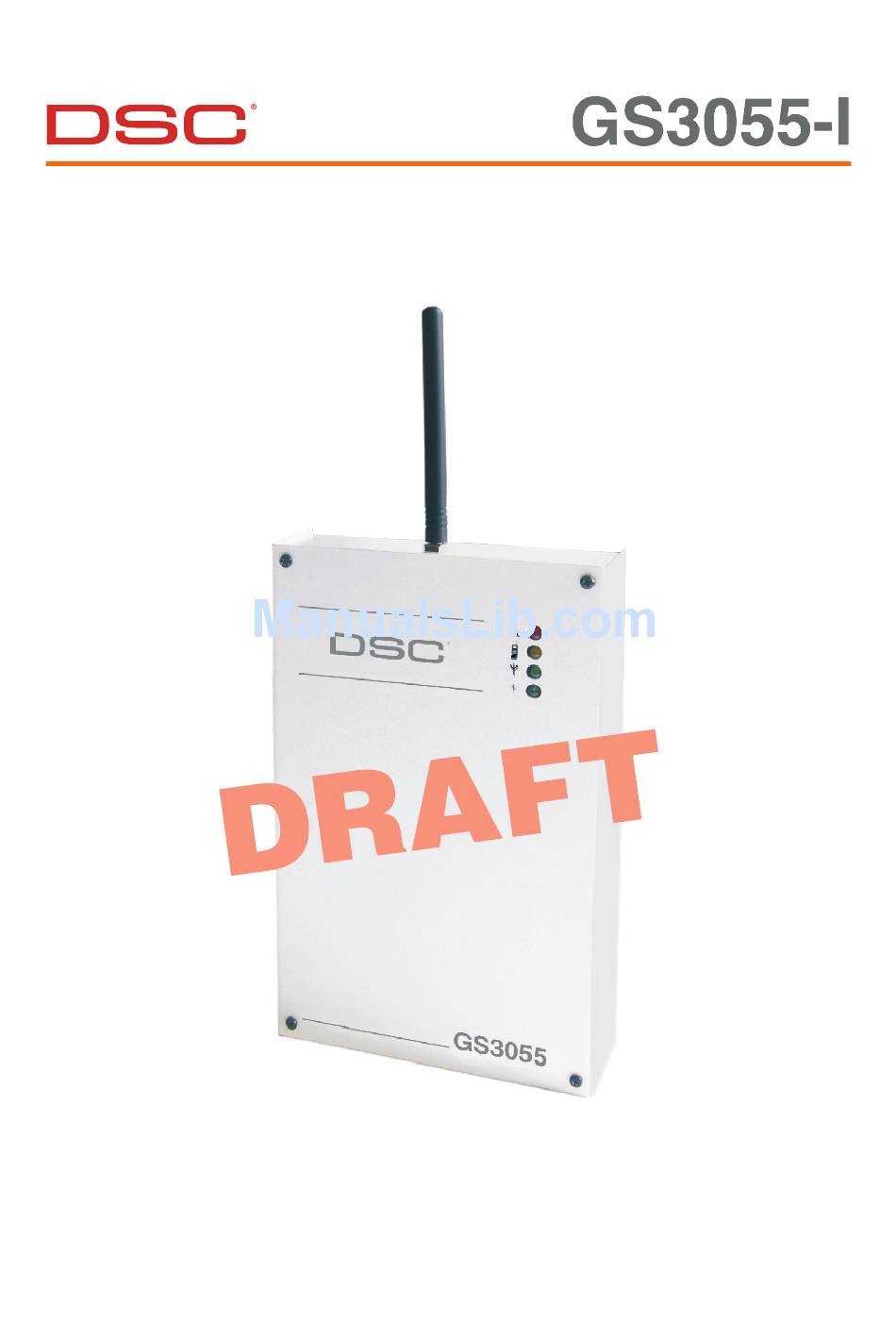

- Page 1 GSM-GPRS INTERFACE...
-
Page 2: Table Of Contents
Events section ......................12 Clear call queue ......................12 "C-24 REMOTE" PROGRAMMING ..................13 INFORMATION FOR THE USER ..................13 Remote Programming of the Access Code ............... 13 GSM Network Calls ......................13 Further Information ......................13 APPENDIX .......................... 14 GS3055-I... -
Page 3: Introduction
INTRODUCTION This manual provides programming and operating instructions for the GS3055-I wireless alarm communicators. Information relating to a specific model will be denoted by the applicable model number within the text. The term "Device" is used to describe functionality that is applicable to both models. This manual shall be used in conjunction with the installation manual of the control panel and power supply it is connected to. -
Page 4: Description
IDENTIFICATION OF PARTS The numbers in square brackets [ ] in this manual refer to the main parts of the GS3055-I (see Fig. 1) described in this section. INSTALLING THE DEVICE This device shall be installed by qualified SERVICE PERSONS only. This device must be installed indoors in a non- hazardous location. -
Page 5: Status Leds
This LED will Blink when the GSM Network reception is bad, if this occurs, only SMS transmissions will be possible. If this LED is ON (glowing), the GS3050-I and GS3055-I Interface will be able to manage all telephone communications. GREEN — When this LED is ON (glowing), the reception is good. This LED will switch ON only when the other GREEN LED is ON (glowing). -
Page 6: Sms Function
ContactID report. ContactID Event Priority If several events occur contemporarily, the respective messages will be sent in chronological order. If an event is associated with a ContactID report and an SMS communication, priority will be given to the ContactID report. GS3055-I... -
Page 7: Activating The Outputs
ACTIVATING THE OUTPUTS This Device has 4 OC outputs programmable as Automatic (outputs with this attribute will activate in response to the associated events) or Remote Control (outputs with this attribute can be activated manually from remote locations by means of SMS messages or calls from enabled telephone numbers. Activating/Deactivating Automatic Outputs The OC outputs can be activated automatically by the following events: Land line trouble (line down) -
Page 8: Programming The Sim Card Via Pc
You can list Customers in alphabetical or code order by clicking the heading of the column concerned. To start the configuration of a new Customer, click on File->New Customer then select the device (GS3055-I) from the product list in the successive window. -
Page 9: Prefix
Dial.: This memorandum column shows the SMS Dialler telephone numbers (selected on the SMS Dialler Page from the first 8 telephone numbers in the phonebook). Prefix IMPORTANT: This Device will prefix the digits entered in this field to all the telephone numbers dialled through the GSM Interface function. -
Page 10: Priority
Monostable, this value will determine the amount of time the output will hold active status before restoring to standby. Access Code Type in the code (maximum 4 alphanumeric characters) which will allow the user to control the outputs over-the-phone. Contact ID Page This page will allow you to set up the Contact ID function. GS3055-I... -
Page 11: Telephone Numbers To Call
Telephone numbers to decode In this section you may enter up to two telephone numbers dialed by the panel that will be recognized by the GS3055-I when called to trigger GPRS communication. If a number is programmed, any time a number dialed does not match one of the phone number entered, the call will be routed through the voice channel. -
Page 12: Load Button
This section shows the Date and Time of the next periodic Contact ID report (refer to the Contact ID Communicator page). Clear call queue This button will allow you to interrupt any ongoing calls and stop the outgoing call queue. This option is available ONLY when this Device operates in SMS Dialler/Contact ID Communicator mode. GS3055-I... -
Page 13: "C-24 Remote" Programming
"C-24 REMOTE" PROGRAMMING The GS3055-I can be remotely programmed via SMS by Connect-24 (C-24) for fast convenient installation without the need of an on-site PC or manual programming of the SIM card. INFORMATION FOR THE USER Remote Programming of the Access Code... -
Page 14: Appendix
APPENDIX GS3055... - Page 15 LOCK OPEN O2 O3 O4 +OC AS L1 L2 L3 L4 +12V- Fig. 1 - Parts P a r t s M e ta l C a s i n g G S M A n te n n a G S M A n te n n a n u ts A n c h o r S c r e w h o l e s ( Ø...
- Page 16 Canada. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. This manual is applicable to the following GS3055-I Cellular Alarm Communicator Models: GS3055-1 FCC ID: F5306GS30551 and IC: 160A-GS30551...
