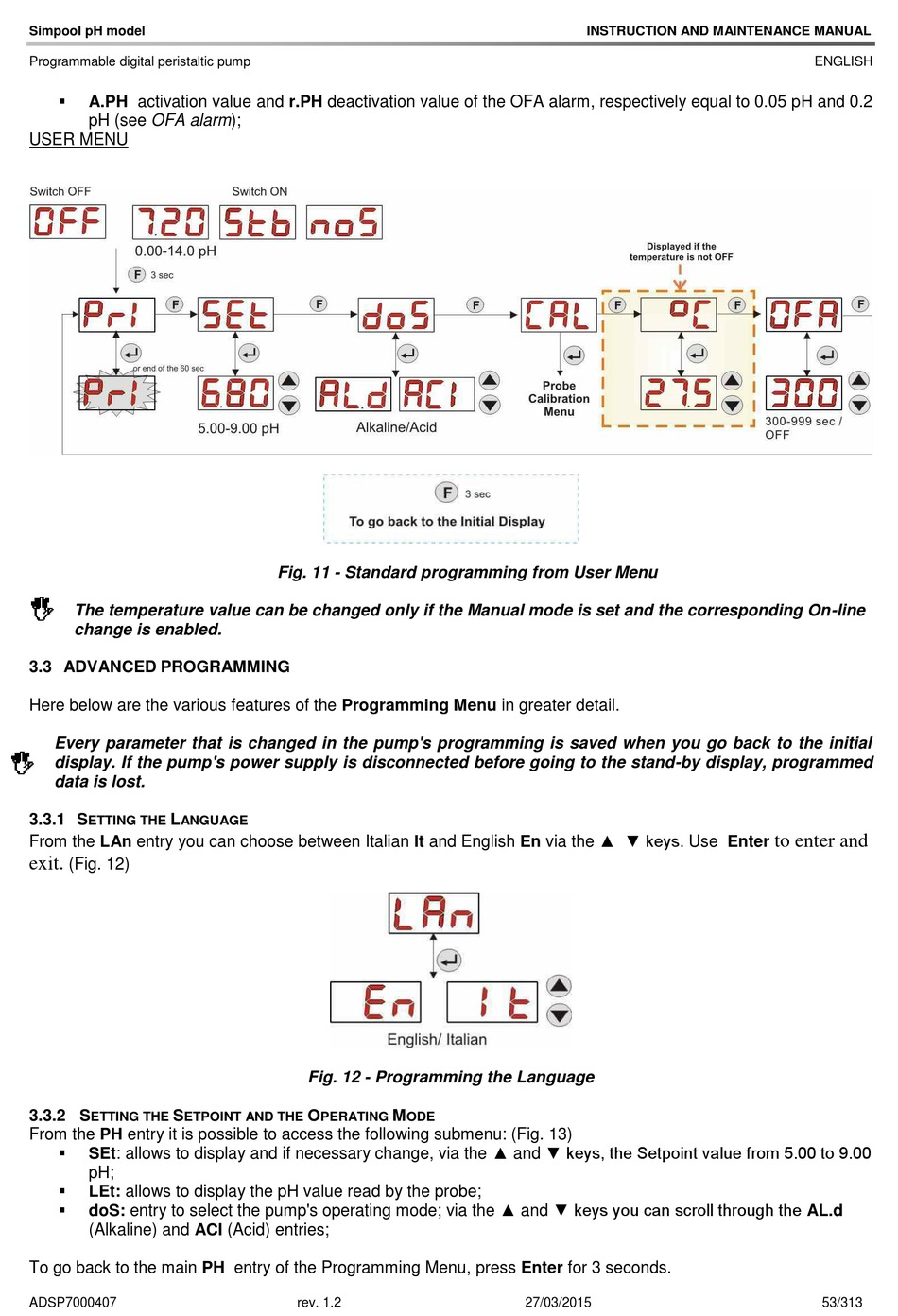

Advanced Programming; Setting The Language; Setting The Setpoint And The Operating Mode - Aqua Simpool pH Instruction Manual

Simpool pH model
Programmable digital peristaltic pump

A.PH activation value and r.PH deactivation value of the OFA alarm, respectively equal to 0.05 pH and 0.2
pH (see OFA alarm);
USER MENU
The temperature value can be changed only if the Manual mode is set and the corresponding On-line
change is enabled.

3.3 ADVANCED PROGRAMMING

Here below are the various features of the Programming Menu in greater detail.
Every parameter that is changed in the pump's programming is saved when you go back to the initial
display. If the pump's power supply is disconnected before going to the stand-by display, programmed
data is lost.
3.3.1 S L
ETTING THE ANGUAGE
From the LAn entry you can choose between Italian It and English En via the ▲ ▼ keys. Use Enter
exit.
(Fig. 12)
3.3.2 S S
ETTING THE ETPOINT AND THE
From the PH entry it is possible to access the following submenu: (Fig. 13)
 SEt: allows to display and if necessary change, via the ▲ and ▼ keys, the Setpoint value from 5.00 to 9.00
pH;

LEt: allows to display the pH value read by the probe;
 doS: entry to select the pump's operating mode; via the ▲ and ▼ keys you can scroll through the AL.d
(Alkaline) and ACI (Acid) entries;
To go back to the main PH entry of the Programming Menu, press Enter for 3 seconds.
ADSP7000407
Fig. 11 - Standard programming from User Menu
Fig. 12 - Programming the Language
O M
PERATING ODE
rev. 1.2
INSTRUCTION AND MAINTENANCE MANUAL
27/03/2015
ENGLISH
to enter and
53/313
