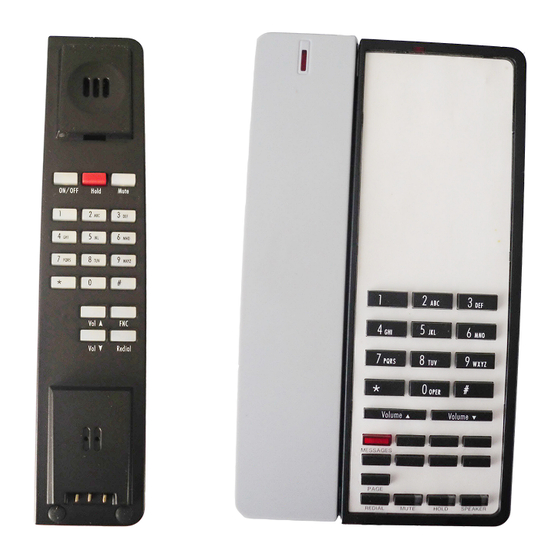

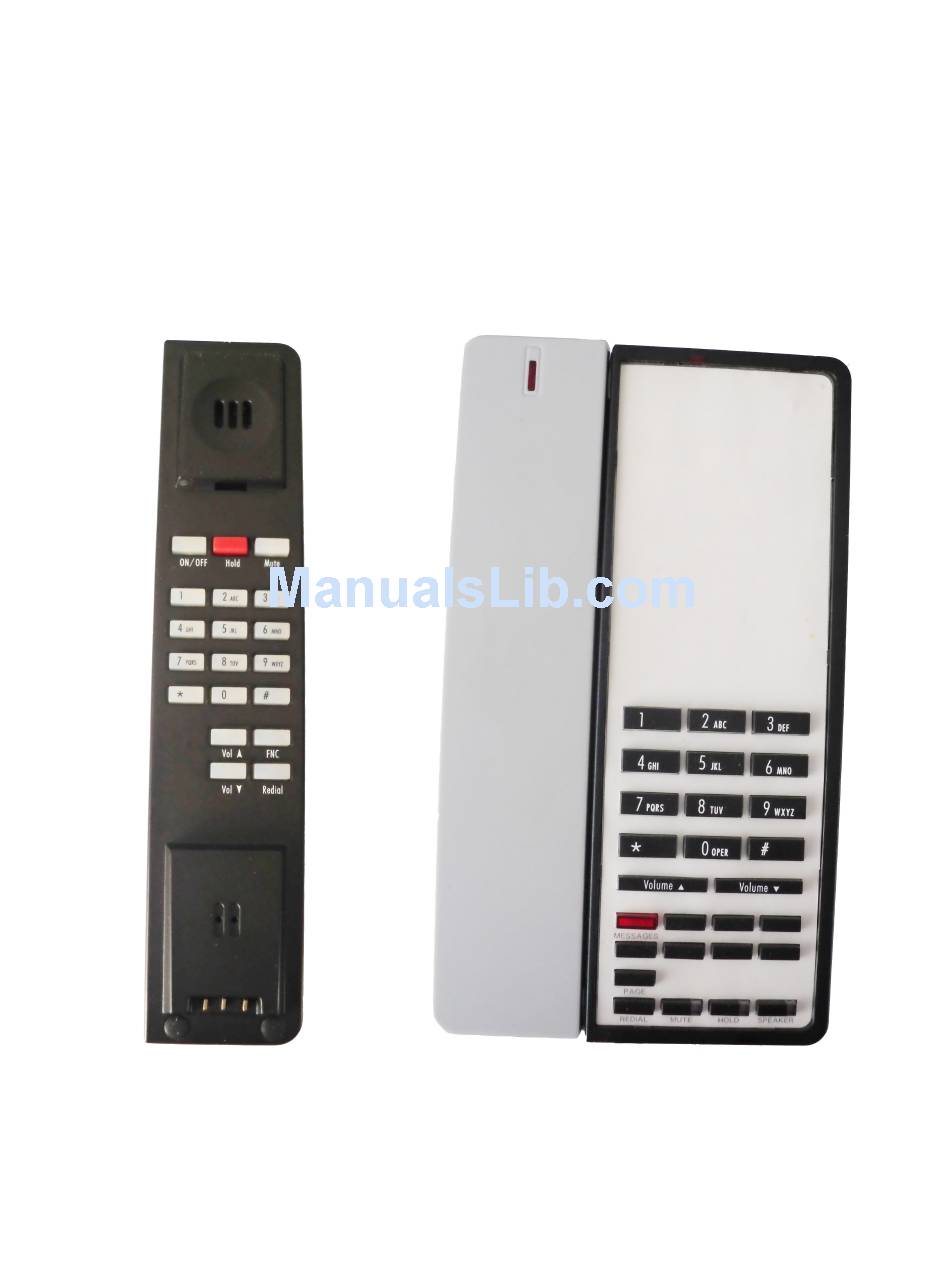

- Page 1 E103IP USER MANUAL VERSION: V1.0 FOR MODELS: E103IP, E203IP...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION ..................5 1.1 O VERVIEW OF ARDWARE ..................... 5 1.2 O VERVIEW OF OFTWARE ...................... 5 2. E103 IP PHONE KEYBOARD..............7 2.1 K EYBOARDS FUNCTIONS ......................7 2.1.1 Function Table of Base Keyboard ................. 7 2.1.2 Function table of handset keyboard..............7 2.2 K EYBOARD UNCTION... - Page 3 3.5.8 Call Service Settings....................25 3.5.9 Memory Key ......................26 3.5.10 MMI Filter........................ 26 3.5.11 DSP........................... 27 3.5.12 VPN........................... 27 3.6 D EER DIAL RULE SETTING ................... 28 3.7 C ONFIG ANAGE ......................... 29 3.8 U PDATE IRMWARE ......................30 3.8.1 Update ........................
- Page 4 Function 1. Provide a Backup SIP Server 2. Support NAT, Firewall 3. Support DHCP assigning IP address, etc automatically 4. Support PPPoE (used while connecting ADSL，cable modem) 5. It can update the program through HTTP, FTP and TFTP 6. Check the dynamic voice; Soft the noise; Buffer technique of voice 7.
-
Page 5: Introduction
1. Introduction This is the user manual of E103 IP . Some configuration should be done before use the E103 IP phone, and then it can work normally. This manual will illustrate how to set the phone through keyboard and web service. 1.1 Overview of Hardware 1.1.1 The two RJ-45 network interface support the 10/100M Ethernet. - Page 6 DTMF Firmware Upgrade DTMF RELAY TFTP DTMF RFC 2833 HTTP DTMF SIP Info SIP Server Provide a Backup SIP Server...
-
Page 7: E103 Ip Phone Keyboard
2. E103-IP phone keyboard 2.1 Keyboards functions 2.1.1 Function Table of Base Keyboard Name Status Function Store On-hook To enter storage mode for speed dialing Flash On-hook To enter the deleting mode for pressing down 3 seconds Redial Dialing Re-dial the last called number On-hook It’s calling handset for press down for a little time and Locate... -
Page 8: Voice Control
Redial Dialing Redial the number of last time Volume + Call Increase the volume Volume - Call Reduce the volume Off-Hook Quickly cut off the current line and off-hook again. Dialing “1” On-Hook Long pressing can pick up the message Dialing “2”... -
Page 9: Delete Handset
light begins flash at the same time, it means enable the handset register mode, the “ON/OFF” instruction light flashes at the same time, if the handset register to the base is successful, then the “charge” instruction light on the base and the “ON/OFF” instruction light on the handset will stop flickering, and will give the prompt tone for successful registration. -
Page 10: Line Switch
2.2.8 Line Switch 2.2.81 Handset Line Switch 1）Suppose the line1/2 of handset is talking, the line2/1 is holding, if you want to implement line switch, first you need to press down “Hold ”, then press down “ON/OFF” of the choice line. You can implement line switch. 2) Suppose the line1/2 of handset is holding, the line2/1 is dialing, if you want to switch to line1/2 talking, first hang up line2/1, then press down “ON/OFF”... -
Page 11: Call Feature
3) PPPOE ◆User name ◆Password 4) QoS 2.3.3 Call Feature 23.3.1 Phone-number 1) Public SIP 2) Private SIP 2.3.3.2 Limit-List Current 2.3.3.3 Black-List Current 2.3.3.4 FastCall 2.3.3.5 Three Talk 2.3.3.6 Call-Waiting 2.3.3.7 Call-Forward 1) Condition 2) SIP ◆Transfer Num ◆Transfer IP ◆Port 2.3.3.8 Dial-Rule 1) End with “#”... -
Page 12: Dsp
1) Public 2) Private 2.3.4.5 Detect-server 2.3.4.6 Dtmf-mode 2.3.4.7 Interval-time 2.3.4.8 Swap-server 2.3.4.9 RFC-version 2.3.4.10 Signal-Port 2.3.4.11 Stun 1) Switch 2) Addr 3) Port 4) Expire Time 2.3.5 DSP 2.3.5.1 Codec 2.3.5.2 Handdown-time 2.3.5.3 Dtfm-Volume 2.3.5.4 Input-Volume 2.3.5.5 Output-Volume 2.3.6 System 2.3.6.1 Save 2.3.6.2 Reboot 2.3.6.3 Set Default... -
Page 13: Through Web Browser To Set Phone
3. through web browser to set phone Plug one end of the network line to the network card port of the computer, the other end to Lan port of the phone, phone will obtain the IP address automatically, open IE, input the IP address on Address column, then enter into the Web Setting Page. -
Page 14: Network
3.3 Network 3.3.1 Wan Config WAN port network setting page. Support static IP, dynamic obtain IP and PPPoE. Net Traffic Timeout: when wan port network emergence failure, the phone cannot obtain IP address; the phone will auto reboot after the setting time. The default time is 2mins. -
Page 15: Lan Config
----Set E103-IP’s IP address in the IP Address; ----Set netmask in the Netmask field; ----Set router IP address in the Gateway; ----DNS Domain: ----Set local DNS server in the Preferred DNS and the Alternate DNS。 Configure to dynamic obtain IP ----Enable DHCP;... -
Page 16: Oip
3.4 VoIP 3.4.1 SIP Config Setting page of public SIP server: Register Server Addr: Register address of public SIP server; Register Server Port: Register port of public SIP server， default port is 5060; Register Username: Username of your SIP account (Always the same as the phone number);... - Page 17 Proxy Username: proxy server username; Proxy Password: proxy server password; Domain Realm: SIP domain, enter the SIP domain if any, otherwise E103-IP will use the proxy server address as SIP domain. Local SIP port: Local SIP register port, default 5060; Phone Number: Phone number of your SIP account;...
- Page 18 No answer：If no answer, it will forward to the appointed phone; Always：The caller always forward to the appointed phone. Forward Photo Number：Call the forwarded phone number. Signal Key： Setting Signal Key; In order to prevent blocking, cooperate platform to encrypt signal, input key here, Media Key: Setting Media Key;...
-
Page 19: Advance
Default is RFC 3261. Park Mode: the default park mode is default; it means that the phone disenables call park function. If you want to enable call park function, choose”park1” mode, click “APPLY” button。 3.5 Advance 3.5.1 DHCP Server DHCP server manage page. User may trace and modify DHCP server information in this page. -
Page 20: Nat
Notice: This setting won’t take effect unless you save the config and reboot the device 3.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping. -
Page 21: Stun
3.5.3 STUN This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: SIP STUN is used to realize SIP penetrates through NAT, when the phone configures IP and port of STUN server (default is 3478) and select Enable SIP Stun, common SIP server can be used to realize the phone to penetrate through NAT. -
Page 22: Firewall Settings
port to enhance system’s security. When this port is changed, please use http://xxx.xxx.xxx.xxx:xxxx/ to reconnect. Telnet Port: configure telnet transfer port, default is 23. RTP Initial Port: RTP initial port. RTP Port Quantity: Maximum RTP port quantity, default is 200 Notice: Settings in this page won’t take effect unless save and reboot the device. -
Page 23: Vlan Configuration
Input/Output: Specify current adding rule is input rule or output rule. Deny/Permit: Specify current adding rule is deny rule or permit rule. Protocol Type: Protocol using in this rule: TCP/IP/ICMP/UDP. Port Range: Port range of this rule. Src Addr: Source address. It can be a specific IP address or network address. Dest Addr: Destination address. -
Page 24: Digital Map
0x28,0x30,0x38,0x48,0x50,0x58,0x68,0x70,0x78,0x88,0x90,0x98,0xb8.defa ult is 0xb8 ,oxb8 stands for best fast transmission; 28-38 is guarantee for the transmission priority for the 1st rank , 48-58 is guarantee for the transmission priority for the 2nd rank, 68-78 is guarantee for the transmission priority for the 3rd rank, 88-98 is guarantee for the transmission priority for the 4th rank. -
Page 25: Call Service Settings
immediately. 955xx：5 digits numbers begin with 9 will be sent immediately. 10060：Number 10060 will be sent will be immediately 22xxxxxT1：7 digits numbers begin with 22 will be sent after one second 39[3,9]xxxx ： 7 digits numbers begin with 393 or 399 will be sent immediately. -
Page 26: Memory Key
Enable Call Transfer: Please refer to Value_add_service for detail. Enable Call Waiting: Enable/disable Call Waiting Enable Three Way Call: Please refer to Value_add_service for detail. Accept Any Call: If this option is disabled, E103 IP refuses the incoming call when the called number is different from E103 IP’s phone number. No Answer Time: no answer call forward time setting. -
Page 27: Dsp
3.5.11 DSP This page mainly completes voice configuration. CODEC: select the prefer CODEC; support ulaw, alaw, G729 and G7231 5.3/6.3 Signal Standard: Signal standard for different area. Handdown Time: Hand down detects time. Input Volume: Handset input volume. Output Volume: Handset output volume. Handfree Volume: Hand free volume G729 Payload Length: G729 payload length VAD:... -
Page 28: Dial-Peer Dial Rule Setting
to the terminal. If there is a IP address shown on terminal (except for 0.0.0.0),it means your VPN has registered UDP Tunnel VPN Server Addr： Register to the address of VPN server VPN Server Port： Register to the port of VPN server Server Group ID：... -
Page 29: Config Manage
3.7 Config Manage Save Config: Save current settings. Clear Config: Restore to default settings. Backup Config: Backup the config file, via point the right key of mouse-à save target as….-àwill pop a save window, then type the config file name in the File name (the file type is text file) Update Configuration: Update the current configuration through configuration files. -
Page 30: Update Firmware
3.8 Update Firmware 3.8.1 Update Web Update： Update the application or configuration files of the phone. The application document is .z format, and the configuration file is .cfg format. Through clicking on the "browse" button to open the upgrade file or configuration file, then click on "Update"... -
Page 31: Auto Update
3.8.2 Auto Update Current Version: the system will display the current version number Server Address: FTP/TFTP server address Username: FTP server user name Password: FTP server password Config File Name: The name of configuration file Config Encrypt Key: The encrypt key of confirmation file Protocol Type: The protocol type that used for upgrading Update Interval Time: The interval time that the terminals search for new configuration file. -
Page 32: System Manage
3.9 System Manage 3.9.1 Account Manage Set web access account or keypad password of E103 IP. 3.9.2 Syslog config Set the system log Server IP: set the syslog server address Server Port: set the syslog server port... -
Page 33: Phone Book
MGR Log Level: set the MGR log level SIP Log Level: set the SIP log level IAX2 Log Level: set the IAX2 log level Please click “apply” after setting 3.9.3 Phone Book 3.9.4 Time Set This page layout is the setting of time of phone. Server: type the IP address of time server Timezone: select correct time zone in list box Timeout: longest response time for SNTP... -
Page 34: Mmi Set
3.9.5 MMI SET Set the greeting information on LCD. 3.9.6 Logout & Reboot Logout：Exit the Web entry. Reboot Phone：Logout the entry, and reboot the phone. When user modifies any config of the phone, it will take effect after being rebooted, you can enter into this layout and click “Reboot”. -
Page 35: Operating Method For Dialing
4. Operating Method for Dialing 4.1 How to dial IP Phone You can make a call after being made a proper setting on your phone. Please confirm whether all the net wires are connected correctly. If you want to make a call, you can make it after dialing the number and then pressing “#”. -
Page 36: Sip Setting
4.2.2 SIP setting： Enter into the VoIP à SIP Config to set the layout config and sip account information: Register Server Addr: Register address of public SIP server Register Server Port: Register port of public SIP server，default port is 5060. Register Username: Username of your SIP account (Always the same as the phone number) Register Password: Password of your SIP account. -
Page 37: How To Use The Dial Rule
4.3 How to use the dial rule? E103-IP provide flexible dial rule, with different dial-rule configure, user can easily implement the following function: ----Replace, delete or add prefix of the dial number. ----Make direct IP to IP call ----Place the call to different servers according the prefix. You can click “Add”... -
Page 38: Voice Mail
Instance: 2T rule: If the call starts with 2, the first 2 will be deleted, and the rest number will be sent to private SIP server. 3T rule: If the call starts with 3, the first 3 will be deleted, and the rest number with be sent to public SIP server. - Page 39 MWI LED will also blink to prompt. After the voicemails are picked-up, MWI LED will stop blinking.
- Page 40 IC Warning: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause under operation of the device. Privacy of communications may not be ensured when using this telephone.
- Page 41 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
