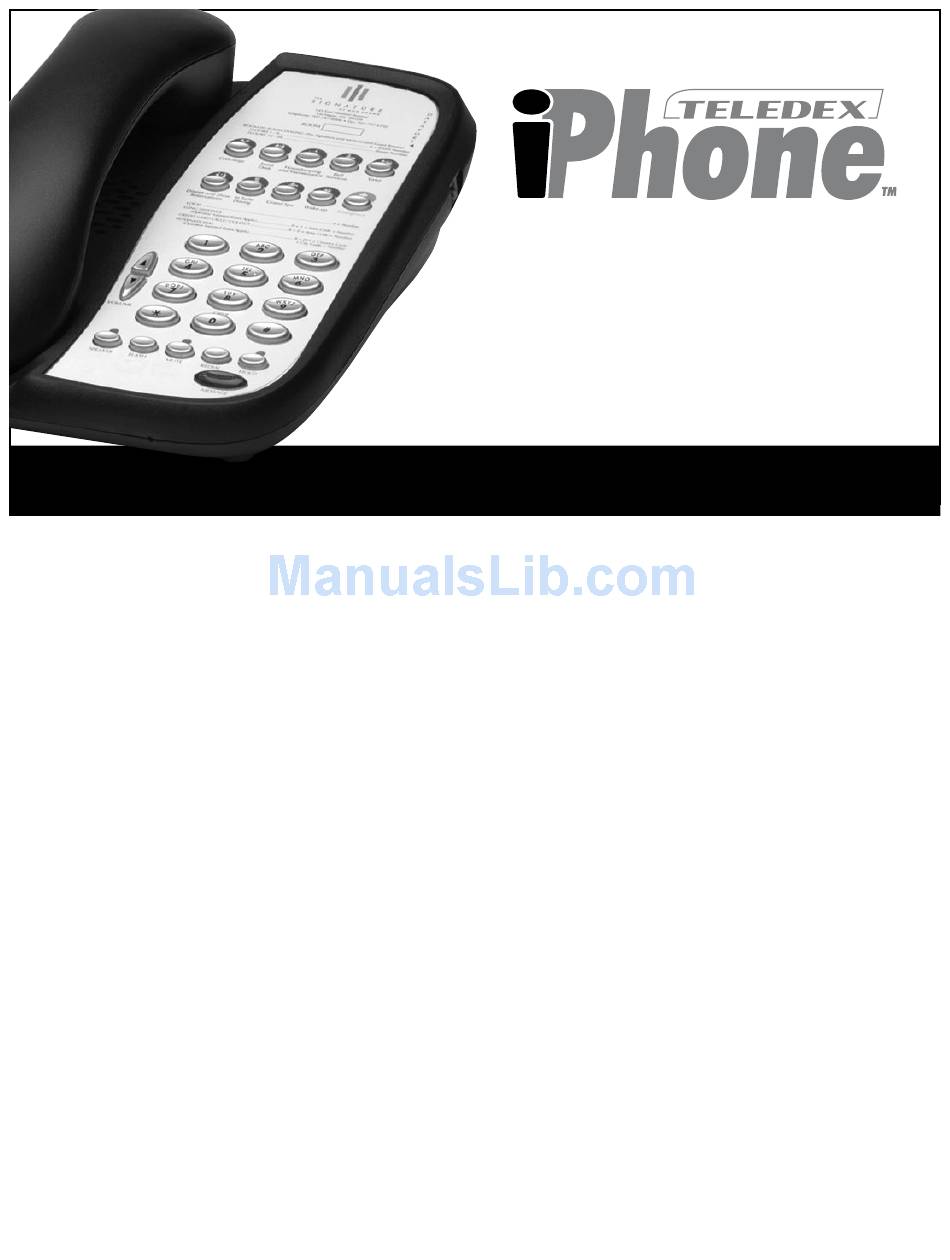

Teledex iPhone SIP ND2100 Series User Manual

Sip nd2100 series single line ip phone
Table of Contents

Advertisement

WHEN USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING
THE FOLLOWING:
1. READ AND UNDERSTAND ALL INSTRUCTIONS.
2. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON
THE PRODUCT.
3. UNPLUG THE PRODUCT FROM THE WALL OUTLET BEFORE
CLEANING. DO NOT USE LIQUID CLEANER OR
AEROSOLCLEANERS. USE A DAMP CLOTH FOR CLEANING.
4. DO NOT USE THIS PRODUCT NEAR WATER; FOR EXAMPLE NEAR
A BATHTUB, WASH BOWL, KITCHEN SINK OR LAUNDRY TUB, IN
A WET BASEMENT, OR NEAR A SWIMMING POOL.
5. DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND
OR TABLE. THE PRODUCT MAY FALL, CAUSING SERIOUS DAMAGE
TO THE PRODUCT.
6. SLOTS AND OPENINGS IN THE CABINET AND THE BOTTOM ARE
PROVIDED FOR VENTILATION, TO PROTECT IT FROM
OVERHEATING. THESE OPENINGS MUST NOT BE BLOCKED OR
COVERED. THE OPENINGS SHOULD NEVER BE BLOCKED BY
PLACING THE PRODUCT ON A BED, SOFA, RUG OR ANY OTHER
SIMILAR SURFACE. THIS PRODUCT SHOULD NEVER BE PLACED
NEAR OR OVER A RADIATOR OR HEAT REGISTER. THIS
PRODUCT SHOULD NOT BE PLACED IN A BUILT-IN INSTALLATION
UNLESS PROPER VENTILATION IS PROVIDED.
7. NEVER PUSH OBJECTS OF ANY KIND INTO THIS PRODUCT
THROUGH CABINET SLOTS AS THEY MAY TOUCH DANGEROUS
VOLTAGE POINTS OR SHORT OUT PARTS THAT COULD RESULT IN
A RISK OF FIRE OR ELECTRIC SHOCK. NEVER SPILL LIQUID OF ANY
KIND ON THE PRODUCT.
8. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT DISASSEMBLE
THIS PRODUCT, BUT TAKE IT TO QUALIFIED SERVICE PERSONNEL
WHEN SOME SERVICE OR REPAIR WORK IS REQUIRED. OPENING
OR REMOVING COVERS MAY EXPOSE YOU TO DANGEROUS
VOLTAGES OR OTHER RISKS. INCORRECT REASSEMBLY CAN CAUSE
ELECTRIC SHOCK WHEN THE APPLIANCE IS SUBSEQUENTLY USED.
9. UNPLUG THIS PRODUCT FROM THE WALL OUTLET AND REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL UNDER THE
FOLLOWING CONDITIONS:
For Models: SIP ND2105, SIP ND2110, SIP ND2105S, SIP ND2110S, SIP ND210L
IMPORTANT SAFETY INSTRUCTIONS
SIP ND2100 Series
Single Line IP Phone User's Guide
– WHEN THE POWER SUPPLY CORD OR PLUG IS DAMAGED
OR FRAYED.
– IF LIQUID HAS BEEN SPILLED INTO THE PRODUCT.
– IF THE PRODUCT HAS BEEN EXPOSED TO RAIN OR WATER.
– IF THE PRODUCT DOES NOT OPERATE NORMALLY BY
FOLLOWING THE OPERATING INSTRUCTIONS. ADJUST ONLY
THOSE CONTROLS THAT ARE COVERED BY THE OPERATING
INSTRUCTIONS, AS IMPROPER ADJUSTMENT OF OTHER
CONTROLS MAY RESULT IN DAMAGE AND WILL OFTEN
REQUIRE EXTENSIVE WORK BY A QUALIFIED TECHNICIAN
TO RESTORE THE PRODUCT TO NORMAL OPERATION.
– IF THE PRODUCT HAS BEEN DROPPED OR THE CABINET HAS
BEEN DAMAGED.
– IF THE PRODUCT EXHIBITS A DISTINCT CHANGE IN
PERFORMANCE.
10. AVOID USING A TELEPHONE (OTHER THAN A CORDLESS TYPE)
DURING AN ELECTRICAL STORM. THERE MAY BE A RISK OF
ELECTRIC SHOCK FROM LIGHTNING.
NOTICES
REQUIREMENTS OF PART 15 - FCC RULES
NOTE: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: a) move
the telephone away from the receiver; b) consult the dealer or an
experienced radio/TV technician for help. Any changes made by the
user not approved by the manufacturer can void the user's authority
to operate the telephone.
