10 Enjoying through External Equipment

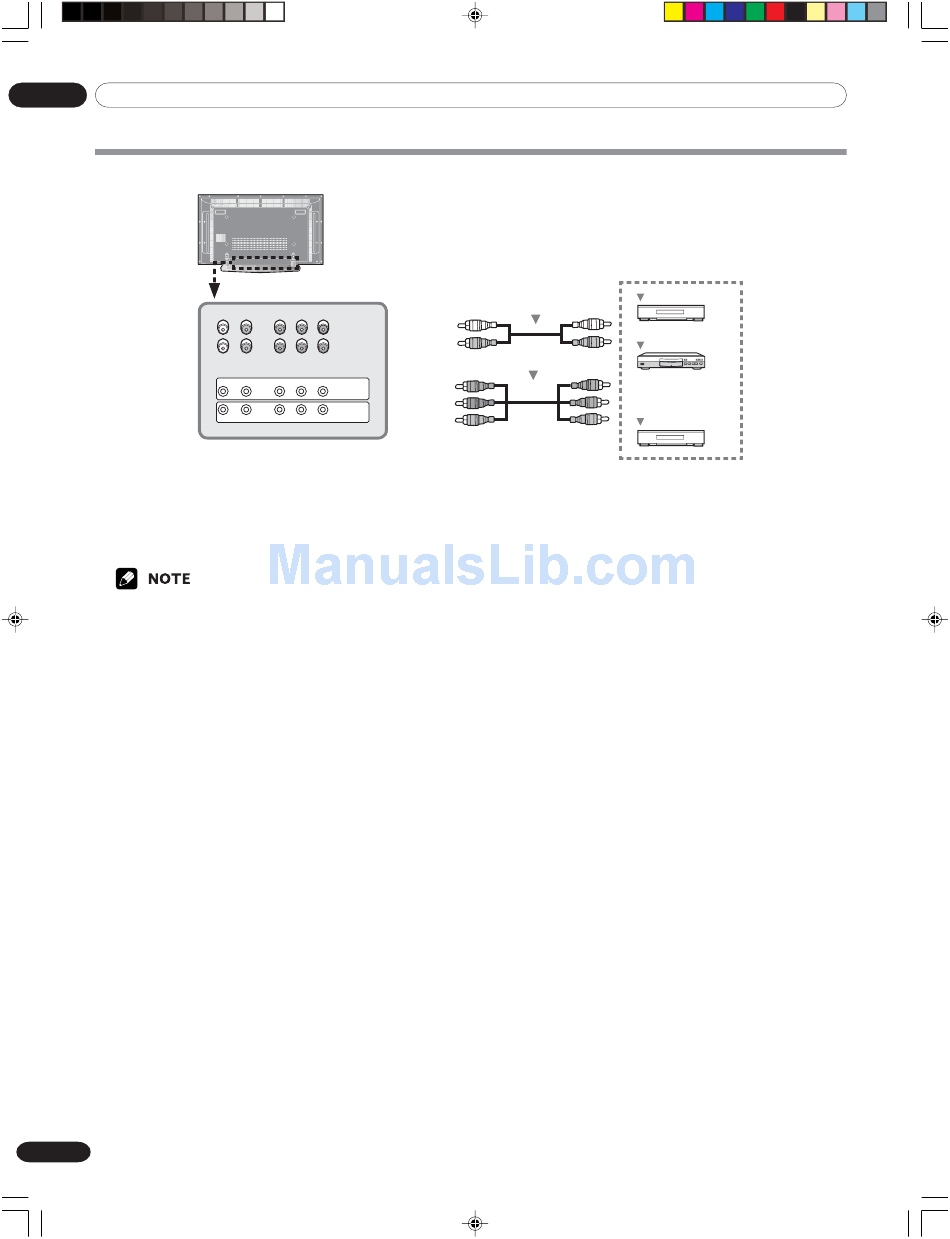

Connecting to the Component Input

L-AUDIO-R
L-AUDIO-R
1
Connect the video cable to the VIDEO-Y/Pb/Pr
(COMPONENT 1 or COMPONENT 2) input jacks on the
Plasma Display and to the video output jacks on the
required equipment.
• Depending on the manufacturer, the Y/Pb/Pr jacks may be
identified as Y/PB/PR, Y/B-Y/R-Y, or Y/CB/CR.
• Refer to your DVD player instruction manual for the signal type.
40
En
11-PDP42A3HD-Eng (39-42)
Y C /P C /P
B B R R
COMPONENT 2
COMPONENT 1
Y C /P C /P
B B R R
40
Audio Cable
(commercially available)
Component Video Cable
(commercially available)
2
Connect the audio cable to the AUDIO-L/R
(COMPONENT 1 or COMPONENT 2) input jacks on the
Plasma Display and to the audio output jacks on the
required equipment.
3
Turn the Plasma Display on, then press the INPUT
button to select COMPONENT 1 or COMPONENT 2.
05.4.20, 4:32 PM
VCR
DVD Player
Set Top Box or
other audio-
visual equipment
