10 Enjoying through External Equipment

Enjoying through External Equipment
You can connect many types of external equipment to your Plasma Display, like a DVD player, VCR, game console, and camcorder.
• To protect all equipment, always turn off the Plasma Display before connecting to a DVD player, VCR, STB, or other external
equipment.
• Refer to the relevant instruction manual (STB, VCR, DVD player, etc.) carefully before making connections.

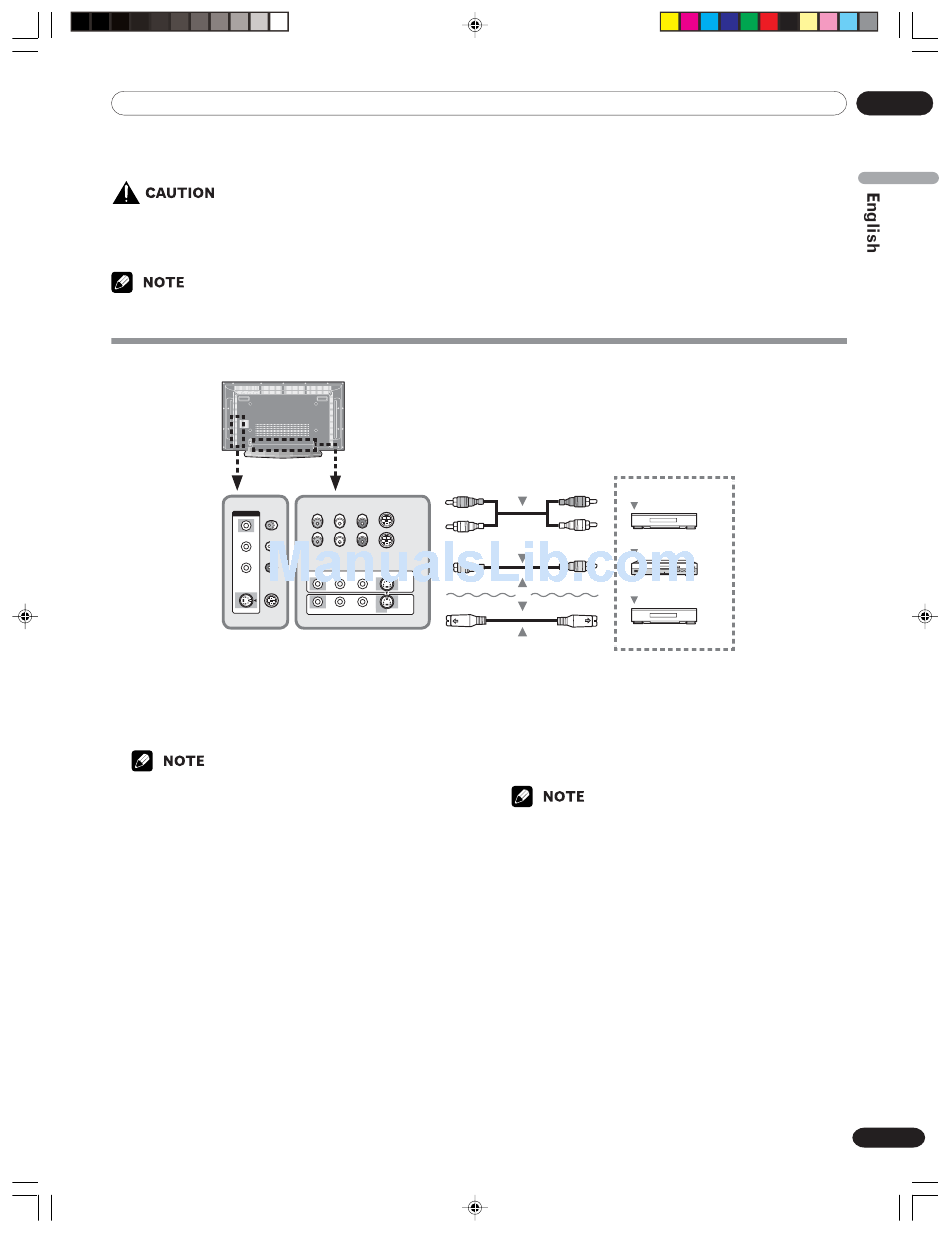

Connecting to the External Input

INPUT
VIDEO 3
L
R
AUDIO
S-VIDEO 3
1
Connect the video cable to the VIDEO (VIDEO 1, VIDEO
2 or VIDEO 3) input jack on the Plasma Display and to
the video output jack on the required equipment.
• For equipment with an S-VIDEO jack, connect the S-Video cable
between the S-VIDEO (S-VIDEO 1, S-VIDEO 2 or S-VIDEO 3)
input jack on the Plasma Display and the S-Video output jack on
the required equipment.
11-PDP42A3HD-Eng (39-42)
VIDEO 2 L-AUDIO-R S-VIDEO 2
VIDEO 1 L-AUDIO-R S-VIDEO 1
39
Audio Cable
(commercially available)
Video Cable
(commercially available)
S-Video Cable
(commercially available)
2
Connect the audio cable to the AUDIO-L/R (VIDEO 1,
VIDEO 2 or VIDEO 3) input jack on the Plasma Display
and to the audio output jack on the required equipment.
3
Turn the Plasma Display on, then press the INPUT
button to select VIDEO 1, VIDEO 2 or VIDEO 3.
• If you have connected the Plasma Display and the required
equipment using an S-Video cable, select S-VIDEO 1, S-VIDEO
2 or S-VIDEO 3.
05.4.20, 4:31 PM
VCR
DVD Player
Set Top Box or other
audio-visual equipment
