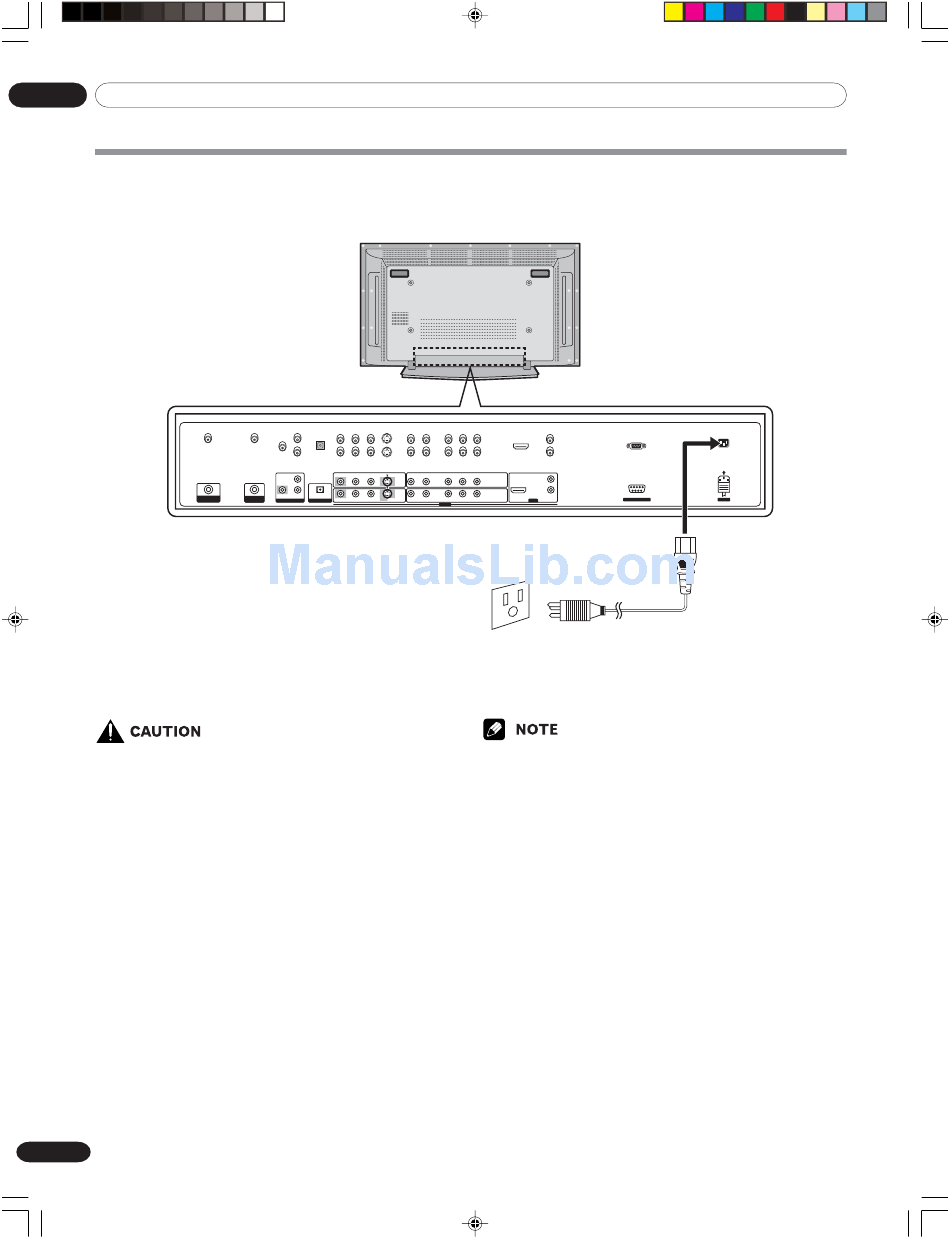

Connecting the power cord

Connect the power cord after all component connections are completed.
Plasma Display (rear view)
DTV-
ANTENNA IN
• Use only the supplied power cord.
• Be sure to use the specified power supply voltage;
neglecting this can result in fire or electric shock.
• For the Plasma Display, a three-core power cord with a
ground terminal is used for efficiency protection.
Always connect the power cord to a three-pronged
outlet and make sure that the cord is properly grounded.
18
En
06-PDP42A3HD-Eng (15-18)
VIDEO 2 L-AUDIO-R S-VIDEO 2 L-AUDIO-R
L
R
VIDEO AUDIO OPTICAL
ANTENNA
VIDEO 1 L-AUDIO-R S-VIDEO 1 L-AUDIO-R
/ CABLE IN MONITOR OUT DIGITAL OUT
18
Y C B /P B C R /P R
L
COMPONENT 2
R
COMPONENT 1
HDMI AUDIO
Y C /P C /P
B B R R HDMI
INPUT
• Always turn off the power of the Plasma Display when connecting
the power cord.
• Disconnect the power cord from the power outlet when the Plasma
Display is not going to be used for a long period of time.
05.4.20, 4:30 PM
SERVICE ONLY AC IN
Power cord
