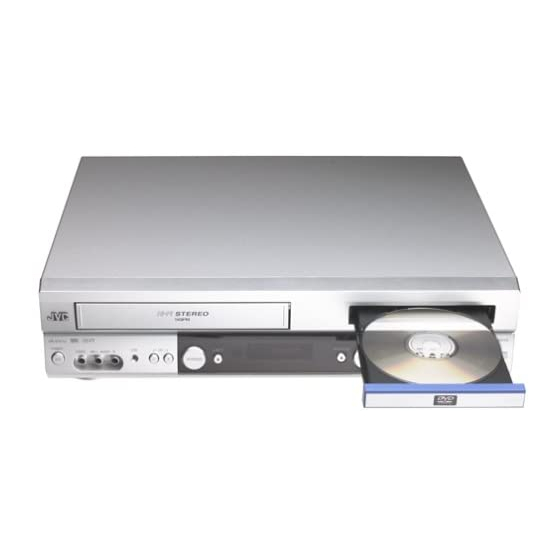

JVC HR-XVC1U Service Manual

Dvd/cd player hi-fi.
Hide thumbs

Advertisement

SERVICE MANUAL
DVD/CD PLAYER Hi-Fi STEREO VIDEO CASETTE RECORDER
TV
POWER
VCR
DVD
DVD MENU
MARKER
RETURN
OPEN/
CLOSE
DISPLAY
A.TRK
C.RESET
ZERO RETURN
SEARCH
SUB TITLE
ANGLE
MODE
SP/EP
PLAY
ZOOM
TITLE
REPEAT
MODE
A-B
TV
POWER
INPUT
TV VOL
0
TIMER
TV/VCR
PLAY
STOP
C
SKIP
SKIP
/INDEX
/INDEX
SET
ENTER/
SET
SELECT
SET UP
MENU
CANCEL
VCR/DVD/TV

SPECIFICATIONS

GENERAL
Power supply:
AC 120V 60Hz
Power consumption:
Operation: 20W
Stand by: 3W
Weight:
9.9lbs (4.5 kg)
Dimensions:
Width : 16-15/16 inches (430 mm)
Height :
Depth : 12-1/4 inches (311 mm)
Inputs/Outputs:
Video:
In: 1Vp-p/75 ohm
Out: 1Vp-p/75 ohm
Audio:
In: -8 dBm/50K ohm
Out: -8 dBm/1K ohm
Antenna:
UHF/VHF IN/OUT: 75 ohm coaxial
Hi-Fi Frequency Response:
20Hz to 20,000Hz
Hi-Fi Dynamic Range:
More than 90dB
VCR section
Video Head:
4 Rotary Heads
Audio Track:
Hi-Fi Sound - 2 Tracks / MONO Sound - 1 Track
Tuner:
181 Channel Freq. Synthesized
VHF
UHF
CATV
RF Channel Output:
Channel 3 or 4, Switchable
F.FWD/REW Time:
Approx. 1minutes and 48 seconds (with T-120 Cassette Tape) (at+25 C)
HR-XVC1U
3-7/8 inches (99 mm)
2-13
14-69
14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)
95-99 (A-5)-(A-1)
100-125 (100)-(125)
01 (5A)
This service manual is printed on 100% recycled paper.
COPYRIGHT © 2002 VICTOR COMPANY OF JAPAN, LTD
DVD section
Signal system:
NTSC
Applicable disc:
DVD (12cm, 8cm), CD (12cm, 8cm)
Audio characteristics:
DVD: 4Hz - 22KHz
Frequency response:
CD: 4Hz - 20KHz
S/N Ratio:
90dB
Harmonic distortion:
0.01%
Wow and flutter:
Below Measurable Level
Dynamic range:
90dB
Output:
Video :
Audio :
Digital Audio : 0.5Vp-p 75 ohm
Pickup:
CD :
Wavelength: 775 - 805 nm
Maximum output power: 0.5 mW
DVD : Wavelength: 640 - 660 nm
Maximum output power: 1.0 mW
ACCESSORIES:
Remote control x 1
Batteries (2 x AA)
75 ohm Coaxial Cable x 1
AUDIO/VIDEO Cable x 1
(RCA) 1 Vp-p/75ohm
(RCA) -8 dBm/1Kohm
No.82902
January 2002
