Exar XR22414-EVB User Manual

Evaluation board

Advertisement

Quick Links

Introduction

The XR22414 evaluation board is for the Exar USB 2.0 4-Port hub in both the 48 pin LQFP and 48 pin QFN packages. This
manual is intended to guide users to use various functions and configurations of the hub device. Either the 48 pin LQFP
package or 48 pin QFN package EVB can be ordered as shown in Table 1.
Device Ordering Part Number
XR22414CV48-F
XR22414CL48-F

Board Layout and Outline

Evaluation Board outline
Figure 1 shows the topography of the evaluation board. Either U1 or U2 will be installed depending upon the version of the
evaluation board.
© 2017 Exar Corporation
Table 1: Ordering Information
Evaluation Board Ordering Part Number
XR22414CV48EVB
XR22414CL48EVB
DS Port
DS Port
1
2
LED
CAP
CAP
P
P
T
LED
T
C
JUMP
C
JUMP
C
C
U
M
M
S
B
U1
24
12
J8
LQFP
48
JUMP
1
48
J8: 1-2 Self Power
PWR
2-3 Bus Power

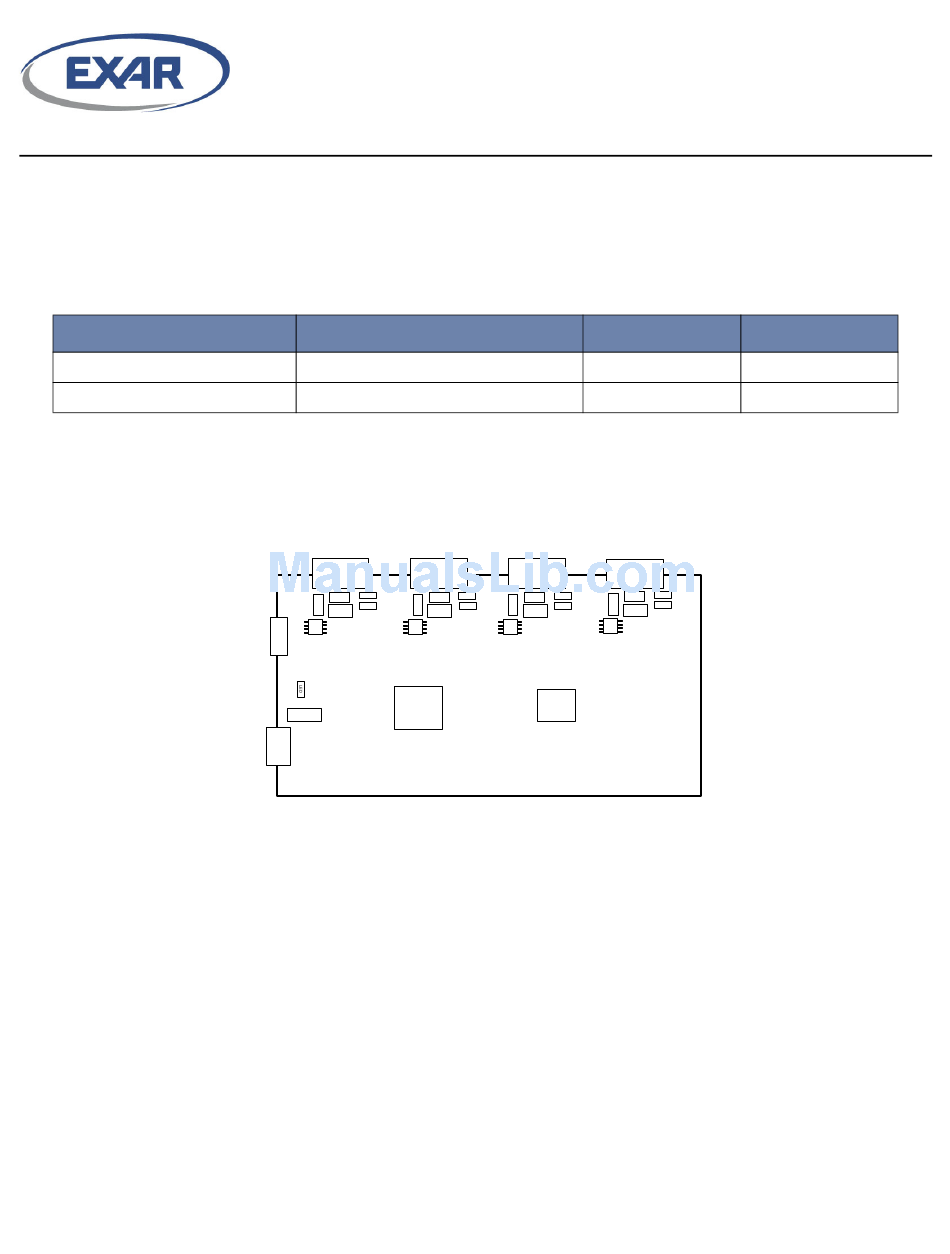

Figure 1: XR22414 PCB Outline
Evaluation Board User's Manual
Device Package
LQFP 48
QFN 48
DS Port
DS Port
3
4
LED
LED
CAP
CAP
P
P
T
LED
T
LED
JUMP
C
JUMP
C
C
C
M
M
U2
QFN
48
1 / 8
XR22414-EVB
Device Location
U1
U2
LED
LED
www.exar.com\XR22414
Rev 1A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR22414-EVB and is the answer not in the manual?

Questions and answers

Summary of Contents for Exar XR22414-EVB

  • Page 1 Introduction The XR22414 evaluation board is for the Exar USB 2.0 4-Port hub in both the 48 pin LQFP and 48 pin QFN packages. This manual is intended to guide users to use various functions and configurations of the hub device. Either the 48 pin LQFP package or 48 pin QFN package EVB can be ordered as shown in Table 1.
  • Page 2: Hardware Configuration

    PCB, but with different components assembled, which includes either the LQFP or QFN package. In order to avoid trace stubs on high speed USB (480 MHz) nets, 0 ohm resistors are installed from the upstream and all four down- 2 / 8 www.exar.com\XR22414 © 2017 Exar Corporation Rev 1A...
  • Page 3 By default J11, J12, J17 and J18 are select whether XRP2527 over-current monitor only or PTC fuse and cur- installed from pin 2 to 3. rent monitor devices protect downstream ports. 3 / 8 www.exar.com\XR22414 © 2017 Exar Corporation Rev 1A...
  • Page 4 LED will not be lit. The 4 downstream ports have green LEDs for port activity and amber indicators for error indications including over-current per USB 2.0 specifications chapter 11. 4 / 8 www.exar.com\XR22414 © 2017 Exar Corporation Rev 1A...
  • Page 5 XR22414CV48EVB BOM is in Table 4 and XR22414CL48EVB in Table 5. Several component part numbers marked “DNI” may typically be not installed on the Exar evaluation boards. However, these may be used on customer PCBs for EMI or other purposes as desired.
  • Page 6 J21, J22, J23, J24, J25, J26, J27 2 Positions Header, 0.100" (2.54mm) 61300211121 J2, J3, J5, J6 2 Positions Header, 0.100" (2.54mm) 61300211121_DNI Connector, Power Jack, DC RA SMD 694103107102 6 / 8 www.exar.com\XR22414 © 2017 Exar Corporation Rev 1A...
  • Page 7 USB Current Monitor, DFN8 2x3 XRP2527IHB-1-F LDO 5V to 3.3V SP6260GEK-L/TR_DNI Hex Inverter IC SN74LVC14ADRG3 12MHz ±20ppm Crystal 18pF -20°C ~ 70°C ABMM-12.000MHZ-B2-T 4-SMD Note: Part numbers marked _DNI are not installed. 7 / 8 www.exar.com\XR22414 © 2017 Exar Corporation Rev 1A...
  • Page 8: Revision History
