5 882 Series Video Test Instruments

The 882E/A/D Multimedia Test Instruments offer video and audio testing of HDMI® or DisplayPort sources, sinks and repeaters (HDMI).

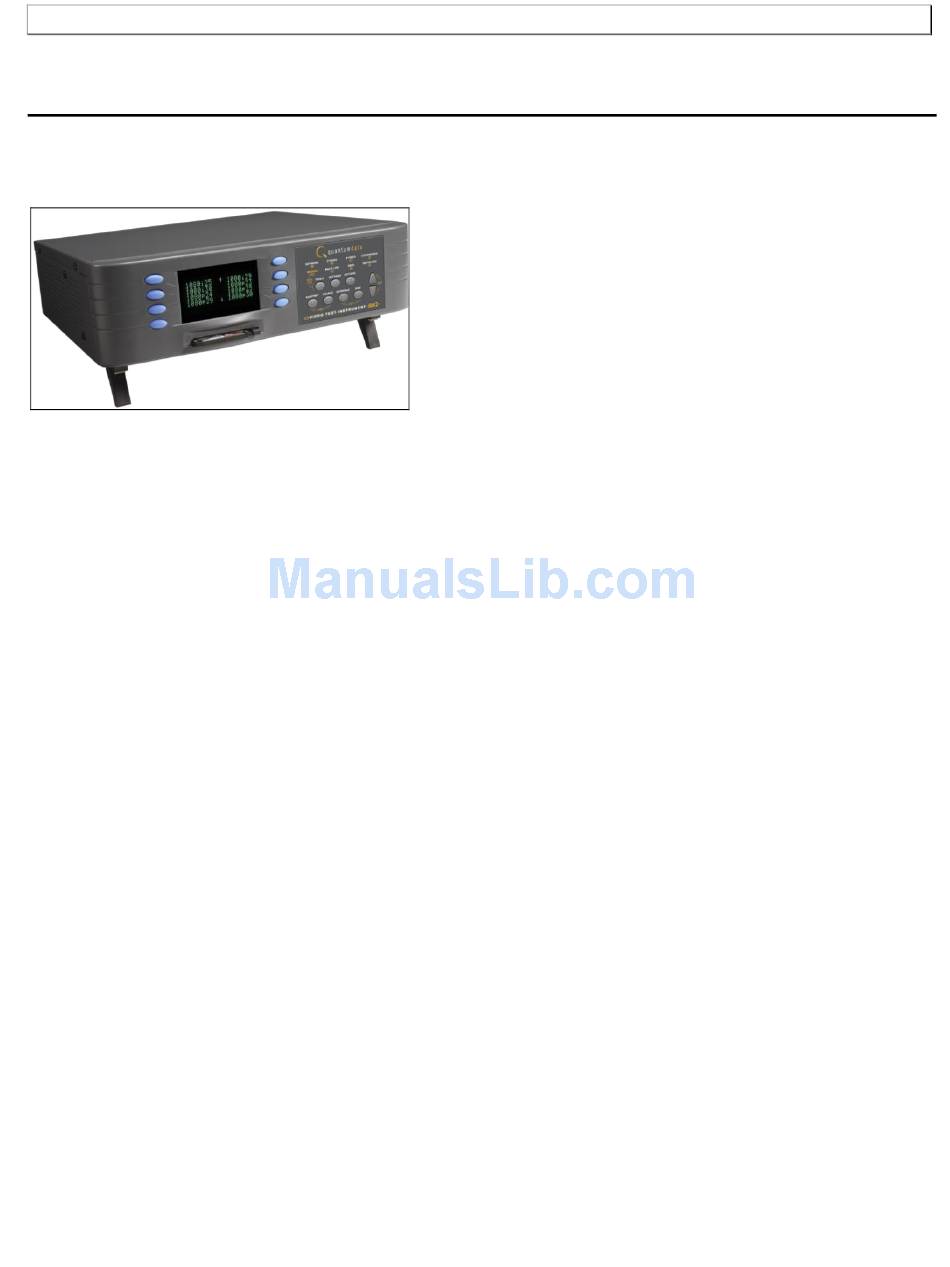

882EA – Front View
Page 6
There are two (2) 882 models available:
The 882E Video Generator/Analyzer can be equipped with an HDMI Tx
or DisplayPort Tx. The HDMI Tx provides 12-bit/component deep color
and HDMI 3D testing features. The DisplayPort Tx provides pattern
testing at pixel rates up to 268MHz. The HDMI and DisplayPort options
also support an analyzer (Rx) option for testing timing and video on
source devices.
Industry approved compliance test tools for HDCP, CEC and EDID testing
for HDMI are available with the HDMI analyzer. For DisplayPort the 882E
analyzer option provides test tools for HDCP, Link Layer and EDID
compliance.
The 882D Video Generator is programmable test instrument packed with
features for video and audio testing of HDMI®, dual link DVI, high speed
analog displays (up to 400MHz) and a composite analog output for testing
standard definition TVs. The HDMI output also supports 3D testing in
accordance with HDMI 1.4a standard. The 882D can optionally be
equipped with a single link SDI output.
