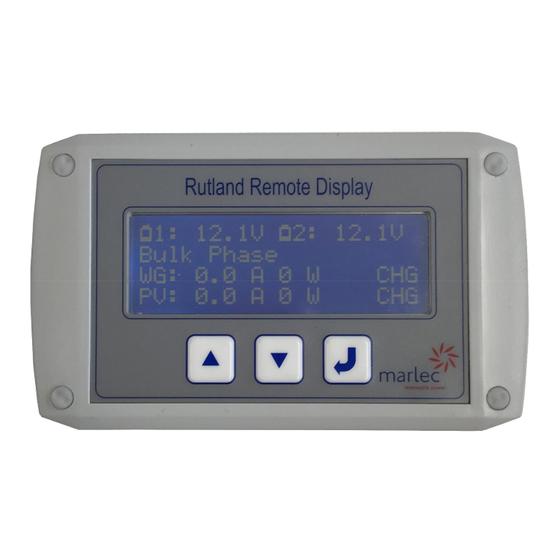

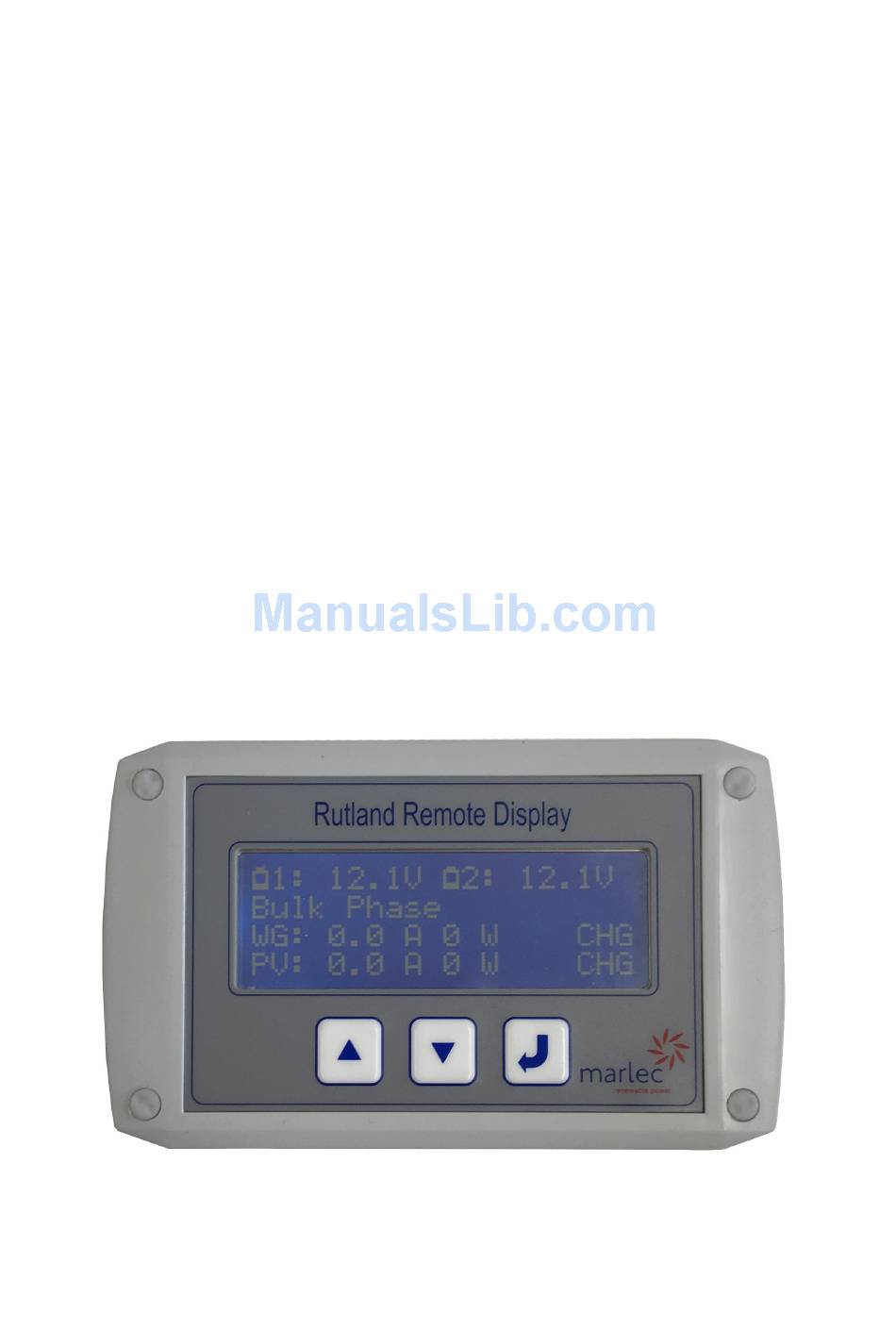

- Page 1 Rutland Remote Display -Model 1200 Installation and Operation Doc No: SM-351 Iss A 18.07.16 Marlec Eng Co Ltd...
-
Page 2: Exploded View
Introduction The Rutland Remote 1200 Model is designed for use with the Rutland 1200 Wind Turbine. It enables convenient viewing of the wind generator and PV solar panel charge currents, power, battery Voltages, charging status and accumulated ampere hours of charge to the batteries. It connects to the Rutland 1200 Hybrid Controller via a serial cable and mounting is optional between surface and recessed. -
Page 3: Electrical Connection
Important: Do not connect a local power supply to these terminals if the remote is connected to the 1200 Controller via the serial cable. Doc No: SM-351 Iss A 18.07.16 Marlec Eng Co Ltd... -
Page 4: Start Monitoring
Accumulated Ampere hours and duration of monitoring elapsed When the charge source, WG or PV, has been shutdown, either at the controller or via the Remote, SWITCHED OFF is displayed. Doc No: SM-351 Iss A 18.07.16 Marlec Eng Co Ltd... - Page 5 Note that when switching WG to OFF the controller enters a soft stall routine, this slowly applies the stall to decelerate the turbine. During this routine, the following is displayed and when complete the display returns to the programming menu. Doc No: SM-351 Iss A 18.07.16 Marlec Eng Co Ltd...
-
Page 6: Option 3: Backlight On Time
Adjust the seconds using the UP and DOWN buttons to the desired duration, one press adjusts one second. Press ENTER to save this time to non volatile memory and return to the programming menu. Doc No: SM-351 Iss A 18.07.16 Marlec Eng Co Ltd... -
Page 7: Other Display Indications
20A has been connected. The error indication is only removed following a controller reset. A PV array within permissible rating should be connected. Consult the Rutland 1200 installation manual for further advice. Doc No: SM-351 Iss A 18.07.16 Marlec Eng Co Ltd... - Page 8 Marlec upon inspection. A valid proof of purchase is required if making a warranty claim.
