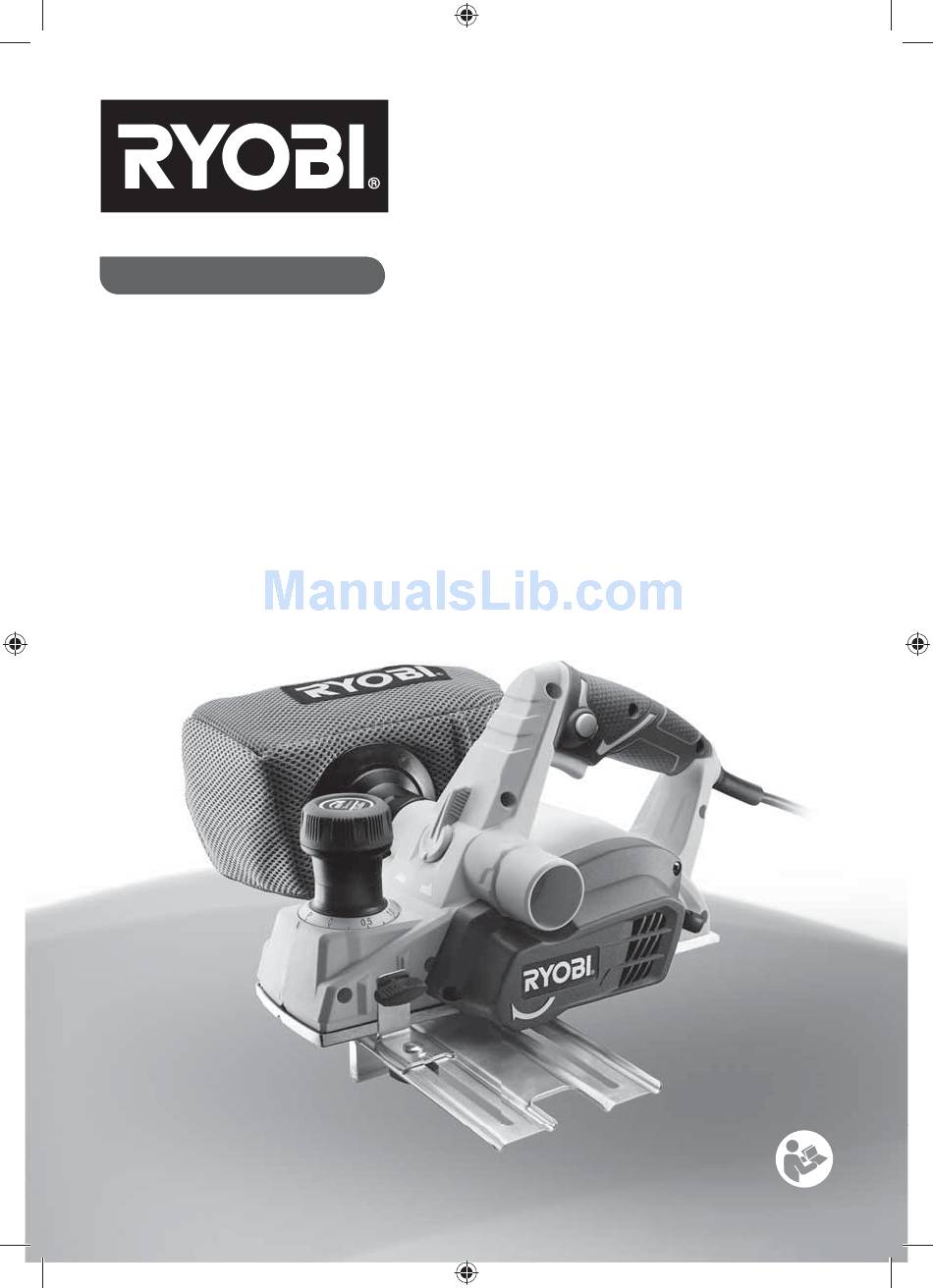

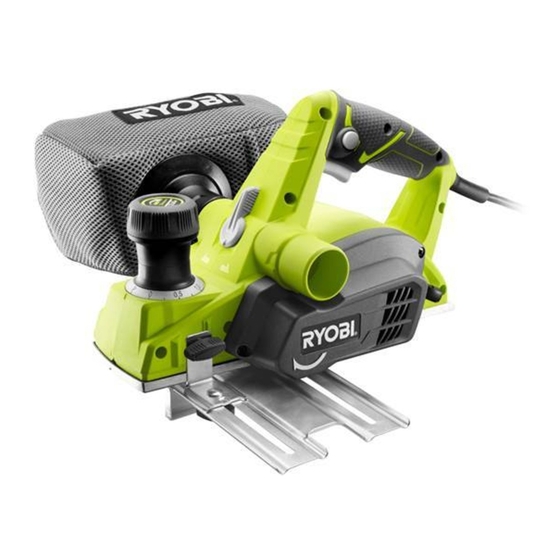

- Page 1 ORIGINAL INSTRUCTIONS Planer RPL780...
- Page 2 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.
- Page 4 Fig. 1 Fig. 2 Fig. 3 Fig. 4...
- Page 5 Fig. 5 Fig. 6 Fig. 7 Fig. 8...
- Page 6 Fig. 9 Fig. 10 Fig. 11 Fig. 12...
- Page 7 Fig. 13 Fig. 14 Fig. 15 Fig. 16...
- Page 8 b) Use personal protective equipment. Always GENERAL POWER TOOL SAFETY WARNINGS wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions WARNING will reduce personal injuries. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in c) Prevent unintentional starting.
-
Page 9: Planer Safety Warnings
the work to be performed. Use of the power tool DESCRIPTION for operations different from those intended could 1. Lock-off button result in a hazardous situation. 2. Rear handle 3. Power cord SERVICE 4. Switch trigger Have your power tool serviced by a qualified repair 5. - Page 10 etc., turn the depth adjustment knob counterclockwise to P WARNING to park the blade. Always wear eye protection with side shield. Failure to do so could result in objects being thrown into your eyes STARTING/STOPPING THE PLANER resulting in possible serious injury. See Figure 4.
- Page 11 speed. PLANING See Figure 6. ■ Hold the planer firmly and push it forward into the workpiece, using a slow, steady motion. ■ Clamp the workpiece securely. ■ Apply downward pressure to keep the planer flat at the ■ Adjust the planing depth. Refer to Planing Depth earlier beginning and the end of the work surface.
-
Page 12: Maintenance
■ When servicing, use only identical Ryobi replacement Always replace or reverse blades in pairs. Do not attempt parts. Use of any other parts may create a hazard or to sharpen blades. -
Page 13: Replacing The Belt
■ Use a screwdriver to push the blade into the blade holder until it is centred into position. Maximum planing capacity ■ Depress the spring-loaded blade guard. Maximum planing capacity ■ Insert the blade holder into the cutter block assembly. ■... -

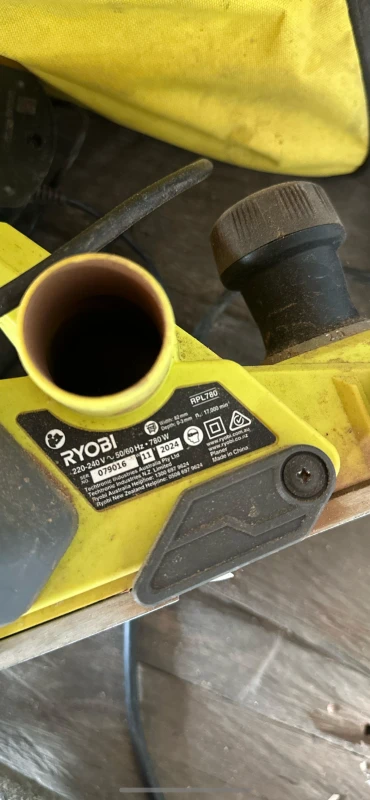

Page 14: Product Specifications
PRODUCT SPECIFICATIONS Model RPL780 Input 220 V - 240 V 50/60 Hz Wattage 780 W No-load speed 17000 min Max. planing depth 3 mm Max. planing width 82 mm Max. rebbate depth 12 mm Weight 3.1 kg (According to EPTA procedure 01/2003) - Page 16 Techtronic Industries (Australia) Pty. Ltd. Level 1, 660 Doncaster Road Doncaster, VIC 3108, Australia Techtronic Industries New Zealand Ltd. 18-26 Amelia Earhart Avenue Mangere, Auckland 2022, New Zealand 20150303...
