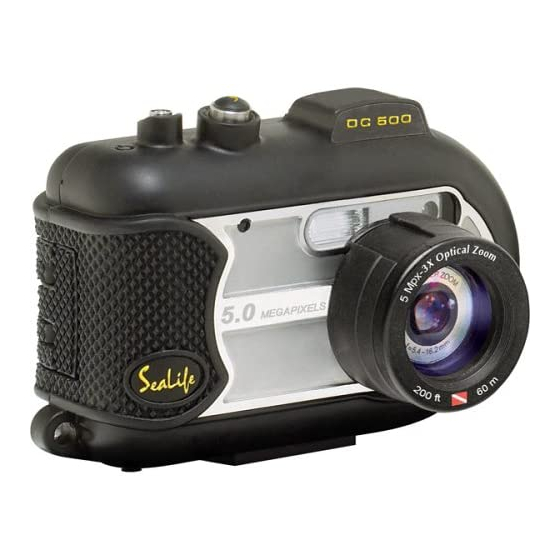

Sealife DC500 Manual

Pioneer digital camera operation dc500
Hide thumbs Also See for DC500:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Quick Manual

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Note:
This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If
such changes or modifications should be made, you could be required to stop operation of the equipment.
EN-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sealife DC500

Summary of Contents for Sealife DC500

  • Page 1: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 2: Read This First

    Other names and products may be trademarks or registered trademarks of their respective owners. ® SeaLife and Land & Sea are registered trademarks of Pioneer Research. Product Information Product design and specifications are subject to change without notice. This includes primary product specifications, software, software drivers, and userís manual.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Read and understand all Warnings and Cautions before using this product. Warnings If foreign objects or water have entered the camera, turn the power OFF and remove the batteries and the AC power adapter. Continued use in this state might cause fire or electric shock. Consult the store of purchase. If the camera has fallen or its case has been damaged, turn the power OFF and remove the batteries and the AC power adapter.
  • Page 4 Cautions Insert the batteries paying careful attention to the polarity (+ or -) of the terminals. Inserting the batteries with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking. Do not fire the flash close to anyone's eyes.
  • Page 5 Important Notes on Using Waterproof Housing Before using the waterproof housing, carefully read and strictly observe the detailed instructions described in the manual. Not following the instructions for usage and maintenance will void your product warranty. Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: Different battery types and surrounding temperatures may affect the battery performance.

  • Page 6: Table Of Contents

    CONTENTS INTRODUCTION...8 Package Contents...9 Warranty Statement...10 GETTING TO KNOW YOUR CAMERA...11 Front View...12 Rear View ...12 Control Buttons ...13 Top View of Docking Cradle...13 LCD Monitor Information...14 PREPARING THE CAMERA...18 Installing the Battery ...18 Docking Cradle...19 Charging the Battery...20 Using the AC Power Adapter (Optional Accessory)...21 Attaching the Camera Strap...21 Inserting and Removing an SD Memory Card...
  • Page 7 Setup Menu...82 CONNECTING YOUR CAMERA TO OTHER DEVICES...85 SPECIFICATIONS...86 APPENDIX...87 UNDERWATER HOUSING INSTRUCTIONS..90 DC500 Housing...90 Must Do for Underwater Housing...91 Open View of Housing...92 Maintaning a Waterproof Seal...93 Install and Remove O-ring...95 How to open and close waterproof housing...97 Install Flash Link...99 How to set-up waterproof housing...101...

  • Page 8: Introduction

    INTRODUCTION Let the Land & Sea adventures begin with your new SeaLife DC500 digital camera. Equipped with the latest digital technology means the camera is automatic and easy to use. Here are some of the unique features that you will surely enjoy.

  • Page 9: Package Contents

    Package Contents Carefully unpack the contents to ensure that you have the following items. In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer. Common Product Components: Digital Still Camera Underwater Housing Instructions Manual USB Cable...

  • Page 10: Limited Warranty

    Pioneer Research, 97 Foster Road, Suite 5, Moorestown, NJ 08057 or to the importer in a different country. Contact your local authorized SeaLife dealer who can assist you with returning cameras to the SeaLife service center or make basic repairs.

  • Page 11: Getting To Know Your Camera

    GETTING TO KNOW YOUR CAMERA AND HOUSING Front View 1. Self-timer LED 2. Shutter button 3. Power button 4. Strap eyelet 5. Battery/SD memory card cover 6. Lens 7. Auto-Focus auxiliary LED 8. Flash 9. Microphone EN-11...

  • Page 12: Rear View

    Rear View Inner Camera 1. LED indicator 2. W / Zoom out (Wide-angle) button Thumbnail button 3. T / Zoom in (Telephoto)button Menu button 5. MODE button 6. Control buttons Delete button EN-12 Waterproof Housing Display (LCD on/off) button 9. Tripod socket 10.Docking station terminal (DC IN 5V port/USB port) 11.

  • Page 13: Control Buttons

    Control Buttons Inner Camera Waterproof Housing ( ❑ ) Flash button (▼) Quick View button 3. SCN (▼) Scene Mode button ( ◆) Self-Timer button 5. OK button (enables QuickShoot) Top View of Docking Cradle 1. Cradle 2. USB port 3.

  • Page 14: Lcd Monitor Information

    LCD Monitor Information Camera Mode 1. Camera mode 2. Image quality ] Super Fine [ ] Fine [ ] Normal 3. Image size ] 2560 x 1920 ] 2048 x 1536 ] 1280 x 960 ] 640 x 480 [ ] TIFF IMAGE 4.
  • Page 15 Movie Mode 1. Movie mode 2. Recordable movie time available 3. Resolution for video clips 4. SD memory card indicator (if present) 5. Battery power indicator 6. Time 7. Date 8. Zoom state Audio Mode 1. Audio mode 2. Current file/ total number of audio files 3.

  • Page 16: Image Playback

    Image Playback 1. Play mode 2. Playback frame number 3. SD memory card indicator (if present) 4. Battery power indicator 5. Image size 6. Camera mode Video Playback 1. Play mode 2. Total of recorded time 3. Resolution for video clips 4.
  • Page 17 LED Indicators Indicator State LED indicator Solid red LED indicator Blinking red LED indicator Solid green Solid green Blinking green Self-timer indicator Blinking blue Description/Activity 1.The digital still camera is powering up. 2.The digital still camera is in the process of battery charge. Processing image after capture.

  • Page 18: Preparing The Camera

    PREPARING THE CAMERA Installing the Battery Make sure that the power of the digital still camera is off before inserting or removing the battery. 1. Slide the battery cover in the direction of the [OPEN] arrow. 2. Insert the battery in the correct orientation as shown in the illustration. 3.

  • Page 19: Docking Cradle

    Docking Cradle With the docking cradle, you can position your digital still camera and connect it to other media devices to play back your images, video clips, or voice recording files (output to a TV monitor or another recorder recording device, for example) on your desktop. The cradle will facilitate the battery charge of the camera in conjunction with an AC power adapter.

  • Page 20: Charging The Battery

    Charging the Battery The state-of-charge of the battery will affect the performance of the digital still camera. To maximize battery performance and lifetime, it is recommended that you fully charge the battery using the optional AC power adapter and then fully discharge it (through normal use) at least one time. Please note that the digital still camera must be powered off before charging the battery.

  • Page 21: Using The Ac Power Adapter (Optional Accessory)

    Using the AC Power Adapter 1. Make sure the camera is turned off. 2. Connect one end of the AC power adapter to the jack on the cradle labeled “DC IN 5V.” 3. Connect the other end to an electrical outlet. Use the appropriate international plug adapter (included) depending on the type of electrical outlet in your country.

  • Page 22: Inserting And Removing An Sd Memory Card (Optional Accessory)

    Inserting and Removing an SD Memory Card (Optional Accessory) The digital still camera comes with 10MB of internal memory, allowing you to store video clips, captured images, or voice recording files in the digital still camera. However, you can also expand the memory capacity by using an optional SD (Secure Digital) memory card so that you can store more files.

  • Page 23: Getting Started

    GETTING STARTED Turning the Power On/Off Press the button until the digital still camera turns on. To turn the power off, press and hold the Entering the Main Menu After turning on the digital still camera, the Main Menu screen appears. Follow the steps below to select the desired mode: 1.

  • Page 24: Setting The Date And Time

    Setting the Date and Time The date/time setting screen will automatically appear: When first turning the camera on. When turning the power on after leaving the camera without battery for an extended period of time. 1. Press the button to turn on the camera. 2.

  • Page 25: Choosing The Screen Language

    Choosing the Screen Language Follow the steps below to specify in which language menus and messages are to be displayed on the LCD monitor from the following: , ENGLISH, ESPAÑOL. 1. Press the button to turn on the camera. 2. Press the MODE button to access in [ t, u,▼...

  • Page 26: Formatting An Sd Memory Card Or Internal Memory

    Formatting an SD Memory Card or Internal Memory The term "Formatting" means preparing an "SD Memory Card" to record images; this process is also called "initialization". This utility formats the internal memory (or memory card) and erases all stored images and data.

  • Page 27: Setting Image Resolution And Quality

    Setting Image Resolution and Quality As you get to know the digital still camera, you can set the image resolution (number of vertical and horizontal pixels) and image quality (compression ratio) based on the types of images you want to shoot. These settings affect the number of images that can be stored in memory, or on a memory card.

  • Page 28: Using The Lcd Monitor

    Using the LCD Monitor Your camera is equipped with a 2.0" full color TFT LCD monitor to help you compose images, replay recorded images/video clips or adjust menu settings. The mode icons, text and numbers displayed on the monitor may vary according to the current settings. 1.

  • Page 29: Camera Mode

    CAMERA MODE Shooting Images 1. Press the button to turn on the power. 2. Press the MODE button to access in [ , ,t, or u, then press the OK button. 3. Compose the image on the monitor screen so that the main subject is within the focus frame.

  • Page 30: Useful Scene Modes Land & Sea Exposure Programs

    Useful Scene Modes Land & Sea Exposure Programs Your digital still camera offers you nine types of scene modes to capture images easily in a situation that is programmed to handle all adjustments for you by selecting the following shooting conditions. EN-30...
  • Page 31 To use the SCENE mode, follow the steps below: 1. Press the button to turn on the camera. 2. Press / SCN to access in [SCENE] mode. 3. Use t or u to select the desired scene mode, then press the OK button to confirm.

  • Page 32: Reviewing The Last Image

    Reviewing the Last Image The camera is equipped with the monitor in the mode. Use the following procedure to preview the last image captured. 1. Press to display the last image captured. The last image displays on the LCD monitor. Press again to return to the normal shooting mode.

  • Page 33: Using The Zoom Function

    Using the Zoom Function This camera is equipped with 3x optical zoom. The lens moves during the optical zoom photography, allowing you to capture telephoto and wide-angle shots. By using the optical zoom function; images appear closer by pressing the T button, or smaller away by pressing the W button. You can further enlarge the subjects with 4x digital zoom by pressing continuously the T button.

  • Page 34: Using The Macro (Close-Up) Mode On Land

    Using the Macro (Close-Up) Mode on Land With this mode, the cameraís lens switches the auto focus system to focus on subjects that are much closer to the lens. This feature allows you to shoot close-up objects on land, such as small insects or flowers to get the smallest detail.

  • Page 35: Using Sea Or Ext. Flash

    Using the Sea or Ext. Flash Modes These two scene modes are special exposure programs developed for taking pictures underwater. Sea Mode - Select this mode to take underwater photos without external flash accessory (optional). This exposure program was developed by scuba divers and will produce the best quality underwater images when NOT using the external flash (optional).

  • Page 36: Using The Flash

    Using the Flash The flash is designed to function automatically when lighting conditions warrant the use of flash. You can take an image using a desired flash mode to suit your circumstances. 1. Press the button to turn on the camera. 2.

  • Page 37: Using The Flash In External Flash Mode

    Using the Flash in External Flash Mode When the camera is set to Ext Flash mode the camera’s flash will always fire. This will trigger the SeaLife External Flash (SL960) or Digital Flash (SL960D) to fire. In order to achieve proper image exposure, it may be necessary to select from one of the following three flash modes: NORMAL FLASH - This is the default setting ideal for proper exposure from 1 yd (1m) to 2 yd (2m).

  • Page 38: Using The Self-Timer

    Using the Self-Timer The self-timer can be set in [ 1. Secure the camera to a tripod or place it on a stable surface. 2. Press the button to turn on the power. 3. Toggle u / to select the desired self-timer mode. [NO INDICATION] 4.

  • Page 39: Adjusting The Exposure

    Adjusting the Exposure You can manually adjust the exposure determined by the digital still camera. Use this mode when the proper exposure cannot be obtained, for example, when the contrast (different between light and dark) between the subject and the background is extremely large. The EV compensation value can be set in the range from -2.0EV to +2.0EV.

  • Page 40: Setting White Balance

    Setting White Balance This feature lets you make adjustments to compensate for different lighting types according to your shooting conditions. 1. Press the MODE button to access in [ , ,t, or u , then press the OK button. , then toggle u to select the [AE/AWB] menu. 2.

  • Page 41: Advanced Shooting

    ADVANCED SHOOTING QuickShoot Mode [ This feature will greatly reduce the camera’s shutter lag time. Shutter lag is the time difference between pushing the shutter button and capturing the image. All cameras have some shutter lag the camera needs time to set autofocus and evaluate lighting conditions. Without QuickShoot, the camera will have about 1 second shutter lag.

  • Page 42: Continuous Shooting

    Continuous Shooting This mode is used for continuous shooting. Pictures are taken continuously while the shutter release button is pressed. 1. Press the MODE button to access in [ , ,t, or u, then press the OK button. , then use u to select the [FUNCTION] menu. 2.

  • Page 43: Auto Exposure Bracketing (Aeb)

    Auto Exposure Bracketing (AEB) In this mode, the camera automatically changes the exposure within a set range to take three shots after you press the shutter button once. AEB settings can be combined with exposure compensation settings to extend the adjustment range. 1.

  • Page 44: Adjust White Balance Manually

    Adjust White Balance Manually Manual white balance lets you configure the digital still camera for a particular light source and other conditions. Note that you must perform manual white balance under the same conditions you will be shooting under. You must also have a white piece of paper or other similar object on hand in order to perform this function.

  • Page 45: Instant Delete And Quickview Mode

    Instant Delete and Quickview Mode When Quickview is turned on, the camera will display the actual picture taken after each shot. You also have the option to instantly delete the last picture taken if you press the shutter button while “DELETE?” message is displayed.

  • Page 46: Play Mode - The Basics

    PLAY MODE - THE BASICS In the [ (PLAY) ] mode, you can view, magnify, delete images or play video clips back. This mode also provides thumbnail images display and slide show, allowing you to quickly search for the desired image. Viewing Images 1.

  • Page 47: Magnifying Images

    Magnifying Images While reviewing your images, you may enlarge a selected portion of an image. This magnification allows you to view the details. The zoom factor is displayed on the screen, showing the current magnification ratio. Images that are being playback can be enlarged in 14 levels of 8 times enlargement. 1.

  • Page 48: Thumbnail Display (Index Playback)

    Thumbnail Display (Index Playback) This function allows you to view four or nine thumbnail images on the LCD monitor simultaneously so you may search for a particular image. 1. Press the MODE button to access in [ or u, then press the OK button. 2.

  • Page 49: Slideshow Display

    Slideshow Display The slide show function enables you to play your images back automatically in sequential order. This is very useful and entertaining feature for reviewing recorded images and for presentations. 1. Press the MODE button to access in [ or u, then press the OK button.

  • Page 50: Movie Mode

    MOVIE MODE Recording Video Clips 1. Press the button to turn on the power. 2. Press the MODE button to access in [ , ,t, or u, then press the OK button. 3. Press the shutter button to start recording. 4.

  • Page 51: Playing Back Video Clips

    Playing Back Video Clips 1. Press the MODE button to access in [ or u, then press the OK button. (PLAY)] mode, use t or u to go through the images 2. In the [ until the video clip you want to play back is displayed. To view the previous image, press the t button.

  • Page 52: Play Mode-Advanced Functions

    PLAY MODE - ADVANCED FUNCTIONS Playing Back Images/Video Clips on TV You can also playback your images on a TV screen. Before connecting to any device, make sure to select NTSC/PAL system to match the video output system of the video equipment you are going to connect to the digital still camera, then turn all connected devices off.

  • Page 53: Rotating Images In The Display

    Rotating Images in the Display This function lets you rotate images so that the images are played back with the correct orientation. You can rotate an image 90 degree clockwise or counterclockwise. 1. Press the MODE button to access in [ (PLAY)] mode, use t or u to display the image you want to rotate.

  • Page 54: Deleting Images/Video Clips

    Deleting Images/Video Clips Use this function to delete one or all images/video clips stored in the internal memory or memory card. Please note that the deleted images or video clips cannot be recovered. Exercise caution before deleting a file. To delete a single image/video clip 1.

  • Page 55: Protecting Images/Video Clips

    Protecting Images/Video Clips Set the data to read-only to prevent images from being erased by mistake. 1. Press the MODE button to access in [ or u, then press the OK button. 2. In the [ (PLAY)] mode, press , ,t, or u button, then press the OK button. 3.

  • Page 56: Setting The Dpof

    Setting the DPOF DPOF (Digital Print Order Format) allows you to embed printing information on your memory card. By using DPOF, you can select an image to be printed and then specify how many prints or which image you would like.
  • Page 57 Step Figure Procedure DPOF [ONE IMAGE]: ONE IMAGE ALL IMAGES [ALL IMAGES]: To configure print settings for all images. RESET [RESET]: EXIT SELECT IMAGE : SET : [EXIT]: DPOF button to configure the settings. QUANTITY DATE [QUANTITY]: Allows you to select image quantity (0~99). Use ENABLE BACK : SET :...
  • Page 58 To configure print settings for all images. Step Figure PLAY DPOF LOGO EXIT DPOF EXIT: SELECT ITEM: ENTRY: DPOF ONE IMAGE ALL IMAGES RESET EXIT SELECT IMAGE : SET : DPOF ONE IMAGE ALL IMAGES RESET EXIT SELECT IMAGE : SET : EN-58 Procedure...
  • Page 59 Step Figure Procedure DPOF configure the settings. QUANTITY DATE CANCEL [DATE]: ENABLE Press the OK button to choose [SET] or [CANCEL] with BACK : SET : [ENABLE]: Allows you to confirm your setting which will be saved in the DPOF SD card.

  • Page 60: Connecting To A Pictbridge Compliant Printer

    Connecting to a PictBridge Compliant Printer Even if you do not have a computer, you can connect the camera directly to a printer that supports PictBridge to perform image selection and printing using the camera monitor screen and controls. DPOF support also lets you specify which images you want to print and how many copies of each should be printed.
  • Page 61 Step Figure Procedure Use t or u to select the image you want to print, then press print reservations. * The [PRINT INFO] screen is displayed. SELECT PAGE : PRINT : CANCEL : MORE : PRINT INFO QUANTITY * Use DATE FILE NAME EXIT...
  • Page 62 Step Figure TRANSFERRING PRINT CONTINUE CANCEL SELECT ITEM : ENTRY: In [PRINT ORDER] Mode: This function only lets you print the specified image based on the previous Step Figure PRINT MODE SELECT PRINT PRINT ORDER SELECT ITEM : ENTRY: EN-62 Procedure This starts printing and displays the message "TRANSFERRING"...
  • Page 63 Procedure Step Figure Use u to access in the selection of paper setting, then press the OK button to PRINT PAPER print. SIZE BORDERLESS STANDARD STANDARD [SIZE]: EXIT : SELECT: [BORDERLESS]: PRINT * The TRANSFERRING screen is displayed. PRINT CANCEL SELECT ITEM : ENTRY: This starts printing and displays the message "TRANSFERRING"...

  • Page 64: Changing The Camera Startup Logo

    Changing the Camera Startup Logo This feature lets you specify one of your recorded images as your setup screen image, which will be displayed on the monitor whenever you press the 1. Press the MODE button to access in [ or u , then press the OK button.

  • Page 65: Audio Mode

    AUDIO MODE The digital still camera enables you to record and playback voice files anytime and anywhere. Recording Voice Files 1. Press the button to turn on the camera. 2. Press the MODE button to access in [ , ,t, or u, then press the OK button. 3.

  • Page 66: Deleting A Voice Recording File

    Deleting a Voice Recording File 1. Press the MODE button to access in [ , ,t, or u, then press the OK button. 2. In the [ (AUDIO)] mode, use want to delete. 3. Press to delete the selected voice file. 4.

  • Page 67: Transferring Files From Your Digital Still Camera To Computer

    TRANSFERRING FILES FROM YOUR DIGITAL STILL CAMERA TO COMPUTER After using USB cable to establish a USB connection between the camera and your computer, you can use your computer to share recorded images/video clips/voice-recording files with your family or friends via a e- mail or post them on the Web.

  • Page 68: Step 1: Install The Usb Driver

    Step 1: Install the USB driver Installation on Windows 98 & 98SE The USB driver on the supplied CD-ROM is exclusively for Windows 98 and 98SE. Windows 2000/ME/XP users need not install the USB driver. 1. Insert the enclosed CD-ROM into your CD-ROM drive. 2.

  • Page 69: Step 2: Connect The Digital Still Camera To Your Computer

    Step 2: Connect the digital still camera to your computer 1. Position the camera on the cradle. 2. Connect one end of the USB cable to the USB connector on the cradle. 3. Connect the other end of the USB cable to an available USB port on your computer.

  • Page 70: Step 3: Download Images, Video Clips Or Voice-Recording Files

    Step 3: Download images, video clips or voice-recording files When the digital still camera is turned on and connected to your computer, it is considered to be a disk drive, just like a floppy disk or CD. You can download (transfer) images by copying them from the "Removable disk"...

  • Page 71: Editing Software Installation

    EDITING SOFTWARE INSTALLATION Installing Photo Explorer ® Ulead Photo Explorer provides a simple and efficient way to transfer, browse, modify and distribute digital media. Acquire photos, video or sound clips from various digital device types and easily browse or add personal descriptions;...

  • Page 72: Installing Photo Express

    Installing Photo Express ® Ulead Photo Express is complete photo project software for digital images. The step-by-step workflow, visual program interface, and in-program help assist users in creating exciting photo projects. Acquire digital photos effortlessly from digital cameras or scanners. Organize them conveniently with the Visual Browse mode.

  • Page 73: Using The Digital Still Camera As A Pc Camera

    USING THE DIGITAL STILL CAMERA AS A PC CAMERA Your digital still camera can act as a PC camera, which allows you to videoconference with business associates, or have a real-time conversation with friends or family. To use the digital still camera for videoconferencing, your computer system must include the items as below: Microphone Sound card...

  • Page 74: Step 2: Connect The Digital Still Camera To Your Computer

    Step 2: Connect the digital still camera to your computer. 1. Position the camera on the cradle. 2. Connect one end of the USB cable to the USB port on the cradle. 3. Connect the other end of the USB cable to an available USB port on your computer.

  • Page 75: Menu Options

    MENU OPTIONS Camera Menu This menu is for the basic settings to be used when capturing still images in camera mode. PICTURE FUNCTION AE/AWB SELECT MODE: SELECT PAGE: EXIT: SELECT ITEM: 1. Press the MODE button to access in [ to access in [CAMERA] menu, then use t or u to select [PICTURE] / [FUNCTION] / [AE / 2.
  • Page 76 PICTURE Settings Option Functional Description SIZE Sets the size of the image that will be captured. 2560 x 1920 2048 x 1536 1280 x 960 640 x 480 TIFF IMAGE QUALITY Sets the quality (compression rate) at which the image is captured. SUPER FINE FINE NORMAL...

  • Page 77: Lcd Bright

    FUNCTION Settings Item Functional Description CAPTURE MODE Sets the recording method at the time of taking pictures. SINGLE CONTINUOUS LCD BRIGHT Sets whether or not to use digital zoom at the time of photography. The adjustment range is from -5 to +5. DIGITAL ZOOM Sets whether or not to use digital zoom at the time of photography.

  • Page 78: White Balance

    AE/AWB Settings Item Functional Description WHITE BALANCE Sets the white balance photographing under a variety of lighting conditions and permits photographs to be taken that approach the conditions that are seen by the human eye. * AUTO AUTO Sets the sensitivity for taking pictures. When the sensitivity is raised (and the ISO figure is increased), photography will become possible even in dark locations, but the more pixilated (grainer) the image will appear.

  • Page 79: Movie Menu

    Movie Menu This menu is for the basic settings to be used when recording video clips. 1. Press the MODE button to access in [ , ,t, or u, then press the OK button. 2. Press to access in [MOVIE] menu. , ,t, or u to select the desired setting, then press the OK 3.

  • Page 80: Play Menu

    Play Menu In the [PLAY] menu, set which settings are to be used for playback. PLAY SLIDE SHOW COPY Index 3SEC SLIDE SHOW EXIT: SELECT ITEM: ENTRY: 1. Press the MODE button to access in [ 2. Press to access in [PLAY] menu. , ,t or u to select the desired setting, then press the OK button.
  • Page 81 Item Functional Description COPY TO CARD Allows you to copy your files from the digital still cameraís internal memory to a memory card. Of course, you can only do this if you have a memory card installed COPY and some files in internal memory. * YES/NO THUMBNAIL Allows you to view 4 or 9 thumbnail images on the LCD monitor at the same time,...

  • Page 82: Setup Menu

    Setup Menu You can select your preferences on the camera settings in the mode. BASIC CUSTOM FORMAT AUTO AUTO DATE SELECT MODE: SELECT PAGE: SELECT ITEM: 1. Press the MODE button to access in [ The [SETUP] menu is displayed. 2.

  • Page 83: Date Print

    BASIC Settings Item Functional Description SPEAKER Sets whether or not to mute the startup sound, and the camera sound each time you press the camera button. * ON/OFF FORMAT Erases all images and reformats the SD card loaded in your camera. Protected images are also erased.
  • Page 84 CUSTOM Settings Item Functional Description DATE TYPE Sets the displayed type of date and time on the screen. * [Y/M/D]: Year/Month/Day Y/M/D * [D/M/Y]: Day/Month/Year * [M/D/Y]: Month/Day/Year DATE SETUP Sets the date and the time. Refer to section in this manual titled "Setting the Date and Time" for further details. DATE LANGUAGE Sets the language that is displayed on the LCD monitor.

  • Page 85: Connecting Your Camera To Other Devices

    CONNECTING YOUR CAMERA TO OTHER DEVICES EN-85...

  • Page 86: Specifications

    SPECIFICATIONS Item Image Sensor Effective pixels Image size Image quality Recording media Compression format File format Lens Focus range LCD monitor Self-timer Exposure compensation White balance Interface Power Dimension Weight * Design and specifications are subject to change without notice. EN-86 Description 5.0 Mega pixels...

  • Page 87: Appendix

    APPENDIX Troubleshooting Guide Symptom Possible causes Power does not * The battery has run out. turn on * The battery is not oriented correctly. * The battery cover is not closed properly. * The AC power adapter (optional) is disconnected. Camera suddenly * [SLEEP] in BASIC menu of SETUP powers down.
  • Page 88 Possible Number of Recordable Images The frame counter indicates the approximate number of images that can be stored on the SD memory card. The number of recordable images may vary depending on the recorded subject, the capacity of the memory card, there are files other than images or when the recording is made while switching the picture quality or resolution.
  • Page 89 Approximate Duration of Recording Time The table below indicates the approximate duration of recording time depending on the capacity of the SD memory card. Image size 16MB 640 x 480 0:18 0:47 320 x 240 1:13 3:08 The values for the recording time may vary depending on the shooting conditions and settings. SD memory card 32MB 64MB...

  • Page 90: Underwater Housing Instructions

    DC500 Front view of underwater housing Backview of underwater housing EN-90 SeaLife DC500 Underwater Housing: Depth rated and tested to 200 ft. (60m) Fully rubbered armored for water and shock protection. Soft rubber grips Fully-multi coated optical glass lens port for high light transmission.

  • Page 91: Must Do For Underwater Housing

    Replace O-ring every year to ensure proper seal. Only use approved SeaLife O-ring designed for the DC500. Soak and rinse waterproof housing in fresh water after each use. Use clean, soft cloth to dry housing. Store camera and housing only after careful cleaning and when totally dry.

  • Page 92: Open View Of Housing

    Open view of waterproof housing The housing door uses one O-ring to form a waterproof seal. Important: Carefully clean and inspect O-ring and O-ring contact surfaces before each underwater use in accordance with instructions provided in this manual. If O-ring needs to be replaced, contact your local authorized SeaLife dealer or the SeaLife Service Center at (856) 866-9191 or email - EN-92 IMPORTANT: Do NOT lubricate O-ring...

  • Page 93: Maintaining A Waterproof Seal

    Maintaining a waterproof seal Every SeaLife housing is tested for quality and a waterproof seal. It is your responsibility to properly care for the O-ring and O-ring contact surfaces to maintain a waterproof seal. Carefully follow these important O-ring care instructions. Not following these care instructions may cause the waterproof housing to leak and void your warranty.
  • Page 94 4. Replace O-ring every year to ensure proper seal. Only use approved SeaLife O-ring designed for the DC500. Replacement O-rings are available at your local authorized SeaLife dealer. 5. After each use underwater: a. Soak sealed housing in fresh water for about 15 minutes. Most dive boats offer special fresh water buckets specifically for underwater photo equipment.

  • Page 95: Install And Remove O-Ring

    HOW TO INSTALL AND REMOVE O-RING To Install O-ring: Step 1: O-ring and O-ring groove must be completely clean before installing O-ring. Step 2: Push O-ring into groove as shown being careful not to twist or roll O-ring. Step 3: Use two fingers to push last part of O-ring into groove.
  • Page 96 To Remove O-ring: Step 1: Push O-ring along groove until it lifts. Step 2: Gently lift and remove O-ring from its groove. EN-96...

  • Page 97: How To Open And Close Waterproof Housing

    HOW TO OPEN AND CLOSE WATERPROOF HOUSING Step 1: Push in locking tab to open latch. Step 2: Open latch all the way to lift and release latch from housing. Step 3: Open Housing as shown so inner camera does not fall out.
  • Page 98 Step 4: Close housing and push down on latch as shown to firmly seat latch into housing. Step 5: Push down latch until locking tab clicks into place. EN-98...

  • Page 99: Installing The Flash Link Optical Cable Adapter

    The Flash Link adapter connects the SeaLife Flash Link optical cable (item # SL962 - optional accessory) to the DC500 camera. This adapter is only needed when using the SeaLife External Flash (item # SL960 – optional accessory) or Digital Flash (item # SL960D – optional accessory). It is strongly recommended to purchase the Flash Link optical cable accessory if you are using a SeaLife external Flash to ensure it fires all the time.
  • Page 100 Step 3:Attach adapter around housing lens port so that it is seated into the flash window recess. If using two Flash Links, attach other cable in second hole and follow above instructions. EN-100...

  • Page 101: How To Set-Up Waterproof Housing

    How to set-up the Waterproof Housing Set up camera 1. Insert charged battery (Lithium ion type 3.7V 650 mAh). Make sure you insert the batteries with the correct + and – polarity. 2. Clean camera lens with dry, clean cotton cloth. 3.
  • Page 102 6. Do not allow any water droplets to get inside housing. This will cause the inside of the housing to fog. 7. Close housing lid tightly. Make sure there are no obstructions that prevent the housing from closing. Make sure lid is tightly pressed into housing. 8.

  • Page 103: Using And Cleaning The Underwater Housing And Camera

    Using and cleaning the underwater housing and camera Entering the water with housing 1. Do not enter water with camera in your hand. Have someone hand you the camera after you have entered the water. 2. For tips on taking pictures, see “Great Pictures Made Easy” on page 104. 3.

  • Page 104: Great Pictures Made Easy

    Prepare housing for storage 1. Before storing the housing and camera, remove batteries, SD card and keep in a clean dry area. Make sure the housing and any accessories are clean and dry before storage. 2. Never store camera or housing in direct sunlight or in a dark damp area. The airtight, unbreakable SeaLife ReefMaster Dry Case (Item # SL930) is highly recommended along with 1-oz bags of SeaLife Moisture Muncher Desiccant (Item # M101) for travel and storage.
  • Page 105 3. Move calmly and control your buoyancy before taking a picture. It is very hard to take good pictures when you are moving. Look around for great picture opportunities. First position yourself at the best angle, and neutralize your buoyancy. Second, use the LCD monitor to perfectly frame your subject, check your shooting distance and keep the camera steady.
  • Page 106 7. Use the QuickShoot Mode for fast moving objects. Some fish move very fast and are difficult to photograph. Using the QuickShoot Mode allows you to set the focusing and exposure for a particular underwater scene. When the QuickShoot mode is enabled, the camera’s shutter lag (shutter response time) is less than 1 second so you don’t miss the fish.

  • Page 107: Trouble Shooting Guide

    Trouble shooting guide Problem No Power Camera gets hot No PC connection No Video Connection Possible cause Corrective Action Battery power low Battery + and - not inserted Check that the battery is correctly. inserted correctly Power save function activated.. Turn camera back on. Camera damaged Contact service center.
  • Page 108 Problem Poor Video connection “Memory full” message Pictures out of focus Grainy picture EN-108 Possible cause Corrective Action Video cable not fully inserted into camera or TV Make sure video cable is completely inserted into video jack of camera docking station. Also check that connection to TV/VCR is correct.
  • Page 109 Problem Overexposed image Flash not firing Lost images Housing leaks water For updated trouble shooting guide refer to website: www.sealife-cameras.com Possible cause Corrective Action To close to reflective object. Move farther away from subject (4’ to 6’). Turn flash head slightly away from subject.

  • Page 110: Housing Specifications

    Housing Specifications Underwater housing: Depth: Individual depth tested to 200’ (60m) Controls: Control buttons for power, Shutter, Zoom, LCD, Menu, Mode, 4 navigation buttons, OK and Delete buttons O-ring: Silicone Lens port: Fully multi-coated optical glass lens port with snap-on ring to adapt accessory lenses. LCD: Optical grade polycarbonate window Tripod Mount:...

Table of Contents
