Hitachi 35UX85B/CZ68 Service Manual page 55

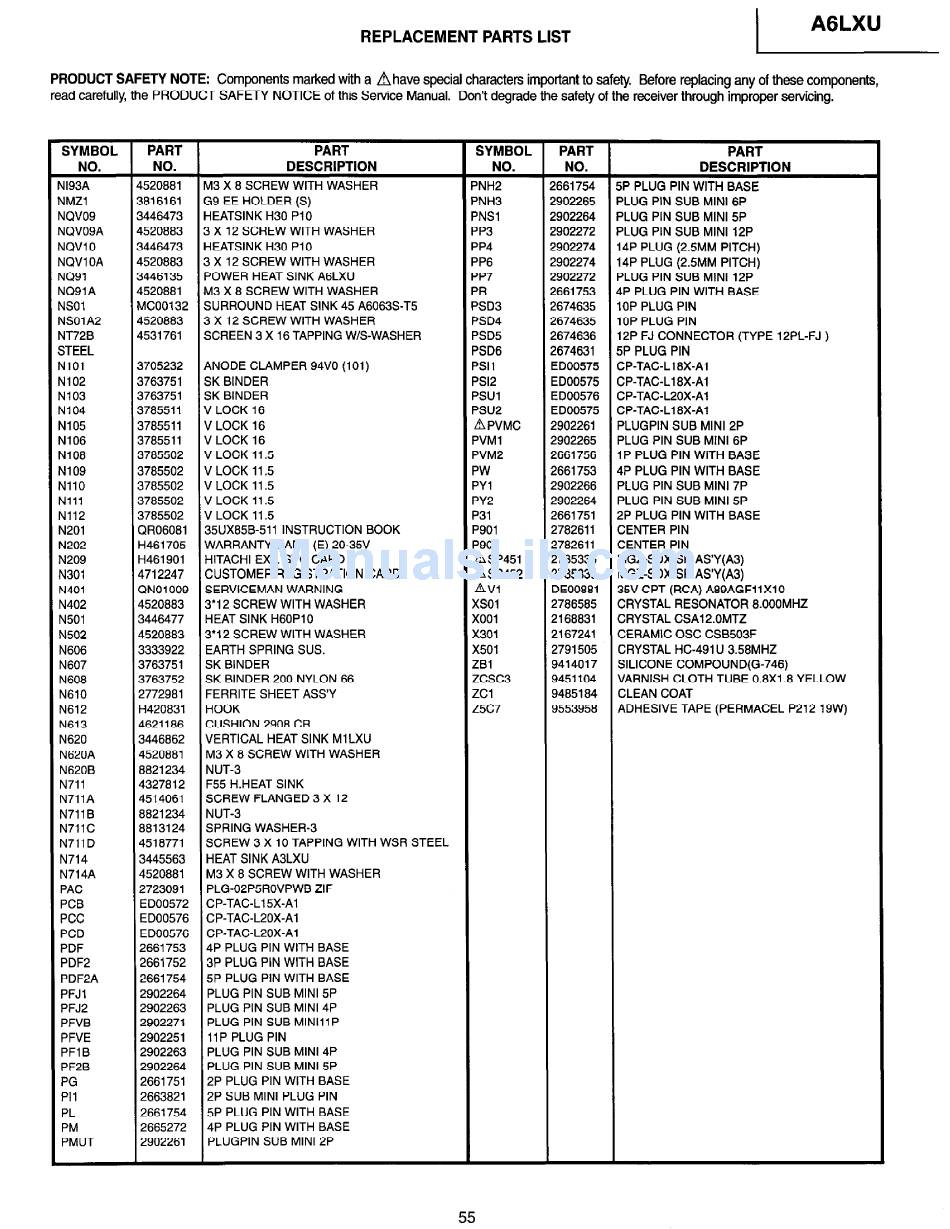

REPLACEMENT PARTS LIST
PRODUCT SAFETY NOTE: Components marked with a Ahave special characters important to safety. Before replacing any of these components,
read carefully, the PRODUCT SAFETY NOTICE of this Setvice Manual. Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART PART SYMBOL PART
PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
til93A 4520881 M3 X 8 SCREW WITH WASHER PNH2 2661754
5P PLUG PIN WITH BASE
NMZl 3816161 G9 EE HOLDER (S) PNH3 2902265 PLUG PIN SUB MINI 6P
NQVOS
3446473 HEATSINK H30 Pi0
PNSl 2902264 PLUG PIN SUB MINI 5P
NQVOSA 4520883 3 X 12 SCREW WITH WASHER PP3 2902272
PLUG PIN SUB MINI 12P
NQVlO 3446473 HEATSINK H30 PlO PP4 2902274
14P PLUG (2.5MM PITCH)
NQVl OA 4520883
3 X 12 SCREW WITH WASHER
PP6 2902274 14P PLUG (2.5MM PITCH)
NQ91 3446135 POWER HEAT SINK AGLXU
PP7 2902272 PLUG PIN SUB MINI 12P
NQ91A 4520881 M3 X 8 SCREW WITH WASHER PR 2661753 4P PLUG PIN WITH BASE
NSOl MC00132 SURROUND HEAT SINK 45 A6063S-T5 PSD3 2674635 1OP PLUG PIN
NSOlA2 4520883 3 X 12 SCREW WITH WASHER PSD4
2674635 1OP PLUG PIN
NT728 4531761 SCREEN 3 X 16 TAPPING W/S-WASHER PSD5 2674636 12P FJ CONNECTOR (TYPE 12PL-FJ )
STEEL PSD6 2674631 5P PLUG PIN
NlOl 3705232 ANODE CLAMPER 94V0 (101) PSI1 ED00575 CP-TAC-L18X-Al
N102 376375 1 SK BINDER PSI2 ED00575 CP-TAC-L18X-Al
N103 3763751
SK BINDER
PSUl ED00576 CP-TAC-L20X-Al
N104 3785511 VLOCK16 PSU2 ED00575 CP-TAC-L18X-Al
N105 37855 11 V LOCK 16 APVMC 2902261 PLUGPIN SUB MINI 2P
N106 37855 11 V LOCK 16 PVMl 2902265 PLUG PIN SUB MINI 6P
N108
3785502 V LOCK 11.5 PVM2 2661756 1P PLUG PIN WITH BASE
N109 3785502 V LOCK 11.5 PW 2661753 4P PLUG PIN WITH BASE
NllO 3785502
V LOCK 11.5 PYl
2902266 PLUG PIN SUB MINI 7P
Nlll 3785502 V LOCK 11.5 PY2 2902264 PLUG PIN SUB MINI 5P
N112 3785502 V LOCK 11.5 P31 2661751 2P PLUG PIN WITH BASE
N201 QR06081 35UX85B-511 INSTRUCTION BOOK P901 2782611 CENTER PIN
N202 H461705 WARRANTY CARD (E) 20-35V P902 2782611 CENTER PIN
N209 H461901 HITACHI EXT. SVC CARD Asp451 2735335 MGZ-SDX-SP AS'Y(A3)
N301
4712247 CUSTOMER REGISTRATION CARD ASP452 2735335
MGZ-SDX-SP AS'Y(A3)
N401 QNO1009 SERVICEMAN WARNING
AVI
DE00881 35V CPT (RCA) A89AGFllXlO
N402 4520883
3*12 SCREW WITH WASHER XSOl 2786585 CRYSTAL RESONATOR 8.000MHZ
N501 3446477 HEAT SINK H60PlO x001 2168831 CRYSTAL CSA12.0MTZ
N502 4520883 3*12 SCREW WITH WASHER x301 2167241
CERAMIC OSC CSB503F
N606 3333922 EARTH SPRING SUS. x501 2791505 CRYSTAL HC-491 U 3.58MHZ
N607 376375 1
SK BINDER ZBl 9414017 SILICONE COMPOUND(G-746)
N608 3763752 SK BINDER 200 NYLON 66 zcsc3 9451104 VARNISH CLOTH TUBE 0.8X1.8 YELLOW
N610 2772981 FERRITE SHEET ASS'Y ZCl
9485184 CLEAN COAT
N612 H420831
HOOK z5c7 9553958 ADHESIVE TAPE (PERMACEL P212 19W)
N613
4621186 CUSHION 2908 CR
N620 3446862
VERTICAL HEAT SINK Ml LXU
N620A 4520881
M3 X 8 SCREW WITH WASHER
N620B 882 1234 NUT-3
N711 43278 12 F55 H.HEAT SINK
N711A 4514061 SCREW FLANGED 3 X 12
N711B 8821234 NUT-3
N711C
8813124 SPRING WASHER-3
N711 D
4518771 SCREW 3 X 10 TAPPING WITH WSR STEEL
N714 3445563 HEAT SINK A3LXU
N714A 4520881
M3 X 8 SCREW WITH WASHER
PAC
272309 1 PLG-02P5ROVPWB ZIF
PCB ED00572 CP-TAC-Ll5X-Al
PCC ED00576 CP-TAC-L20X-Al
PCD
ED00576 CP-TAC-L20X-Al
PDF 2661753
4P PLUG PIN WITH BASE
PDF2 2661752 3P PLUG PIN WITH BASE
PDF2A 2661754 5P PLUG PIN WITH BASE
PFJl 2902264
PLUG PIN SUB MINI 5P
PFJ2 2902263 PLUG PIN SUB MINI 4P
PFVB 2902271
PLUG PIN SUB MINI11 P
PFVE
2902251 11 P PLUG PIN
PFl B 2902263 PLUG PIN SUB MINI 4P
PF2B 2902264
PLUG PIN SUB MINI 5P
PG 2661751 2P PLUG PIN WITH BASE
PI1 2663821
2P SUB MINI PLUG PIN
PL
2661754 5P PLUG PIN WITH BASE
PM
2665272 4P PLUG PIN WITH BASE
PMUT 2902261
PLUGPIN SUB MINI 2P
55
