Hitachi 35UX85B/CZ68 Service Manual page 46

1 A6LXU

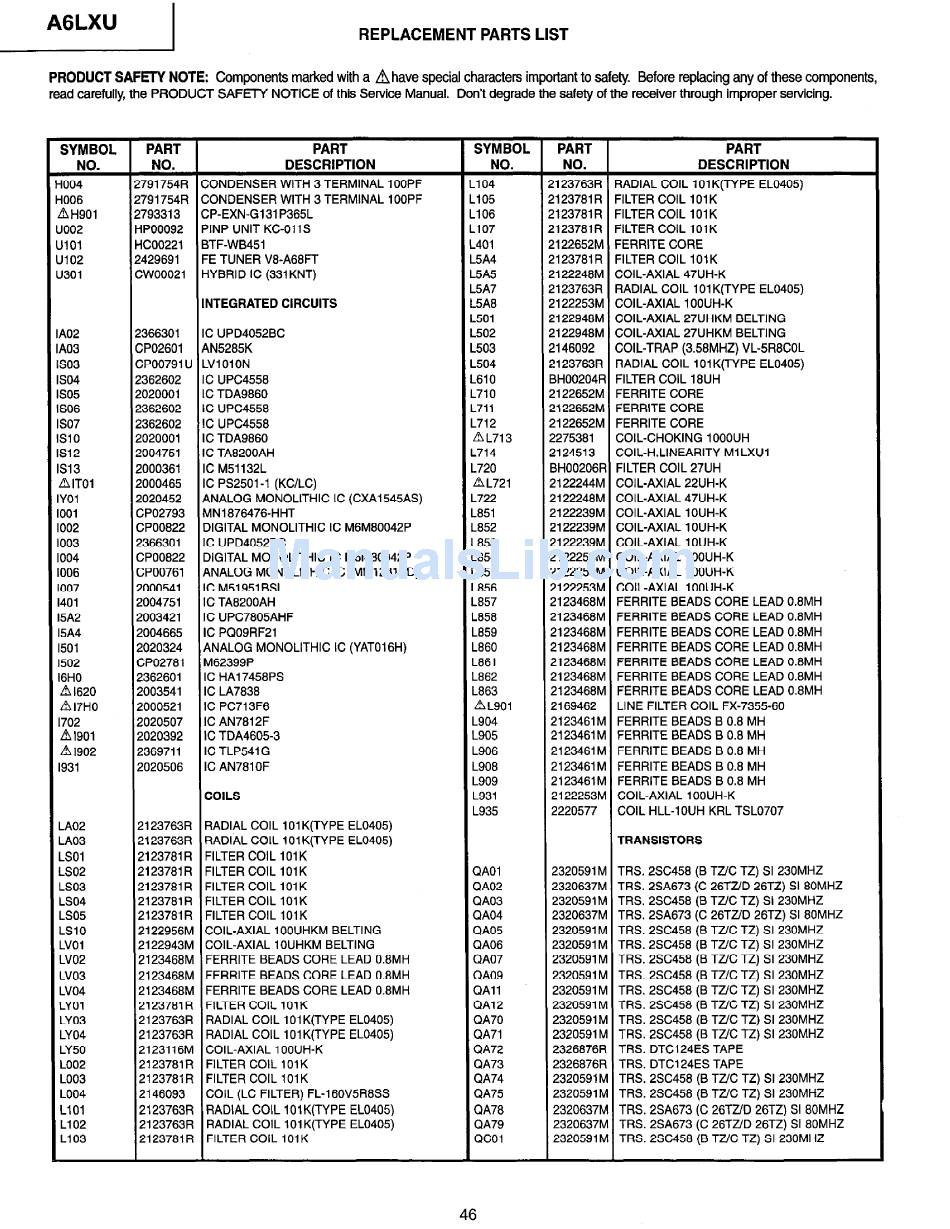

REPLACEMENT PARTS LIST
PRODUCT SAFETY NOTE: Components marked with a Ahave special characters important to safety Before replacing any of these components,
read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART PART
SYMBOL PART
PART
NO. NO. DESCRIPTION NO.
NO.
DESCRIPTION
-loo4
2791754R CONDENSER WITH 3 TERMINAL 1 OOPF Li 04 2123763R RADIAL COIL 101 K[TYPE EL0405)
iOO6
2791754R CONDENSER WITH 3 TERMINAL 1 OOPF L105 2123781R FILTER COIL 101K
AH901 2793313 CP-EXN-G131 P365L L106 2123781 R FILTER COIL 101 K
JO02
HP00092 PINP UNIT KC-01 1 S L107 2123781 R FILTER COIL 101 K
JlOl
HC00221 BTF-WB451 L401 2122652M FERRITE CORE
J102 2429691 FE TUNER V8-A68FT L5A4 2123781R FILTER COIL 101K
1301 CWOO021 HYBRID IC (331KNT) L5A5 2122248M COIL-AXIAL 47UH-K
L5A7 2123763R RADIAL COIL lOlK(TYPE EL0405)
INTEGRATED CIRCUITS L5A8 2122253M COIL-AXIAL 1 OOUH-K
L501 2122948M COIL-AXIAL 27UHKM BELTING
A02
2366301 IC UPD4052BC L502 2122948M COIL-AXIAL 27UHKM BELTING
A03 CPO2601 AN5285K L503 2146092 COIL-TRAP (3.58MHZ) VL-5R8COL
so3 CPO0791 U LVlOlON L504 2123763R RADIAL COIL 101 K(TYPE EL0405)
so4 2362602 IC UPC4558
L610 BH00204R FILTER COIL 18UH
so5 2020001 IC TDA9860 L710 2122652M FERRITE CORE
SO6 2362602 IC UPC4558
L711 2122652M FERRITE CORE
so7 2362602 IC UPC4558 L712 2122652M FERRITE CORE
SlO
2020001 IC TDA9860 A~713 2275381 COIL-CHOKING 1 OOOUH
s12 2004751 IC TA8200AH
L714 2124513 COIL-H.LINEARITY MlLXUl
s13
2000361 IC M51132L L720 BH00206R FILTER COIL 27UH
A
ITOI 2000465 IC PS2501-1 (KC/LC)
AL721 2122244M COIL-AXIAL 22UH-K
YOl
2020452 ANALOG MONOLITHIC IC (CXA1545AS) L722 2122248M COIL-AXIAL 47UH-K
001 CP02793 MN1 876476-HHT L851
2122239M COIL-AXIAL 1 OUH-K
002 CPO0822 DIGITAL MONOLITHIC IC M6M80042P L852
2122239M COIL-AXIAL 1 OUH-K
003
2366301 IC UPD4052BC L853 2122239M COIL-AXIAL 1 OUH-K
004 CPO0822 DIGITAL MONOLITHIC IC M6M80042P L854 2122253M COIL-AXIAL 1 OOUH-K
006 CPO0761 ANALOG MONOLITHIC IC (MMl231XD)
L855 2122253M COIL-AXIAL 1 OOUH-K
007
2000541 IC M51951 BSL L856 2122253M COIL-AXIAL 1 OOUH-K
I401 2004751 IC TA8200AH
L857 2123468M FERRITE BEADS CORE LEAD 0.8MH
l5A2 2003421 IC UPC7805AHF
L858 2123468M FERRITE BEADS CORE LEAD 0.8MH
l5A4 2004665 IC PQ09RF21 L859 2123468M FERRITE BEADS CORE LEAD 0.8MH
I501 2020324 ANALOG MONOLITHIC IC (YATO16H) L860
2123468M FERRITE BEADS CORE LEAD 0.8MH
I502 CP02781 M62399P
L861 2123468M FERRITE BEADS CORE LEAD 0.8MH
16HO
2362601 IC HA1 7458PS
L862 2123468M FERRITE BEADS CORE LEAD 0.8MH
A
I620 2003541 IC LA7838
L863 2123468M FERRITE BEADS CORE LEAD 0.8MH
dhl7HO 2000521 IC PC713F6 ALgo1 2169462 LINE FILTER COIL FX-7355-60
1702 2020507 IC AN7812F L904
2123461M FERRITE BEADS B 0.8 MH
A 1901
2020392 IC TDA4605-3 L905 2123461M FERRITE BEADS B 0.8 MH
A 1902
2369711 IC TLP541 G L906 2123461 M FERRITE BEADS B 0.8 MH
1931 2020506
IC AN7810F L908 2123461M FERRITE BEADS B 0.8 MH
L909 2123461M FERRITE BEADS B 0.8 MH
COILS L931 2122253M COIL-AXIAL 1 OOUH-K
L935
2220577 COIL HLL-1 OUH KRL TSL0707
LAO2
2123763R RADIAL COIL 101 K(TYPE EL0405)
LAO3
2123763R RADIAL COIL 101 K(TYPE EL0405) TRANSISTORS
LSOl 2123781R FILTER COIL 101K
LSO2 2123781R FILTER COIL 101K
QAOl 2320591 M TRS. 2SC458 (B TZ./C TZ) SI 230MHZ
LSO3 2123781 R FILTER COIL 101 K QA02 2320637M TRS. 2SA673 (C 26TUD 26TZ) SI 80MHZ
LSO4 2123781R FILTER COIL 101K QA03
2320591M TRS. 2SC458 (B TZ/C TZ) SI 230MHZ
LSO5 2123781R FILTER COIL 101K QA04 2320637M TRS. 2SA673 (C 26Tz/D 26TZ) SI 80MHZ
LSlO 2122956M COIL-AXIAL 1 OOUHKM BELTING CIA05 2320591M TRS. 2SC458 (B TZ/C TZ) Sl 230MHZ
LVOl 2122943M COIL-AXIAL 10UHKM BELTING QA06 2320591 M TRS. 2SC458 (B TZ/C TZ) SI 230MHZ
LVO2 2123468M FERRITE BEADS CORE LEAD 0.8MH
QA07 2320591 M TRS. 2SC458 (B TUC TZ) SI 230MHZ
LVO3
2123468M FERRITE BEADS CORE LEAD 0.8MH QA09 2320591M TRS. 2SC458 (B TZ/C TZ) SI 230MHZ
LVO4 2123468M FERRITE BEADS CORE LEAD 0.8MH QAll 2320591M TRS. 2SC458 (B TZ/C TZ) SI 230MHZ
LYOl 2123781 R FILTER COIL 101 K
QA12 2320591 M TRS. 2SC458 (B TZ/C TZ) SI 230MHZ
LYO3
2123763R RADIAL COIL lOlK(TYPE EL0405) QA70 2320591M TRS. 2SC458 (B TZ/C TZ) SI 230MHZ
LYO4 2123763R RADIAL COIL 101 K(TYPE ELO405) QA71 2320591 M TRS. 2SC458 (B TUC TZ) Sl230MHZ
LY50 2123116M COIL-AXIAL lOOUH-K QA72
2326876R TRS. DTC124ES TAPE
LOO2
2123781R FILTER COIL 101K QA73 2326876R TRS. DTC124ES TAPE
LOO3 2123781 R FILTER COIL 101 K QA74 232059lM TRS. 2SC458 (B TZ/C TZ) SI 230MHZ
LOO4 2146093
COIL (LC FILTER) FL-160V5R8SS QA75 2320591M TRS. 2SC458 (B TZlC TZ) SI 230MHZ
L101 2123763R RADIAL COIL 101 K(TY PE EL0405) QA78 2320637M TRS. 2SA673 (C 26TZ/D 26TZ) SI 80MHZ
L102 2123763R RADIAL COIL 101 K(TYPE EL0405) QA79
2320637M TRS. 2SA673 (C 26TZID 26TZ) SI 80MHZ
L103 2123781 R FILTER COIL 101 K QCOI 2320591M TRS. 2SC458 (B TZIC TZ) SI 230MHZ
