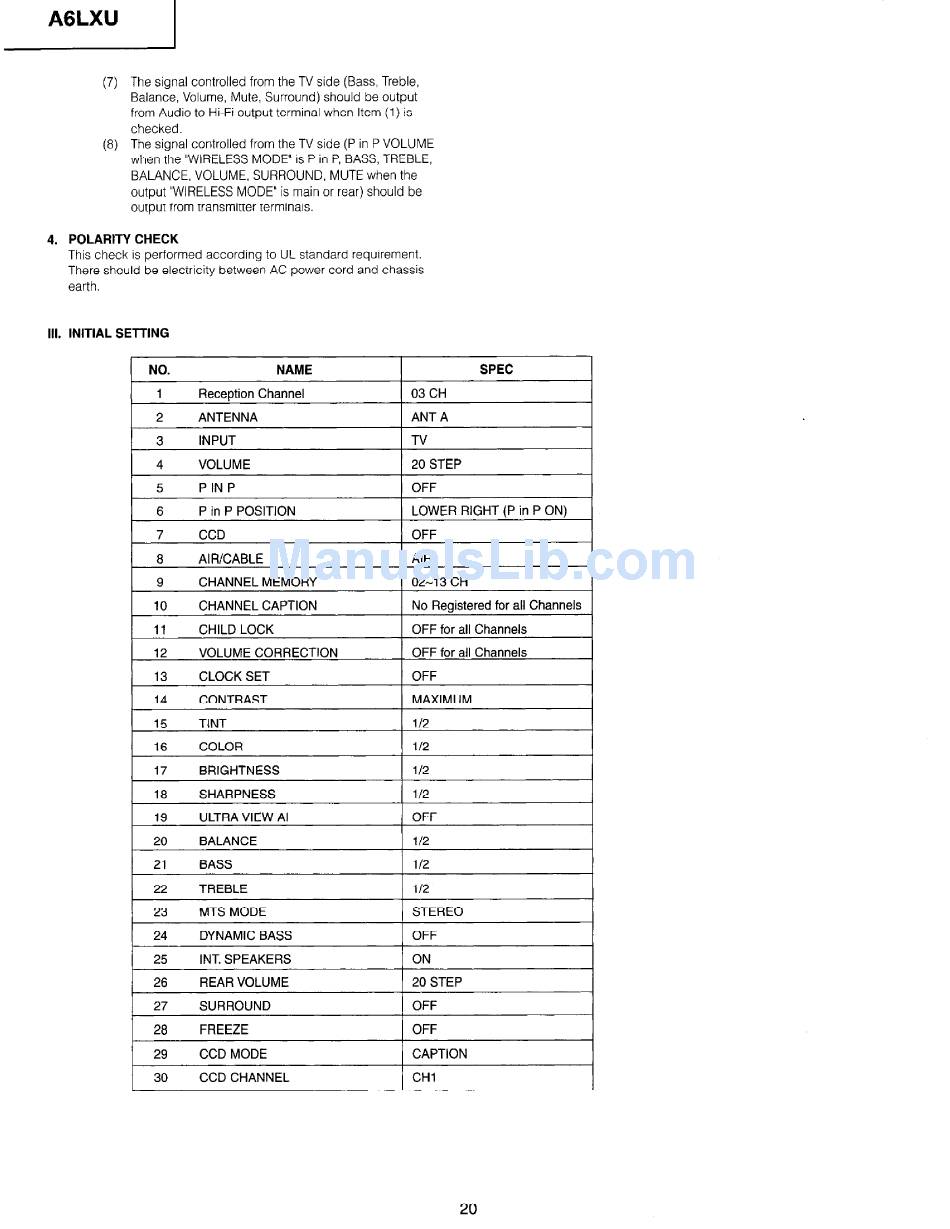

Hitachi 35UX85B/CZ68 Service Manual page 20

A6LXU
(7) The signal controlled from the TV side (Bass, Treble,
Balance, Volume, Mute, Surround) should be
output
from Audio to Hi-Fi
output
terminal when Item (1) is
checked.
(8) The signal controlled from the TV side (P in P VOLUME
when the "WIRELESS MODE" is P in P, BASS, TREBLE,
BALANCE, VOLUME, SURROUND, MUTE when the
output "WIRELESS MODE" is main or rear) should be
output from transmitter terminals.
4. POLARITY CHECK
This check is performed according to UL standard requirement.
There should be electricity between AC power cord and chassis
earth.
III. INITIAL SETTING
1
NO. NAME SPEC
1 Reception Channel 03 CH
2 ANTENNA ANT A
3 INPUT TV
4 VOLUME 20 STEP
5 P IN P ) OFF
I
6 P in P POSITION
LOWER RIGHT (P in P ON)
7 cm OFF
8 Al R/CABLE AIR
9 CHANNEL MEMORY 02-l 3 CH
10 CHANNEL CAPTION No Reqistered for all Channels
I If CHILD LOCK
I
OFF for all Channels
I
12 VOLUME CORRECTION
13 CLOCK SET
OFF for all Channels
OFF
I 14 CONTRAST ) MAXIMUM
I
15 TINT i/2
16 COLOR l/2
17 BRIGHTNESS l/2
I
18 SHARPNESS l/2
19 ULTRA VIEW Al OFF
20 BALANCE l/2
1
I --
21 BASS l/2
I
22 TREBLE l/2
I
1 23 MTS MODE 1 STEREO
I
1 24 DYNAMIC BASS 1 OFF
I
(TINT.PEAKERS ~ 1 ON
I
1 26
REAR VOLUME 1 20 STEP
I
1 27
SURROUND 1 OFF
I
28
FREEZE
29
CCD MODE
OFF
CAPTION
30 CCD CHANNEL
CHl
I
20
