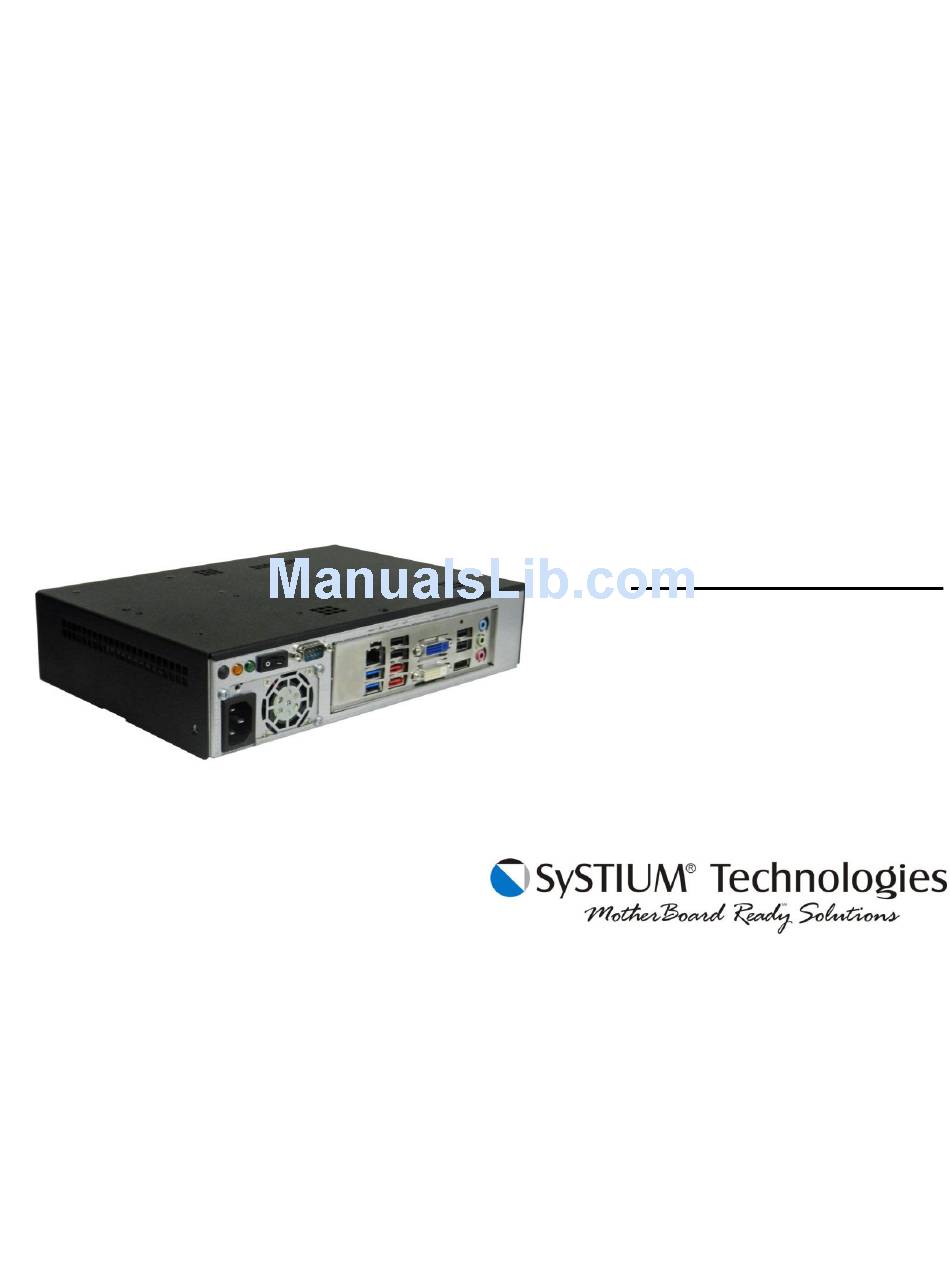

  • Page 1 SySTIUM TECHNOLOGIES ® Assembly Guide Model 133i...
  • Page 2: Declaration Of The Manufacturer Or Importer

    Systium Technologies that may appear in this document. Systium Technologies makes no commitment to update nor to keep current the information contained in this document. No part of this document may be copied or reproduced in any form or by any means without prior written consent of Systium Technologies.
  • Page 3: Assembly Guide

    Unpack the System The procedures in this document assume familiarity with the Systium Technologies ships the Model 133i in a reusable “End- general terminology associated with personal computers and with User ready” single package. the safety practices and regulatory compliance required for using and modifying electronic equipment.
  • Page 4: Opening The System

     Four (4) 6/32 x 1/4” – motherboard mounting  The SySTIUM Model 133i enclosure was designed to Eight (8) M3 x 5 – HDD mounting screws accommodate MINI-ITX motherboards utilizing the I/O shield that is supplied with them. The installation detailed below is for the Intel DQ67EP MINI-ITX board.
  • Page 5: Installing Hdd(S)

    ® SySTIUM TECHNOLOGIES MODEL 133i Installing HDD(s) Intel DQ67EP Diagram Install insulating HDD bumpers as shown in Figure 8. Position the HDD bumpers over the HDD screw holes. The HDD bumpers have a centering hole punched through them. There is adhesive on the back. Align the bumpers over the holes and press down to install.
  • Page 6: Power Up The System

    ® SySTIUM TECHNOLOGIES MODEL 133i Attaching Top and Bottom Plates Power up the System Attach the North American AC Power cord as shown in Figure 12. FIGURE 12 FIGURE 10 Position the linking tabs from the top plate through the Attach peripherals needed to operate the computer bottom plate.
  • Page 7: Appendix 1: Wall Mounting Instructions For 133 Or 133I

    Marker Optional: Wall Anchors NOTE: The Model 133 / 133i weighs a little less than 6 lbs. The Wall should be able to support 30lbs. NOTE: Orientation- The Model 133 / 133i’s intended mounting is vertical with I/O shield and cables on the top. Any orientation other than the I/O Shield and cables on the top will Null &...
