Systium Technologies 515 Assembly Manual

Tower platforms

Advertisement

Quick Links

SySTIUM
TECHNOLOGIES
®
Assembly Guide
Model 515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 515 and is the answer not in the manual?

Questions and answers

Summary of Contents for Systium Technologies 515

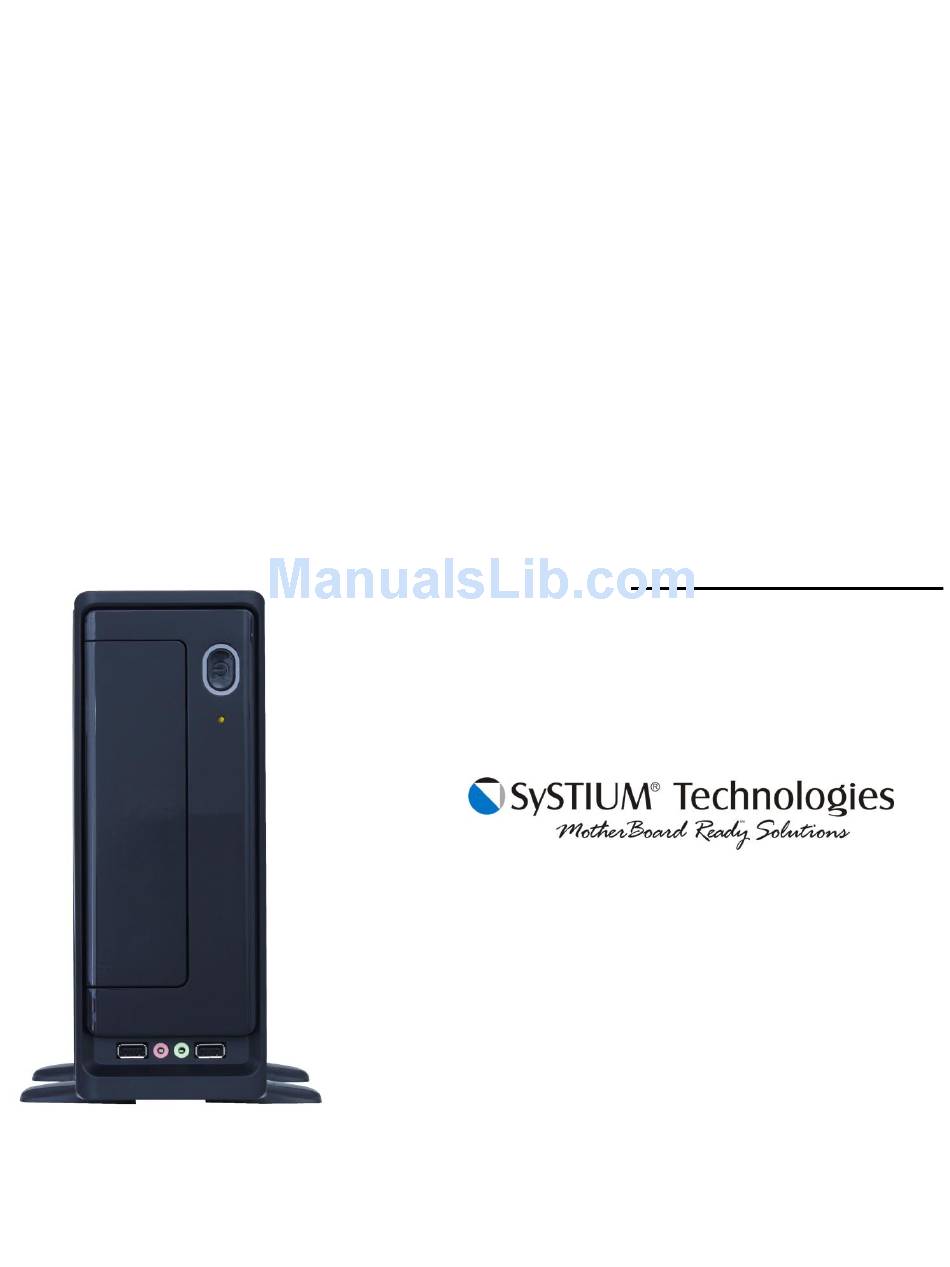

  • Page 1 SySTIUM TECHNOLOGIES ® Assembly Guide Model 515...
  • Page 2: Declaration Of The Manufacturer Or Importer

    System • MODEL 515 ® SySTIUM TECHNOLOGIES MotherBoard Ready Radio Frequency Interference Notice (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3: Assembly Guide

    ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS POWERED ON! The Model 515 supports a number of different motherboards. A number of the assembly step details are different for each Do not open the power supply. The power supply in this specific motherboard.
  • Page 4: Removing The Front Bezel

    EMI shield can result in EMI leakage that will result in the computer system not meeting the product's EMC compliance. A 5.25" EMI shield is not supplied with the Model 515 and must be ordered separately from Systium 1. Remove the two screws holding the Flexible Drive Cage to the chassis.
  • Page 5: Installing The Motherboard

    System • MODEL 515 ® SySTIUM TECHNOLOGIES MotherBoard Ready 1. Remove the two screws holding the 2.5” Drive Cage to the Failure to properly install the I/O shield can result in EMI leakage bottom of the chassis. Refer to yellow arrows in Figure 6 that will result in the computer system not meeting the product's EMC compliance.
  • Page 6 TECHNOLOGIES MotherBoard Ready The 515 has the capacity to hold two 2.5” HDDs in the lower 2.5” The Model 515 system supports a MINI-ITX Motherboard with one drive cage. If you do not plan to use any 2.5” drives please skip this I/O bus slot.
  • Page 7 EMI leakage that will result in the computer system not meeting the product's EMC compliance. An EMI shield is not supplied with the Model 515 and must be ordered separately from Systium. See page 9 for details.
  • Page 8 Figure 23. Reinstalling the Flexible Drive Cage into the While holding the assembled Flexible Drive Cage directly over its space on the 515, align the front tabs in Hold down Screws front of the enclosure and gently lower into the enclosure taking care not to crush any wires or components.
  • Page 9: Power Up The System

    System • MODEL 515 ® SySTIUM TECHNOLOGIES MotherBoard Ready Before installing the right side cover please check that all cables are connected and no tools, screws or accessories are left inside the 5. Disconnect the computer from the peripherals used during the chassis.
  • Page 10 Refer to the main assembly guide for instructions on installing the I/O shield. Connect Peripheral Cables Refer to the Model 515 Assembly Guide for the suggested peripheral cable routing. Copyright © 2010, Systium® Technologies, LLC PN: 91586-00...
  • Page 11 4. Connect the front panel connectors to the motherboard. Refer to assembly instructions for the specific motherboard being installed for a figure of the correct Refer to the Model 515 Assembly Guide for the suggested installation of the front panel connectors. peripheral cable routing.
  • Page 12: Power Supply

    Model 515 regulatory compliance. One of the motherboards listed in the table below must be used with the Model 515. Use of any other motherboard will invalidate the Model 515 regulatory compliance. The integrator must use the heat sink listed as required to ensure regulatory compliance. The table below was constructed using a CPU no greater than 95W TDP.
  • Page 13: Regulatory Information

    NOTE: It the assemblers/integrators responsibility to determine and validate the amperage and power ratings of any Optional Components (Add-in PCI / PCIe / USB loads and verify that they fall within the Add-In Total Load line item provided. The final system configuration’s power budget must fall within the Safety Maximum to maintain compliance. 200 Watt Power Supply Power Budget: Peripheral Location Maximum Power Rating...
  • Page 14 Interference-Causing Equipment Standard, Digital Apparatus. (Canada) Copyright © 2013, SySTIUM® Technologies, LLC PN: 91556-01 Rev 02...
