- Page 1 User’s Manual MFSHL915 Handheld Transmitter...
- Page 2 1. DESCRIPTION The MFSHL-915 Handheld Transmitter has a coder board with 24 digital channel inputs. Four of the inputs can be used for a gray code trigger. It includes a Low Voltage Indicator (LVI) warning, 1% duty cycle, and 2 seconds turn off time. It also includes switch detection on power up to ensure that no switch is active when the battery is inserted.

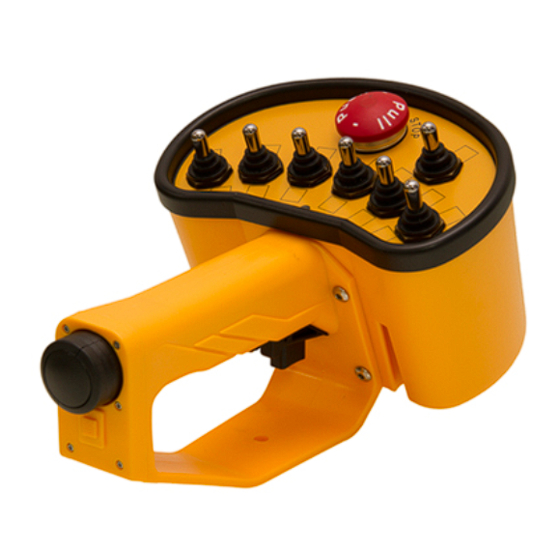

- Page 3 3. TRANSMITTER PARTS E-Stop Toggle Switches (6) switch LED indicator Battery Holder (2AA) Gray-code trigger...
- Page 4 4. FUNCTIONAL DESCRIPTION 4.1. General Description • This transmitter is designed to transmit with RF-transmission duty cycle of 1%. • The transmitter will turn off automatically 2 seconds after all switches are released. • DK31/32 (ESTOP) is an emergency stop button that has priority above all other inputs. •...
