Summary of Contents for PowerDrive PD100D

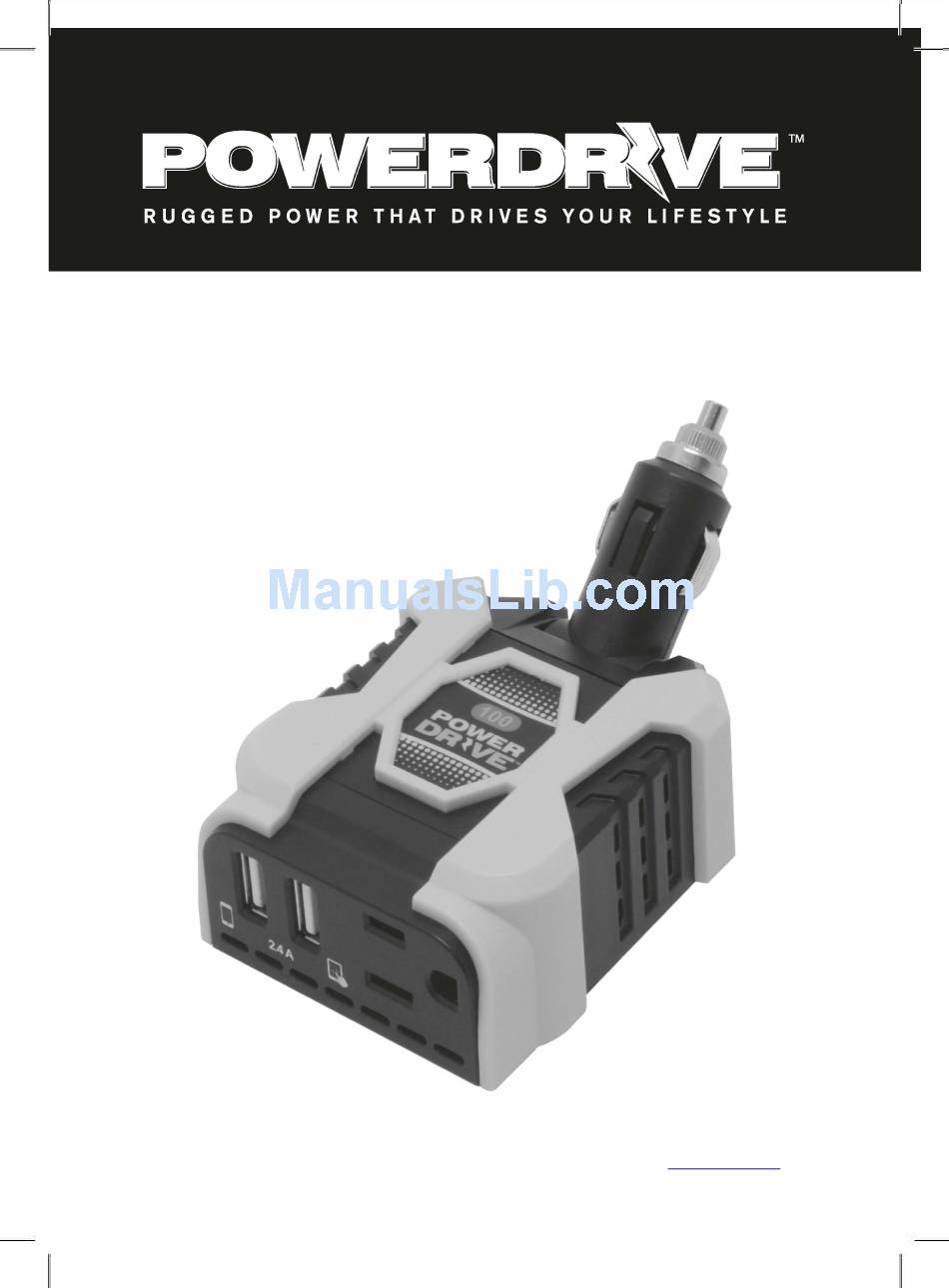

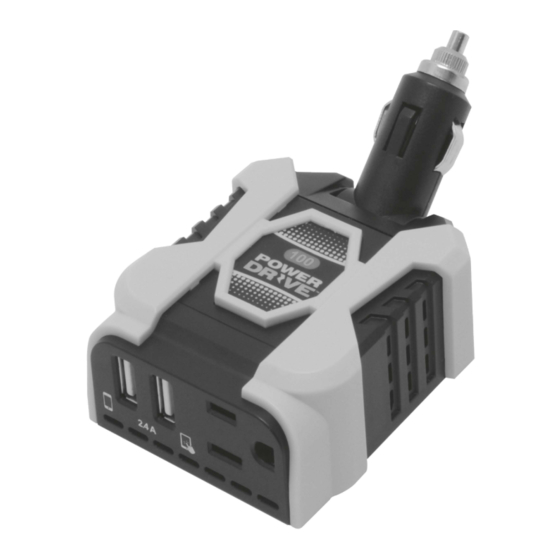

- Page 1 Owner's Guide Please Save for Future Reference PD100D 100watt Direct Plug lnverter...
- Page 5 Watt Appliance Watt Appliance Cellular Phone Laptop Tablet Video Game Console Glue Gun Lamps (Up to 70W) 7” DVD Player...
- Page 8 Specifications PD100D AC Power Output AC Power Voltage 115V Maximum AC Output Power 100W Maximum AC Output 200W Surge Power AC Output Frequency 58Hz - 62Hz AC Output Waveform Modified Sine Wave USB Power Output 5V DC, 2 Ports Shared DC Output Voltage 2.4 Amps Output...
- Page 9 Problem Cause Solution Battery is defective. Replace battery. Check and Blown fuse. replace fuse. No power. Check No indicator. connections, Loose be sure the ports connections. and plugs come into contact with each other. The actual output Reduce load to power is higher have the actual than rated power of...
- Page 10 Problem Cause Solution Disconnect the inverter from Inverter is over- battery or DC The red LED heated due to poor socket and allow to indicator lights. ventilation and has be cooled for shut down. 15 minutes. Remove objects covering unit. Inverter runs Low voltage small loads but not...
- Page 11 Problem Cause Solution Standard “average reading” AC Inverter’s “modified voltmeter used to sine wave” output measure output requires “true voltage, resulting RMS” voltmeter Measured inverter in an apparent for accurate output is too low. reading 5V to 15V measurements. too low. Battery voltage is Recharge battery.
