PowerDrive 2000 Owner's Manual

2000 watt dc to ac power inverter
Hide thumbs

Advertisement

Table of Contents

powerdriveinverters.com
Owner's Guide
Please Save for Future Reference
2000 Watt
2000
DC to AC
Power Inverter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2000 and is the answer not in the manual?

Questions and answers

James H Fox
June 19, 2025

Won't stay running green light just for a couple seconds then code flashes and red light flashes

0

Related Manuals for PowerDrive 2000

Summary of Contents for PowerDrive 2000

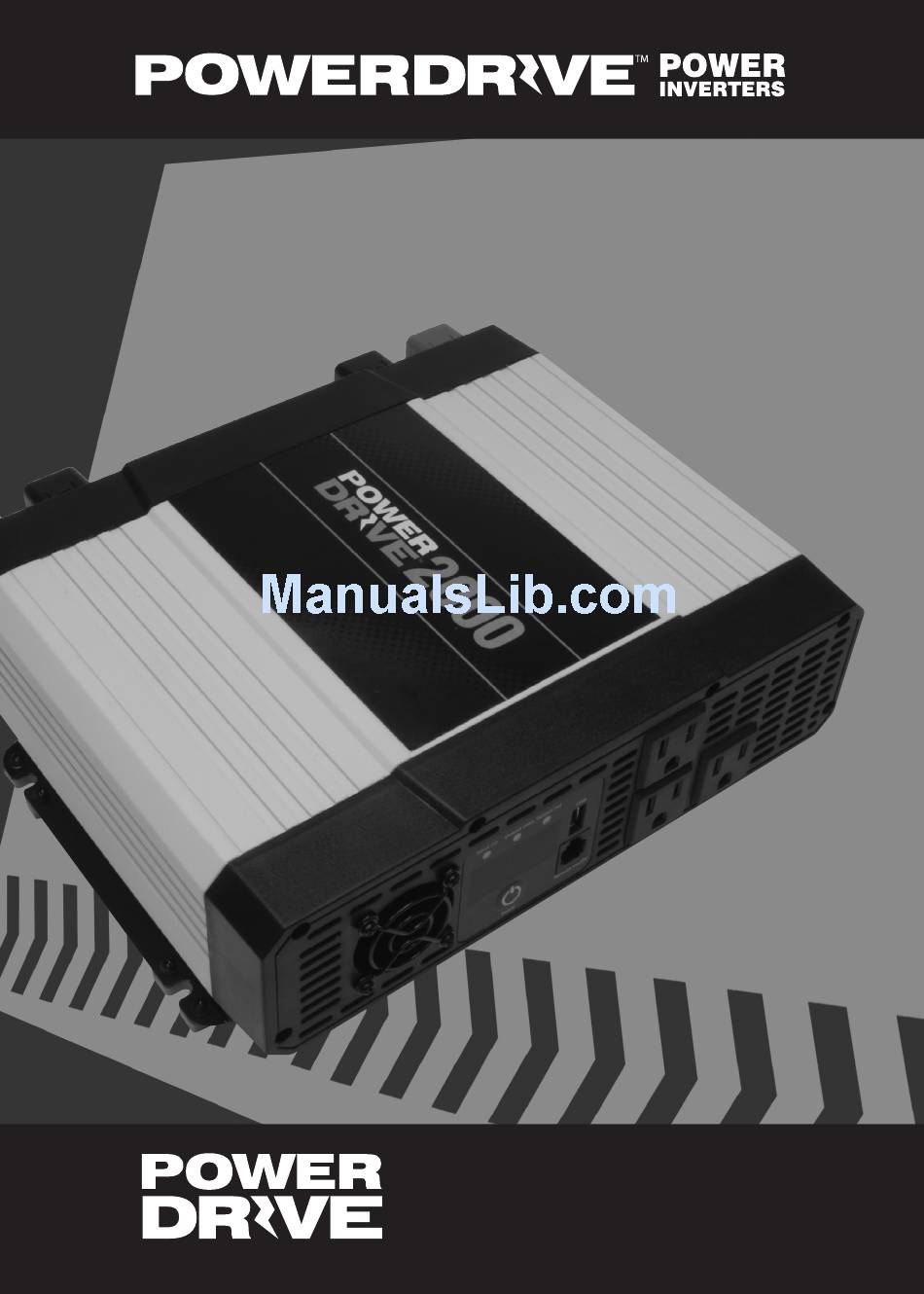

  • Page 1 Owner’s Guide Please Save for Future Reference 2000 Watt 2000 DC to AC Power Inverter...
  • Page 2 Thank you for purchasing the POWERDRIVE2000 power inverter, a high performance solution to using household power while on the road. Please read and understand all of the information provided in this manual before operating or installing. If properly used, the inverter will give you years of reliable service providing AC power for TVs, computers, appliances, stereos and power tools.
  • Page 3 CAUTION DO NOT connect the RPPD2000 to live AC power circuits. Damage to the inverter will result even if the power switch is in the OFF position. DO NOT connect any AC device which has its neutral conductor connected to ground. DO NOT expose the RPPD2000 to air temperatures in excess of 104°F.

  • Page 4: Installation

    INSTALLATION: Selecting a suitable location The RPPD2000 must be installed in an area that meets the following requirements in order to operate safely and provide optimum performance: 1. DRY: DO NOT expose the unit to moisture. 2. COOL: Ambient air temperature should be between 32°F and 104°F. Cooler areas are best.

  • Page 5: Connect The Power Cables To The Inverter

    Connect the Power Cables to the Inverter: Connect cable to the Power Input Terminals on input end of the inverter. The red terminal is positive (+) and the black terminal is negative (-). Unscrew the terminal on the inverter and install the appropriate color (black to black and red to red) ring-terminal of the cables and tighten the screws to clamp the wires securely.

  • Page 6: Operating Indicators

    CAUTION: Never disconnect the DC cables from the inverter without first disconnecting the cables from the battery or potentially lethal electricity will be left exposed. NOTE: The Power Button turns the control circuit in the inverter on and off. It does not disconnect power from the inverter.

  • Page 7: Low Voltage Protection

    ; The USB outlet will supply 5 volts at 500ma to charge and power cell phones, iPods and other small electronics. ® Operating Limits Power Output The inverter can deliver 2000 watts for about 60 minutes. The inverter must cool for 15 minutes before it can resume operation at 2000 watts.
  • Page 8 NOTE: The wattage rating applies to resistive loads. The inverter will operate most AC loads within its power rating. Some induction motors used in freezers, pumps, and other motor-operated equipment require very high surge currents to start. The inverter may not be able to start some of these motors even though their rated current draw is within the inverter’s limits.

  • Page 9: Specifications

    DC Input Voltage ........10~15-Volts DC Continuous AC Power Output ......2000 Watts USB Output .
  • Page 11 This Limited One Year Warranty from POWERDRIVE, a DAS brand, applies to all electronic products and devices manufactured by DAS Distributors and sold under the brand name POWERDRIVE. Terms of the Warranty POWERDRIVE warrants that the product you have purchased from a DAS authorized retailer is free from defects in materials and workmanship under normal use during the warranty period.
  • Page 12 1875 Zeager Road, Elizabethtown, PA 17022 © POWERDRIVE...

This manual is also suitable for:

Rppd2000
