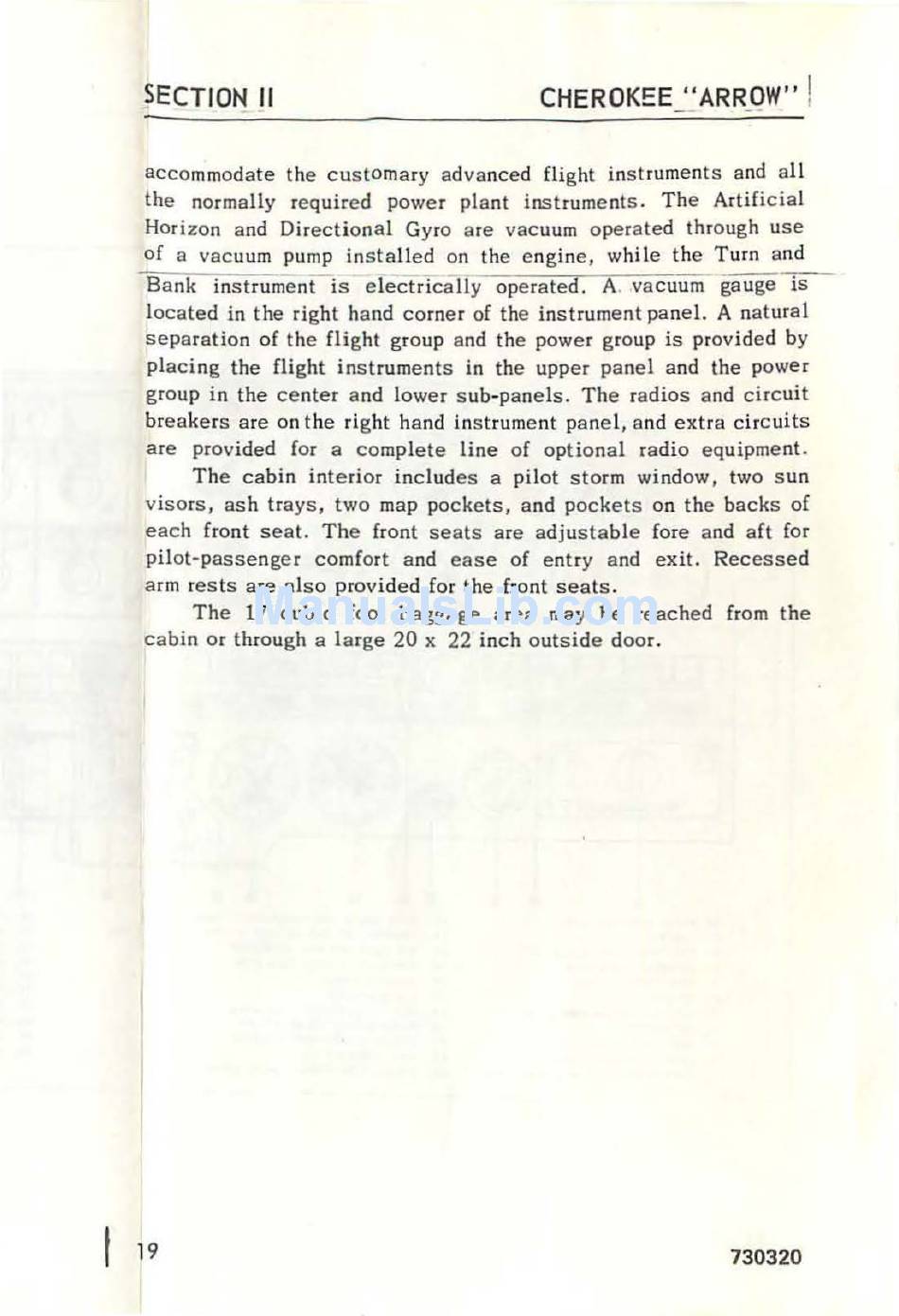

SECTION II
CHEROKEE __ " ARR_ OW"
!
accommodate the customary advanced flight instruments a nd all
the normally required power plant instruments. The Artificial
Horizon and Direct ional Gyro are vacuum operated through use
of a vacuum pump installed on the e ngine, while the Turn and
Bank instrument is electrically operated. A vacuum gauge -rs-
located in the right hand corner of the instrument panel. A natural
separation of the flight group and the power group is provided by
placing the flight instruments in the upper panel and the power
group in the center and lower sub-panels. The radios and circuit
breakers are on the right hand instrument panel, a nd extra circ uits
are provided for a complete line of optional radio equipment.
The cabin interior includes a pilot storm window, two sun
visors, ash trays, two map pockets, and pockets on the backs of
each front seat. The front seats are adjustable fore and aft for
pilot-passenger comfort and ease of entry a nd exit. Recessed
arm rests are also provided for the front seats.
The 17 cubic foot baggage area may be reached from the
cabin or through a l a rge 20 x 22 inch outside door.
19
