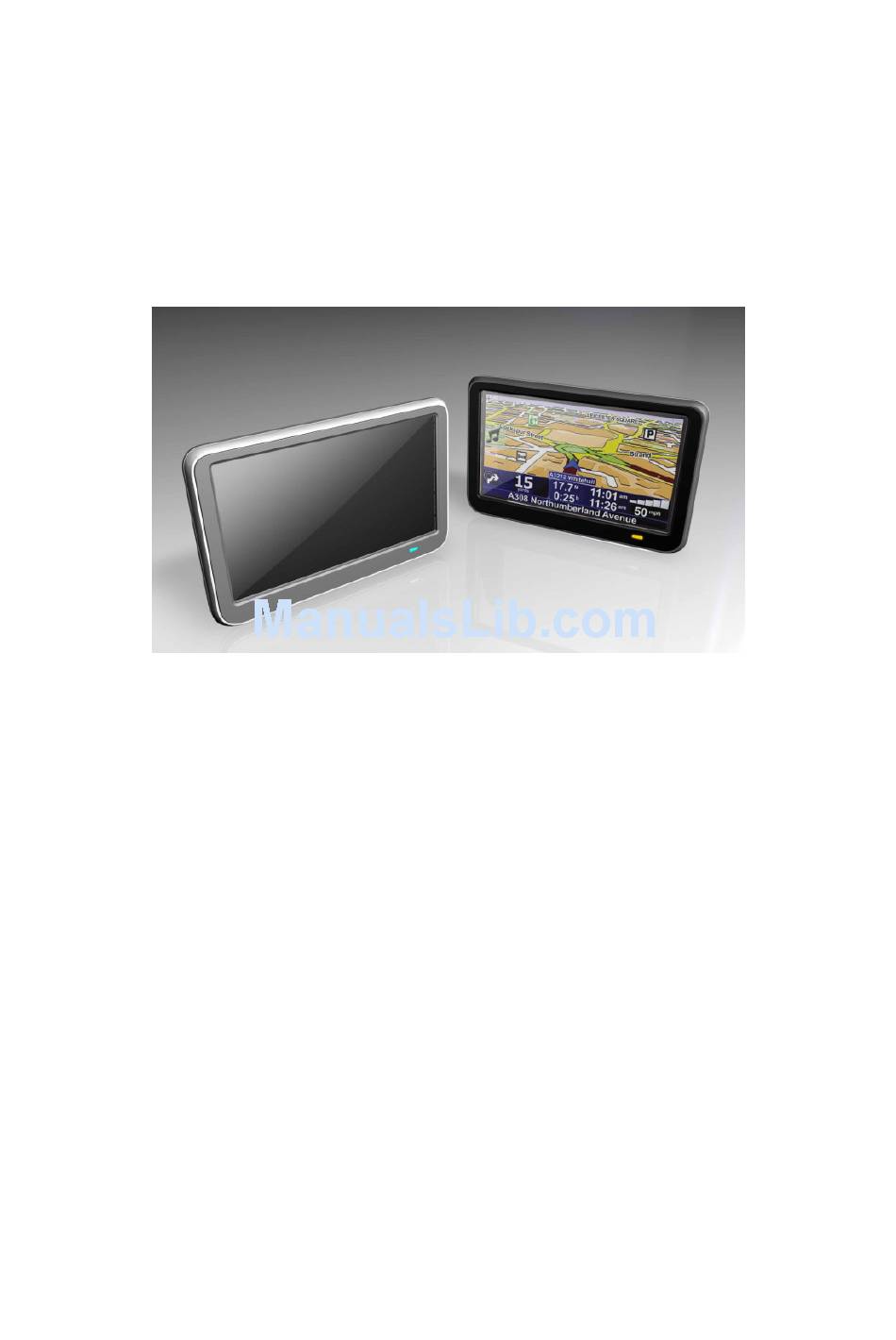

NAVMAN WIRELESS M-Nav760
Personal Navigation Device
Reference Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-Nav760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Navman M-Nav760

Summary of Contents for Navman M-Nav760

  • Page 1 NAVMAN WIRELESS M-Nav760 Personal Navigation Device Reference Manual...

  • Page 2: Legal Notices

    NAVMAN WIRELESS and its subsidiaries assume no responsibility for any damage or loss resulting from the use of this NAVMAN WIRELESS M-Nav760 Portable Navigator.
  • Page 3 Warnings and Notices For your safety, do not operate the controls of the product while driving. GPS satellite signals cannot typically pass through solid materials (except glass). GPS location information is not typically available inside buildings, tunnels, or underground parking lots. A minimum of 4 GPS satellite signals is needed to calculate your GPS position.
  • Page 4 FCC Warning The M-Nav760 PND has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Features and Specifications................7 NAVMAN WIRELESS M-Nav760 PND features ........7 M-Nav760 Specifications ................7 Chapter 2 Getting Started.....................9 Hardware overview..................9 2.1.1 Packing list....................9 2.1.2 Front Panel ..................11 2.1.3 Car holder...................12 Using the mounting bracket..............13 Additional Application with the Optional SKU ........16 Chapter 3 Using the M-Nav760...................18...
  • Page 6 5.1.9. Takes longer than normal time to get a GPS fix......37 5.1.10. Factory reset does mean a GPS reset..........37 5.2. Maintenance ....................38 5.2.1. Storage precautions................38 5.2.2. Accessories and repair precautions ..........38...

  • Page 7: Chapter 1 Features And Specifications

    Chapter 1 Features and Specifications NAVMAN WIRELESS M-Nav760 PND features The NAVMAN WIRELESS M-Nav760 Portable Navigation Device is a powerful multifunction GPS/multimedia navigation and entertainment device. • Compact size and lightweight • Integrated GPS receiver for GPS navigation • High-resolution color LCD •...
  • Page 8 Category Item Battery General 930 mAhr Li-ion ■930 mAhr Power ON (Default setting after factory reset) Under 6 hours charge from empty to full by AC adapter Under 6 hours charge from empty to full by car charger Recharge Time Power Suspend Under 4 hours charge from empty to full by AC adapter Under 4 hours charge from empty to full by car charger...

  • Page 9: Chapter 2 Getting Started

    Chapter 2 Getting Started This chapter describes the hardware interface of the NAVMAN WIRELESS M-Nav760 and its peripherals. Instructions for setting up the device and some basic system operations are also discussed. NOTE: Although the M-Nav760 rechargeable Li-Polymer battery comes approxim ately 30% charged, before using, it is best to connect the AC adapter (Optional Accessory) or USB cable by PC connect and plug to power socket and fully charge the battery.
  • Page 10 USB cable (Option Accessory) Earphone (Option Accessory) AC adaptor (Option Accessory) Dashboard (Option Accessory) TMC Antenna (Optional Accessory). Portable Navigation Device Application Software DVD/CD. (Optional Accessory) Portable Navigation Device Quick Start Guide.

  • Page 11: Front Panel

    2.1.2 Front Panel Figure 1: Top and Left/Rights side views Table 2-1: Top and Left/Right side controls Function Power button Standby mode by pressing the button for sleep/wake. Indicated the battery charging status. Green—fully charged or high battery. Power status LED Orange—charging Battery Red—low Battery Switch...

  • Page 12: Car Holder

    wake-up mode. Hook For hanging decoration 2.1.3 Car holder Figure 2: Car holder side views Table 2-2: Car holder No Function For USB port： Only serves as the power connector of charging, but mass USB Port/Docking storage function. Also, it can connect to external TMC module (Option connector part).

  • Page 13: Using The Mounting Bracket

    Using the mounting bracket. The M-Nav760 comes with a car mount kit and a car charger to help install your device in your vehicle. The car mount kit uses a suction cup on the windshield to offer flexible mounting options for the M-Nav760.
  • Page 14 Plug the car charger to the 12 V outlet of your car and then connect the charger cable to the Mini USB port of the M-Nav760 car holder ；Please make sure the battery switch status in “ON” mode. (See Figure 2-3-4)
  • Page 15 Tap Navigation, you will see the map screen displayed. Please read the User’s Guide of Navigation software for the detail setting information. Please be noted, the first time turning on your M-Nav760 may take some time to obtain a valid GPS fix.

  • Page 16: Additional Application With The Optional Sku

    TMC Coverage information, Please connect the TMC accessory to the USB port of M-Nav760 for the TMC application and be placing the TMC accessory in a place which will not interfere to the driving safe. (See Figure 2-4-1) Please refer to the User’s Guide of Navigation software for the detail TMC operating information.
  • Page 17 Figure 2-4-3...

  • Page 18: Chapter 3 Using The M-Nav760

    Chapter 3 Using the M-Nav760 M-Nav760 Operating Basics After fully charging the M-Nav760 it is ready to be used. You can now turn it on and proceed to system settings configuration. To turn on the device: Sliding the battery switch to “ON”. (Default status OFF) Turn on your device by pressing the power button on the top right panel of the device.
  • Page 20 Tap “Language” on the System page. It will display current language in central area. To drag wheel scroll language tags. To set the system time zone, tap “Time Zone” in System Menu. Tap the icon to set up the function of daylight saving s time. represent enable the function of daylight savings time.

  • Page 22: Additional System Settings

    Additional System settings Other system settings can be used to view and adjust your device current preferences. Navigate from the System Menu. Reset GPS Reset:：When user wonder if GPS receiver perform properly or not .( ex : Change the region) Factory Reset：The factory reset function not only resets the operating system settings to default factory values, but also reset the GPS settings.
  • Page 24 Tap the “Factory Reset” icon in the Reset Menu. Tap the “YES” to do the Factory Reset. Tap the “Calibration” icon in the Reset Menu. Tap on the center of the target. Repeat as the target moves around the screen.

  • Page 25: System Information

    System Information 1. Tap the Sys Info. icon in the System Menu. 2. You can view the OS version, GPS firmware version and other system information.. Volume Tap the Volume icon in the System Menu. To adjust the volume by drag the wheel. Drag to left will become silent else will become noisy.
