Rheem RGPR 05EBMKR Manual

GAS FURNACES
RGPR- SERIES
ECM Equipped
Models with Input Rates from
50,000 to 125,000 BTU/HR
115 Volts, 60 Hz, Single Phase
[15 to 37 kW]
(U.S. & Canadian Models)
ENER UIDE
AFUE
Annual Fuel Utilization Efficiency -
THIS MODEL
80.0%
MID
HIGH
78% 82% 88% 97%
SUPER QUIET 80
TWO STAGE
UPFLOW/HORIZONTAL
GAS FURNACES

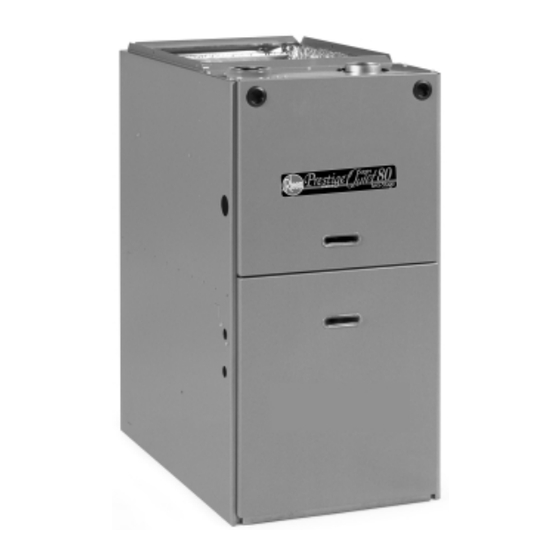

The Rheem Prestige Series
line of upflow/horizontal gas furnaces are designed for util-
ity rooms, closets, alcoves, or attics. Because of the Pres-
tige's low-profile 34 inch [864 mm] height, the upflow
model installed vertically can also be used to satisfy
most applications that traditionally call for a horizontal
furnace.
The design is certified by CSA International.
Features
Patented Heat Exchanger, constructed of both stainless
s
and aluminized steel for the maximum in corrosion resis-
tance.
Low profile "34 inch" [864 mm] design is lighter and eas-
s
ier to handle, and leaves room for optional equipment.
Energy efficient and quiet ECM 2+ motor.
s
Improves cooling efficiency when matched with rated
s
condensing unit and coil.
Constant CFM.
s
Dip switch settings for selectable cooling airflow.
s
On-demand dehumidification terminal for improved com-
s
fort in cooling mode.
Convertible from upflow to horizontal left or right.
s
Left or right side gas and electric inlet connections.
s
All models equipped with flame sensor feature, an inte-
s
grated board with humidifier and electronic air cleaner
hookups.
Insulated blower compartment, a slow-open gas valve, a
s
specially designed draft inducer motor and blower motor
make it one of the quietest furnaces on the market today.
Pre-paint galvanized steel cabinet.
s
Molded permanent filter.
s
Easy door removal and replacement.
s
Compatible with single or two-stage thermostat. (For opti-
s
mal performance, two-stage thermostat recommended.)
A variety of cooling coils and plenums designed to use with
Rheem Prestige Series ® Super Quiet 80 Two Stage gas fur-
naces are available as optional accessories.
✝A.F.U.E. (Annual Fuel Utilization Efficiency) calculated in accordance with Department
of Energy test procedures.
FORM NO. G11-489 REV. 1
Supersedes Form No. G11-489
® Super Quiet 80 Two Stage
