Celsius PHOENIX Instructions Manual

Hide thumbs

Table Of Contents

Quick Links

IMPORTANT: Please read all instructions carefully before using this

product. Retain this manual for future reference.

Table of Contents

Need help?

Do you have a question about the PHOENIX and is the answer not in the manual?

Questions and answers

Summary of Contents for Celsius PHOENIX

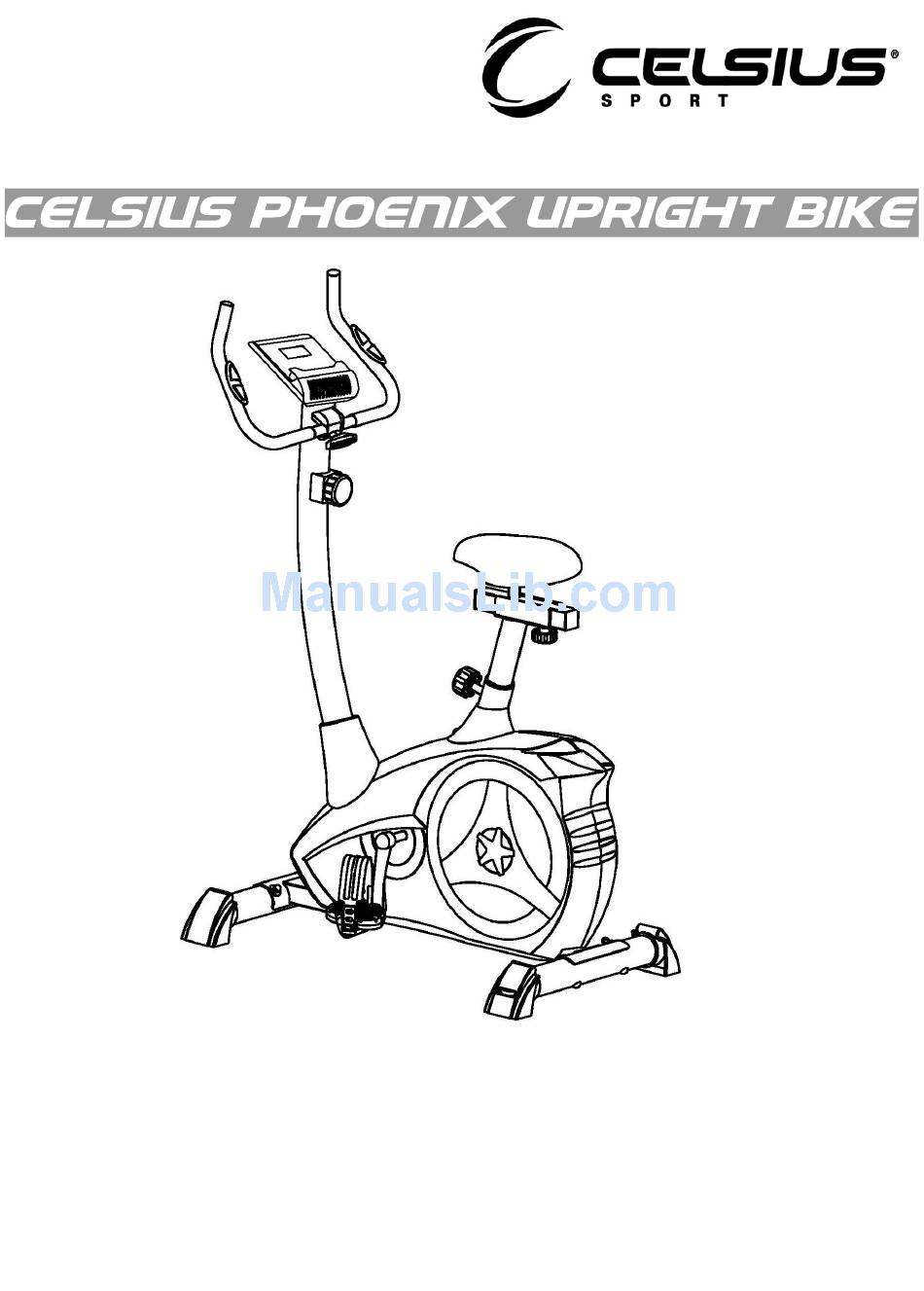

Page 1 IMPORTANT: Please read all instructions carefully before using this product. Retain this manual for future reference.
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY NOTICE page 2 EXPLOADED DIAGRAM page 3 PARTS LIST page 4 ASSEMBLY INSTRUCTION page 5-7 MAINTENANCE AND TREATMENT page 8 WARM-UP AND COOL DOWN page 9 CONSOLE INSTRUCTION MANUAL page 10-11 WARRANTY INFORMATION page 12 - 1 -...
Page 3: Important Safety Notice
IMPORTANT SAFETY NOTICE Note the following precautions before assembling and operating the machine. Check all the screws, nuts and other connections before using the machine for the first time and ensure that the trainer is in the safe condition. Set up the machine in a dry level place and leave it away from moisture and water. Place a suitable base (e.g.
Page 4: Exploaded Diagram
EXPLODED DIAGRAM - 3 -...
Page 5: Parts List
PARTS LIST Parts Parts Description Quantity Description Quantity Main frame 21 L/R Crank 1pr. Phillips screw M5x12 22 L/R Pedal 1pr. Extension sensor wire Crank shaft cap Pulse sensor wire Flange nut M8x25 Phillips screw M5x50 T-shaped knob M8x65 Arc washer D5 Leveler end cap Handlebar Rear stabilizer...
Page 6: Assembly Instruction
ASSEMBLY INSTRUCTION PREPARATION: Before assembling, make sure that you will have enough space around the item; Use the present tooling for assembling; Before assembling please check whether all needed parts are available. It is strongly recommended this machine to be assembled by two or more people to avoid possible injury.
Page 7 STEP 3 I: Slip the Mast cover (37) onto the Handlebar post (12); II: Connect the Sensor wire (16) to the upper Sensor wire (3), and install the Tension control cable (15) to the Tension controller (11), ensured the Cable has been connected correctly as shown. III: Fix the Handlebar post (12) on the Main frame (1), using the Allen bolts (14), and Arc Washers (13) as shown.
Page 8 STEP 4 Attach the Saddle (34) to the Horizontal seat post (33), secured the screw and nut under the Saddle. And then fit the Horizontal seat post to the Vertical seat post (29), secured with the Flat washer (32) and Knob nut (31) as shown.
Page 9: Maintenance And Treatment
MAINTENANCE AND TREATMENT Verify that all the bolts and nuts are locked properly and the turning parts should be turned freely without damaged parts. Clean the equipment with soap and slightly damp cloth only. Please do not use any solvent to clean the equipment.
Page 10: Warm-Up And Cool Down
WARM-UP and COOL-DOWN A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week. WARM-UP The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Page 11: Console Instruction Manual
CONSOLE INSTRUCTION MANUAL The things you should know before exercise A. User Data: You should input your personal data before workout. Press BODY FAT key to enter your personal data of sex, age, height and weight, after each item input, then press ENTER key to confirm, then the computer can save the data unless take out the batteries or reset the display.
Page 12 11. SCAN: As long as the start, the display will automatically scan Time, Distance, Calorie, Rpm, Pulse, Speed functions, each function will remain the main screen for 6 seconds. 12. RECOVERY: During the START stage, leave the hands holding on grips or leave the chest transmitter attached and then press “...
Page 13: Warranty Information
WARRANTY INFORMATION This product is guaranteed to be free from quality and manufacturing defects for a period of one (1) year. If your product becomes defective during this period, Rebel Sport Limited will offer you either a replacement, credit or refund where a product is faulty; wrongly described; different from the sample shown to you or does not do what it is supposed to do.
