LTV SUPER DNR3 HIGH RESOLUTION Owner's Manual

Color box camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.ltv-cctv.ru
Owner's Manual
C olor Box Camera
Super DNR3 High Resolution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPER DNR3 HIGH RESOLUTION and is the answer not in the manual?

Questions and answers

Related Manuals for LTV SUPER DNR3 HIGH RESOLUTION

Summary of Contents for LTV SUPER DNR3 HIGH RESOLUTION

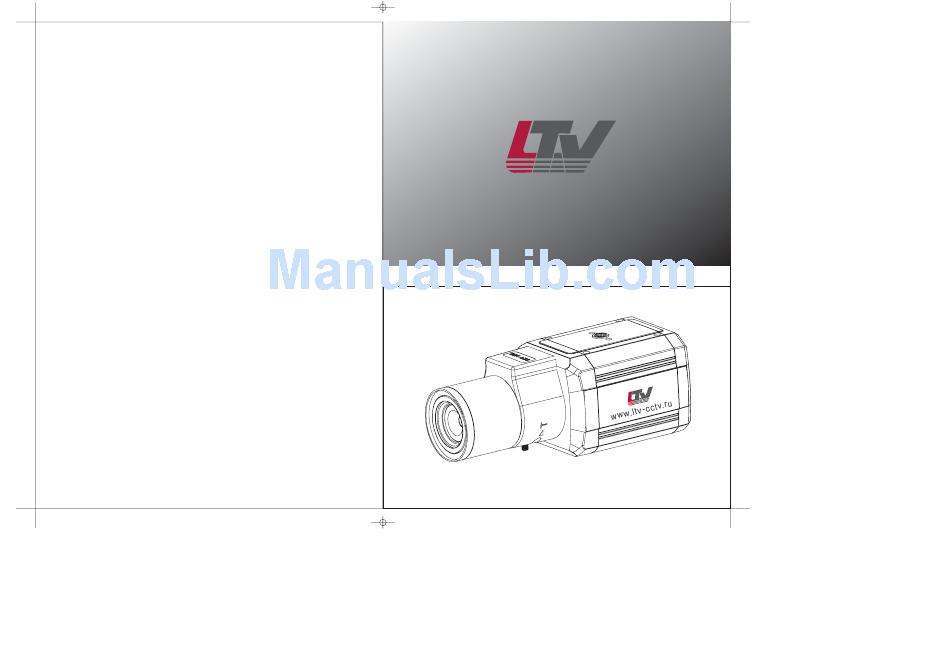

  • Page 1 Owner’s Manual C olor Box Camera Super DNR3 High Resolution...

  • Page 2: Table Of Contents

    Caution Features Warning Components Main Parts Drawing Installation Connection Camera Operation Menu Settings LENS EXPOSURE SHUTTER AGC(Auto Gain Control) SENS UP RETURN WHITE BALANCE CONTROL BACKLIGHT COMPENSATION DNR3 DAY / NIGHT SPECIAL IMAGE ADJ MONITOR CAM TITLE SYNC MOTION DET PRIVACY COMM ADJ LANGUAGE...
  • Page 3 1) Do not install the camera in extreme temperature condition. Ultra High Resolution Vari-focal Lens Built-in Only use the camera under conditions where temperatures are between -10C and +50C. Be especially careful to provide ventilation when operating By adopting a diagonal 410,000 (PAL) pixel With built-in vari-focal lens, the camera can under high temperatures.
  • Page 4 Overview Overview Allen-WRENCH 1) Lens We support a variety of DC Iris or Video Auto Iris type lenses. Use the appropriate switch setting for the type of lens you are using. 2) Camera Body This houses the electronics module, back PCB and Dual PCB. 3) Rear Panel Connectors and OSD functions are located here.

  • Page 5: Drawing

    Assembly Backview BACK BODY 1) Auto IRIS Lens Connector IRIS LENS FRONT This is the connection terminal for the auto iris lens. 2) Auto IRIS Lens selection switch Please change the mode to DC or VIDEO depending on the type of the auto iris lens being used.

  • Page 7: Connection

    1) Connection to Monitor - As the connecting method varies with the instruments, refer to the manual supplied with the instrument. - If necessary, you can connect the monitor to the REMOTE jack on the back of your camera. - Only connect the cable when the power is turned off. - Set the 75Ω...

  • Page 8: Menu

    3) Connection to RS-485 (Option) Spec Control Cable WHITE Red (TRX+) RS-485+ SETUP Menu White (TRX-) RS-485- Menu ltem Option Using a RS-485 communication, it will be able to control the OSD menu at the System Controller or DVR. (1) The case which it controls from the PC LENS ◇...
  • Page 9 MAIN SETUP 1.LENS 2.EXPOSURE Settings can be made using the 5 buttons located on the nearby of the camera. 3.WHITE BAL. 4.SSDR UP BUTTON 5.BACKLIGHT SET BUTTON 6.DNR3 RIGHT BUTTON 7.DAY/NIGHT AUTO 8.SPECIAL 9.EXIT SAVE DOWN DOWN OSD Board DOWN BUTTON LEFT BUTTON MAIN SETUP 1.LENS...

  • Page 10: Exposure

    DC : You can adjust the minimum shutter and maximum value of ESC shutter mode. 4 SHUTTER : You can select either auto or manual shutter. - --- : The shutter speed is fixed.(NTSC mode l: 1/60 sec, PAL model : 1/50 sec) VIDEO : Auto iris lens selection , pin connection please refer to before LENS use.
  • Page 11 MAIN SETUP 1.LENS 2.EXPOSURE SSDR(Samsung Super Dynamic Range) 3.WHITE BAL. 4.SSNR SSDR illuminates darker sports of an image white retaining the same light level for brighter spots to even out the overall brightness of image with high contrast between bright and dark spots. 1.

  • Page 12: Dnr3

    BLC : Enables a user to directly select a desired area from a picture, and to view the area more clearly. • When you use WDR module,WDR function can be use . WDR LIMIT Please select WDR to adjust the WDR MIDDLE LIMIT LIMIT and LEVEL.

  • Page 13: Day/Night

    2. Select a desired mode using the Function Setup switch. DAY/NIGHT 4OFF : Deactivates DNR3. Noise is not reduced. 4ON : Activates DNR3 so that noise is reduced. You can display pictures in color or black and white. 1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the 3.

  • Page 14: Special

    IMAGE ADJ. → → Color Color Fast 2.5 Lux 5 Lux 1. When the SETUP menu screen is displayed, select ‘IMAGE ADJ.’ by using the Function Setup switch so that the arrow indicates ‘IMAGE ADJ.’ Slow 1 Lux 10 Lux 4 EXTERN : This mode allows you to apply a desired filter to external signals.

  • Page 15: Cam Title

    - V-REV : You can flip the picture vertically on CAM TITLE : If you enter a title, the title will appear on the monitor. the screen. - H-REV : You can flip the picture horizontally on 1) If the SPECIAL menu screen is displayed, use the Function Setup switch so the screen.

  • Page 16: Motion Det

    LINE LOCK PHASE MODE Press SET to Return MOTION DET: MOTION DET If you connect an alarm device to this 1.SCNSITIVITY AREA1 camera, you can monitor activity 2.AREA MODE more efficiently, because a signal is 3.SEL POS L-TOP generated by the camera whenever 4.XPOS 5.YPOS motion is detected.

  • Page 17: Privacy

    COMM ADJ (Communication Adjustment) : This function sets up the camera communication status when controlling the camera through an external control device. • MD areas show only MOTION DET menu. Therefore, MD areas don’t display on 1) When the SPECIAL menu screen is displayed, press the Function Setup switch the monitor screen.
  • Page 19 170 mA RS-485 Check the polarity between RS-485 Control Port and RS-485 cable. Communication fails. Diagonal 6mm (1/3") Sony HAD CCD 485 Control Board Connection Port RS-485 Control Port (+) CONNECTION TERMINAL (TRX+) 485+ ( - ) CONNECTION TERMINAL (TRX-) 485- Check the RS-485 Communication establishment initial value...
