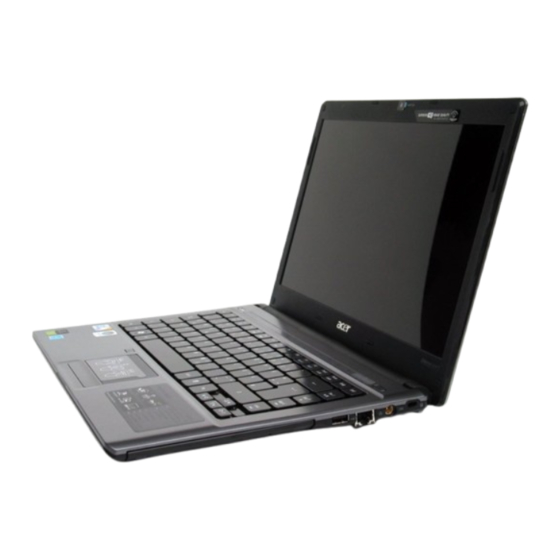

Acer AS4810TG-354G50Mn LX.PE10X.047 Service Manual
  1. Manuals
  2. Brands
  3. Acer Manuals
  4. Laptop
  5. AS4810TG-354G50Mn LX.PE10X.047
  6. Service manual
Acer AS4810TG-354G50Mn LX.PE10X.047 Service Manual

Acer AS4810TG-354G50Mn LX.PE10X.047 Service Manual

Aspire 4810t; aspire 4810tz; aspire 4410t; aspire 4810tg series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Aspire 4810T/4810TZ/4410T/4810TG Series
Service Guide
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to
http://csd.acer.com.tw
PRINTED IN TAIWAN
Downloaded from
www.Manualslib.com
manuals search engine

Advertisement

Table of Contents
loading

Related Manuals for Acer AS4810TG-354G50Mn LX.PE10X.047

Summary of Contents for Acer AS4810TG-354G50Mn LX.PE10X.047

  • Page 1 Aspire 4810T/4810TZ/4410T/4810TG Series Service Guide Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw PRINTED IN TAIWAN Downloaded from www.Manualslib.com manuals search engine...

  • Page 2: Revision History

    Revision History Please refer to the table below for the updates made on Aspire 4810T/4810TZ/4410T/4810TG Series service guide. Date Chapter Updates Downloaded from www.Manualslib.com manuals search engine...
  • Page 3 Copyright Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.
  • Page 4 Conventions The following conventions are used in this manual: Denotes actual messages that appear SCREEN MESSAGES on screen. NOTE Gives bits and pieces of additional information related to the current topic. WARNING Alerts you to any damage that might result from doing or not doing specific actions.
  • Page 5 DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.
  • Page 6 Downloaded from www.Manualslib.com manuals search engine...

  • Page 7: Table Of Contents

    Using the System Utilities ..........17 Acer GridVista (dual-display compatible) ......17 Hardware Specifications and Configurations .
  • Page 8 Table of Contents Removing the Thermal Module ........63 Removing the Mini Board Module .

  • Page 9: System Specifications

    • ® Mobile Intel GS45 Express Chipset • ™ ™ Acer InviLink Nplify 802.11b/g/Draft-N* • System Memory Dual-Channel SDRAM support • Up to 2 GB of DDR3 1066 MHz memory, upgradeable to 4 GB using two soDIMM modules* •...
  • Page 10 Communication Integrated Acer Crystal Eye webcam • ® Wi-Fi/WiMAX: Intel Wireless WiFi Link 5150* • WWAN: • UMTS/HSPA at 900 MHz/2100 MHz and quad-band GSM/GPRS/EDGE • (850/900/1800/1900 MHz)* UMTS/HSPA at 850 MHz/900 MHz/1900 MHz/2100 MHz and quad-band GSM/GPRS/EDGE • (850/900/1800/1900 MHz)* WLAN: •...

  • Page 11: Aspire 4810T/4810Tz/4410T System Block Diagram

    Aspire 4810T/4810TZ/4410T System Block Diagram Chapter 1 Downloaded from www.Manualslib.com manuals search engine...

  • Page 12: Aspire 4810Tg System Block Diagram

    Aspire 4810TG System Block Diagram Chapter 1 Downloaded from www.Manualslib.com manuals search engine...

  • Page 13: Your Acer Notebook Tour

    Turns the internal touchpad on and off. Communication key Enables / disables the WLAN / 3G functions. Backup key Launches Acer Backup Management for three-step data backup. Acer PowerSmart key Puts your computer into power-saving mode. Indicates when the hard disk drive is active.

  • Page 14: Closed Front View

    Closed Front View Icon Item Description Battery Indicates the computer's battery status. 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows blue when in AC mode. 5-in-1 card reader Accepts Secure Digital (SD), MultiMediaCard (MMC), Memory Stick (MS), Memory Stick PRO (MS PRO), xD- Picture Card (xD).

  • Page 15: Left View

    Left View Icon Item Description USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse, USB camera). Ventilation slots Enable the computer to stay cool, even after prolonged use. External display Connects to a display device (e.g., external monitor, LCD (VGA) port projector).

  • Page 16: Right View

    Right View Icon Item Description Optical drive Internal optical drive; accepts CDs or DVDs. Optical disk access Lights up when the optical drive is active. indicator Emergency eject hole Ejects the optical drive tray when the computer is turned off. Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.

  • Page 17: Rear View

    Rear View Icon Item Description Battery bay Houses the computer's battery pack. Chapter 1 Downloaded from www.Manualslib.com manuals search engine...

  • Page 18: Bottom View

    Bottom View Icon Item Description Battery bay Houses the computer's battery pack. Battery lock Locks the battery in position. Memory Houses the computer's main memory. compartment Hard disk bay Houses the computer's hard disk (secured with screws). Ventilation slots Enable the computer to stay cool, even after prolonged and cooling fan use.

  • Page 19: Indicators

    Backup and Acer PowerSmart indicators/buttons. Icon Function Description Backup key Launches Acer Backup Management for three-step data backup. Acer PowerSmart key Puts your computer into power-saving mode. Touchpad basics (with two-click buttons) The following items show you how to use the touchpad with two-click buttons.
  • Page 20 Function Left button (2) Right button (3) Main touchpad (1) Execute Quickly click twice. Tap twice (at the same speed as double-clicking a mouse button). Select Click once. Tap once. Drag Click and hold, then use Tap twice (at the same speed as double-clicking finger on the touchpad a mouse button);...

  • Page 21: Using The Keyboard

    Using the Keyboard The keyboard has full-sized keys and an embedded numeric keypad, separate cursor, lock, Windows, function and special keys. Lock Keys and Numeric Keypad The keyboard has three lock keys which you can toggle on and off. Lock key Description Caps Lock When Caps Lock is on, all alphabetic characters typed are...

  • Page 22: Windows Keys

    Windows Keys The keyboard has two keys that perform Windows-specific functions. Description Windows Pressed alone, this key has the same effect as clicking on the Windows Start button; it launches the Start menu. It can also be used with other keys to provide a variety of functions: <...

  • Page 23: Hot Keys

    Hot Keys The computer employs hotkeys or key combinations to access most of the computer’s controls like screen brightness, volume output and the BIOS utility. To activate hot keys, press and hold the <Fn> key before pressing the other key in the hotkey combination. Hotkey Icon Function...

  • Page 24: Windows Mobility Center

    Windows Mobility Center also includes Acer-specific settings like sharing folders overview/sharing service on or off, Bluetooth Add Device (if applicable), and a shortcut to the Acer user guide, drivers and utilities. To launch Windows Mobility Center: Use the shortcut key <...

  • Page 25: Using The System Utilities

    Apply to confirm the new settings and click OK to complete the process. Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows on the same screen. To access this function, please go to Start>All Programs and click on Acer GridVista.
  • Page 26 NOTE: Please ensure that the resolution setting of the second monitor is set to the manufacturer's recommended value. Chapter 1 Downloaded from www.Manualslib.com manuals search engine...

  • Page 27: Hardware Specifications And Configurations

    Hardware Specifications and Configurations Processor Item Specification CPU type 4810T/4810TZ/4410T (UMA): Intel® Core™2 Duo Mobile SU9300 (1.20G) Intel® Core™2 Solo SU3500 (1.4G); Intel® Core™2 Duo SU9400 (1.4G) Aspire 4810TG (DIS): Intel Core2 Solo SU3500 1.4G; Intel® Core™2 Duo SU9400 (1.4G) Core logic ®...
  • Page 28 Memory Combinations Slot 1 Slot 2 Total Memory 1024MB 1024MB 2048MB 2048MB 1024MB 1024MB 1024MB 1024MB 2048MB 1024MB 2048MB 3072MB 2048MB 2048MB 2048MB 1024MB 3072MB 2048MB 2048MB 4096MB NOTE: Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations.
  • Page 29 Hard Disk Drive Interface Item Vendor & HGST HGST HGST HGST Model Name HTS543216L9A300 HTS545025B9A300 HTS545032B9A300 HTS545050B9A300 SEAGATE SATA SEAGATE SEAGATE SEAGATE ST9160310AS F/ ST9250315AS ST9320320A ST9500325AS TOSHIBA TOSHIBA TOSHIBA TOSHIBA MK1655GSX MK2555GSX MK3255GSX MK5055GS WD WD1600BEVT- WD WD2500BEVT- WD WD3200BEVT- WD5000BEVT- 22ZCT0 22ZCT0...
  • Page 30 Optical Disc Drive Item Specification Applicable disc format Applicable disc format CD: CD-DA, CD-ROM, CD-ROM XA, Photo CD (multi-session), Video CD, Cd-Extra (CD+), CD-text DVD: DVD-VIDEO, DVD-ROM, DVD-R (3.9GB, 4.7GB) DVD-R DL, DVD-RW, DVD-RAM, DVD+R, DVD+R DL, DVD+RW CD-DA (Red Book) - Standard Audio CD & CD-TEXT CD-ROM (Yellow Book Mode1 &...
  • Page 31 Video Memory Item Specification Chipset Intel CS GS45NB (Aspire 4810T/4810TZ/4410T) /AMD M92LP (Aspire 4810TG) Memory size 512M DDR3 (Aspire 4810TG) Item Specification Chipset ICH9M USB Compliancy Level OHCI USB 1.1 and USB 2.0 Host controller Number of USB port Location Two on the right side/one on the front Serial port function control Enable/Disable by BIOS Setup...
  • Page 32 LCD 14” inch Item Specification Vendor & model name AUO (B140XW02 V1 LF) CMO (N140B6-L06 LF) LPL (LP140WH2-TLA1 LF) SAMSUNG (LTN140AT06-A01 LF) Screen Diagonal (mm) 14 inches Display resolution (pixels) 1366 x 768 WXGA Glare Pixel Pitch 0.204 x 0.204 Pixel Arrangement R.G.B.
  • Page 33 System Power Management ACPI mode Power Management Save to Disk (S4) Also called Hibernation Mode. System saves all system states and data onto the disc prior to power off the whole system. Chapter 1 Downloaded from www.Manualslib.com manuals search engine...
  • Page 34 Chapter 1 Downloaded from www.Manualslib.com manuals search engine...

  • Page 35: System Utilities

    Chapter 2 System Utilities BIOS Setup Utility The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/ Output System). Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup.

  • Page 36: Navigating The Bios Utility

    Navigating the BIOS Utility There are six menu options: Information, Main, Security, Boot, and Exit. Follow these instructions: To choose a menu, use the left and right arrow keys. • To choose an item, use the up and down arrow keys. •...

  • Page 37: Information

    Information The Information screen displays a summary of your computer hardware information. NOTE: The system information is subject to different models. Parameter Description CPU Type This field shows the CPU type and speed of the system. CPU Speed This field shows the speed of the CPU. IDE0 Model Name This field shows the model name of HDD installed on primary IDE master.

  • Page 38: Main

    Main The Main screen allows the user to set the system time and date as well as enable and disable boot option and recovery. I n s y d e H 2 0 S e t u p U t i l i t y R e v.
  • Page 39 Parameter Description Format/Option Enabled D2D Recovery Enables, disables D2D Recovery function. The Option: or Disabled function allows the user to create a hidden partition on hard disc drive to store operation system and restore the system to factory defaults. SATA Mode Control the mode in which the SATA controller Option: AHCI or IDE should operate.

  • Page 40: Security

    Security The Security screen contains parameters that help safeguard and protect your computer from unauthorized use. I n s y d e H 2 0 S e t u p U t i l i t y R e v. 3 . 5 I n f o r m a t i o n M a i n S e c u r i t y...

  • Page 41: Setting A Password

    NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it. Setting a Password Follow these steps as you set the user or the supervisor password: Use the up/down keys to highlight the Set Supervisor Password parameter and press the Enter key.

  • Page 42: Changing A Password

    Changing a Password Use the up/down keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Password box appears: Type the current password in the Enter Current Password field and press Enter. Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

  • Page 43: Boot

    Boot This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the diskette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay. Chapter 2 Downloaded from www.Manualslib.com manuals search engine...

  • Page 44: Exit

    Exit The Exit screen contains parameters that confirmed or discard the changes made to the parameters in the BIOS Setup Utility. I n s y d e H 2 0 S e t u p U t i l i t y R e v.

  • Page 45: Bios Flash Utility

    BIOS Flash Utility BIOS Flash Utility The BIOS flash memory update is required for the following conditions: New versions of system programs • New features or options • Restore a BIOS when it becomes corrupted. • Use the Flash utility to update the system BIOS flash ROM. NOTE: If you do not have a crisis recovery disk at hand, then you should create a Crisis Disk (See “Steps for BIOS Recovery by Crisis Disk”...

  • Page 46: Remove Hdd And Bios Passwords

    Remove HDD and BIOS Passwords This section teaches you how to remove HDD password: Remove HDD Password If you key in the wrong HDD password thrice, “HDD password error code” will appear on the • screen. See the image below. If you need to solve HDD password locked problem, you can run HDD_PW.EXE •...

  • Page 47: Remove Bios Password

    Remove BIOS Password If you key in wrong Supervisor Password for three time, “System Disabled” would display on the • screen. See the image below. If you need to solve BIOS password locked problem, you can run BIOS_PW.EXE • Key in “bios_pw 14452 0” Choose one upper-case string Reboot the system and key in “qjjg9vy”...
  • Page 48 Chapter 2 Downloaded from www.Manualslib.com manuals search engine...

  • Page 49: Machine Disassembly And Replacement

    Chapter 3 Machine Disassembly and Replacement This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting. Disassembly Requirements To disassemble the computer, you need the following tools: Wrist grounding strap and conductive mat for preventing electrostatic discharge •...

  • Page 50: General Information

    General Information Pre-disassembly Instructions Before proceeding with the disassembly procedure, make sure that you do the following: Turn off the power to the system and all peripherals. Unplug the AC adapter and all power and signal cables from the system. Place the system on a flat, stable surface.

  • Page 51: External Module Disassembly Process

    External Module Disassembly Process EXTERNAL MODULE DISASSEMBLY TURN OFF POWER AND PERIPHERALS UNPLUG POWER CABLES REMOVE BATTERY PACK Captive Screwx5 LOWER COVER DIMM BATTERY MODULE MODULE MODULES MODULE OPTICAL OPTICAL DISK HARD DISK HARD DISK LOCKER DRIVE BRACKET DRIVE BRACKET Item Screw Color...

  • Page 52: Removing The Battery Pack

    Removing the Battery Pack Turn base unit over. Slide the battery lock/unlock latch to the unlock position. Slide and hold the battery release latch to the release position. Then slide out the battery from the battery bay. Note: Battery has been highlighted with the yellow circle as above image shows. Please detach the battery and follow local regulations for disposal.

  • Page 53: Removing The Lower Cover

    Removing the Lower Cover See “Removing the Battery Pack” on page 44. Remove the two screws (F) and five captive screws securing the lower cover. Step Size (Quantity) Color Torque M2.5 x L11 (2) Black 3.0 kgf-cm Use a plastic screw driver to carefully pry open the lower cover. Remove the lower cover from the lower case.

  • Page 54: Removing The Optical Drive Module

    Removing the Optical Drive Module See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover” on page 45. Remove the one screw (E) securing the optical drive. Step Size (Quantity) Color Torque M2.5 x L6 (1) SIlver 3.0 kgf-cm Remove the one screw (B) securing the locker bracket and remove the locker bracket from the optical disk drive module.

  • Page 55: Removing The Hard Disk Drive Module

    Push out the latches on both sides of the DIMM socket to release the DIMM and remove it from the socket. Do the same to the other socket if there is any DIMM present. Removing the Hard Disk Drive Module See “Removing the Battery Pack”...

  • Page 56: Removing The Ssd Module

    Remove the two screws (D) securing the hard disk to the bracket and remove the hard disk from the bracket. Step Size (Quantity) Color Torque M3 x L3 (2) Black 3.0 kgf-cm Removing the SSD Module See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover”...
  • Page 57 Disconnect the RTC battery cable from the system board and lift to remove it. NOTE: Be careful when removing the RTC battery. It is glued to the system board. Note: RTC battery has been highlighted with the yellow circle as above image shows. Please detach the RTC battery and follow local regulations for disposal.

  • Page 58: Main Unit Disassembly Process

    Main Unit Disassembly Process MAIN UNIT DISASSEMBLY MAIN UNIT KEYBOARD A x 1 WLAN BOARD MODULE I x 2, Ex2 H x 8 UPPER CASE A x 1 TOUCHPAD LCD MODULE LOCK BOARD SYSTEM BOARD TOUCHPAD POWER BUTTON BOARD BOARD MODULE SPEAKER MODULE...

  • Page 59: Removing The Keyboard

    Removing the Keyboard See “Removing the Battery Pack” on page 44. Release the keyboard from the latches securing it. Carefully pry loose the keyboard. Place the keyboard below the LCD screen to gain access to the keyboard cable. Chapter 3 Downloaded from www.Manualslib.com manuals search engine...

  • Page 60: Removing The Wlan Board Module

    Disconnect the keyboard cable from the main board to remove the keyboard. Removing the WLAN Board Module See “Removing the Battery Pack” on page 44. See “Removing the Keyboard” on page 51. Disconnect the antenna cables from the WLAN board. NOTE: There are 2 antenna cables connected to the WLAN board.

  • Page 61: Separating The Upper Case From The Lower Case

    Remove the one screw (A) on the WLAN board to release the WLAN board. Step Size (Quantity) Color Torque M2 x L4 (1) Black 1.6 kgf-cm Detach the WLAN board from the WLAN socket. NOTE: When attaching the antenna back to the WLAN board, make sure the cable are arranged properly. Separating the Upper Case from the Lower Case See “Removing the Battery Pack”...
  • Page 62 11. Remove the twelve screws (I, E, H) from the bottom panel. Step Size (Quantity) Color Torque M2.5 x L6 (2) Black 3.0 kgf-cm M2 x L4 (2) Black 3.0 kgf-cm 5~12 M2.5 x L5 (8) Black 3.0 kgf-cm 12. Disconnect the touchpad cable from the TPAD1 connector on the main board. 13.

  • Page 63: Removing The Power Button Board

    14. Disconnect the power button cable from the BTB2 connector on the system board. 15. Disconnect the speaker cable from the SPK1 connector on the system board. 16. Gently separate the upper case from the lower case. Removing the Power Button Board See “Removing the Battery Pack”...

  • Page 64: Removing The Touchpad Module

    See “Removing the Optical Drive Module” on page 46. See “Removing the DIMM” on page 46. See “Removing the Hard Disk Drive Module” on page 47. See “Removing the SSD Module” on page 48. See “Removing the RTC Battery” on page 48. See “Removing the Keyboard”...

  • Page 65: Removing The Speaker Module

    12. Disconnect the touchpad cable from the touchpad board; then carefully pry loose and remove the touch pad board WARNING:The touchpad board is glued to the upper case, only remove the touchpad board if it is defective. Note: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows. Please detach the Circuit boards and follow local regulations for disposal.

  • Page 66: Removing The Led Board

    12. Remove the two screws (A) securing the left and right speaker modules, peel off the stickers securing the speaker cables, and remove them from the upper case. Step Size (Quantity) Color Torque M2 x L4 (2) Black 1.6 kgf-cm Removing the LED Board See “Removing the Battery Pack”...

  • Page 67: Removing The Lcd Module

    13. Carefully pry loose and remove the LED board from the upper case. WARNING:The LED board is glued to the upper case, only remove the LED board if it is defective. Removing the LCD Module See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover”...
  • Page 68 13. Disconnect the LCD cable. 14. Pell off the LCD cable from the fan. 15. Remove the two screws (E) from the left and right hinge of the LCD module. Step Size (Quantity) Color Torque M2.5 x L6 (2) Black 3.0 kgf-cm Chapter 3 Downloaded from...

  • Page 69: Removing The System Board

    16. Carefully remove the LCD module from the base unit. NOTE: When connecting the cables back to the unit, please note that the cables should be routed well. Removing the System Board See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover”...
  • Page 70 14. For the UMA model, disconnect the top CRT cable from the system board and the bottom CRT cable from the CRT board. 15. For the Discrete model, disconnect the CRT cable from CN2 on the system board and disconnect the CRT cable connector from CN3 on the system board.

  • Page 71: Removing The Thermal Module

    16. Remove the one screw (A) securing the system board and the mini board.. Step Size (Quantity) Color Torque M2 x L4 (1) Black 1.6 kgf-cm 17. Carefully remove the main board. Removing the Thermal Module There are two version of thermal module. For this section, we are going to use the UMA model (for Aspire 4810T/4810TZ/4410T).
  • Page 72 See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover” on page 45. See “Removing the Lower Cover” on page 45. See “Removing the Optical Drive Module” on page 46. See “Removing the DIMM” on page 46. See “Removing the Hard Disk Drive Module”...

  • Page 73: Removing The Mini Board Module

    module as shown below. 15. Carefully remove the heatsink module from the system. Removing the Mini Board Module See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover” on page 45. See “Removing the Lower Cover” on page 45. See “Removing the Optical Drive Module”...

  • Page 74: Removing The Crt Board Module

    13. Remove the one screw (A) securing the mini board to the system board. Step Size (Quantity) Color Torque M2 x L4 (1) Black 1.6 kgf-cm 14. Detach the system board from the mini board. Note: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows. Please detach the Circuit boards and follow local regulations for disposal.

  • Page 75: Removing The Card Reader Board

    11. See “Separating the Upper Case from the Lower Case” on page 53. 12. See “Removing the System Board” on page 61. 13. Release the CRT board from the latch. 14. Carefully lift the CRT board and remove it from the lower case. Note: Circuit boards >10 cm²...

  • Page 76: Removing The Bluetooth Module

    11. See “Separating the Upper Case from the Lower Case” on page 53. 12. See “Removing the System Board” on page 61. 13. Remove the one screw (A) securing the card reader board to the lower case. Step Size (Quantity) Color Torque M2 x L4 (1)

  • Page 77: Removing The Touchpad Lock Board

    See “Removing the Keyboard” on page 51. 10. See “Removing the WLAN Board Module” on page 52. 11. See “Separating the Upper Case from the Lower Case” on page 53. 12. See “Removing the Card Reader Board” on page 67. 13.
  • Page 78 11. See “Separating the Upper Case from the Lower Case” on page 53. 12. Carefully pry loose and remove the touchpad lock board from the lower case. WARNING:The touchpad lock board is glued to the lower case, only remove the touchpad lock board if it is defective.

  • Page 79: Lcd Module Disassembly Process

    LCD Module Disassembly Process LCD MODULE DISASSEMBLY LCD MODULE LCD BEZEL RIGHT HINGE LEFT HINGE LCD PANEL LCD FPC MICROPHONE CABLE CAMERA Item Screw Color Part No. M2.5 X L3.5 Silver 86.9A563.3R5 M2 x L2.5 Silver 86.9A562.2R5 M2 x L3 Black 86.00K60.630 Chapter 3...

  • Page 80: Removing The Lcd Bezel

    Removing the LCD Bezel See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover” on page 45. See “Removing the Lower Cover” on page 45. See “Removing the Optical Drive Module” on page 46. See “Removing the DIMM” on page 46. See “Removing the Hard Disk Drive Module”...

  • Page 81: Removing The Lcd Panel Hinges

    15. Carefully pry open the LCD bezel and and remove the bezel from the LCD panel. Removing the LCD Panel Hinges See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover” on page 45. See “Removing the Lower Cover” on page 45. See “Removing the Optical Drive Module”...

  • Page 82: Removing The Lcd Panel

    15. Remove the four screws (J) securing the left and right hinges, and remove the hinges Step Size (Quantity) Color Torque M2.5 x L2.5 (4) Black 1.6 kgf-cm Removing the LCD Panel See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover”...
  • Page 83 15. Remove the four screws (G) securing the LCD panel to the back cover. Step Size (Quantity) Color Torque M2 x L2.5 (4) Silver 1.6 kgf-cm 16. Carefully lift up the LCD panel and turn it over to gain access to the LCD cable. 17.

  • Page 84: Removing The Webcam

    18. Detach the LCD cable from the LCD panel. 19. Remove the LCD panel from the back cover. Removing the Webcam See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover” on page 45. See “Removing the Lower Cover” on page 45. See “Removing the Optical Drive Module”...

  • Page 85: Removing The Microphone

    16. Carefully pry loose the webcam. CAUTION: Only remove the webcam if it is defective as it is glued to the back cover. Removing the Microphone See “Removing the Battery Pack” on page 44. See “Removing the Lower Cover” on page 45. See “Removing the Lower Cover”...
  • Page 86 Chapter 3 Downloaded from www.Manualslib.com manuals search engine...

  • Page 87: Troubleshooting

    Troubleshooting Use the following procedure as a guide for computer problems. NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses. Obtain the failing symptoms in as much detail as possible.

  • Page 88: System Check Procedures

    System Check Procedures External Diskette Drive Check Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required. NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.

  • Page 89: Memory Check

    External keyboard • If any of these devices do not work, reconnect the cable connector and repeat the failing operation. Memory Check Memory errors might stop system operations, show error messages on the screen, or hang the system. Boot from the diagnostics diskette and start the diagnostic program (please refer to main board. Go to the diagnostic memory in the test items.

  • Page 90: Touchpad Check

    Check the Battery Pack To check the battery pack, do the following: From Software: Check out the Power Management in control Panel In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total Battery Power Remaining are correct.

  • Page 91: Power-On Self-Test (Post) Error Messages

    Power-On Self-Test (POST) Error Messages The POST error message index lists the error message and their possible causes. The most likely cause is listed first. NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer.

  • Page 92: Post Code Table

    Post Code Table POST Code Description Prepare PEI Event Log service (bios debug purpose) OEM service Initialization (bios debug purpose) Status code report service initialization (bios debug purpose) CPU IO and PCI IO (bios debug purpose) CPU Initialization PC Init at stage 1 (SB related init) Firmware Flash Device (for BIOS ROM) Read Services (bios debug purpose) PC Init at stage 2 (NB related init) SMbus...
  • Page 93 The service of monitor insert key from Keyboard (bios debug purpose) EFI CSM service (bios debug purpose) EFI CSM service (bios debug purpose) PCI Bus platform policy relative services initialization (bios debug purpose) Acer INT15 Hook Acer WMI USB relative initialization USB relative initialization...
  • Page 94 ICH Serial GPIO Interface (bios debug purpose) System Management Mode IO Trap service (bios debug purpose) System Management Mode service for ICH S3 resume HD Password Acer Int15 Function System Password relative Initialization System Password relative Initialization DataHub relative service (bios debug purpose)

  • Page 95: Index Of Symptom-To-Fru Errors

    Index of Symptom-to-FRU Errors LCD-Related Symptoms Symptom / Error Action in Sequence LCD backlight doesn't work Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system. LCD is too dark Reconnect the LCD connectors. LCD brightness cannot be adjusted Keyboard (if contrast and brightness function key doesn't LCD contrast cannot be adjusted work).
  • Page 96 Power-Related Symptoms Symptom / Error Action in Sequence The system doesn’t power-off. Power source (battery pack and power adapter). See “Power System Check” on page 81. Hold and press the power switch for more than 4 seconds. System board Battery can’t be charged See “Check the Battery Pack”...
  • Page 97 Power Management-Related Symptoms Symptom / Error Action in Sequence The system doesn't resume from See “Save to Disk (S4)” on page 25. hibernation mode. Hard disk connection board Hard disk drive System board The system doesn't resume from standby See “Save to Disk (S4)” on page 25. mode after opening the LCD.
  • Page 98 Keyboard/Touchpad-Related Symptoms Symptom / Error Action in Sequence Touchpad does not work. Reconnect touchpad cable. Touchpad board System board Modem-Related Symptoms Symptom / Error Action in Sequence Internal modem does not work correctly. Modem phone port modem combo board System board NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined Problems”...

  • Page 99: Intermittent Problems

    Intermittent Problems Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists. When analyzing an intermittent problem, do the following: Run the advanced diagnostic test for the system board in loop mode at least 10 times.

  • Page 100: Undetermined Problems

    System Check” on page 81.): Power-off the computer. Visually check them for damage. If any problems are found, replace the FRU. Remove or disconnect all of the following devices: Non-Acer devices Printer, mouse, and other external devices Battery pack Hard disk drive...

  • Page 101: Connector Locations

    Chapter 5 Connector Locations Top and Bottom Views Aspire 4810T/4810TZ/4410T Top View Code Connector SPK1 Speaker cable connector Keyboard cable connector Touchpad cable connector Card reader cable connector Top CRT cable connector FAN1 Thermal module fan cable connector LCD1 LCD cable connector BTB2 Power button cable connector Chapter 5...

  • Page 102: Aspire 4810T/4810Tz/4410T Bottom View

    Aspire 4810T/4810TZ/4410T Bottom View Code Connector DIMM slot 1 DIMM slot 2 Bottom CRT cable connector SSD1 SSD connector BTB1 Miniboard connector Chapter 5 Downloaded from www.Manualslib.com manuals search engine...

  • Page 103: Aspire 4810Tg Top View

    Aspire 4810TG Top View Code Connector SPK1 Speaker cable connector Keyboard cable connector Touchpad cable connector Card reader cable connector CRT cable connector CRT cable connector FAN1 Thermal module fan cable connector LCD1 LCD cable connector BTB2 Power button cable connector Chapter 5 Downloaded from www.Manualslib.com...

  • Page 104: Aspire 4810Tg Bottom View

    Aspire 4810TG Bottom View Code Connector DIMM slot 1 DIMM slot 2 SSD1 SSD connector BTB1 Miniboard connector Chapter 5 Downloaded from www.Manualslib.com manuals search engine...

  • Page 105: Clearing Password Check And Bios Recovery

    Clearing Password Check and BIOS Recovery This section provides the standard operating procedures for clearing the password and BIOS recovery for Aspire 4810T/4810TZ/4410T/4810TG Series. There is one Hardware Open Gap on the main board for clearing the password check and one Hotkey for enabling BIOS Recovery. Clearing Password Check Hardware Open Gap Description Hardware...

  • Page 106: Bios Recovery By Crisis Disk

    Steps for Clearing BIOS Password Check If the user sets the BIOS Password (Supervisor Password and/or User Password) for a security reason, the BIOS will ask for the password during system POST or when the system enters into the BIOS Setup menu. If it is necessary to bypass the password check, the user needs to short the hardware gap to clear the password by following these steps: •...
  • Page 107 Creating the Crisis Disk in Windows XP/Vista Follow these steps to create the Crisis Disk: Prepare a removable USB storage device (size greater than 10MB). Note that all data on the USB storage device will be cleared during the creation of the Crisis Disk. Set up another computer loaded with Windows XP or Vista operating system.
  • Page 108 The Crisis Disk will be created after a few seconds. Press No if you do not want to create another Crisis Disk. Reconnect the USB removable storage device and check if it contains the 3 files shown in the following figure.

  • Page 109: Fru (Field Replaceable Unit) List

    DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

  • Page 110: Aspire 4810T/4810Tz/4410T Series Exploded Diagram

    Aspire 4810T/4810TZ/4410T Series Exploded Diagram Chapter 6 Downloaded from www.Manualslib.com manuals search engine...

  • Page 111: Aspire 4810Tg Series Exploded Diagram

    Aspire 4810TG Series Exploded Diagram Chapter 6 Downloaded from www.Manualslib.com manuals search engine...
  • Page 112 Aspire 4810T/4810TZ/4410T/4810TG Series FRU List 1. ACER_ASPIRE 4810T UMACSS_JM41_MS(NO:LX.PBA0X.030) Category Part Name Acer Part No. ADAPTER ADAPTER 65W 19V GREEN DELTA ADP-65JH DB A AP.0650A.013 1.7X5.5X11 YELLOW LV5 LED LF ADAPTER 65W 19V GREEN LITEON PA-1650-22AC AP.06501.027 1.7X5.5X11 YELLOW LV5 LED LF ADAPTER 65W 19V GREEN HIPRO HP-A0652R3B AP.06503.026...
  • Page 113 Category Part Name Acer Part No. MULTI MEDIA BUTTON BOARD NS-JM4151-CY 56.41010.211 MULTI MEDIA BUTTON BOARD NS-JM4151-AQ 56.41010.201 POWER BUTTON BOARD UMA W/CABLE 55.PBA01.005 TOUCHPAD BOARD SYNAPTICS TM-01277-001 56.17010.211 TOUCHPAD BOARD ALPS KGDFF0040A 56.17025.101 BOARDS TOUCHPAD LOCK BOARD 55.PBA01.004 WIRELESS LAN BOARD 512AN_HMWG SHIRLEY PEAK KI.SPH01.003...
  • Page 114 Category Part Name Acer Part No. POWER CORD 3A 250V 3PIN UK 27.03118.001 POWER CORD 5A 250V 3PIN UK BK 27.01518.541 POWER CORD 10A 250V SWISS 27.01518.691 POWER CORD 10A 250V 3PIN SWISS BK 27.01518.581 POWER CORD 10A 250V ARGENTINE 27.01518.0U1...
  • Page 115 Category Part Name Acer Part No. HDD BRACKET 2.5 "33.PBA01.002 HDD CONNECTOR 20.PBA01.001 LCD BEZEL 14.1" NONE FLUSH W/LOGO & CAMERA 60.PBA01.004 HOLE LED LCD BEZEL CAP RIGHT 42.PBA01.005 LED LCD BEZEL CAP LEFT 42.PBA01.004 LED LCD COVER 14" ALUMINUM SLIVER W/ANTENNA*2 60.PBA01.005...
  • Page 116 Category Part Name Acer Part No. UNITLOAD COVER 42.PBA01.001 UPPER CASE SLIVER W/SPEAKER (NONE 3G) 60.PBA01.002 DVD-RW DRIVE DVD-RW SUPER-MULTI MODULE 8X 9.5MM SATA FOR 6M.PBA01.001 GBAS DVD-RW SUPER-MULTI MODULE 8X 9.5MM SATA NONE 6M.PBA01.002 GBAS ODD TOSHIBA SUPER-MULTI DRIVE 8X 9.5MM TRAY DL KU.0080D.046...
  • Page 117 Category Part Name Acer Part No. HDD/HARD DISK DRIVE HDD 500GB 5400RPM WD SATA WD5000BEVT-22ZAT0 F/ KH.50007.009 W:01.01A01 HEATSINK CPU HEATSINK UMA W/FAN 60.4CQ14.001 CPU HEATSINK UMA W/FAN 60.4CQ12.001 KEYBOARD KEYBOARD 87KEYS AC4G JM41 INTERNAL 14 KB.I140A.084 STANDARD BLACK UV GLOSSY UK KEYBOARD 86KEYS AC4G JM41 INTERNAL 14 KB.I140A.070...
  • Page 118 Category Part Name Acer Part No. KEYBOARD KEYBOARD 87KEYS AC4G JM41 INTERNAL 14 KB.I140A.067 STANDARD BLACK UV GLOSSY FRENCH/ARABIC KEYBOARD 87KEYS AC4G JM41 INTERNAL 14 KB.I140A.087 STANDARD BLACK UV GLOSSY US FRENCH CANADIAN KEYBOARD 87KEYS AC4G JM41 INTERNAL 14 KB.I140A.064...
  • Page 119 Category Part Name Acer Part No. SCREWS SCREW M2.5 X L2.5 NYLOK 86.00K60.630 SCREW M2 X L4 NYLOK 86.00K64.524 SCREW M2.5 X L11 NYLOK 86.1A353.110 SCREW M2 X L3 86.9A552.3R0 SCREW M2 X L2.5 NYLOK 86.9A562.2R5 SCREW M2.5 X L3.5 86.9A563.3R5...
  • Page 120 Category Part Name Acer Part No. BOARDS CARD READER BOARD UMA 4 IN 1-BUILD IN W/RTC 55.PBA01.003 BATTERY & BLUETOOTH CABLE & TOUCHPAD LOCK BOARD CABLE CRT BOARD UMA 55.PBA01.002 MINI BOARD UMA/DIS NON-3G 55.PBA01.001 MULTI MEDIA BUTTON BOARD NS-JM4151-CY 56.41010.211...
  • Page 121 Category Part Name Acer Part No. CABLES LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.021 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.001 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.011 MULTI MEDIA BUTTON BOARD CABLE 50.4CQ11.011 MULTI MEDIA BUTTON BOARD CABLE 50.4CQ11.001 POWER BUTTON CABLE 50.4CQ03.031 POWER BUTTON CABLE 50.4CQ03.001 POWER BUTTON CABLE 50.4CQ03.011...
  • Page 122 Category Part Name Acer Part No. CAMERA CAMERA 1.0M SUYIN CN1014-S36D-OV05 LAVENDER_G 56.18007.273 CAMERA 1.0M CHICONY CNF911321004970L 56.18012.113 CASE/COVER/BRACKET DVD-RW SUPER-MULTI BEZEL FOR GBAS 42.PBA01.002 ASSEMBLY DVD-RW SUPER-MULTI BEZEL NONE GBAS 42.PBA01.003 HDD BRACKET 2.5 "33.PBA01.002 HDD CONNECTOR 20.PBA01.001 LCD BEZEL 14.1" NONE FLUSH W/LOGO & CAMERA 60.PBA01.004...
  • Page 123 Category Part Name Acer Part No. CASE/COVER/BRACKET LOWER CASE 60.PBA01.001 ASSEMBLY OPTICAL BRACKET 33.PBA01.001 UNITLOAD COVER 42.PBA01.001 UPPER CASE SLIVER W/SPEAKER (NONE 3G) 60.PBA01.002 DVD-RW DRIVE DVD-RW SUPER-MULTI MODULE 8X 9.5MM SATA FOR 6M.PBA01.001 GBAS ODD TOSHIBA SUPER-MULTI DRIVE 8X 9.5MM TRAY DL KU.0080D.046...
  • Page 124 Category Part Name Acer Part No. HDD/HARDDISKDRIVE HDD 320GB 5400RPM SATA TOSHIBA MK3255GSX KH.32001.008 LIBRA LF F/W:FG010J HDD 320GB 5400RPM SATA WD WD3200BEVT-22ZCT0 KH.32004.002 ML125 F/W:01.01A01 HDD 500GB 5400RPM SEAGATE ST9500325AS SATA LF KH.50008.013 F/W:0001SDM1 HDD 2.5" 5400RPM 500GB TOSHIBA MK5055GSX LIBRA KH.50001.011...
  • Page 125 Category Part Name Acer Part No. KEYBOARD KEYBOARD 87KEYS AC4G JM41 INTERNAL 14 KB.I140A.075 STANDARD BLACK UV GLOSSY NORWEGIAN KEYBOARD 87KEYS AC4G JM41 INTERNAL 14 KB.I140A.071 STANDARD BLACK UV GLOSSY HUNGARIAN KEYBOARD 87KEYS AC4G JM41 INTERNAL 14 KB.I140A.079 STANDARD BLACK UV GLOSSY SPANISH KEYBOARD 87KEYS AC4G JM41 INTERNAL 14 KB.I140A.083...
  • Page 126 Category Part Name Acer Part No. MISCELLANEOUS NAME PLATE AS4810T 40.PBA01.001 LCD SCREW RUBBER NONE FLUSH 47.PBA01.001 SCREWS SCREW M2.5 X L6 86.00E12.536 SCREW M2 X L4 86.00E13.524 SCREW M3 X L3 BZNYLOK 86.W2301.003 SCREW M2.5 X L5 BLACK ZN+NYLOK 86.TK501.001...

  • Page 127: Aspire 4810T/4810Tz/4410T/4810Tg Series

    Appendix A Model Definition and Configuration Aspire 4810T/4810TZ/4410T/4810TG Series Appendix A Downloaded from www.Manualslib.com manuals search engine...
  • Page 128 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810TG- EMEA South LX.PE10X.047 AS4810TG-354G50Mn EM VHP32ATZA2 MC M92LP512Css C2SSU3500B NLED14WXGAGS M92LP 512M- SO2GBIII10 SO2GBIII10 N500GB5.4KS...
  • Page 129 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810TG- EMEA Ukraine LX.PE10X.007 AS4810TG-354G50Mn VHP32ATUK1 MC M92LP512Css C2SSU3500B NLED14WXGAGS M92LP 512M- SO2GBIII10 SO2GBIII10 N500GB5.4KS...
  • Page 130 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810TG- CHIN China LX.PE10Y.003 AS4810TG-942G32Mn VHB32ATCN1 MC M92LP512Css_V3 C2DSU9400B NLED14WXGAGS M92LP 512M- SO1GBIII10 SO1GBIII10 N320GB5.4KS...
  • Page 131 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810TZG EMEA Portugal LX.PE30X.015 AS4810TZG-274G32Mn VHP32ATPT1 MC M92LP512Css PMSSU2700B NLED14WXGAGS M92LP 512M- SO2GBIII10 SO2GBIII10 N320GB5.4KS...
  • Page 132 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810TZ- EMEA South LX.PDN0X.132 AS4810TZ-273G32Mn EM VHP32ATZA2 MC UMACss PMSSU2700B NLED14WXGAGS SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5...
  • Page 133 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810TZ- EMEA Middle LX.PDN0X.070 AS4810TZ-273G32Mn EM VHP32ATME4 MC UMACss PMSSU2700B NLED14WXGAGS SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5...
  • Page 134 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810TZ- EMEA Turkey LX.PDN0X.051 AS4810TZ-273G32Mn EM VHP32ATTR1 MC UMACss PMSSU2700B NLED14WXGAGS SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5...
  • Page 135 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810TZ- EMEA Luxembou LX.PDN0X.034 AS4810TZ-274G25Mn VHP32ATLU3 MC UMACss 2*2G/ PMSSU2700B NLED14WXGAGS SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5...
  • Page 136 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810TZ- Philippine LX.PDN0Y.001 AS4810TZ-272G25Mn EM VHB32ATPH1 MC UMACss 1*2G/ PMSSU2700B NLED14WXGAGS SO2GBIII10 N250GB5.4KS NSM8XS9.5...
  • Page 137 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810T- EMEA South LX.PBA0X.099 AS4810T-354G50Mn EM VHP32ATZA1 MC UMACss 2*2G/ C2SSU3500B NLED14WXGAGS SO2GBIII10 SO2GBIII10 N500GB5.4KS...
  • Page 138 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810T- Singapore LX.PBA0X.079 AS4810T-352G16Mn VHP32ATSG1 MC UMACss 1*2G/160/ C2SSU3500B NLED14WXGAGS SO2GBIII10 N160GB5.4KS NSM8XS9.5 5 in 1-Build in...
  • Page 139 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810T- EMEA Turkey LX.PBA0X.032 AS4810T-354G32Mn EM VHP32ATTR1 MC UMACss 2*2G/ C2SSU3500B NLED14WXGAGS SO2GBIII10 SO2GBIII10 N320GB5.4KS...
  • Page 140 Wireless Wireless Model Country Acer Part No Description VRAM 1 Memory 1 Memory 2 HDD 1(GB) Card Reader Bluetooth Battery Adapter Camera Power Cord Chip LAN1 AS4810T- Singapore LX.PBA0X.006 AS4810T-944G32Mn VHP32ATSG1 MC UMACss 2*2G/320/ C2DSU9400B NLED14WXGAGS SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5...

  • Page 141: Test Compatible Components

    Appendix B Test Compatible Components This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system ® ® functions are tested under Windows XP Home, Windows XP Pro environment. Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.

  • Page 142: Microsoft® Windows® Vista Environment Test

    Specification CRT Port Test CRT Monitor Acer 211c 21”, ViewSonic G220F, ViewSonic PF790 19” LCD Monitor Acer FP751 17” TFT LCD, Acer AL1521, Acer AL1721, ViewSonic VD201b, Westinghouse W37G, HP LP2065, HP S9500 Projector Dell 3300MP USB Port Test USB Keyboard/Mouse...
  • Page 143 Item Specification PCMCIA Test LAN/Modem Card TDK CardBus Ethernet 10/100 32-Bit CBE-10/100BTX Storage Card Hitachi Microdrive 4G 1394 Card Buffalo 1394 Interface Cardbus (IFC-ILCB/DV) USB2.0 Card IBM EtherJet CardBus Adapter 10/100 Wireless Lan Card Cisco Wireless LAN Card 802.11a (Not recommended for wireless ready NETGEAR Wireless LAN card 802.11a model) ISDN Card...
  • Page 144 Appendix B Downloaded from www.Manualslib.com manuals search engine...

  • Page 145: Online Support Information

    This section describes online technical support services available to help you repair your Acer Systems. If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d.
  • Page 146 Appendix C Downloaded from www.Manualslib.com manuals search engine...

  • Page 147: Index

    CPU type 19 HDD 11 Creating the Crisis Disk in Windows XP/Vista 99 WLANG/3G 11 Crisis Disk Indicator/button creating 99 Acer PowerSmart key 11 backup key 11 Crisis Recovery Disk 37 power 11 CRT board module Indicators 11 removing 66...
  • Page 148 Flowchart 71 System board Layout LCD panel top 94 removing 74 System board layout Lock key bottom 94 Caps Lock 13 top 93, 95 Num Lock 13 top and bottom 93 Scroll Lock 13 system board layout Lock Keys 13 bottom 96 lower cover System Check Procedures 80...
