Windows Xp; Windows 95/98/Me; Macintosh - 3Com OfficeConnect User Manual

20 C 3: S U
HAPTER ETTING

Windows XP

Windows 95/98/ME

Macintosh

Y C
P OUR OMPUTERS

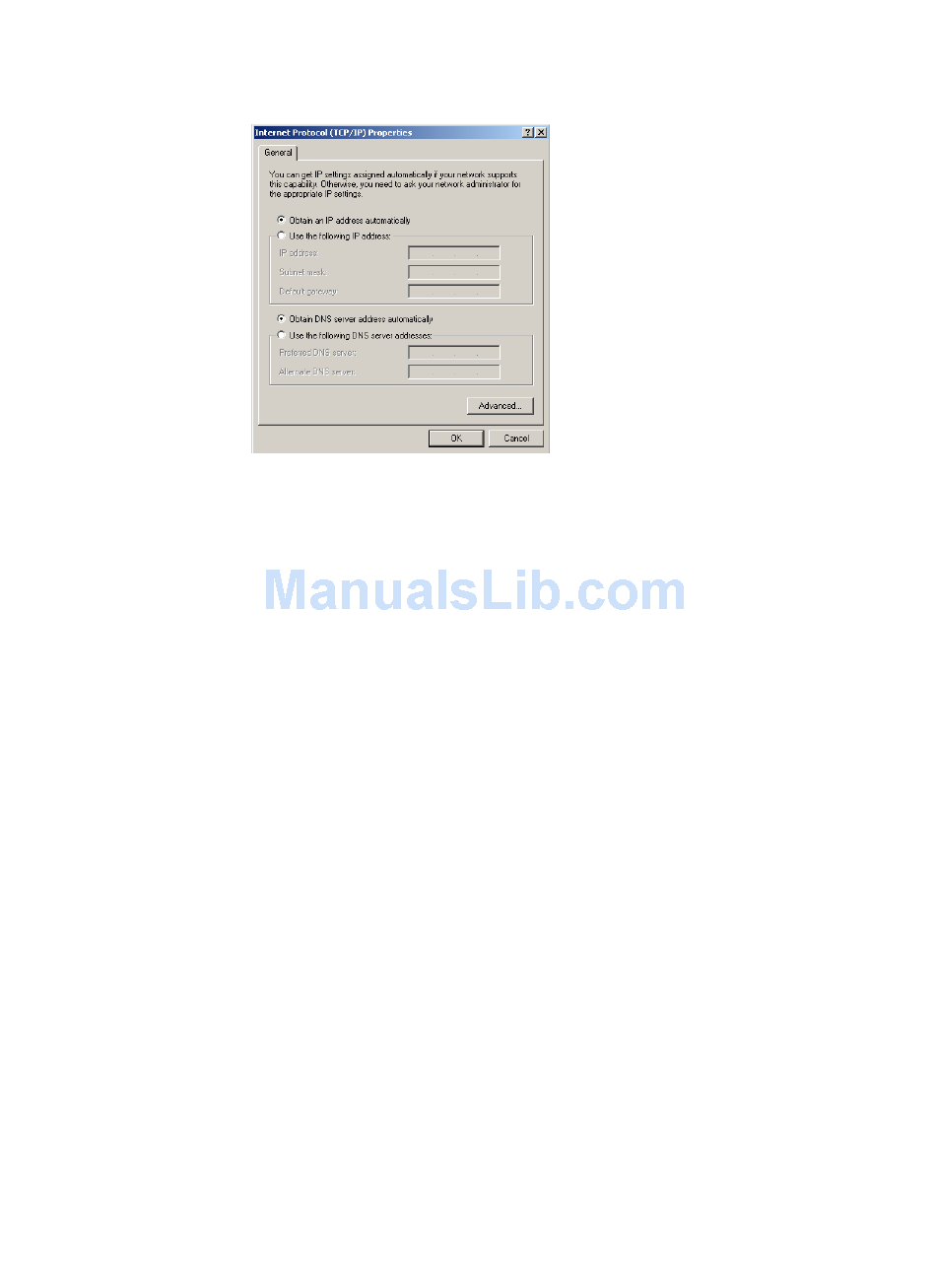

Figure 7 Internet Protocol (TCP/IP) Properties Screen
7 Restart your computer.
1 From the Windows Start menu, select Control Panel.
2 Click on Network and Internet Connections.
3 Click on the Network Connections icon.
4 Double click on LAN or High Speed Connection icon. A screen titled Local Area
Connection Status will appear.
5 Select Internet Protocol TCP/IP and click on Properties.
6 Ensure that the options Obtain an IP Address automatically, and Obtain DNS
servers automatically are both selected. Click OK.
7 Restart your computer.
1 From the Windows Start Menu, select Settings > Control Panel.
2 Double click on Network. Select the TCP/IP item for your network card and click on
Properties.
3 In the TCP/IP dialog, select the IP Address tab, and ensure that Obtain IP address
automatically is selected. Click OK.
If you are using a Macintosh computer, use the following procedure to change
your TCP/IP settings:
1 From the desktop, select Apple Menu, Control Panels, and TCP/IP.
2 In the TCP/IP control panel, set Connect Via: to "Ethernet." From the list, select
"Ethernet."
3 In the TCP/IP control panel, set Configure: to "Using DHCP Server."
4 Close the TCP/IP dialog box, and save your changes.
5 Restart your computer.
