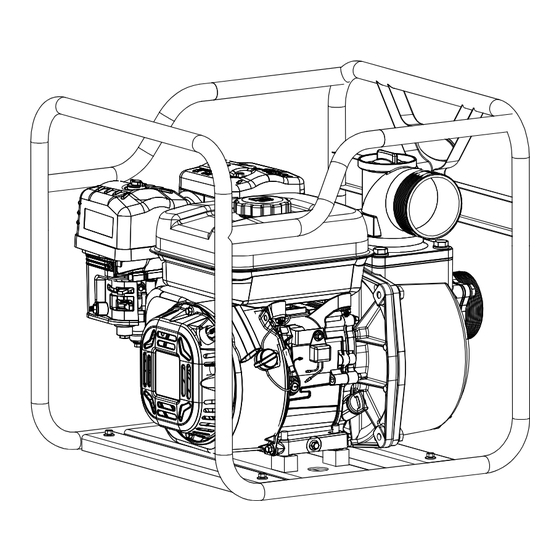

- Page 1 Model: FPX20E & FPX30E Water Pump OPERATOR’S MANUAL www.fordpower.cc...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ....................................3 Safety Rules .....................................4 Safety Symbols ................................4 Safety Instructions ...............................4 Water Pump Features ................................7 Assembly ....................................8 Packing List ..................................8 Unpacking ..................................8 Suction Hose Installation .............................8 Discharge Hose Installation ............................9 Adding Oil and Fuel ..............................9 Operation ....................................10 Pre Operation Check List ............................10 Priming the Water Pump ............................10 How to Start Water Pump ............................12... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing this superior quality general purpose water pump from Ford Power Equipment. When operating and maintaining this product as instructed in this manual, your water pump will give you many years of reliable service. Product Applications: This water pump has many applications and is designed to pump water and non-corrosive liquids. -
Page 4: Safety Rules
SAFETY RULES Safety Symbols Indicates a potentially hazardous situation which could result in serious injury or death if not WARNING! avoided. CAUTION! Indicates a potentially hazardous situation which could result in damage to equipment or property. Risk of explosion Hot surface Risk of fire Safety Instructions Most accidents can be prevented by following the instructions in this manual. - Page 5 To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly. WARNING! Never operate this unit if there are any broken or missing parts and only use Ford Equipment replacement parts specifically designed for this unit. •...
- Page 6 SAFETY RULES Safety Label Locations...
-
Page 7: Water Pump Features
WATER PUMP FEATURES FPX20E & FPX30E FRAME PRIMING WATER FILLER CAP MUFFLER SUCTION PORT PUMP DRAIN CAP STRAINER FUEL FILL CAP AIR CLEANER DISCHARGE PORT CHOKE LEVER OIL FILLER CAP/DIPSTICK RECOIL STARTER GRIP FUEL VALVE LEVER OIL DRAIN PLUG ENGINE ON/OFF SWITCH... -
Page 8: Assembly
Select a commercially available hose (not included) that is larger than the pump’s suction port. Minimum hose size: FPX20E = 2in. (50 mm) FPX30E = 3in. (80 mm). To maximize the pump’s power, the pump should be placed as close to the water level as possible and the hose should be as short as possible. -
Page 9: Discharge Hose Installation
Select a commercially available hose (not included) that is larger than the pump’s Discharge Port. Minimum hose size: FPX20E = 2in. (50mm) FPX30E = 3in. (80mm). To reduce fluid friction, selected a larger diameter hose that is as short as possible. -
Page 10: Operation
OPERATION WARNING! Read and understand this manual in its entirety before operating this water pump. • Improper use of this water pump could result in serious injury or death. • Know how to stop this pump quickly in case of an emergency. •... - Page 11 OPERATION Placing the Water Pump (See Fig 6) To maximize the pump’s power, the pump should be placed as close to the water level as possible and the hose should be as short as possible. • As hose length increases, pump output decreases. •...
-
Page 12: How To Start Water Pump
OPERATION Starting Water pump (See Fig 8A-8C) • Place water pump on a level surface near the water level. Keep the pump at least 3 feet away from walls or equipment. • Prime water pump. (see page 10) • Turn fuel valve to the ON position. •... -
Page 13: How To Stop Water Pump
OPERATION Stopping Water Pump (See Fig 9) For an emergency stop: • Turn the OFF/ON switch to the “OFF” position. For normal conditions: • Slide the throttle lever to the “SLOW” position • Turn the OFF/ON switch to the “OFF” position. •... -
Page 14: Maintenance
Anually (300 hr Use) Replace Spark Plug * Check Valve Clearance * Check Idle Speed Every 2 yrs (500 hr Use) * Clean Combustion Chamber * Check Fuel Tube (*) Items should be performed by your certified Ford power Equipment technician. -
Page 15: Changing Oil
MAINTENANCE Changing Engine Oil (See Fig 11) Engine oil will drain better if the engine is still warm, but not hot. • Shut off engine. • Clean the area around the oil fill cap / dipstick to keep out debris then remove oil fill cap / dipstick. •... -
Page 16: Cleaning Air Filter
MAINTENANCE Air Cleaner (See Fig 13) A dirty air filter will reduce the life span of the engine, make starting the engine difficult, and reduce the unit’s performance. If operating pump in dusty conditions, clean air filter more frequently then specified in the maintenance schedule. •... -
Page 17: Changing Spark Plug
MAINTENANCE Checking Spark Plug (See Fig 14) • Disconnect the spark plug cap from the spark plug. • Before removing the spark plug, clean the area around its base to prevent debris from entering the engine. • Remove the spark plug with a comerically available13/16 spark plug wrench •... -
Page 18: Storage
STORAGE Storing Water pump Proper storage prevents the development of rust and corrosion which affects the pumps performance and appearance. Proper storage also makes it easier to start the engine when using the pump again. If storing water pump for 30 days or more follow the below procedures: If pump has been running, allow engine to cool for at least 30 minutes before taking the steps CAUTION! - Page 19 STORAGE Lubercate Pump Coat areas of pump that might rust, such as areas with damaged paint, with a light film of oil. Use a silicone spary lubricant and lightly lubricate controls. Drain Fuel Tank and Carburetor • For long term storage (over 90 days) drain fuel from fuel tank and carburetor. •...
- Page 20 STORAGE Engine Oil (See Fig 17) • For long term storage (over 90 days) change engine oil (See pg 15) • Remove spark plug (See pg 17) and pour 1 tablespoon of clean engine oil into cylinder. • To distribute oil in the cylinder, pull the recoil starter several times. •...
-
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Engine Does Not Start Check controls OFF/ON switch is in the “OFF” position Turn OFF/ON switch to the “ON” position Fuel valve in “OFF” position Turn Fuel valve to “ON” position Choke is in “RUN” position Turn Choke to “Choke”... -
Page 22: No Pump Output
TROUBLESHOOTING No Pump Output Check Pump Chamber Pump was not primed Prime pump Hose is kinked or damaged Unkink hose, replace damaged hose Strainer is clogged Remove debris to unclog strainer Strainer is not submerged underwater Completely submerge strainer Gasket is damaged Replace Gasket Wing nut and hose clamp are loose Tighten wing nut and hose clamp... -
Page 23: Modifications
Contact your service center if the engine stalls or is hard to start, idles rough, misfires, or backfires. WARNING! Never operate this unit if there are any broken or missing parts and only use Ford replacement parts specifically designed for this unit. •... -
Page 24: Warranty
From the date of original purchase, Ford Power Equipment warrants to the original purchaser, that each water pump sold, shall be free from defect in material and workmanship, for the items and time period set forth below. Ford Power Equipment, at its discretion, agrees to repair or replace any defective part that upon examination, inspection, and testing by a Ford Power Equipment authorized service dealer, is found to be detective within the original warranty period. - Page 25 Take the original receipt and product to the place of purchase or mail the original receipt and product to the address found on the web site if purchased on-line. You can also locate your nearest Ford Power Equipment dealer for service or warranty questions by calling toll free at .
