Page 1: Select Installation Location

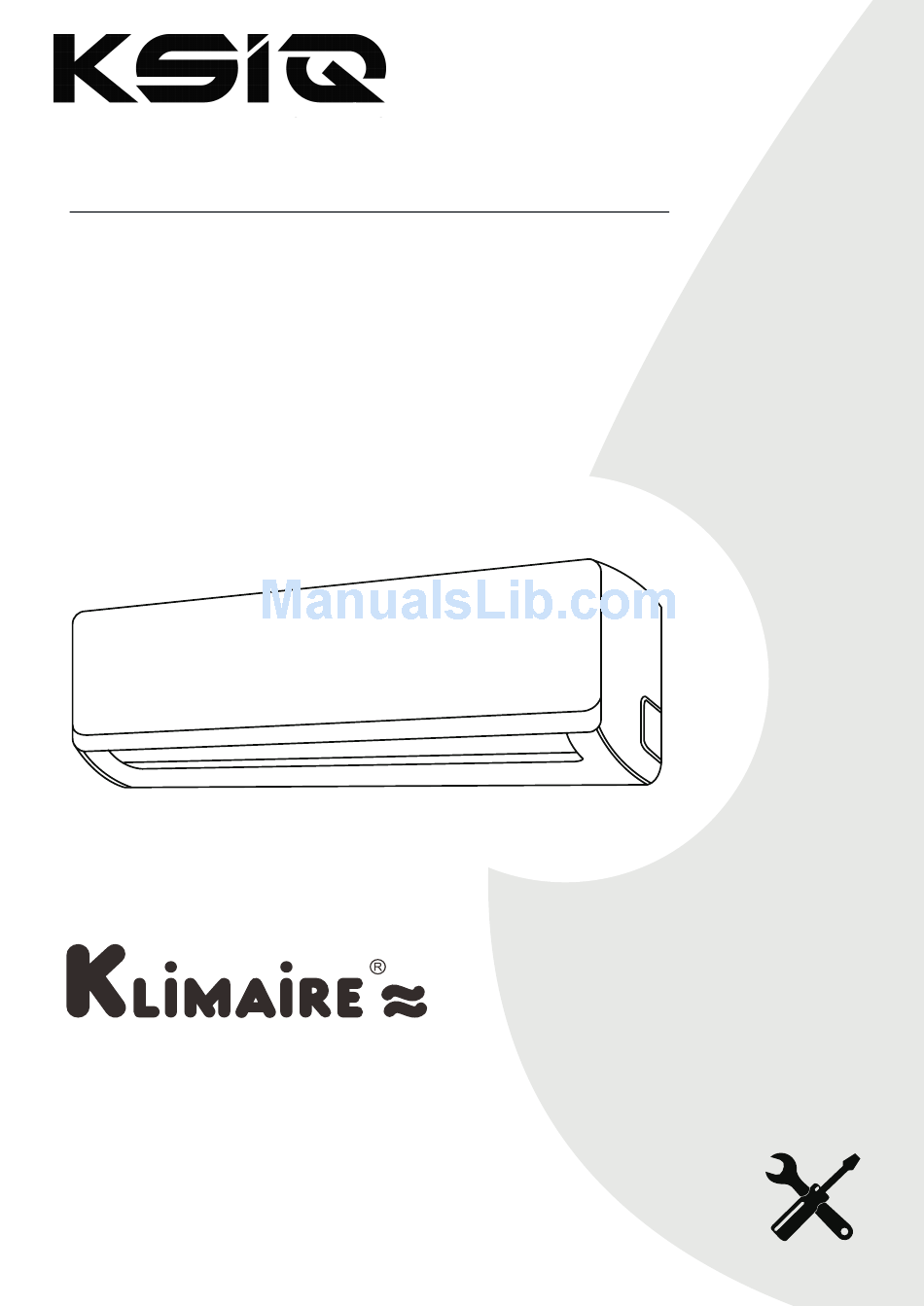

SERIES SPLIT-TYPE ROOM AIR CONDITIONER Installation Manual All Model Numbers IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. -
Page 2: Table Of Contents
Table of Contents Installation Manual Safety Precautions ......... 4 Accessories ............ 8 Installations Summary- Indoor Unit Unit Parts ..........Indoor Unit Installation ..... 11 ..... 1 1 1. Select installation location 2. Attach mounting plate to wall ....12 3. - Page 3 Refrigerant Piping Connection ..... 23 Connecting the refrigerant pipe to outdoor unit ..25 ..... 25 Electrical and Gas Leak Checks Test Run ..........European Disposal Guidelines ....28...
-
Page 4: Safety Precautions
Safety Precautions Read Safety Precautions Before Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. This symbol indicates that ignoring instructions may cause death or serious injury. - Page 5 WARNING 6. For all electrical work, follow all local and national wiring standards, regulations, and the Installation Manual. You must use an independent circuit and single outlet to supply power. Do not connect other appliances to the same outlet. Insufficient electrical capacity or defects in electrical work can cause electrical shock or fire.
-
Page 6: Accessories
Accessories The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. Name Shape Quantity... -
Page 7: Remote Controller Illustration
Name Name Quantity Quantity SPLIT-TYPE ROOM AIR CONDITIONER Owner s Manual Owner’s manual CS78421-548-754 IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. SPLIT-TYPE ROOM AIR CONDITIONER Installation Manual Installation manual IMPORTANT NOTE:... -
Page 8: Installations Summary- Indoor Unit
Installation Summary - Indoor Unit >15cm(5.9in) >12cm >12cm (4.75in) (4.75in) >230cm(90.55in) Select Installation Location Determine Wall Hole Position (Page 11) (Page 12) Attach Mounting Plate Drill Wall Hole (Page 12) (Page 12) Page 8... - Page 9 Connect Piping Connect Wiring Prepare Drain Hose (Page 25 ) (Page 17) (Page 14) Wrap Piping and Cable (Page 18) STEP 8 Mount Indoor Unit (Page 18) Page 9...
-
Page 10: Unit Parts
Unit Parts Wall Mounting Plate Front Panel Power Cable(some units) Louver Drainage Pipe Functional Filter (On Front of Main Filter - Some Units) Signal Cable Refrigerant Piping Remote Control Remote Controller Holder(some units) Fig. 3.1 NOTE ON ILLUSTRATIONS Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. -
Page 11: Indoor Unit Installation
Indoor Unit Installation DO NOT install unit in the following Installation Instructions - Indoor locations: Unit Near any source of heat, steam, or combustible gas PRIOR TO INSTALLATION Near flammable items such as curtains or Before installing the indoor unit, refer to the clothing label on the product box to make sure that the model number of the indoor unit matches the... -
Page 12: Attach Mounting Plate To Wall
Refer to the following diagram to ensure proper distance from walls and ceiling: 15cm (5.9in) or more 12cm (4.75in) 12cm (4.75in) or more or more Fig. 4.1 2.3m (90.55in) or more Step 3: Drill wall hole for connective piping Step 2: Attach mounting plate to wall The mounting plate is the device on which you You must drill a hole in the wall for refrigerant will mount the indoor unit. - Page 13 Wall 348.4mm(13.7in) 179mm (7.05in) Indoor Outdoor 101mm (4in) 136mm ( 5.35in ) Indoor unit outline Left rear wall Right rear wall hole 90mm (3.5in) 722mm (28.45in) hole 90mm (3.5in) Model A 426mm(16.8in) 232mm (9.15in) 192mm (7.55in) 128mm (5.05in) Indoor unit outline Left rear wall Right rear wall Fig.
-
Page 14: Prepare Refrigerant Piping
Step 4: Prepare refrigerant piping NOTE ON PIPING ANGLE The refrigerant piping is inside an insulating Refrigerant piping can exit the indoor unit from sleeve attached to the back of the unit. You must Two different angles: prepare the piping before passing it through the Left-hand side hole in the wall. -
Page 15: Connect Drain Hose
Step 5: Connect drain hose PLUG THE UNUSED DRAIN HOLE By default, the drain hose is attached to the left- To prevent unwanted leaks you must plug hand side of unit (when you re facing the back the unused drain hole with the rubber plug of the unit). - Page 16 BEFORE PERFORMING ELECTRICAL WORK, READ THESE REGULATIONS 1. All wiring must comply with local and national electrical codes, and must be installed by a licensed electrician. 2. All electrical connections must be made according to the Electrical Connection Diagram located on the panels of the indoor and outdoor units. 3.
-
Page 17: Connect Indoor Power Cable
Step 6: Connect indoor power cable TAKE NOTE OF FUSE SPECIFICATIONS The cable enables communication between The air conditioner s circuit board (PCB) is the indoor and outdoor units. You must first designed with a fuse to provide over current choose the right cable size before preparing it for protection. -
Page 18: Wrap Piping And Cables
DO NOT WRAP ENDS OF PIPING NOTE ABOUT WIRING When wrapping the bundle, keep the ends THE WIRING CONNECTION PROCESS MAY of the piping unwrapped. You need to access DIFFER SLIGHTLY BETWEEN UNITS them to test for leaks at the end of the installation process (refer to Electrical Checks Step 7: Wrap piping and cables and Leak Checks section of this manual). -
Page 19: Outdoor Unit Installation
Outdoor Unit Installation Installation Instructions- Outdoor Unit Step 1: Select installation location Before installing the outdoor unit, you must choose an appropriate location. The following are standards that will help you choose an appropriate location for the unit. Proper installation locations meet the following standards: Meets all spatial requirements shown in Fig. -
Page 20: Install Drain Joint
If the drain joint comes with a rubber seal SPECIAL CONSIDERATIONS FOR EXTREME (see Fig. 4.4 - A), do the following: WEATHER 1. Fit the rubber seal on the end of the drain joint If the unit is exposed to heavy wind: that will connect to the outdoor unit. -
Page 21: Anchor Outdoor Unit
Step 3: Anchor outdoor unit The outdoor unit can be anchored to the ground or to a wall-mounted bracket. UNIT MOUNTING DIMENSIONS The following is a list of different outdoor unit sizes and the distance between their mounting feet. Prepare the installation base of the unit according to the dimensions below. -
Page 22: Connect Signal And Power Cables
If you will install the unit on a wall-mounted BEFORE PERFORMING bracket, do the following: ELECTRICAL WORK, READ THESE REGULATIONS CAUTION 1. All wiring must comply with local and national electrical codes, and must be Before installing a wall-mounted unit, make installed by a licensed electrician. -
Page 23: Refrigerant Piping Connection
Refrigerant Piping Connection 3. Align the refrigerant pipes correctly so Connecting the refrigerant pipe to that they line up with the valves and are outdoor unit not stressed. Place the screw connector CAUTION: For your safety, always wear on the refrigerant line just on to the thread goggles and work gloves when connecting on the outdoor unit and tighten the first the pipes. - Page 24 Coup ling size (last 2 part numb ers) Poun d-forc e foot(1 bf-ft) Newt on mete r(N-m ) Kilog ram-f orce mete r(kgf- m) -06(9.5mm dash size) 18 - 20 24.4 - 27.1 2.4 - 2.7 40.6 - 47.4 -08(12.7mm dash size) 30 - 35 4.1 - 4.8 61.0 - 67.7...
-
Page 25: Electrical And Gas Leak Checks
Electrical and Gas Leak Checks Electrical Safety Checks WARNING - RISK OF ELECTRIC SHOCK After installation, confirm that all electrical wiring ALL WIRING MUST COMPLY WITH LOCAL is installed in accordance with local and national AND NATIONAL ELECTRICAL CODES, regulations, and according to the Installation AND MUST BE INSTALLED BY A LICENSED Manual. -
Page 26: Test Run
Test Run Before Test Run List of Checks to Perform PASS/FAIL No electrical leakage Only perform test run after you have completed the following steps: Unit is properly grounded Electrical Safety Checks - Confirm that the unit s electrical system is safe and All electrical terminals operating properly. - Page 27 DOUBLE-CHECK PIPE CONNECTIONS During operation, the pressure of the refrigerant circuit will increase. This may reveal leaks that were not present during your initial leak check. Take time during the Test Run to double-check that all refrigerant pipe connection points do not have leaks. Refer to Gas Leak Check section for instructions.
-
Page 28: European Disposal Guidelines
European Disposal Guidelines This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste. When disposing of this appliance, you have the following options: Dispose of the appliance at designated municipal electronic waste collection facility. - Page 29 Fax (305) 675-2212 www.klimaire.com sales@klimaire.com The Klimaire logo is a registered Trademark of Klimaire Products inc. Copyright 2017 Klimaire Products Inc. The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
