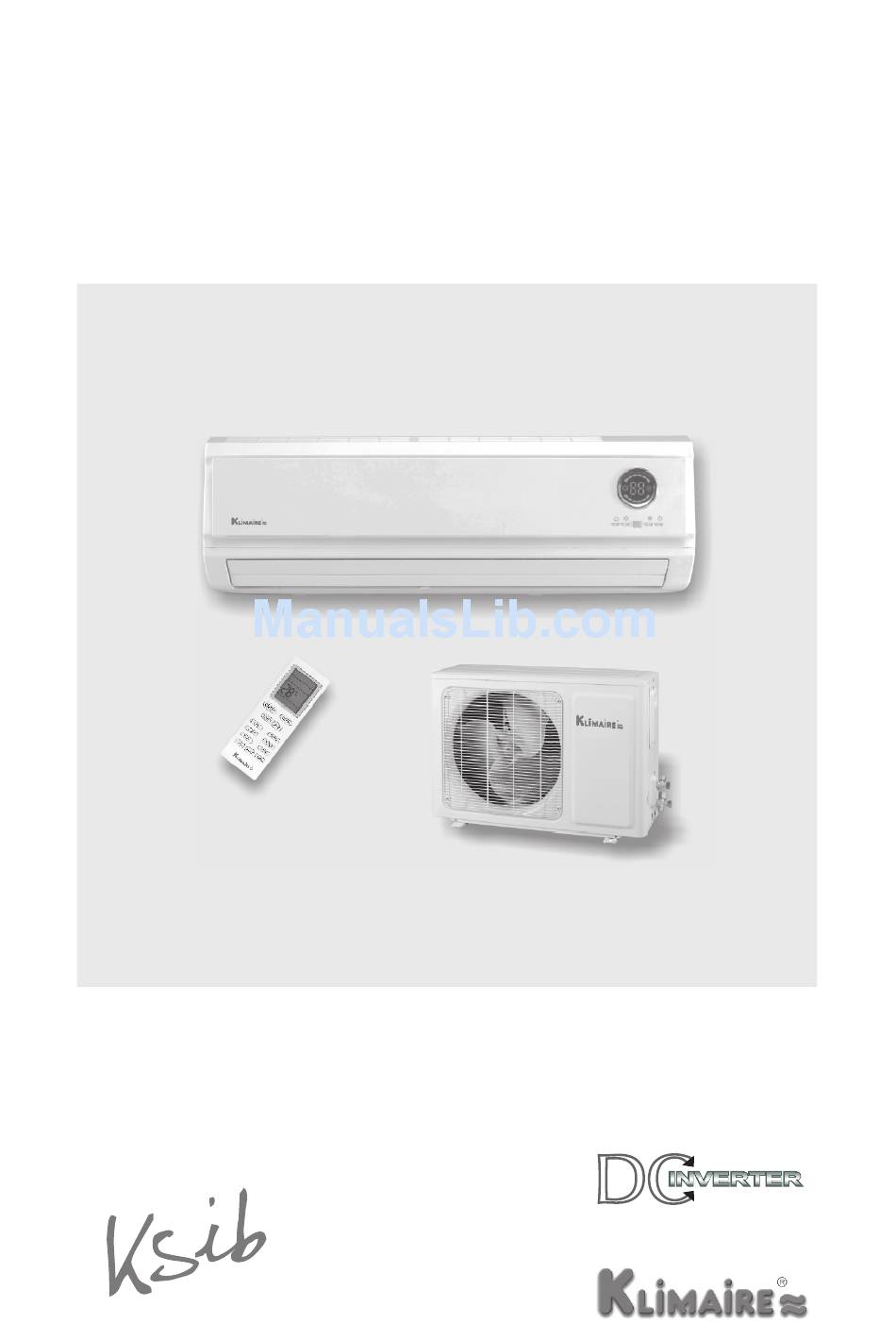

- Page 1 OWNER´S MANUAL INSTALLATION AND OPERATION INSTRUCTION MANUAL TECHNOLOGY ULTIMATE COOLING & HEATING SOLUTION ULTIMATE COOLING & HEATING SOLUTION...
-
Page 2: Table Of Contents
Name and Function of Parts Instructions to end users Models&specifications Remote controller operation procedure Operation instructions guide Installation procedures Electrical wiring Grounding requirements Installation clearance requirements Installation of the indoor unit Installation of the outdoor unit Test check after installation Maintenance and service procedures Trouble shooting... -
Page 3: Name And Function Of Parts
Installation and operation installations manual Name and function of parts Panel controller Power/Run Selection Window receiver... -
Page 4: Instructions To End Users
Instructions to end users Be sure to cut off the p- Grounding:The ower supply when the Air grounding must be connected!The grounding conditioner is not being u- The wrong repair will lead to sed for a long time. wire should be connected an electric shock or fire,so you to the special device. - Page 5 Please note whether or not the condensing unit stand is firmed enough. It can prevent wasting excess If it's damaged,it may lead to the electricity. louvers to an upward/downward collapse of the unit and cause serious injury or harm. The power cord of this air con- ditioner adopt Y-type connecti- on,please don t cut off or da- magethe power cords and con-...
-
Page 6: Remote Controller Operation Procedure
Name and Function-Remote controller operation procedure Note: Be sure that there is on obstruction. Don't drop or throw the remote control. Don't place the remote control in a location exposed to direct sunlight. Whe the unit is restarted after stopped,it can automatically resume its most latest running mode,and the outdoor unit will Re-start subsequently Operation MODE Button TEMP Setting Button:... - Page 7 Name and Function-Remote controller operation procedure Note: This type of remote controller is our latest model.Some buttons of the controller which have extra function will be described below. Liquid crystal display(LCD) It shows all settings SWINGG Buttonutton On, press this button once to start the SWING function, when press the button once again will stop.
-
Page 8: How To Insert Batteries
How to insert batteries 1.Remove the cover from the back of the remote control. 2.Insert the two batteries(Two AAA dry-cell batteries). 3.Re-attach the cover. NOTE: Don't confuse the new and worn out or different batteries. Remove batteries when not in use for a longtime. The batteries can be used for about one year. -
Page 9: Operation Instructions Guide
Operation instructions guide repressing it. mode... -
Page 10: Installation Procedures
Installation procedures Installation location Indoor Unit areas airflow obstructed be drained 9. Do not use the unit in the immediate surrpundings of a laundry ,a bath ,a shower or a swimming pool. 10. The plug should be accessible after the appliance is positioned. Outdoor unit... -
Page 11: Electrical Wiring
Electric wiring Grounding requirement... -
Page 12: Installation Clearance Requirements
Installation clearance requirements... - Page 13 Install of the indoor unit Install the rear panel Install the piping hole Install the drainage hose Install the connection pipes Electric wiring...
- Page 14 Connect the Neutral wire of the power connection cables to the N (1) terminal of the term- inal board, connect the Signal wire to the “2”terminal, and connect the live wire to the“3”term- inal and connect the earthing wire to the “ ”...
- Page 15 Install of the indoor unit...
-
Page 16: Install The Outdoor Unit
Install the outdoor unit Install the connection pipe Electric wiring connection Signal Control Cable Power (Only for Heating and Connection Cooling Type Unit) Cable Connecting Block Coo/Heat for Outdoor Unit Model Diagram Power Connection Cable securely tightened. Connecting Block for Indoor Unit... - Page 17 Air purging and leakage test...
-
Page 18: Test Operation And Check After Installation
Test operation and check after installation Test operation Check after installation secured firmly? Is the unit piping properly insulated? machine machine. Has the unit been connected to a secure grounding connection? short circuiting. decrease in... -
Page 19: Maintenance And Service Procedures
Maintenance and service procedures Clean the front panel ( When cleaning the front panel do not take it off) When the indoor unit front panel is dirty, please use the cloth which is soaked in the warm water under 40 then dry it and wipe the dirty places. - Page 20 Be sure that objects do not obstruct the air outlet and intake vents. Check that whether grounding wire is properly connected or not. Repaint the rusted areas on the outdoor unit location to prevent it from spreading. as a safety feature.
- Page 21 expansion / contraction...
- Page 22 If any of the following conditions occur,inmediately stop all operations and unplug unit.Then contact the service center. wires...
