N z Lock key for starting Operation lock or
starting/canceling Privacy view
Connection of Stereo Earphone Set 01 (Optional)
for external connection jack
* AC adapter uses a common jack.
Stereo Earphone Set 01
AC adapter
6
*
External
connection jack

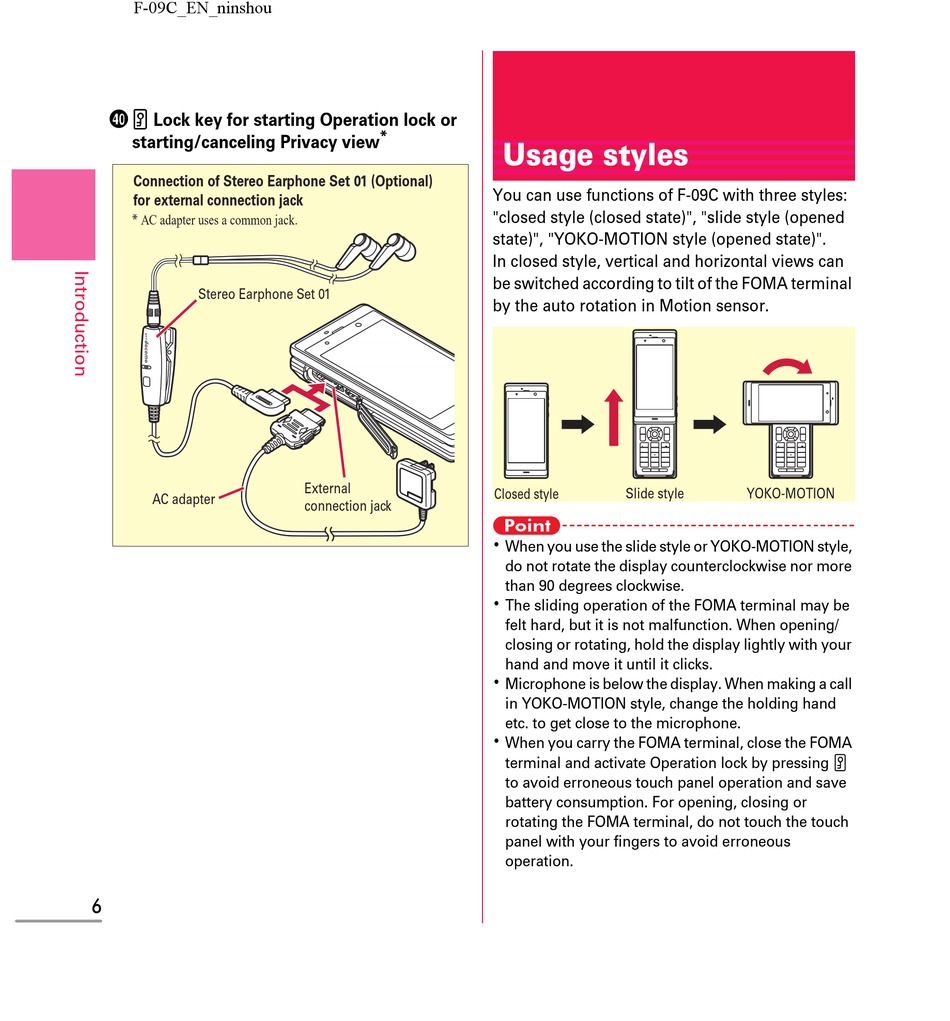

Usage styles

You can use functions of F-09C with three styles:
"closed style (closed state)", "slide style (opened
state)", "YOKO-MOTION style (opened state)".
In closed style, vertical and horizontal views can
be switched according to tilt of the FOMA terminal
by the auto rotation in Motion sensor.
Closed style Slide style
Point
･
When you use the slide style or YOKO-MOTION style,
do not rotate the display counterclockwise nor more
than 90 degrees clockwise.
･
The sliding operation of the FOMA terminal may be
felt hard, but it is not malfunction. When opening/
closing or rotating, hold the display lightly with your
hand and move it until it clicks.
･
Microphone is below the display. When making a call
in YOKO-MOTION style, change the holding hand
etc. to get close to the microphone.
･
When you carry the FOMA terminal, close the FOMA
terminal and activate Operation lock by pressing z
to avoid erroneous touch panel operation and save
battery consumption. For opening, closing or
rotating the FOMA terminal, do not touch the touch
panel with your fingers to avoid erroneous
operation.
YOKO-MOTION
