Summary of Contents for NETGEAR AirCard USB Modem

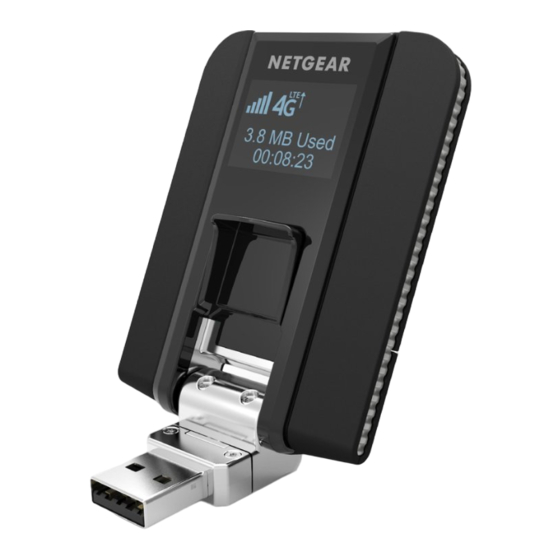

- Page 1 NETGEAR AirCard USB Modem User Guide 4114245 Rev. 1...
- Page 3 Notice totally lost. Although significant delays or losses of data are rare when wireless devices such as the NETGEAR modem are used in a normal manner with a well- constructed network, the NETGEAR modem should not be used in situations...
-
Page 4: Contact Information
Trademarks NETGEAR, the NETGEAR logo, AirCard and Watcher are trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand names mentioned herein are for identification purposes only and may be trademarks of their respective holder(s). Information is subject to change without notice. © 2013 NETGEAR, Inc. -
Page 5: Table Of Contents
About the AirCard USB Modem ........ - Page 6 AirCard USB Modem User Guide Index............21...
-
Page 7: Netgear Aircard Usb Modem User Guide
(VPN), or view streaming video without the need for a network cable. The AirCard USB Modem connects to a Type A USB port on your computer. If the AirCard USB Modem is TRU-Install enabled, all the required software is available on the modem. -
Page 8: Aircard Usb Modem Features
Most service providers have coverage maps on their web sites. AirCard USB Modem features The AirCard USB Modem has the following features: • USB connector • SIM card slot •... -
Page 9: Web User Interface
Quick Start Guide for additional examples. Web User Interface Your AirCard USB Modem may come with an embedded Web user interface, depending on your modem and service provider. Use the Web user interface to manage the modem and your account. -
Page 10: Connection Management Software
Create or modify a connection profile For more information about using Watcher, view the Online Help that comes with Watcher. You do not need to run Watcher when you use the AirCard USB Modem, but Watcher does provide useful status information. Launching Watcher (Windows) Unless this feature has been disabled, Watcher launches automatically when you insert the AirCard USB Modem. -
Page 11: Launching Watcher (Mac)
To use your account (and connect to your service provider’s network), you must have at least one profile set up on your AirCard USB Modem. Depending on how your AirCard USB Modem is configured, the profile may already be set up or you may need to create one. -
Page 12: Windows
Once the software is successfully installed and the profile is set up, the AirCard USB Modem is ready to use. The first time you insert the AirCard USB Modem in the computer, it takes a few seconds for it to locate the network. While the AirCard USB Modem is scanning for a network, the Connect button is unavailable. -
Page 13: Using The Microsd Card
To insert and use a microSD card: 1. Remove the back cover from the modem. 2. Insert the microSD card in the slot as shown in the illustration. 3. Replace the back cover and insert the AirCard USB Modem into the computer. Rev 1 Apr.13... -
Page 14: Removing The Sim Card
To remove the SIM card on AirCard USB Modems that have the SIM slot behind the back panel, remove the back panel and slide the SIM card out of the slot. Using AirCard USB Modem accessories Depending on your carrier and your modem model, your AirCard USB Modem may come with: •... -
Page 15: Using The Extension Cable And Clip
Note: Do not insert the AirCard USB Modem or the USB extension cable into a USB hub or, if your keyboard is separate from your notebook computer, a USB slot on your keyboard. -
Page 16: Care And Maintenance
AirCard USB Modem User Guide Care and maintenance As with any electronic device, the AirCard USB Modem must be handled with care to ensure reliable operation. Follow these guidelines when you use and store your AirCard USB Modem: • Do not apply adhesive labels to the SIM card. This may cause it to jam inside the slot, or prevent it from being inserted properly. -
Page 17: Modem Is Not Detected After Aircard Watcher Installation Completes
3. When you are prompted to switch to modem mode, click 4. Wait for Watcher to detect the AirCard USB Modem. 5. If the AirCard USB Modem still is not detected, connect to the Internet using another method and go to support.netgear.com... -
Page 18: Technical Specifications
AirCard USB Modem User Guide Technical specifications Radio frequency and electrical specifications The radio frequency bands that your AirCard USB Modem supports will vary depending on your region and your model. Modem 3G UMTS CDMA BC10 1800 1900 2100 340U... -
Page 19: Environmental Specifications
Environmental specifications Operating AC320U/AC330U: 0°C to 35°C (32°F to 95°F) temperature AC340U/AC341U: 0°C to 45°C (32°F to 113°F) (ambient) Storage AC320U/AC330U: -40°C to +85°C, 96 hours (-40°F to +185°F) temperature AC340U/AC341U: -20°C to +85°C, 96 hours (-4°F to +185°F) Humidity 85°C, 85% relative humidity for 48 hours (non-condensing) Vibration Random vibration, 10 to 1000 Hz, nominal 6 G RMS in each of 3... -
Page 20: Regulatory And Safety Information
Data may be delayed, corrupted (that is, have errors), or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the NETGEAR modem are used in a normal manner with a well-constructed network, the NETGEAR modem should not be... -
Page 21: Regulatory Information For North America
To meet FCC requirements, use only the supplied USB extension cable and laptop clip; other cables and laptop clips should not be used. The NETGEAR USB modem must be 1 cm or more from users during operation, to satisfy FCC / IC RF exposure requirements. The NETGEAR USB modem has... - Page 22 Note: This USB modem must not be used in any unapproved configurations. For details, contact NETGEAR. Note: The NETGEAR USB modem is approved for normal-size notebook computers only (typically with 12 inches or larger display screens). For notebook computers with a display...
- Page 23 Index accessories, 12 network, overview, 5 account, 5 notebook computer clip, 13 clip, 13 profile, 10 connect to the network, 9 coverage area, 5 radio frequency specifications, 16 regulatory information, 18 electrical specifications, 16 specifications, 16 environmental specifications, 17 roaming, 5 extension cable, 13 external memory...
