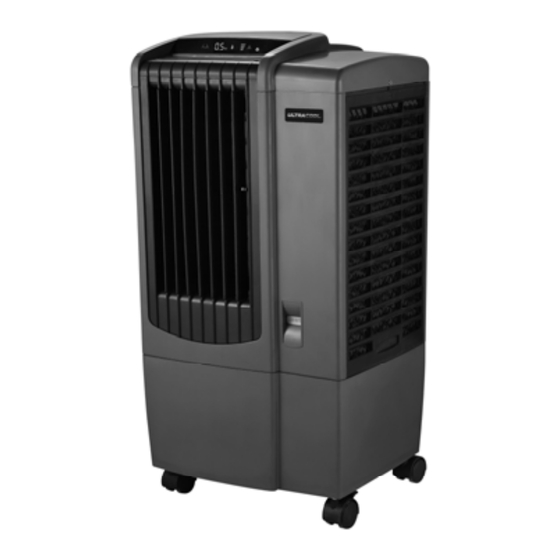

UltraCOOL CP35 Use & Care Manual

Hide thumbs Also See for CP35:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

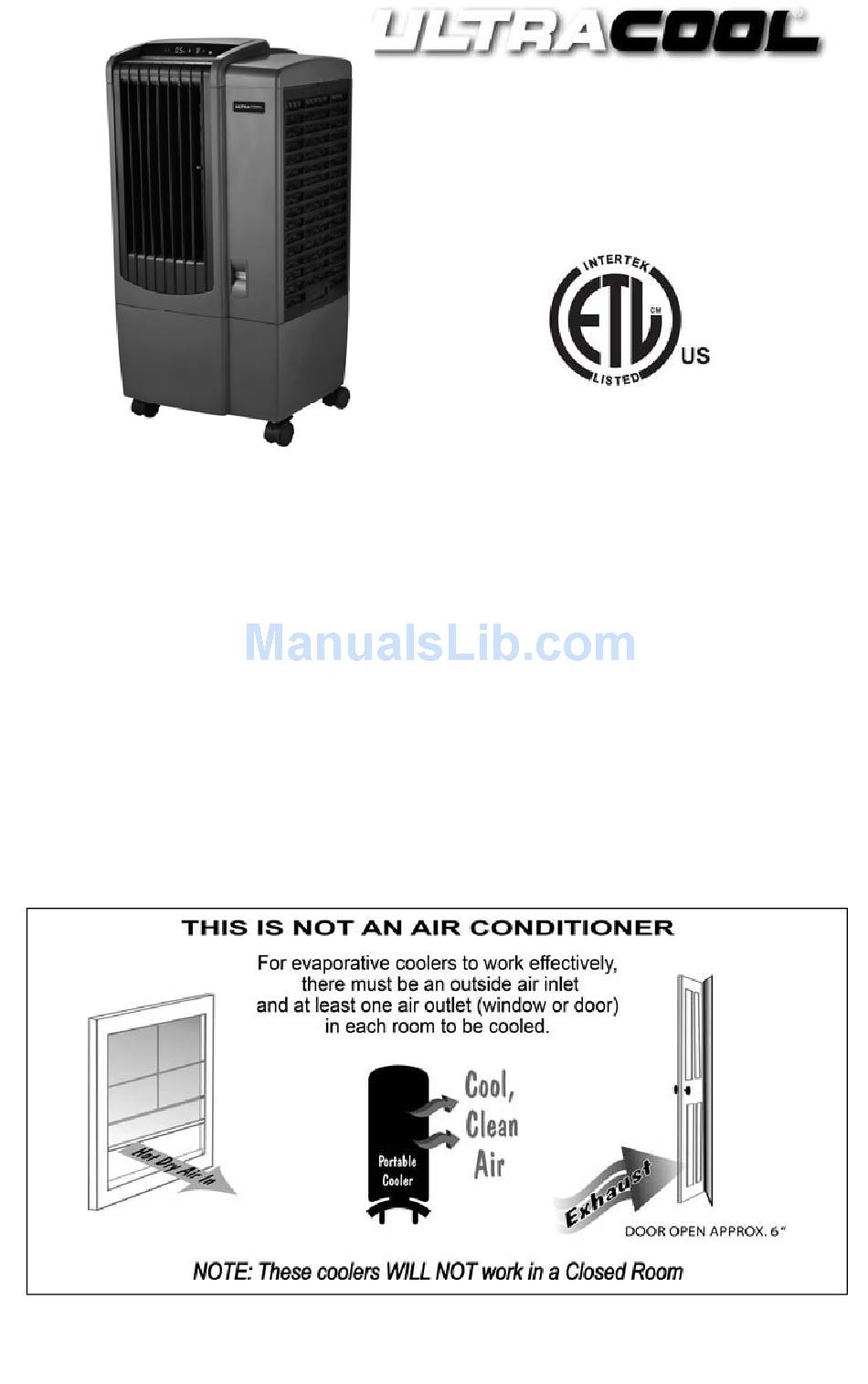

CP35 PORTABLE
EVAPORATIVE COOLER
USE & CARE GUIDE


Read and Save These Instructions
If you have any problems with this product, please call 1-800-643-8341
BEFORE returning it to your retailer.
.
NOTICE: This Product May Temporarily Produce An Odor When First Turned On
This is NORMAL and will dissipate after a few hours.
About Evaporative Cooling
Evaporative cooling is an economical way to cool and is highly effective in arid
climates. Air is cooled while being drawn across wet evaporative media. The
movement of this fresh cooled air over the skin is what makes it feel cool.
In order for evaporative coolers to be effective in an enclosed area, a fresh air source
and adequate exhaust need to be present. These coolers will not work well without an
outlet to exhaust the hot air. Humidity will build up in the enclosed space and the unit
will not cool adequately.

72852
9-2014
Printed in China
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP35 and is the answer not in the manual?

Questions and answers

Related Manuals for UltraCOOL CP35

Summary of Contents for UltraCOOL CP35

  • Page 1   CP35 PORTABLE EVAPORATIVE COOLER USE & CARE GUIDE     Read and Save These Instructions If you have any problems with this product, please call 1-800-643-8341 BEFORE returning it to your retailer. NOTICE: This Product May Temporarily Produce An Odor When First Turned On This is NORMAL and will dissipate after a few hours.

  • Page 2: Safety Rules

      Safety Rules Unit must be in the Off Position and Unplugged from power receptacle when performing any maintenance. To reduce the risk of electric shock, plug unit into a properly grounded 120 Volt A.C., 60 Hz receptacle. To reduce the risk of electric shock, install only on a circuit protected with a Ground Fault Circuit Interrupter (GFCI).
  • Page 3 A gauge on the front of the unit shows the water level. When the reservoir is full, the window will show a full blue fill. When the reservoir is low, an indication of LOW WATER will appear in the window. Observe this gauge to monitor the water level.
  • Page 4 3. Fill the water tank to reset the LOW WATER indications. ON/OFF Remote Control: The CP35 unit comes with a remote control that allows SPEED operation of the of the cooler from a distance. PUMP 1. Extract the remote control from the bag the manual came in and open the case.

  • Page 5: Maintenance

    Maintenance: CAUTION: Turn off and unplug unit from power before any maintenance is performed. GENERAL INFORMATION: The cellulous media used in these portable evaporative coolers must be kept in good condition to maintain the stated cooling capabilities. We recommend draining the unit weekly and refilling to keep water fresh and reduce mineral build-up on media.

  • Page 6: Troubleshooting

    Pad Replacement 1. Remove media frame from unit side by extracting one screw. 2. Remove and dispose of used media. 3. Install new media pad per instructions noted here. NOTE: Proper orientation of the media is critical to ensure cooling effectiveness. 4.
  • Page 7   CP35 Replacement Parts     Item Description Part Number Number Evaporative media 110132-1 Evaporative media frame assembly 110870-11 Keepers & Stems ( set of 4) 110871 Pump 110439-4 Drain plug assembly 110698-2 Water indicator float 110872-2 Swivel casters- Non-locking...
  • Page 8       Cooler Limited Warranty policy     SALES RECEIPT REQUIRED AS PROOF OF PURCHASE FOR ALL WARRANTY CLAIMS.     This warranty is extended to the original purchaser of an evaporative   cooler installed and used under normal conditions. It does not cover damages incurred through accident, neglect, or abuse by the owner.
