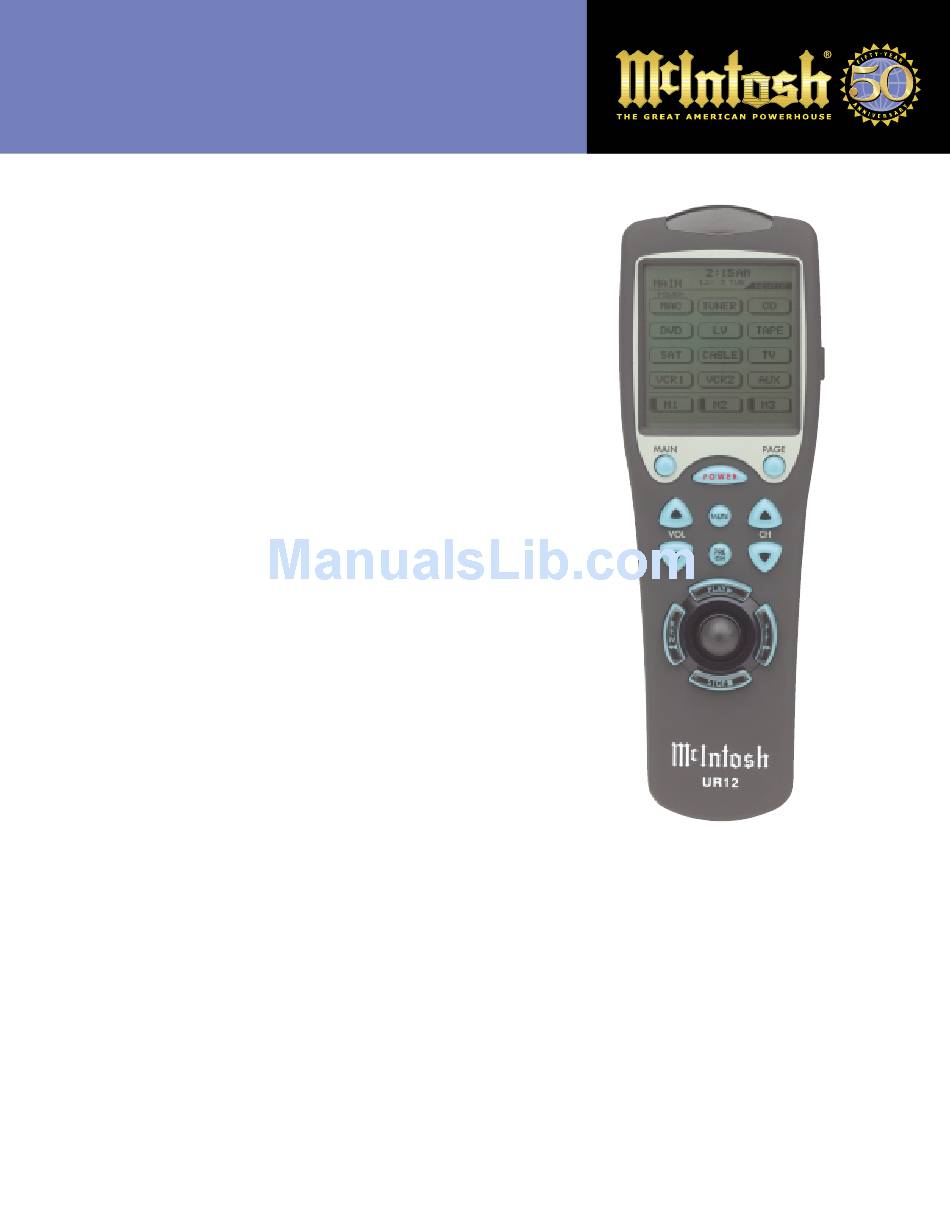

UR12 Universal Programmable
IR Remote Control
Operate Your Entire
Entertainment System with
One Remote Control
T
he UR12 combines large, easy-to-use pushbuttons and a navigation joystick
with a multi-page LCD touchscreen to provide streamlined control of your
entire entertainment system. Touchbuttons and text on the LCD display can be
customized to your preferences, and as many as 28 macro sequences can be
programmed for one-button operating convenience. The UR12 has built-in
commands for all McIntosh equipment as well as hundreds of popular brands.
The UR12 can also learn new IR codes.
FEATURES
Universal Preprogrammed Design
The UR12 operates all McIntosh equipment and offers quick and easy setup
for non-McIntosh components – simply enter a code or scan by brand name
through hundreds of A/V components listed in the UR12's database.
Learning Function
The UR12 can learn codes from original remotes (a total of 780 learned codes.)
Large Illuminated Pushbuttons
Pushbuttons operate frequently used functions and are easy to see and operate
in a darkened home theater environment.
Illuminated LCD Touchscreen
The touchscreen offers menu-based, touchbutton control of as many as
12 A/V components.
Customized LCD Screens
Touchbutton size, shape, and name can be customized to fit your application.
Macros
15 macros can be programmed on the main page, enabling sequences of com-
mands to be performed in one step. As many as 60 favorite-channel buttons can
be created for your favorite channels.
Punch-Through Commands
Volume, channel, and transport buttons can operate regardless of input selection.
Navigation Joystick
A five-function joystick is provided for on-screen menu navigation.
PC Data IN/OUT
The PC interface allows for editing and downloading of new software.
Memory Lock
The UR12 retains programmed and learned functions for extended periods,
even during battery changes.
AA Batteries
The UR12 uses four AA Alkaline batteries (included).
McIntosh Laboratory, Inc., 2 Chambers Street, Binghamton, NY 13903
tel (607) 723–3512
toll-free (888) 979–3737
•
1200.UR12.15k.essecomm
C O N T R O L
fax (607) 772–3308
www.mcintoshlabs.com
•
•
Digitized in Heiloo Netherland
5/10/2017
Advertisement
Table of Contents
Related Manuals for McIntosh UR12
Summary of Contents for McIntosh UR12
- Page 1 A/V components listed in the UR12’s database. Learning Function The UR12 can learn codes from original remotes (a total of 780 learned codes.) Large Illuminated Pushbuttons Pushbuttons operate frequently used functions and are easy to see and operate in a darkened home theater environment.
- Page 2 5/10/2017 Owner’s Manual UR12 Touch Screen Remote UR12 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549 Digitized in Heiloo Netherland...
- Page 3 www.freeservicemanuals.info 5/10/2017 WARNING - TO REDUCE RISK NO USER-SERVICEABLE PARTS OF DAMAGE, DO NOT EXPOSE INSIDE. REFER SERVICING TO THIS EQUIPMENT TO RAIN OR QUALIFIED PERSONNEL. MOISTURE. IMPORTANT SAFETY Care of Equipment: INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT. Repair of Equipment: General: 5.
-
Page 4: Customer Service
Thank You Technical Assistance Please Take A Moment Customer Service Note: The Serial Number is located inside the Battery Compartment on the left side. Serial Number: Purchase Date: Dealer Name: Copyright 2001 © by McIntosh Laboratory, Inc. Digitized in Heiloo Netherland... -
Page 5: Table Of Contents
Clock Setting ............. 15 Touch Screen Alignment ........15 buttons. System and Options ........... 15 4. The UR12 contains Control Codes for some Introduction Macro and Punch Through of the most popular remote controlable Programming ............. 16 Audio/Video Component Products. If the Program Macro Functions ......... - Page 6 www.freeservicemanuals.info 5/10/2017 Introduction and Performance Features Performance Features · Pin 1 Pin 5 Controls up to Twelve Components Pin 6 Pin 9 · Stereo Mini Phone Plug Preprogrammed for quick set up · Learning Capability Ring Sleeve · Customizable LCD Screens Introduction ·...
- Page 7 www.freeservicemanuals.info 5/10/2017 Installing Batteries Installing Batteries Note: Please do not mix old batteries with new ones or mix different types of batteries. Release Latch Figure 3 Figure 1 Figure 2 Figure 4 Digitized in Heiloo Netherland...
- Page 8 www.freeservicemanuals.info 5/10/2017 Initial Start-up Initial Start-up SYSTEM SETTING 1. TOUCH PAD ALIGNMENT 2. SYSTEMS & OPTIONS 3. PREPROGRAM 4. LEARNING 5. EDIT BUTTONS 6. SET DATE & CLOCK 7. PROGRAM LOADING 8. TO EXIT ‚ SELECT : JOY STICK —...
- Page 9 www.freeservicemanuals.info 5/10/2017 Touch Screen and Push-buttons IR Sensor for send- ing and receiving Touch Screen with IR Signals Pages of Menus Press the push-but- ton to illuminate the Touch Screen and Touch-buttons Selects the different Pages of Touch Screen Menus Selects the Main Touch Screen Menu MUTEs the audio...
- Page 10 www.freeservicemanuals.info 5/10/2017 How to Operate the Remote Control Touch Screen Previous Channel Mute Volume ‚ Power Transport Functions „ ¡ Lighting Channel Functions ‚ Page ‚ ‚ Joystick Main Digitized in Heiloo Netherland...
- Page 11 5/10/2017 Touch Screen Menu Page 1 Input Source Selection Note: If your McIntosh Control Center or Preamplifier has additional Inputs that you would like to select and control, contact your McIntosh Dealer for assistance. Digitized in Heiloo Netherland...
- Page 12 5/10/2017 MAC Touch Screen Pages Touch Screen Menu Page 2 Tuner Functions Note: The UR12’s CHannel Push-buttons may also be used to tune to the next station. Press and release the CHannel Up or Down‚ Push- button to move from station to station on both the AM and FM Dial.
- Page 13 www.freeservicemanuals.info 5/10/2017 Touch Screen Menu Page 3 Numbered and +10 Push-buttons Home Enter Digitized in Heiloo Netherland...
- Page 14 www.freeservicemanuals.info 5/10/2017 MAC Touch Screen Pages Touch Screen Menu Page 4 Power On and Off Note: Provides discrete commands for use in Macros. Listen and Record Processors Speakers 1 and 2 Mode Mono/Stereo System Off Level Trim Digitized in Heiloo Netherland...
-
Page 15: System Settings
www.freeservicemanuals.info 5/10/2017 Overview SYSTEM SETTING 1. TOUCH PAD ALIGNMENT 2. SYSTEMS & OPTIONS 3. PREPROGRAM 4. LEARNING 5. EDIT BUTTONS 6. SET DATE & CLOCK 7. PROGRAM LOADING 8. TO EXIT ‚ SELECT : JOY STICK — ENTER : JOY STICK Touch Screen Contrast Entering the System Settings Figure 7... -
Page 16: Clock Setting
10 - 50 Note: If a new version of the Normal Modes (in percentage) of Operation Firmware has been uploaded into the UR12, a Touch Screen Aligment Procedure must be performed inorder for the Touch- buttons to become active. Systems and Options... -
Page 17: Introduction Macro And Punch Through Programming
www.freeservicemanuals.info 5/10/2017 Introduction Macro and Punch Through Programming Programming Macro Functions Figure 10 M1, M2 and M3 Buttons Figure 9 Digitized in Heiloo Netherland... -
Page 18: Device Buttons
www.freeservicemanuals.info 5/10/2017 System Settings Device Buttons Note: Pressing the Volume Up button during the macro programming will add a time delay of 0.5 seconds between the commands (e.g. Pressing the Volume Up button twice will cause a pause of 1 second between the commands where the delay was inserted). -
Page 19: Preprogram
www.freeservicemanuals.info 5/10/2017 To Erase Punch Through Functions Preprogram Figure 11 Using a three-digit code number Digitized in Heiloo Netherland... -
Page 20: Auto Scan With Brand Names
www.freeservicemanuals.info 5/10/2017 System Settings Auto Scan with Brand Names Figure 12 Digitized in Heiloo Netherland... -
Page 21: Learning Method
www.freeservicemanuals.info 5/10/2017 Learning Method Note: Any of the Touch-buttons may be used except the MAIN and PAGE Push-buttons. Note: It is quite possible that the code number that works with your component may have a different brand name because of the way it was made by its manufacturer. -
Page 22: Erasing The Learned Buttons
5/10/2017 System Settings Erasing the Learned Buttons 2 - 3 inches (5.08 - 7.62 cm) apart Other Brand Remote McIntosh UR12 Figure 14 Digitized in Heiloo Netherland... - Page 23 www.freeservicemanuals.info 5/10/2017 Digitized in Heiloo Netherland...
-
Page 24: Edit Touch-Buttons
www.freeservicemanuals.info 5/10/2017 System Settings Note: Preprogrammed code will be automatically restored when learned function is erased. Edit Touch-buttons Figure 14 Moving Touch Buttons Note: You may first relocate or delete the buttons that are currently at the position you plan to locate the new button. - Page 25 www.freeservicemanuals.info 5/10/2017 buttons on the Favorite Device Page can be moved. Copy Touch Buttons Note: You may also want to change the size and text of the buttons in the favorite device page using CHANGE and TEXT EDIT in EDIT mode. However, the text on the button should be written on the main device page before the device button is stored in favorite...
- Page 26 www.freeservicemanuals.info 5/10/2017 System Settings memory in the remote control and a new program is loaded to the remote control. The learned functions will be lost permanently with the deletion of the button. Please use caution in deleting the button. Figure 15 Inserting Touch-buttons Figure 16 Digitized in Heiloo Netherland...
- Page 27 www.freeservicemanuals.info 5/10/2017 Changing Touch-buttons Editing Touch-button Text Figure 17 Digitized in Heiloo Netherland...
- Page 28 www.freeservicemanuals.info 5/10/2017 System Settings Figure 18 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z ‚ _ ! # % & ‘ ( ) * + , - .
-
Page 29: Setting The Date And Clock
www.freeservicemanuals.info 5/10/2017 Setting the Date and Clock Program Loading 6. SET DATE & CLOCK 7. PROGRAM LOADING I N T E R F A C E OPERATING PROGRAM UP LOAD DOWN LOAD Figure 19 LEARNED PROGRAM UP LOAD DOWN LOAD PROGRAM VERSION _ . -
Page 30: Erasing All The Programs
Erasing all the Programs End View of UR12 Caution: The following step will erase all of the Normal Modes of Operations from the UR12 and activate the Program Upload Mode. UR12 Upload Data Cable Location of Reset Computer with UR12 Software Program... - Page 31 www.freeservicemanuals.info 5/10/2017 ‚ ‚ ‚ Digitized in Heiloo Netherland...
- Page 32 www.freeservicemanuals.info 5/10/2017 Alternate Button Functions Digitized in Heiloo Netherland...
- Page 33 LUXMAN ------------------------------------------ 137 139 052 165 115 004 009 LXI -------------------------------------------------- 076 056 MAGNAVOX ------------------------------------- 086 164 152 208 MARANTZ ---------------------------------------- 006 028 031 040 063 185 186 251 265 MCINTOSH --------------------------------------- 001 238 MCS ------------------------------------------------- 76 Digitized in Heiloo Netherland...
- Page 34 www.freeservicemanuals.info 5/10/2017 Setup Code Table Manufacturer/Brand Set-Up Code Number Audio Devices MERIDIAN ---------------------------------------- 100 012 013 MITSUBISHI -------------------------------------- 242 243 204 MONDIAL ----------------------------------------- 157 158 042 043 081 112 MYRYAD ------------------------------------------ 276 NAD ------------------------------------------------ 186 113 283 NAKAMICHI ------------------------------------- 111 244 245 172 183 NEC ------------------------------------------------- 176 ONKYO -------------------------------------------- 017 046 064 107 108 187 079 080 090 179 209 270 275 OPTIMUS ------------------------------------------ 026 041 138...
- Page 35 www.freeservicemanuals.info 5/10/2017 Manufacturer/Brand Set-Up Code Number Auxiliary Devices LUTRON ------------------------------------------- 077 158 159 MAKITA ------------------------------------------- 186 201 MINDPATH ---------------------------------------- 205 NILES ---------------------------------------------- 160 187 NSM ------------------------------------------------ 161 PIANO DISC PLUS ------------------------------ 85 POLKAUDIO ------------------------------------- 162 REPLAY -------------------------------------------- 75 RUSSOUND --------------------------------------- 81 SCIENTIFIC ATLANTA ------------------------ 156 163 SIMA ----------------------------------------------- 82 SOLO ELECTRONICS -------------------------- 207...
- Page 36 www.freeservicemanuals.info 5/10/2017 Setup Code Table Manufacturer/Brand Set-Up Code Number Cable Devices PARAGON ----------------------------------------- 52 PHILIPS -------------------------------------------- 006 012 013 020 085 095 PIONEER ------------------------------------------ 103 034 051 063 076 105 PRUCER ------------------------------------------- 59 PTS -------------------------------------------------- 011 071 074 PULSAR ------------------------------------------- 52 RCA ------------------------------------------------- 47 RECOTON ----------------------------------------- 98 REGAL --------------------------------------------- 049 050...
- Page 37 LUXMAN ------------------------------------------ 011 028 070 076 LXI -------------------------------------------------- 59 MAGNAVOX ------------------------------------- 044 107 MARANTZ ---------------------------------------- 027 041 044 051 077 107 209 McINTOSH ---------------------------------------- 001, 212 MCS ------------------------------------------------- 014 073 092 MEMOREX ---------------------------------------- 10 MISSION ------------------------------------------- 044 107 MITSUBISHI -------------------------------------- 179...
- Page 38 GE --------------------------------------------------- 026 027 HARMAN KARDON ---------------------------- 84 JVC -------------------------------------------------- 12 LG --------------------------------------------------- 091 057 074 MAGNAVOX ------------------------------------- 66 MARANTZ ---------------------------------------- 83 McINTOSH ---------------------------------------- 001 MITSUBISHI -------------------------------------- 17 NAD ------------------------------------------------ 88 ONKYO -------------------------------------------- 076 035 PANASONIC -------------------------------------- 021 042 PHILIPS -------------------------------------------- 66...
- Page 39 www.freeservicemanuals.info 5/10/2017 Manufacturer/Brand Set-Up Code Number LV Devices SHARP --------------------------------------------- 152 013 SONY ----------------------------------------------- 053 110 TECHNICS ---------------------------------------- 113 THETA DIGITAL --------------------------------- 32 TOSHIBA ------------------------------------------ 152 106 YAMAHA ------------------------------------------ 043 129 Manufacturer/Brand Set-Up Code Number SAT Devices ALPHASTAR ------------------------------------- 123 AMPLICA ----------------------------------------- 50 BIRDVIEW ---------------------------------------- 129 113 051 126 BSR ------------------------------------------------- 53...
- Page 40 www.freeservicemanuals.info 5/10/2017 Setup Code Table Manufacturer/Brand Set-Up Code Number SAT Devices STARCAST ---------------------------------------- 41 SUPERGUIDE ------------------------------------ 020 124 125 TEECOM ------------------------------------------- 023 026 075 087 088 090 107 130 137 TOSHIBA ------------------------------------------ 002 127 TOWN & COUNTRY ---------------------------- 023 026 UNIDEN ------------------------------------------- 016 025 042 043 044 045 048 049 078 079 080 086 101 135 136 VIEWSTAR ---------------------------------------- 115 WINEGARD --------------------------------------- 128 146...
- Page 41 www.freeservicemanuals.info 5/10/2017 Manufacturer/Brand Set-Up Code Number TV Devices CETRONIC ---------------------------------------- 43 CITIZEN ------------------------------------------- 197 002 003 004 043 101 103 143 CLASSIC ------------------------------------------- 43 CONCERTO --------------------------------------- 4 CONTEC ------------------------------------------- 043 050 051 CORONADO -------------------------------------- 143 CRAIG ---------------------------------------------- 043 054 CROWN -------------------------------------------- 043 143 CURTIS MATHES -------------------------------- 197 101 004 143 CXC ------------------------------------------------- 43 DAEWOO ------------------------------------------ 004 016 043 044 076 103 114 125 127 143...
- Page 42 www.freeservicemanuals.info 5/10/2017 Setup Code Table Manufacturer/Brand Set-Up Code Number TV Devices PHILCO -------------------------------------------- 197 003 024 056 059 060 063 064 164 004 PHILIPS -------------------------------------------- 197 003 004 005 038 059 093 164 127 PIONEER ------------------------------------------ 197 018 023 025 116 135 190 PORTLAND --------------------------------------- 004 143 PROSCAN ----------------------------------------- 144 160 161 165 167 PROTON ------------------------------------------- 004 058 131 143 171 173 193...
- Page 43 www.freeservicemanuals.info 5/10/2017 Manufacturer/Brand Set-Up Code Number VCR Devices AIWA ----------------------------------------------- 034 161 AKAI ----------------------------------------------- 016 043 046 124 125 142 146 AMPRO -------------------------------------------- 72 ANAM ---------------------------------------------- 31 AUDIO DYNAMICS ---------------------------- 012 023 039 043 BROOKSONIC ----------------------------------- 035 037 129 CANON -------------------------------------------- 028 031 CAPEHART --------------------------------------- 108 CRAIG ---------------------------------------------- 003 040 135 CURTIS MATHES -------------------------------- 031 041...
- Page 44 www.freeservicemanuals.info 5/10/2017 Setup Code Table RADIO SHACK ---------------------------------- 123 RCA ------------------------------------------------- 013 020 041 107 109 140 144 145 147 034 040 158 REALISTIC ---------------------------------------- 003 008 010 014 031 034 040 053 054 101 RICO ------------------------------------------------ 58 RUNCO -------------------------------------------- 148 SALORA ------------------------------------------- 14 SAMSUNG ---------------------------------------- 032 040 066 102 104 107 109 112 113 115 120 122 125 SANSUI -------------------------------------------- 022 043 048 135...
- Page 45 www.freeservicemanuals.info 5/10/2017 Specifications and Packing Instructions Specifications Packing Instructions Operating range Power Requirements Battery Requirements Overall Dimensions Weight Digitized in Heiloo Netherland...
- Page 46 McIntosh’s. Therefore, will neither be binding upon please read this Warranty McIntosh nor change any of the carefully, because it contains provisions in this Warranty. rights, as well as limitations, Please also note, that if your...
- Page 47 (1) year from the date the Product to its original specifications. After when it was purchased from an Authorized McIn- repair, McIntosh shall return the Product to its tosh Dealer. owner at the owner’s expense. In the alternative,...
- Page 48 Warranty necessary de-installation of the Product, and In order to learn the name and address of the deliver or ship the Product to McIntosh at the nearest Authorized McIntosh Service Agency, address below, or to an Authorized McIntosh...
- Page 49 www.freeservicemanuals.info 5/10/2017 Digitized in Heiloo Netherland...
